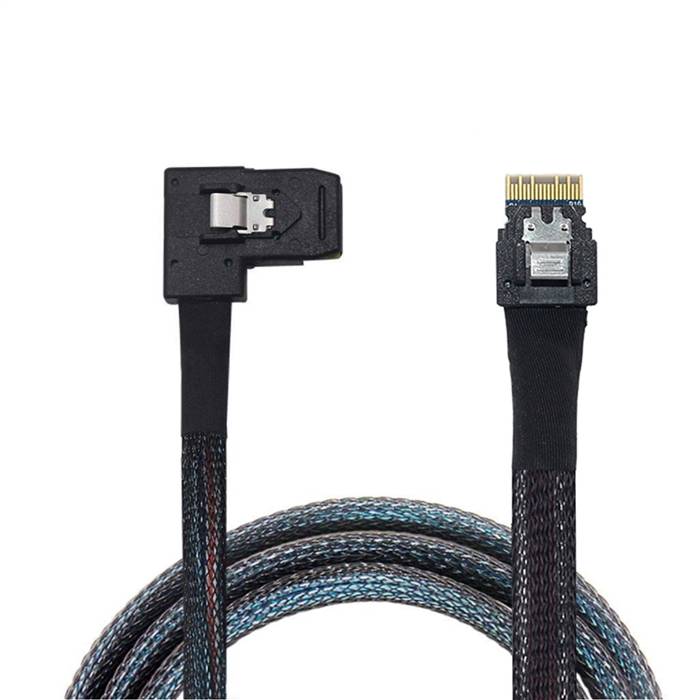

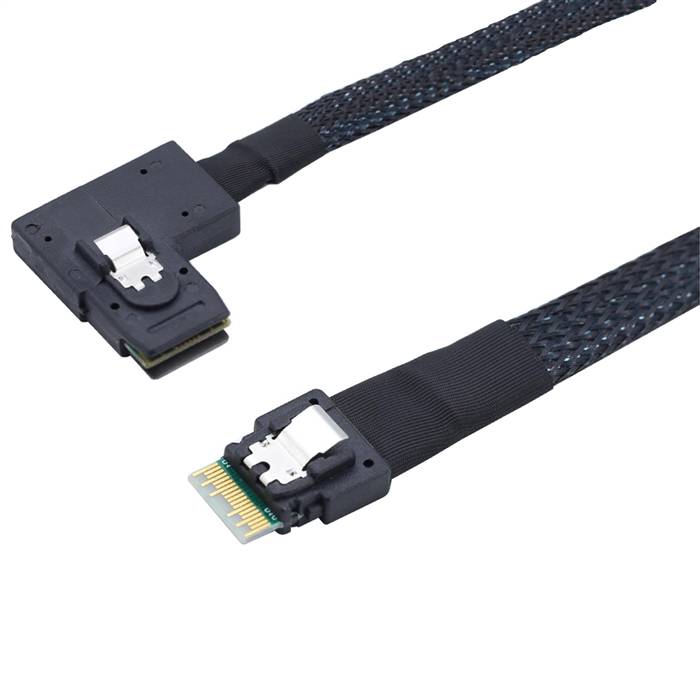

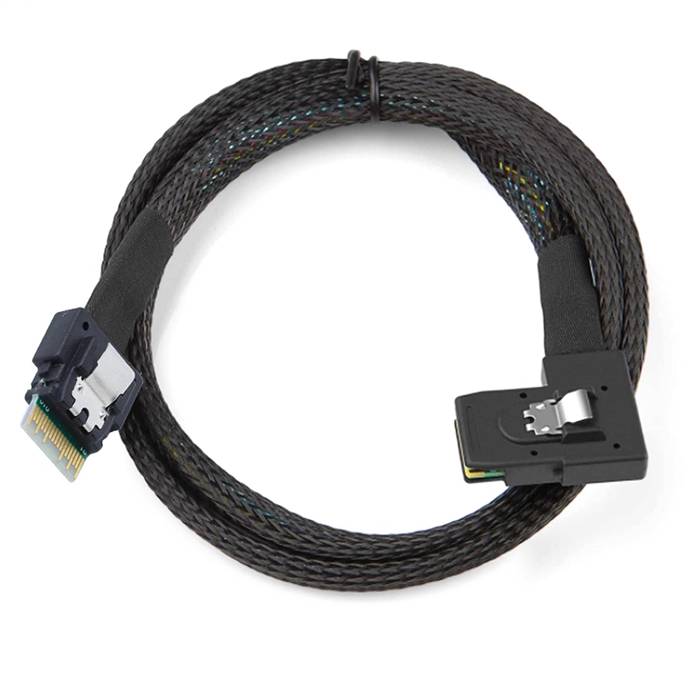

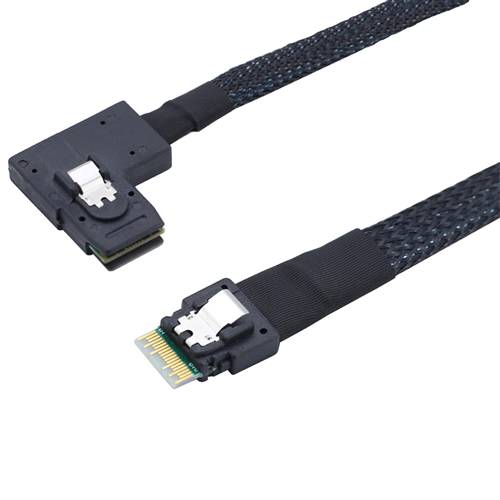

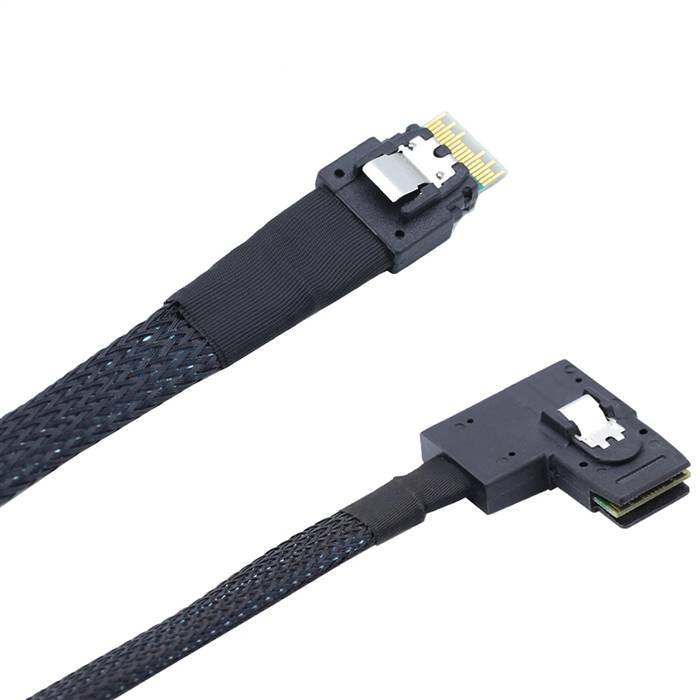

SlimSAS SFF-8654 4i to Right Bend Internal Mini SAS SFF-8087 36P Cable

The SlimSAS SFF-8654 4i to Right Bend Internal Mini SAS SFF-8087 36P Cable is a high-performance internal server cable designed for enterprise storage systems and data center environments. This cable provides a reliable interface conversion from the modern SlimSAS (SFF-8654) 4-lane host interface to the Internal Mini SAS SFF-8087 36-pin connector with a right-angle bend design. Engineered to support high-speed data transfer protocols, this solution ensures seamless connectivity between modern host systems and legacy SAS drive infrastructures while optimizing space utilization through its right-bend connector orientation.

Features

• Right-Angle Connector Design: Features a right-bend Internal Mini SAS SFF-8087 connector specifically engineered for space-constrained installations, enabling efficient cable routing and minimizing obstruction in high-density server environments
• Hybrid Interface Solution: Bridges the modern SlimSAS SFF-8654 4i interface with the legacy Internal Mini SAS SFF-8087 connector, providing backward compatibility for existing storage infrastructures
• High-Speed Data Support: Supports SAS protocols with data transfer speeds up to 12Gbps (SAS 2.1 specification), ensuring reliable performance for enterprise storage applications
• Enhanced Signal Integrity: Utilizes precision-engineered cables with multi-layer shielding to minimize signal degradation, crosstalk, and electromagnetic interference
• Space-Optimized Configuration: The right-bend connector design reduces required clearance space, making it ideal for high-density server configurations and storage setups
• Secure Connection System: Incorporates robust connectors with positive latching mechanisms to ensure stable connections in vibration-prone environments
• Thermal Management: The optimized design contributes to improved airflow management in densely packed server configurations

Specifications

• Product Model: SlimSAS SFF-8654 4i to Right Bend Internal Mini SAS SFF-8087 36P Cable
• Connector A: SlimSAS (SFF-8654) 4i, 38-Position, Male, Straight
• Connector B: Internal Mini SAS (SFF-8087) 36-Position, Male, Right Bend
• Connector Gender: Male to Male
• Cable Type: Straight to Right Bend
• Cable Length: 0.5m, 1.0m standard options
• Data Rate Support: Up to 12Gbps (SAS 2.1)
• Supported Protocols: SAS 2.0/2.1, SATA 3.0
• Wire Gauge: 30-32 AWG
• Impedance: 85 ? differential impedance
• Shielding: Individual pair shielding with overall braid and foil shield
• Operating Temperature: -40°C to +85°C
• Insertion Loss: Complies with SAS 2.1 specifications
• Return Loss: Meets SAS 2.1 requirements
• Durability: Minimum 250 mating cycles

Applications

• Enterprise Storage Systems: Connecting host bus adapters with SlimSAS interfaces to legacy SAS drive backplanes using Internal Mini SAS connectors
• Data Center Infrastructure: Deploying in data center environments where modern servers need to connect to existing storage infrastructures with space constraints
• Server Manufacturing: Used by server OEMs for configurations requiring right-angle connectors to maximize component density and optimize internal layout
• Storage Array Expansion: Facilitating storage system upgrades and expansions by enabling modern controllers to connect with legacy SAS drive enclosures
• High-Density Server Configurations: Ideal for 1U and 2U server environments where right-angle connectors are essential for component clearance and space optimization
• Data Backup Solutions: Supporting backup storage systems and archival solutions that utilize SAS drives with space-optimized connectivity
• System Integration Projects: Enabling integration between newer server platforms and existing storage infrastructures with specific spatial requirements
