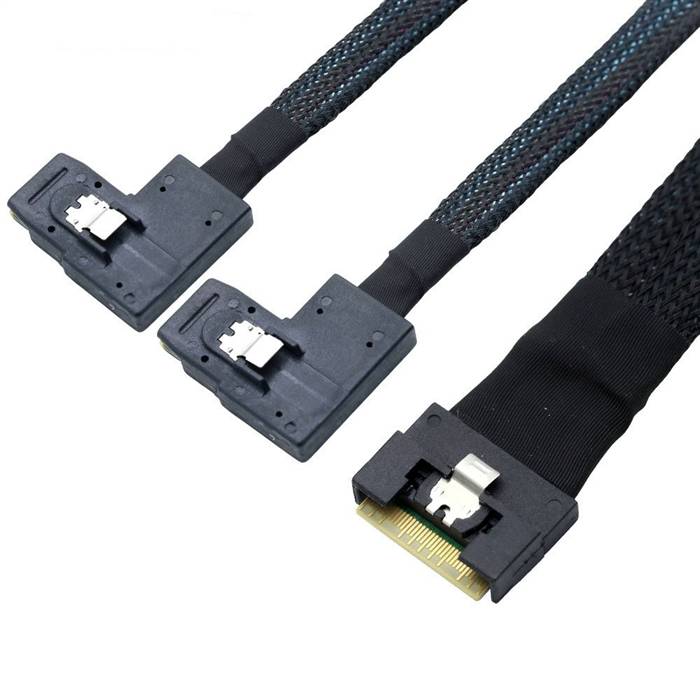

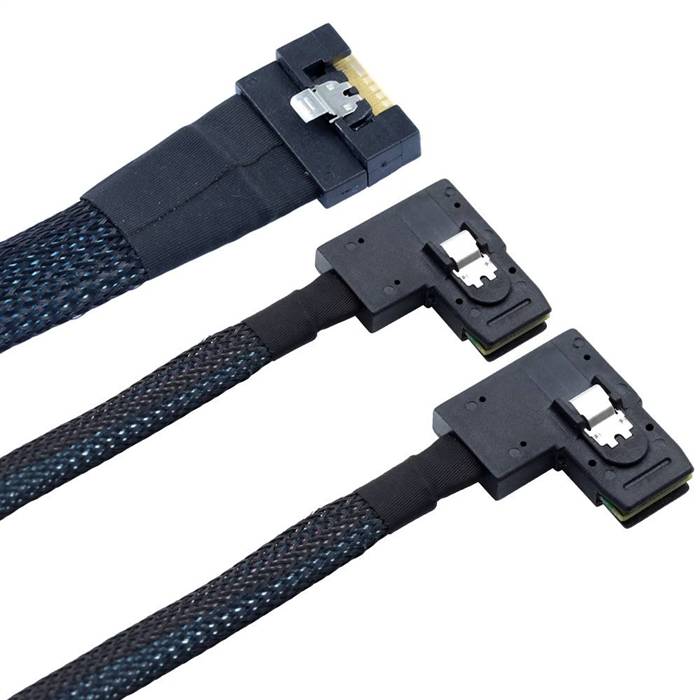

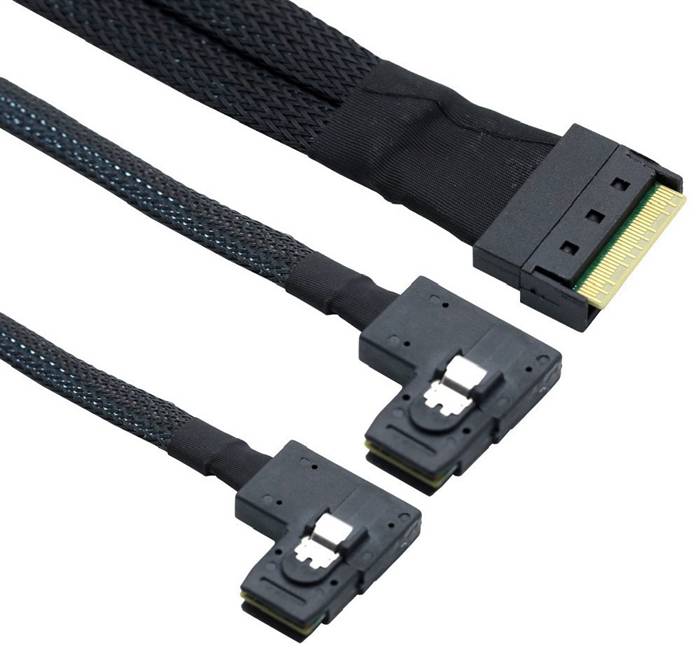

CAB-8654i8-2x8087RE | SlimSAS SFF-8654 8i (Anti-slant Insertion) to 2x Right Exit Mini SAS SFF-8087 36P Cable
CAB-8654i8-2x8087RE | SlimSAS SFF-8654 8i (Anti-slant Insertion) to 2x Right Exit Mini SAS SFF-8087 36P Cable

Alternative Views:
Our Price: $32.00

Warranty: 1 Year Warranty
Availability: In Stock
Leadtime: Usually ships within 2 Business Days


Product Code: CAB-8654I8-2X8087RE


Compatibility: 		Please input the brand and model of the device on which you will install this cable.

Select Length*:

Qty:
Description

SlimSAS SFF-8654 8i (Anti-slant Insertion) to 2x Right Exit Mini SAS SFF-8087 36P Cable.

Features
  • Smaller size connectors and cables save equipment space
  • Provide 8-channel signal transmission according to industry standards
  • Data speed: each channel supports UPI 11.2GT/s, SAS4.0 24Gbps, OpenCAPI 25Gbps and PCIe4.0 16Gbps
  • Comply with SAS4.0 and SlimSAS SFF-8654 specifications

Mechanical behavior
  • Combining force: 55.5N max
  • Release force: 49N max
  • Rated durability period: at least 250 cycles

Electrical performance
  • Voltage: 30VDC per contact SlimSAS 8i plug: maximum 80mohm initial, maximum 20mohm after pressure test.
  • Dielectric withstand voltage: minimum 300 VDC for 100 ms
  • Insulation resistance: the minimum value between adjacent pins is 10MΩ

Signal integrity
  • Impedance of mating connector: 100 +/- 10% ohm
  • Common mode impedance: in line with SAS4.0 specifications
  • Insertion loss: in line with SAS4.0 specification,
  • Maximum crosstalk: in line with SAS4.0 specifications

Applications
  • Server
  • Data storage
  • Workstation
