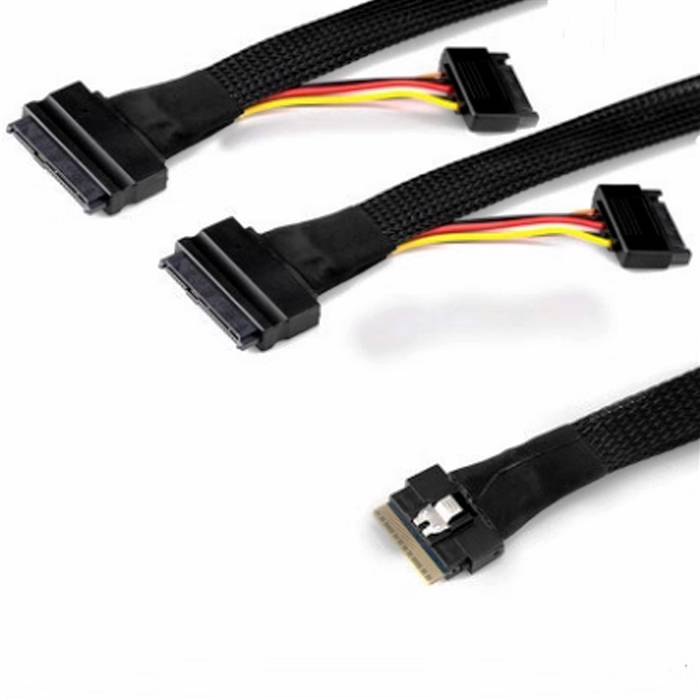

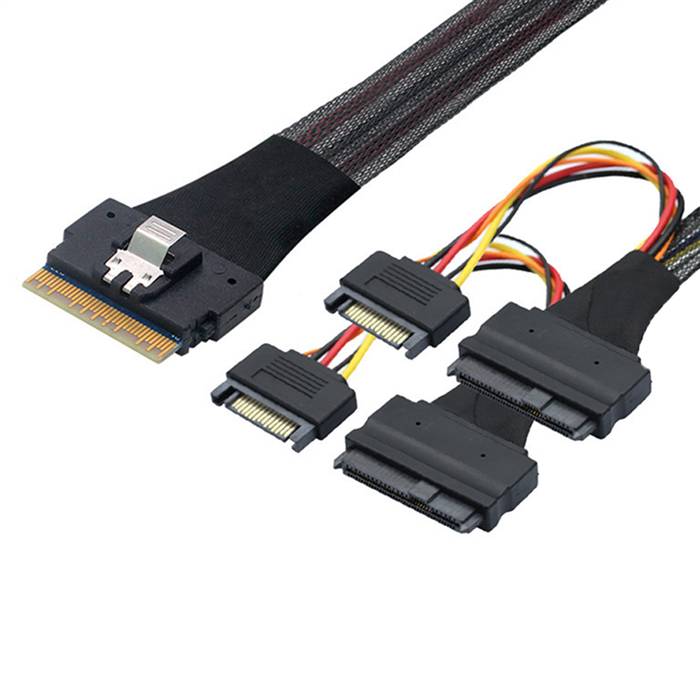

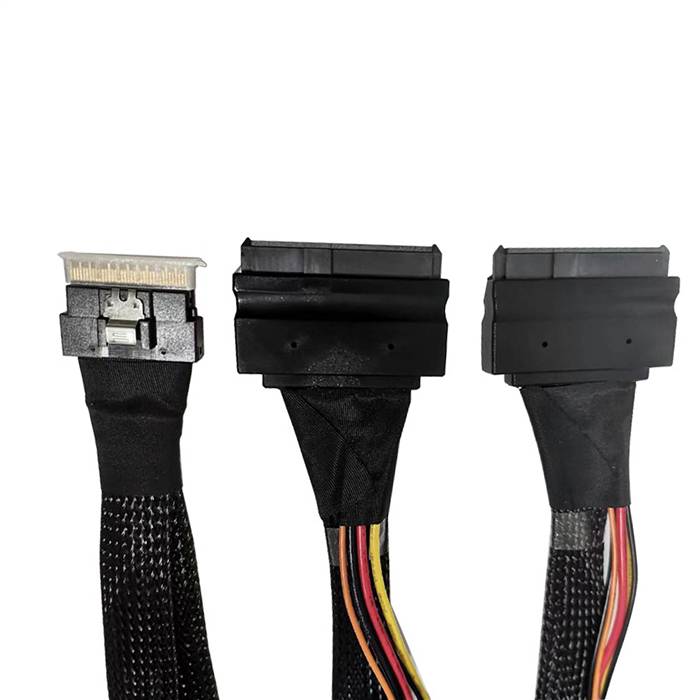

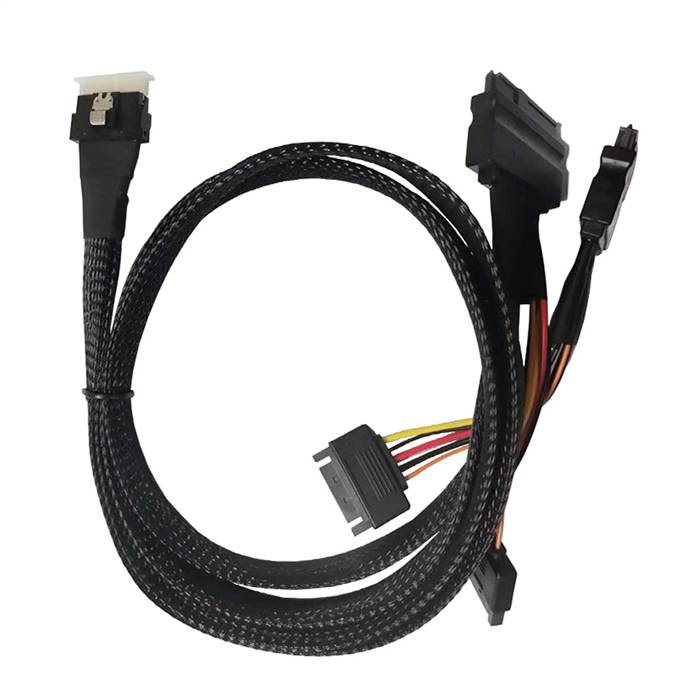

SlimSAS SFF-8654 8i to 2 U.2 SFF-8639 with 15P Power Cable

The SlimSAS SFF-8654 8i to 2 U.2 SFF-8639 with 15P Power Cable is a high-performance hybrid solution designed for enterprise NVMe storage deployment. This cable converts a single SlimSAS 8i host interface into two independent U.2 interfaces, each with integrated 15-pin power connectors. Engineered for modern data centers, it provides complete connectivity for U.2 NVMe SSDs by combining high-speed data transmission and power delivery in a single cable assembly, simplifying storage infrastructure while optimizing rack space utilization.

Features

• Integrated Power and Data: Combines PCIe data transmission and power delivery in one cable
• Dual U.2 Connectivity: Splits one 8i host port into two U.2 interfaces for NVMe SSDs
• High Speed Performance: Supports PCIe 4.0 with data rates up to 16 GT/s per lane
• Space Efficient Design: SlimSAS connectors enable high-density server configurations
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching
• Reliable Power Delivery: 15-pin connectors provide stable power for U.2 devices

Specifications

• Product Model: SlimSAS to Dual U.2 with Power Cable
• Host Connector: SlimSAS SFF-8654 8i, Male, Straight
• Device Connectors: 2x U.2 SFF-8639 + 15-pin Power, Male, Straight
• Data Rate Support: Up to 16 GT/s (PCIe 4.0)
• Supported Protocols: PCIe 4.0/3.0, NVMe 1.4
• Power Rating: 12V/5V, up to 9A per connector
• Wire Gauge: 30 AWG (signal), 20-22 AWG (power)
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles

Applications

• Enterprise NVMe Storage: Connecting host interfaces to U.2 NVMe SSDs in storage servers
• Data Center Expansion: Deploying high-density NVMe storage in hyperscale environments
• All-Flash Arrays: Supporting high-performance storage solutions requiring multiple U.2 connections
• Server Backplanes: Providing data and power connectivity for U.2 drive backplanes
• Cloud Infrastructure: Enabling efficient storage scaling in cloud server environments
• High Performance Computing: Supporting data-intensive applications requiring NVMe storage
