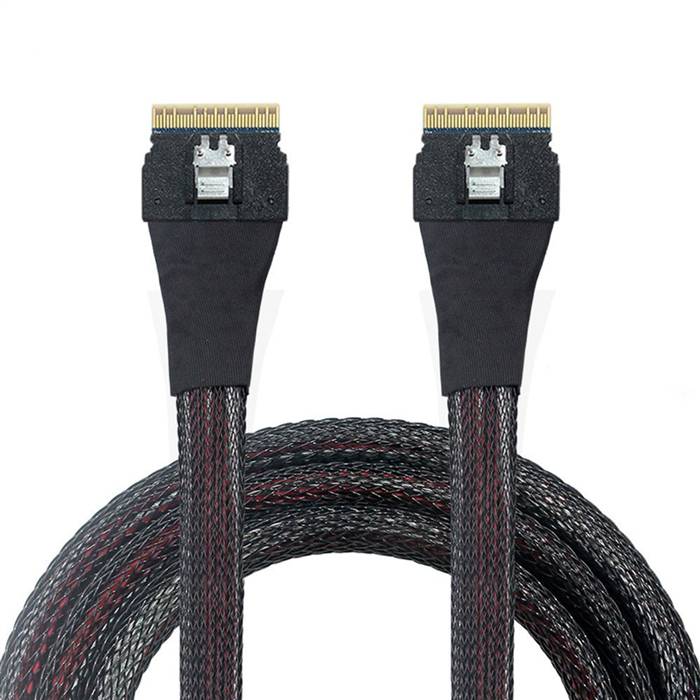

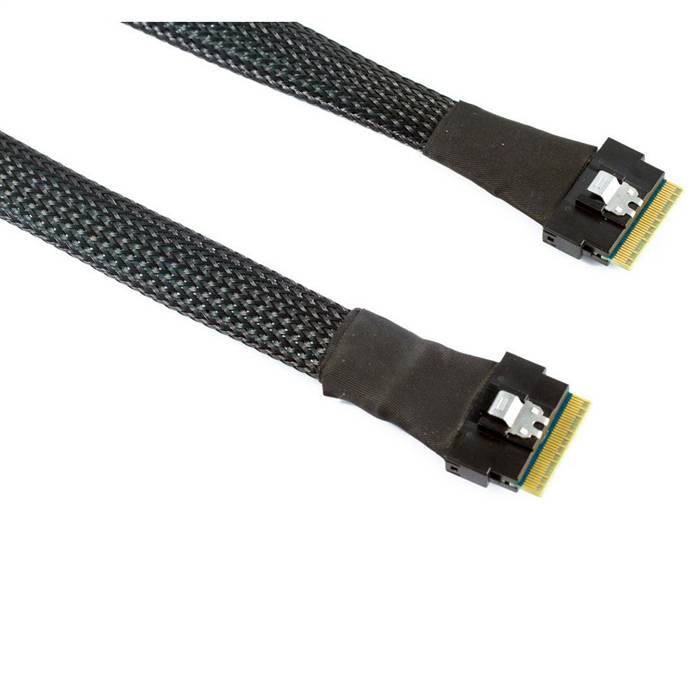

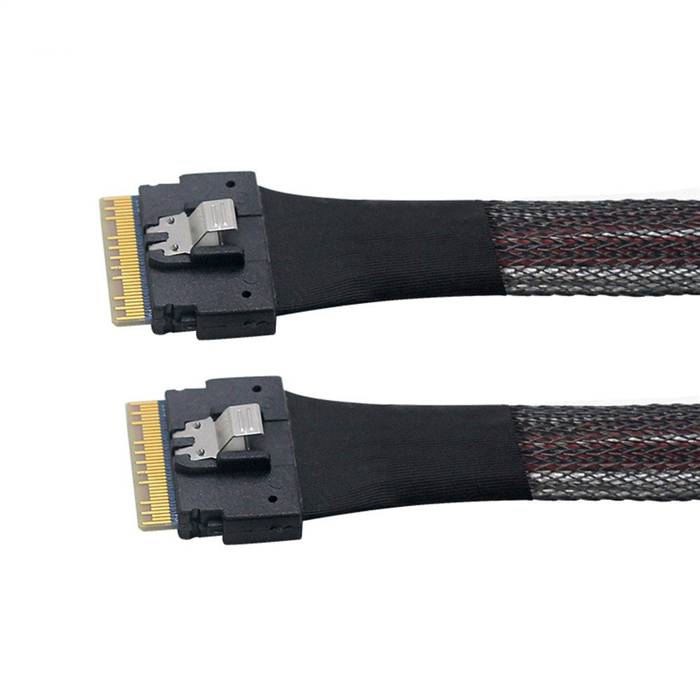

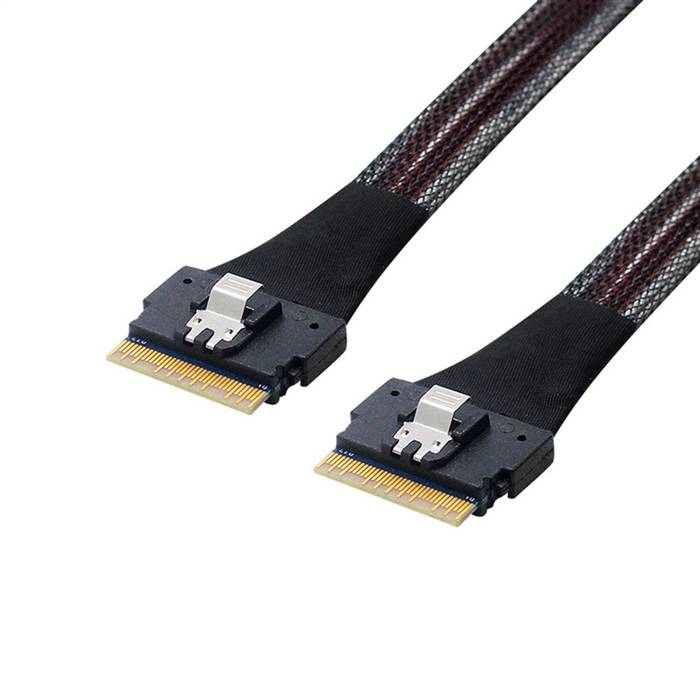

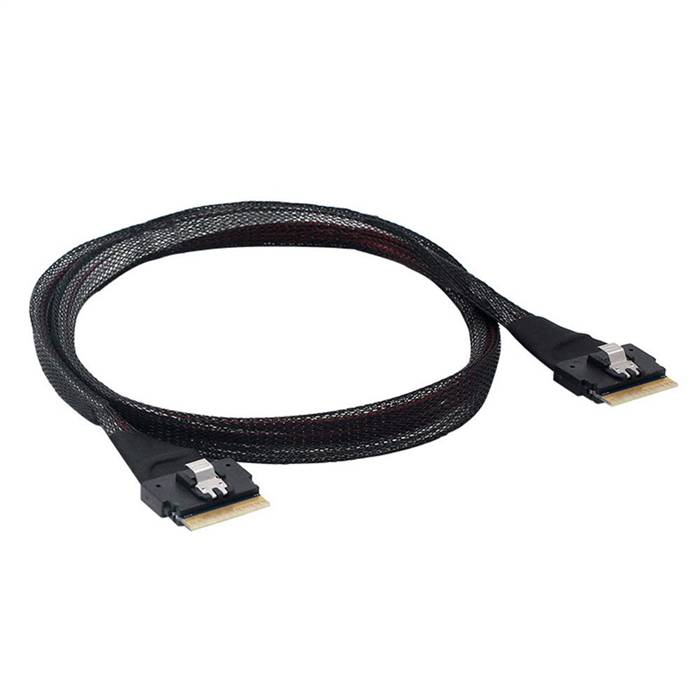

SlimSAS SFF-8654 8i to SlimSAS SFF-8654 8i Cable

The SlimSAS SFF-8654 8i to SlimSAS SFF-8654 8i Cable is a high-performance internal extension cable designed for enterprise storage systems and server applications. This straight-to-straight cable assembly provides a direct and reliable connection between two SlimSAS SFF-8654 8i interfaces, enabling flexible system configuration and expansion. Engineered to support high-speed data transmission protocols, this cable ensures optimal signal integrity while maintaining the compact form factor and high-density advantages of the SlimSAS connector system.

Features

• High Speed Performance: Supports data rates up to 24 Gbps (SAS 4.0) and PCIe 4.0 protocols
• Identical Connector Design: Straight SlimSAS SFF-8654 8i connectors on both ends ensure easy installation
• Superior Signal Integrity: Precision engineering with matched impedance and comprehensive shielding
• Space Efficient: Compact SlimSAS connectors enable high-density deployments in server environments
• Reliable Construction: Robust connectors with secure latching mechanisms ensure stable connections

Specifications

• Product Model: SlimSAS 8i to SlimSAS 8i Extension Cable
• Connector A: SlimSAS SFF-8654 8i, Male, Straight
• Connector B: SlimSAS SFF-8654 8i, Male, Straight
• Data Rate Support: Up to 24 Gbps (SAS 4.0), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 4.0/3.0, PCIe 4.0/3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: -20°C to +85°C
• Minimum Bend Radius: 30mm
• Durability Rating: 5,000 mating cycles

Applications

• Server Internal Expansion: Extending SlimSAS connections within rack servers and storage systems
• Data Center Infrastructure: Flexible cabling solutions for high-density data center environments
• Storage System Configuration: Connecting SlimSAS-based components in storage arrays and JBOD systems
• High Performance Computing: Supporting high-speed interconnections in HPC and cluster environments
• Test and Development: Laboratory and prototyping applications requiring SlimSAS extension cables
• System Integration: Enabling flexible component placement in custom server configurations
