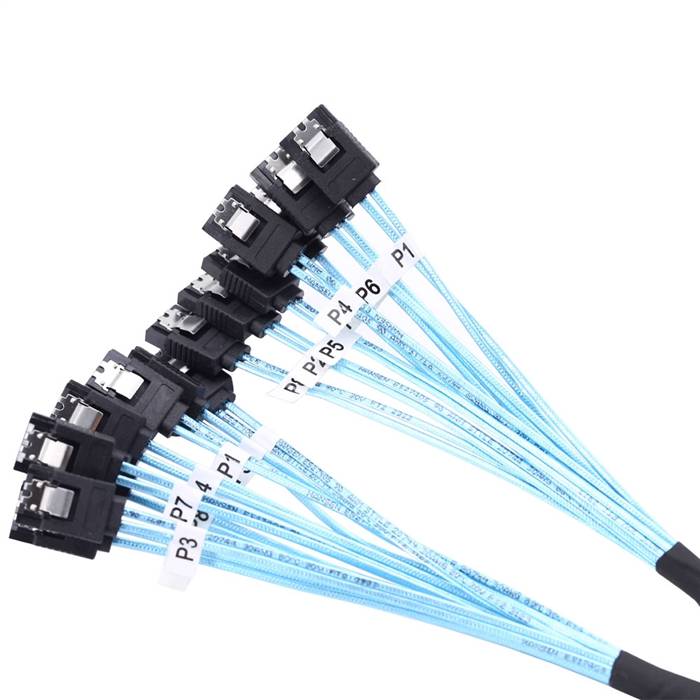

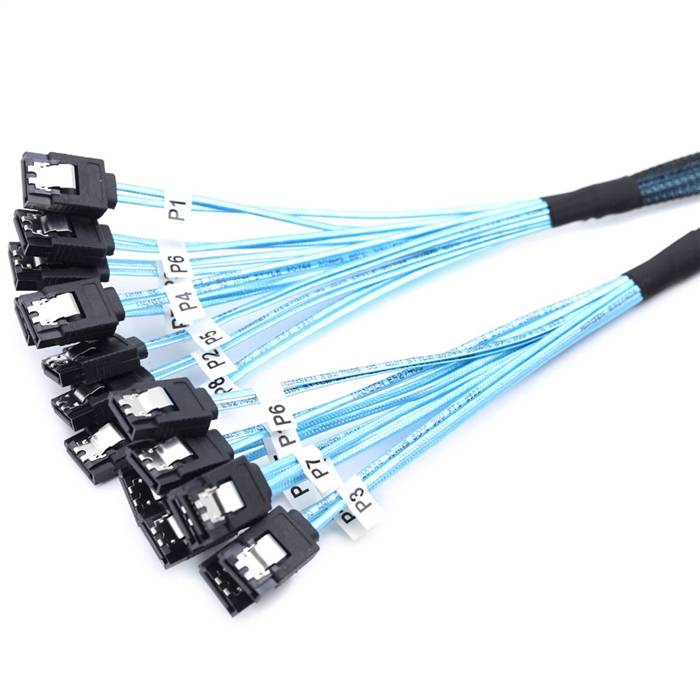

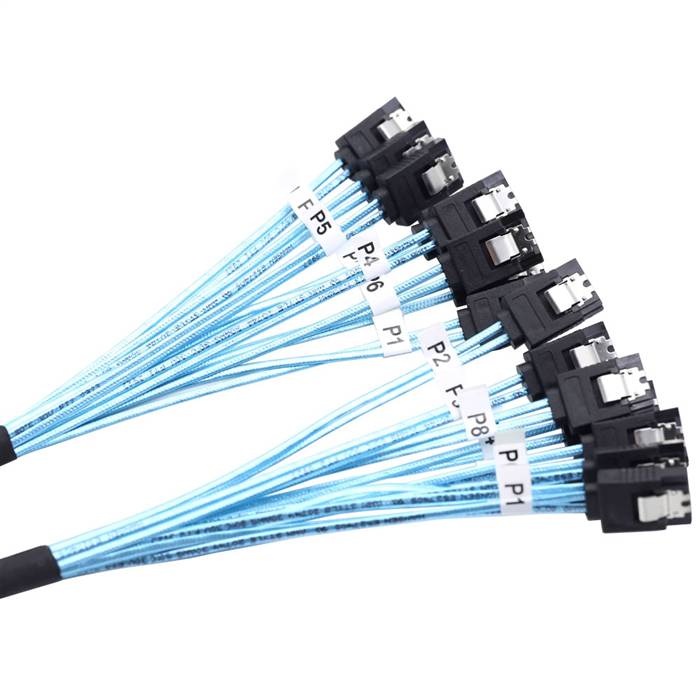

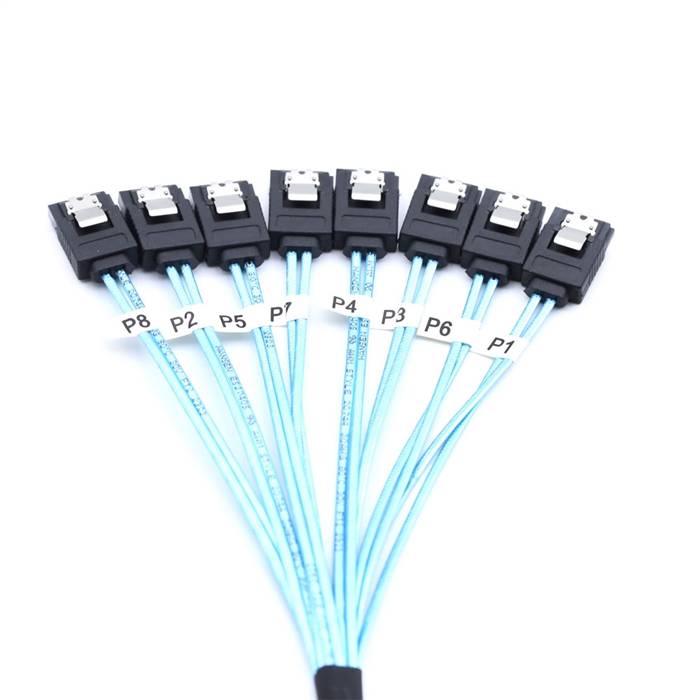

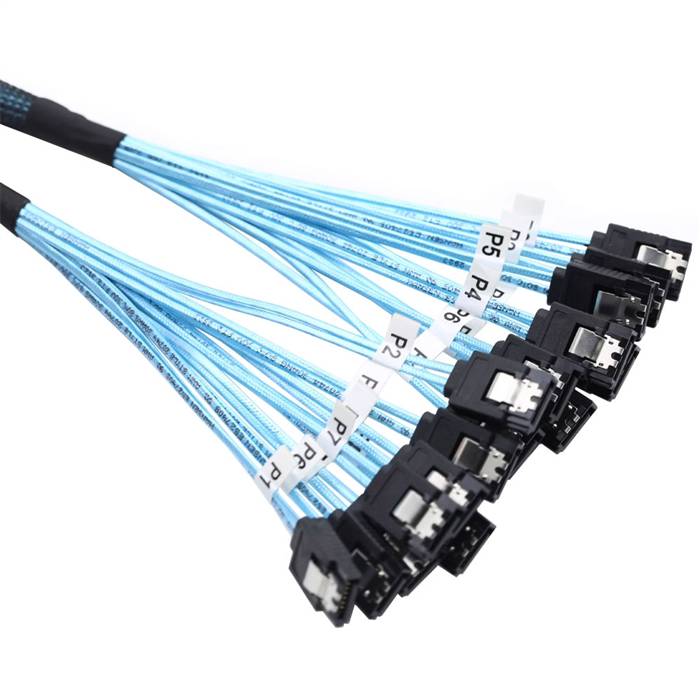

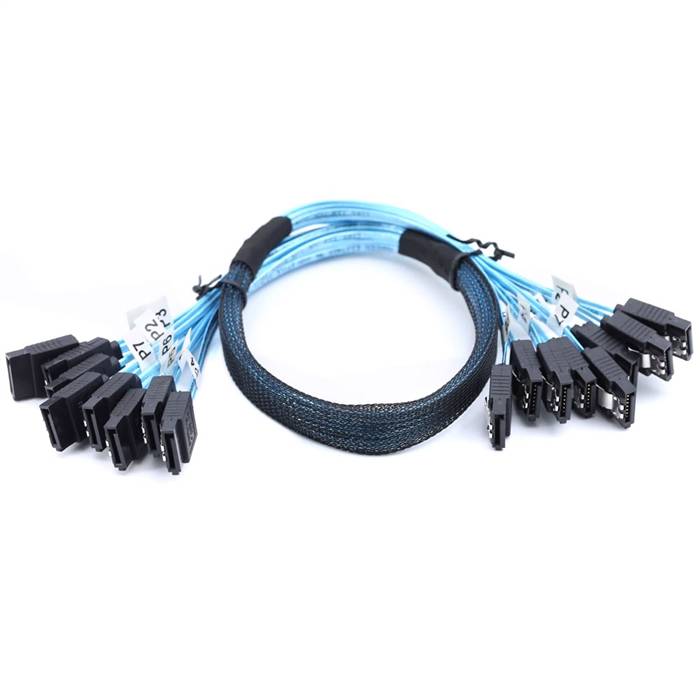

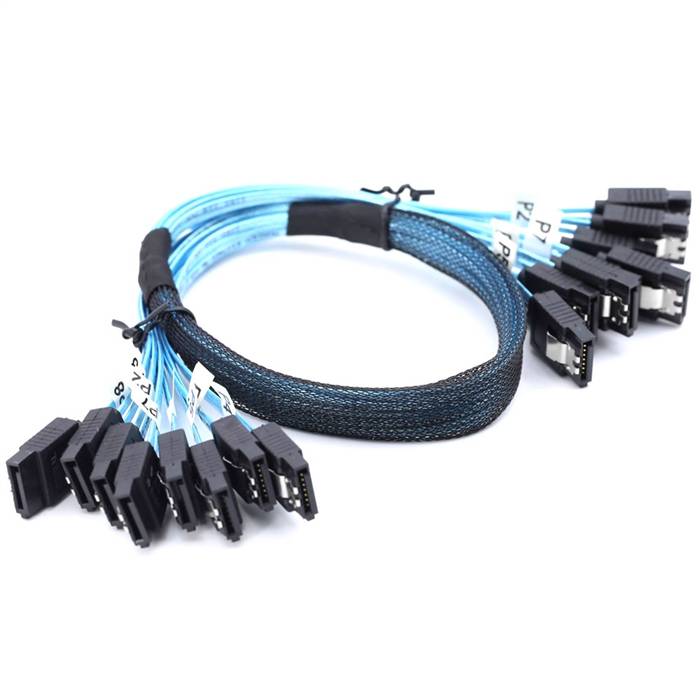

8 Straight SATA 7Pin to 8 Straight SATA 7Pin Cable

The 8 Straight SATA 7Pin to 8 Straight SATA 7Pin Cable is an ultra-high-density multi-lane connectivity solution designed for enterprise-level storage systems and data-intensive applications requiring maximum parallel data transmission capabilities. This cable provides eight independent point-to-point SATA channels within a single robust assembly, ensuring optimal signal integrity and simultaneous high-speed data transfer across all channels. Designed with precision-molded straight connectors on both ends, this solution supports the full SATA 3.0 specification while maintaining backward compatibility with earlier SATA standards. The straight connector configuration facilitates straightforward installation in diverse system layouts, making it ideal for large-scale storage arrays, high-performance servers, data centers, and other environments demanding organized, high-bandwidth SATA connectivity with minimal cable clutter.

Features

• Ultra-High-Density Multi-Lane Design: Eight independent SATA channels in a single cable assembly
• Dual Straight Connectors: Straight connectors on both ends for simplified installation and cable management
• High-Speed Data Transfer: Supports data rates up to 6 Gbps per channel (SATA 3.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and minimal crosstalk
• Secure Connection: Gold-plated contacts and robust latching mechanisms ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices
• Organized Cable Management: Single cable design reduces clutter and improves airflow in dense configurations
• Durable Construction: Molded strain relief and high-quality materials ensure long-term reliability

Specifications

• Product Model: 8x SATA Straight to Straight Multi-Lane Cable
• Connectors: 16x SATA 7-pin, Male, Straight (8 on each end)
• Data Rate Support: Up to 6 Gbps per channel (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Round Cable with Individual Channel Separation
• Wire Gauge: 30 AWG per channel
• Impedance: 100? ±10% per channel
• Shielding: Individual channel shielding with overall braid protection
• Cable Length: 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles per connector
• Minimum Bend Radius: 40mm

Applications

• Enterprise Storage Arrays: Connecting multiple drives in large-scale RAID configurations and storage enclosures
• High-Density Servers: Ideal for server backplanes requiring multiple simultaneous SATA connections
• Data Centers: Large-scale storage solutions demanding organized multi-drive connectivity
• NAS Systems: Network-attached storage devices with high drive bay counts
• Backup and Archive Systems: Data backup solutions requiring parallel storage connections
• OEM and System Integration: Designed for manufacturers needing high-density SATA solutions
• Test and Development Labs: Environments requiring multiple simultaneous SATA connections for validation
