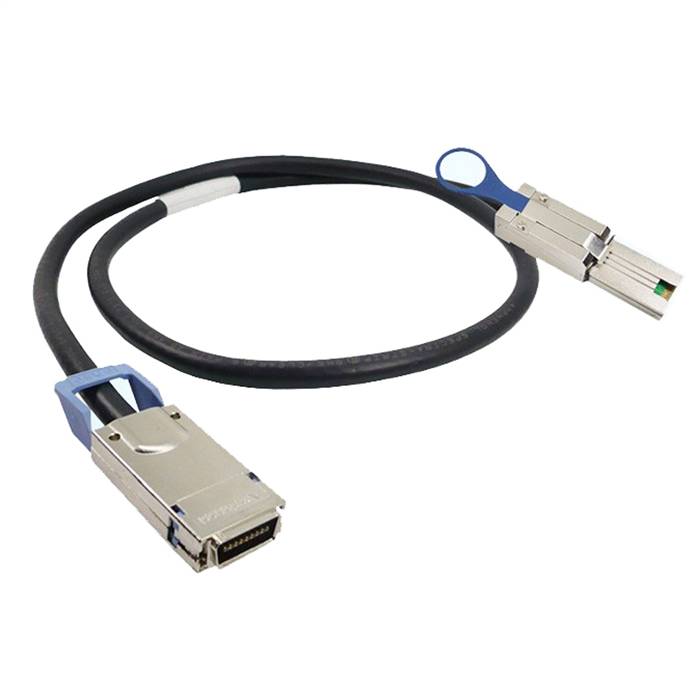

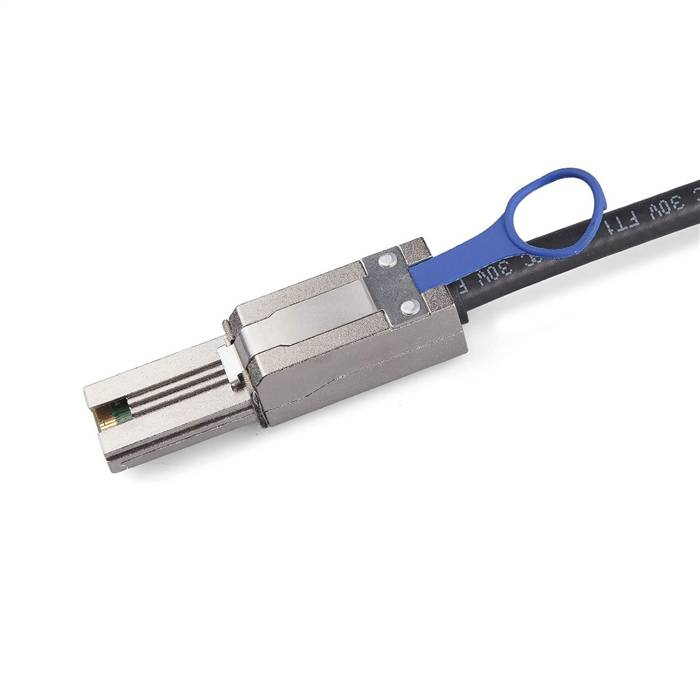

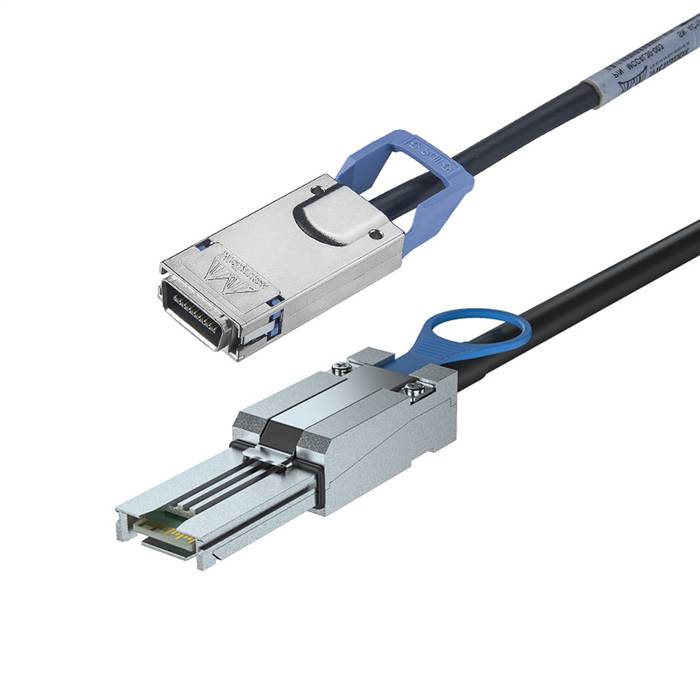

SFF-8470 CX4 with Ejectors to External Mini SAS SFF-8088 26P Cable

The SFF-8470 CX4 with Ejectors to External Mini SAS SFF-8088 26P Cable is a high-performance hybrid connectivity solution engineered for enterprise data centers and storage environments requiring seamless integration between InfiniBand-based systems and SAS infrastructure. This specialized cable facilitates reliable interface conversion between SFF-8470 CX4 connectors equipped with ejector mechanisms and External Mini SAS SFF-8088 interfaces, ensuring robust signal transmission across diverse protocols. Designed with precision impedance matching and advanced shielding, this cable maintains exceptional signal integrity while supporting high-speed data transfer. The ejector mechanism guarantees secure mating and easy disengagement, making it ideal for high-density racks and frequently reconfigured setups. Its durable external-grade construction withstands demanding operational conditions, serving as a critical component for modernizing legacy systems and enhancing storage network flexibility.

Features

• Hybrid Interface Conversion: Bridges CX4 SFF-8470 (with ejectors) to External Mini SAS SFF-8088 interfaces.
• Ejector Mechanism: Integrated ejectors ensure secure, vibration-resistant mating and effortless disconnection.
• High-Speed Data Transfer: Supports data rates up to 3 Gbps per channel (12 Gbps aggregate).
• Enhanced Signal Integrity: Precision-engineered with optimized impedance matching (100? ±10%) and reduced crosstalk.
• Robust Shielding: Multi-layer shielding includes individual pair shielding and overall braid protection for EMI/RFI suppression.
• Protocol Flexibility: Compatible with InfiniBand SDR/DDR and SAS 2.0/1.0 protocols.
• Durable Construction: Zinc alloy die-cast connectors and external-grade cable ensure longevity in harsh environments.
• Backward Compatibility: Enables integration of legacy InfiniBand equipment with modern SAS storage systems.

Specifications

• Product Model: CX4 with Ejectors to External Mini SAS Cable
• Host Connector: SFF-8470 CX4, 34-Position, Male, with Ejector Levers
• Device Connector: External Mini SAS SFF-8088, 26-Position, Male, with Locking Screws
• Data Rate Support: Up to 3 Gbps per channel (12 Gbps aggregate)
• Supported Protocols: InfiniBand SDR/DDR, SAS 2.0/1.0
• Cable Type: External Grade, Round Cable
• Wire Gauge: 28 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair foil shielding with overall braided protection
• Cable Length: 1m, 2m (standard lengths; custom options available)
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles (ejector mechanism)
• Minimum Bend Radius: 50mm

Applications

• High-Performance Computing (HPC): Connects InfiniBand clusters to SAS-based storage arrays in HPC environments.
• Data Center Modernization: Facilitates upgrades from legacy InfiniBand systems to SAS storage infrastructure.
• Storage Area Networks (SAN): Ideal for SAN setups requiring protocol conversion between InfiniBand and SAS.
• Server and Storage Integration: Links CX4-equipped servers to external SAS JBODs/RAID systems.
• Test and Development Labs: Used for prototyping and validating hybrid network-storage configurations.
• Telecommunications: Supports telecom infrastructure needing reliable InfiniBand-to-SAS interfacing.
• OEM and System Integration: Custom solutions for server manufacturers requiring backward-compatible connectivity.
• Cloud Infrastructure: Enhances flexibility in cloud data centers with mixed-protocol equipment.
