SFF-8470 CX4 to SFF-8470 CX4 Cable, Ejectors to Ejectors

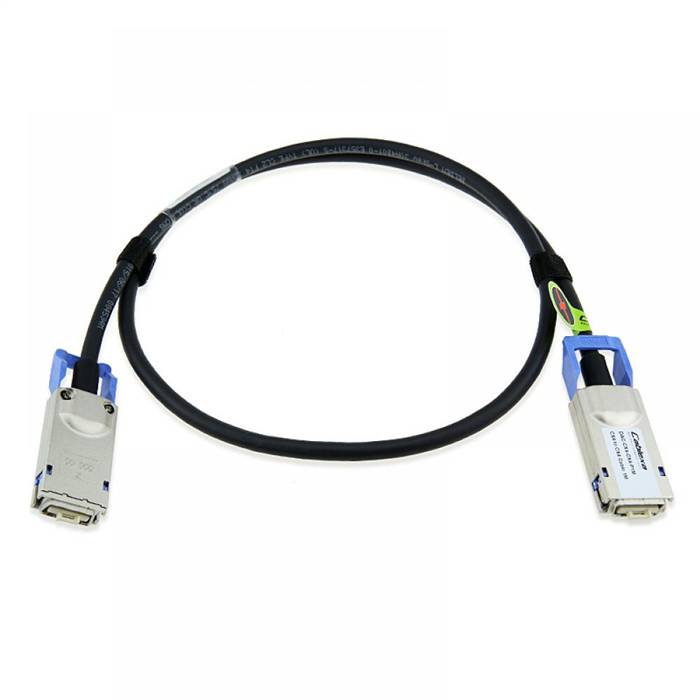

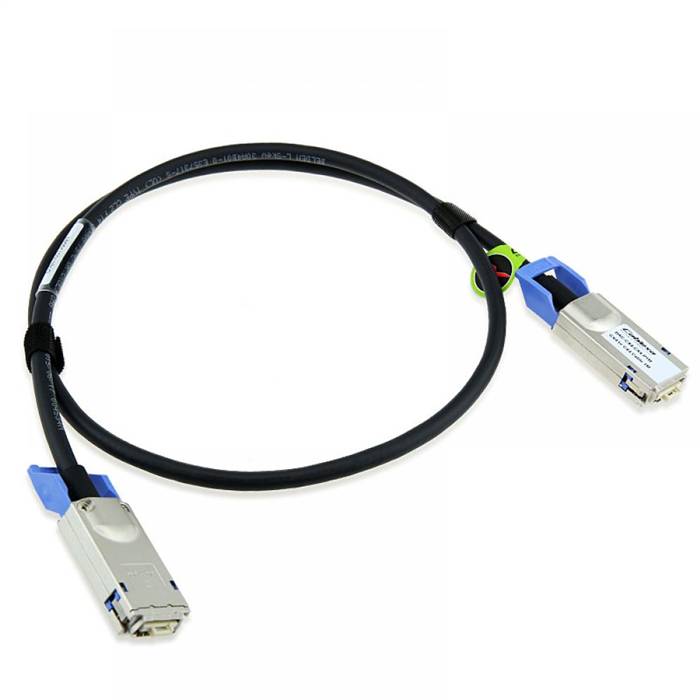

The SFF-8470 CX4 to SFF-8470 CX4 Cable with Ejectors to Ejectors is a high-performance external SAS copper cable designed for enterprise storage systems, data centers, and high-speed networking environments. This cable provides a reliable external connection between devices equipped with SFF-8470 CX4 interfaces, utilizing ejector-style latches for secure mechanical coupling. Engineered to support high-speed data transfer protocols including SAS, InfiniBand, and 10-Gigabit Ethernet, this solution ensures efficient performance in demanding applications such as storage area networks (SANs), high-performance computing (HPC), and server-to-switch connections. The robust construction with zinc alloy connectors and multi-layer shielding makes it ideal for environments where durability and signal integrity are critical.

Features

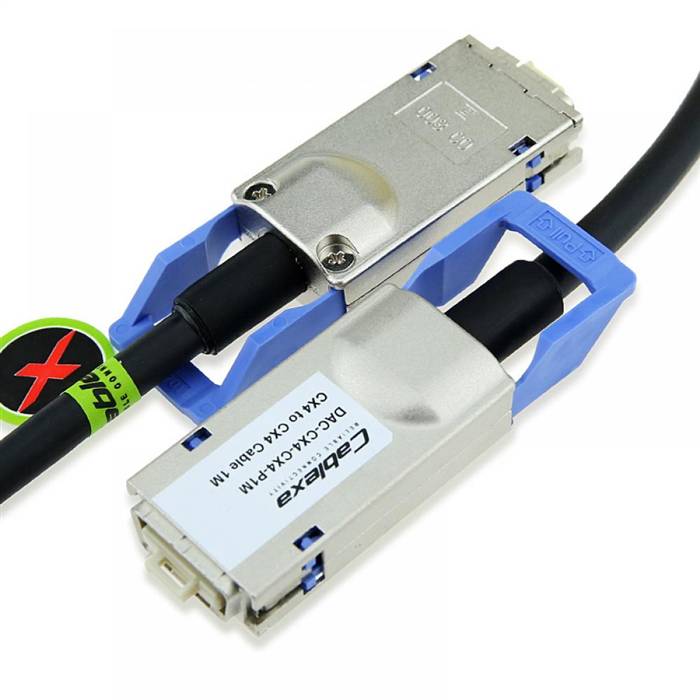

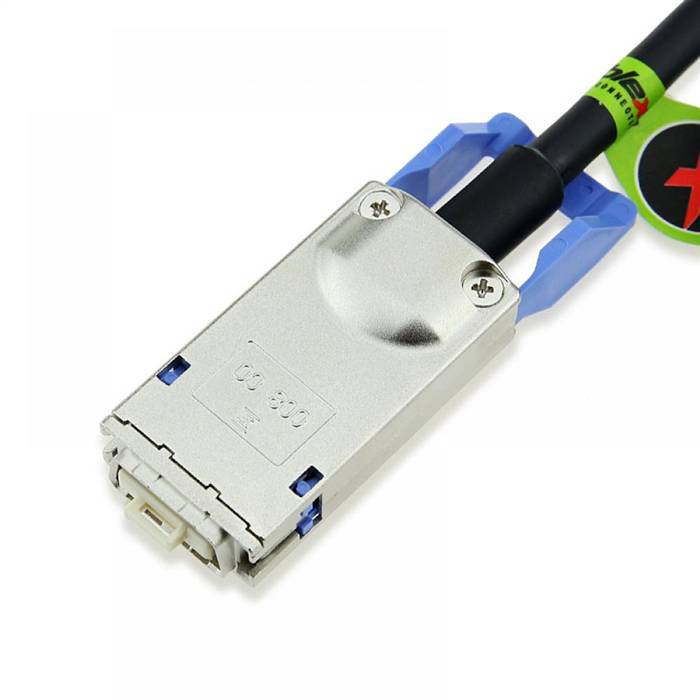

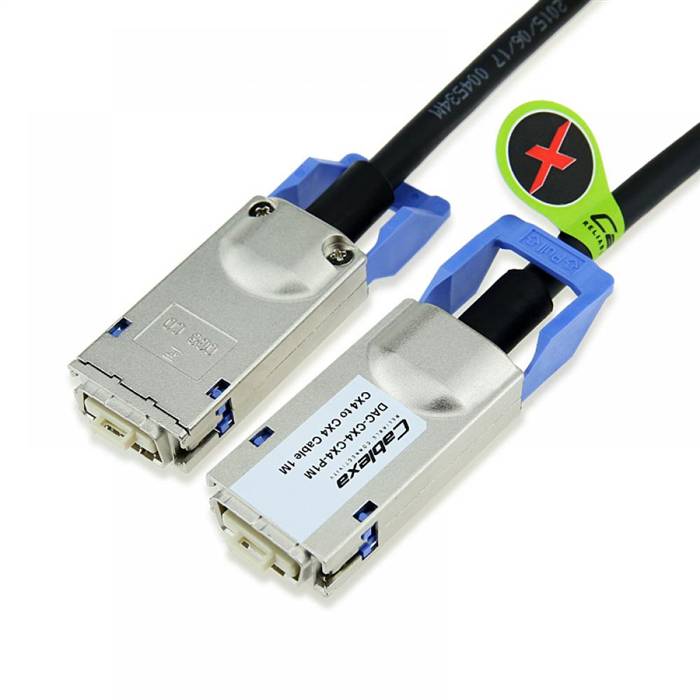

• Secure Ejector Latch Design: Features ejector-style latches on both connectors to ensure a secure, vibration-resistant connection, preventing accidental disengagement in demanding environments while allowing for easy insertion and removal.
• High-Speed Data Support: Supports data transfer rates up to 10 Gbps (10GbE) and 12 Gbps (SAS 2.1), ensuring compatibility with high-bandwidth applications like 10-Gigabit Ethernet, SAS expansions, and InfiniBand SDR/DDR.
• Enhanced Signal Integrity: Utilizes high-quality copper cables (e.g., 24AWG or 28AWG) with precision impedance matching (100 Ohm) and multi-layer shielding (foil and braid) to minimize signal degradation, crosstalk, and electromagnetic interference (EMI), ensuring stable data transmission.
• Durable External Construction: Designed for external use with zinc alloy connectors and metal shells providing robust protection against physical damage and environmental factors. The ejector latch design enhances reliability in rigorous data center operations.
• Backward Compatibility: While optimized for SAS 2.1 and 10GbE, the cable maintains compatibility with earlier SAS standards (e.g., SAS 1.0/2.0) and InfiniBand applications, offering flexibility in mixed storage environments.
• Thermal Management: Operates within a wide temperature range (0°C to +70°C standard; -40°C to +85°C industrial options available), ensuring reliability in varying environmental conditions.

Specifications

• Product Model: SFF-8470 CX4 to SFF-8470 CX4 Cable (Ejectors to Ejectors)
• Connector A: SFF-8470 CX4, Male, Ejector Latches
• Connector B: SFF-8470 CX4, Male, Ejector Latches
• Connector Gender: Male to Male
• Cable Type: External Passive Copper Cable
• Cable Length: Standard options: 5m, 6m, 7m, 8m, 9m, 10m, 15m (Custom lengths up to 15m available)
• Data Rate Support: Up to 10 Gbps (10GbE), 12 Gbps (SAS 2.1)
• Supported Protocols: SAS 1.0/2.0/2.1, 10-Gigabit Ethernet (10GBASE-CX4), InfiniBand SDR/DDR
• Wire Gauge: 24AWG or 28AWG (high-quality copper)
• Impedance: 100 Ohms
• Shielding: Foil and braid shielding for EMI protection
• Operating Temperature: Standard: 0°C to +70°C; Industrial: -40°C to +85°C (options available)
• Compliance: RoHS compliant, UL-approved components
• Durability: Minimum 1,000 insertion cycles

Applications

• Storage Area Networks (SANs): Connecting external storage arrays, JBOD enclosures, or RAID controllers with SFF-8470 interfaces in enterprise SAN environments, facilitating high-speed data transfer for storage expansions.
• High-Performance Computing (HPC): Supporting HPC clusters and AI training servers that require low-latency, high-bandwidth connections between compute nodes and storage systems using InfiniBand or 10GbE protocols.
• Data Center Networking: Deploying in data centers for 10-Gigabit Ethernet applications, connecting switches, servers, and storage devices with SFF-8470 ports, ensuring efficient network performance.
• Server and Switch Interconnects: Providing reliable connections between servers and switches in rack environments, where the ejector latch design ensures stability in vibration-prone settings while allowing for easy maintenance.
• Backup and Disaster Recovery: Facilitating high-speed backups and data replication between external storage systems, leveraging the robust design for reliable operations in disaster recovery scenarios.
• System Integration and Retrofitting: Enabling integration of legacy storage systems with modern infrastructure, supporting backward compatibility for cost-effective upgrades and expansions.
