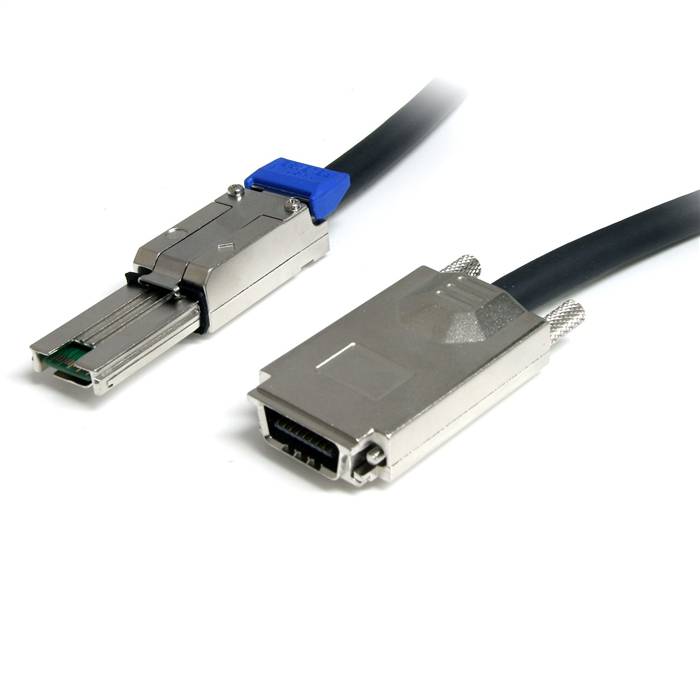

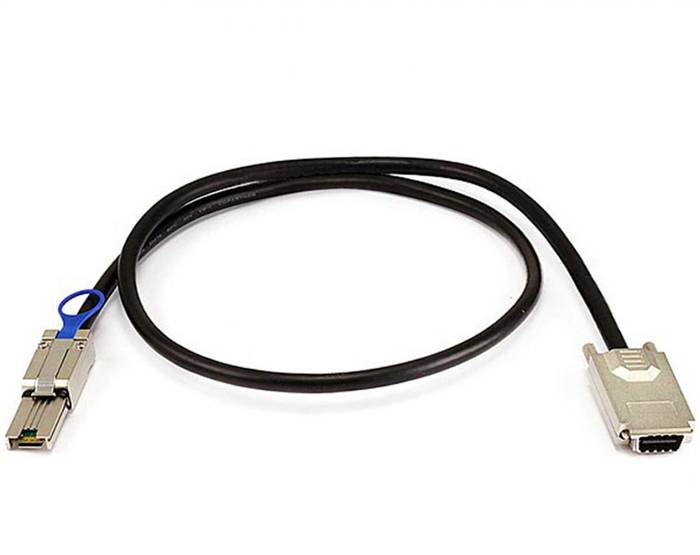

SFF-8470 CX4 with Thumbscrews to External Mini SAS SFF-8088 26P Cable

The SFF-8470 CX4 with Thumbscrews to External Mini SAS SFF-8088 26P Cable is a high-performance hybrid connectivity solution designed for enterprise storage systems and data center environments requiring interface conversion between CX4 InfiniBand equipment and SAS infrastructure. This specialized cable provides a reliable connection between SFF-8470 CX4 connectors with thumbscrew mechanisms and External Mini SAS SFF-8088 interfaces, enabling seamless integration of InfiniBand-based systems with SAS storage environments. Engineered with precision signal integrity features, this solution supports high-speed data transmission while maintaining excellent performance characteristics. The robust construction with secure thumbscrew mechanisms ensures reliable connections in demanding environments, making it ideal for storage area networks, high-performance computing clusters, and data center infrastructure upgrades where protocol conversion and interface adaptation are required.

Features

• Hybrid Interface Conversion: Bridges CX4 SFF-8470 with thumbscrews to External Mini SAS SFF-8088 interfaces
• Secure Thumbscrew Mechanism: Features thumbscrew fasteners for reliable mating and vibration resistance
• High-Speed Data Transfer: Supports data rates up to 3 Gbps per channel (12 Gbps aggregate)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching
• Robust Construction: Zinc alloy die-cast?? with comprehensive EMI/RFI protection
• Flexible Protocol Support: Compatible with InfiniBand DDR and SAS protocols
• Backward Compatibility: Supports connection between legacy InfiniBand equipment and SAS systems
• Superior Shielding: Mylar and aluminum braided shielding for maximum EMI protection

Specifications

• Product Model: CX4 with Thumbscrews to External Mini SAS Cable

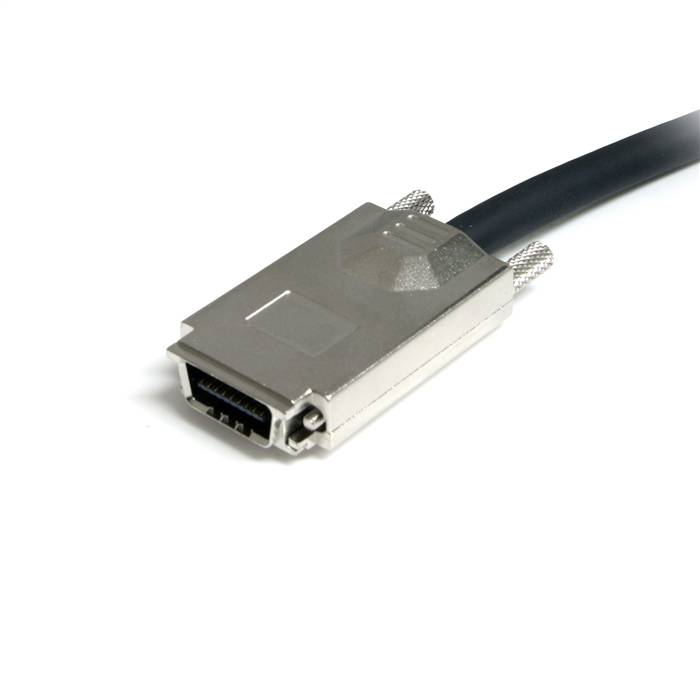

• Host Connector: CX4 SFF-8470 with Thumbscrews, 34-Position, Male

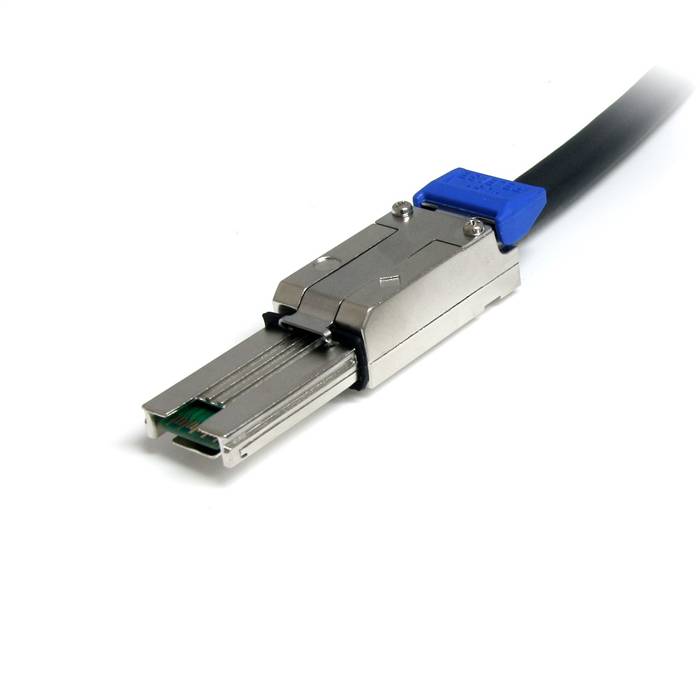

• Device Connector: External Mini SAS SFF-8088, 26-Position, Male
• Data Rate Support: Up to 3 Gbps per channel (12 Gbps aggregate)
• Supported Protocols: InfiniBand SDR/DDR, SAS 2.0
• Cable Type: External Grade, Round Cable
• Wire Gauge: 28 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length:0.5m, 1.0m, 2.0m,  3.0m, 5.0m, (multiple length options available)
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 50mm

Applications

• High-Performance Computing: Ideal for HPC clusters requiring InfiniBand to SAS connectivity
• Data Center Modernization: Suitable for integrating legacy InfiniBand systems with SAS storage infrastructure
• Storage Area Networks: Perfect for SAN environments requiring protocol conversion
• Server Connectivity: Enables connection between CX4-equipped servers and SAS storage systems
• Test and Development: Useful for laboratory environments requiring interface conversion
• Telecommunications Equipment: Suitable for telecom infrastructure requiring hybrid connectivity
• OEM Solutions: Designed for system integrators needing specialized interface adaptation
• Cloud Infrastructure: Ideal for cloud platforms requiring backward compatibility with legacy equipment
