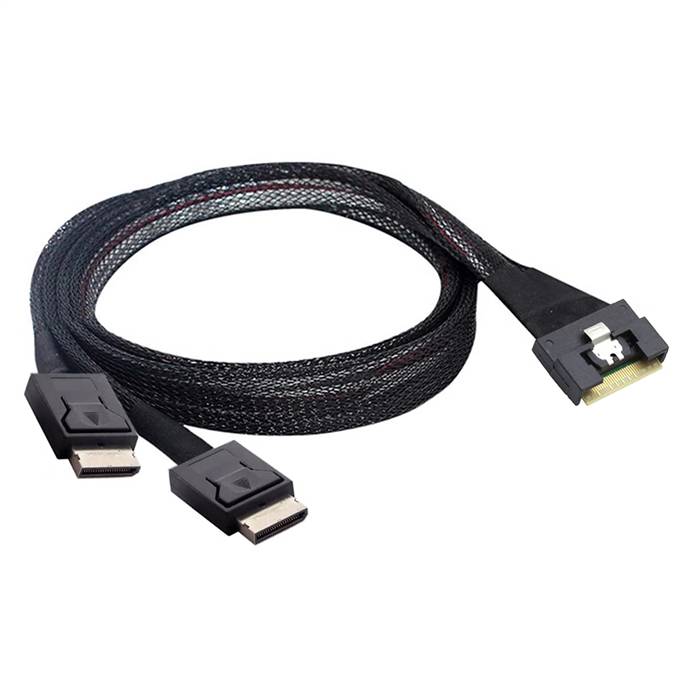

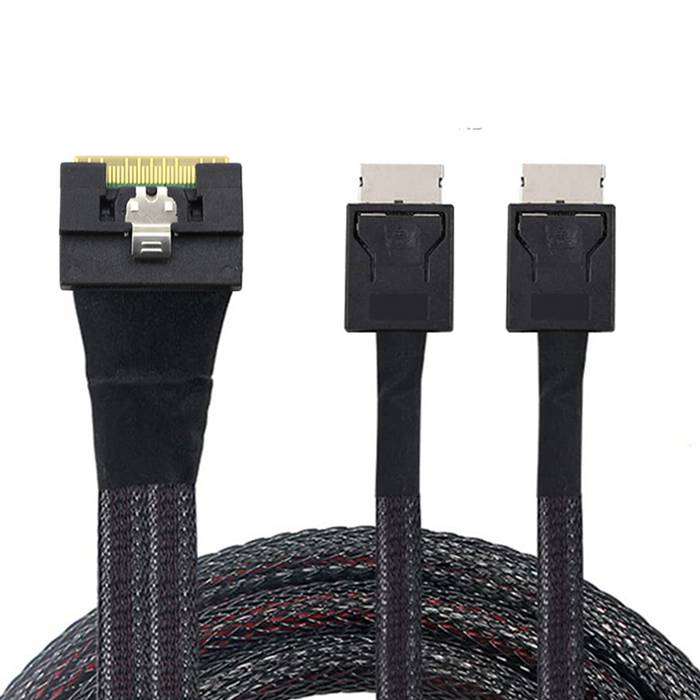

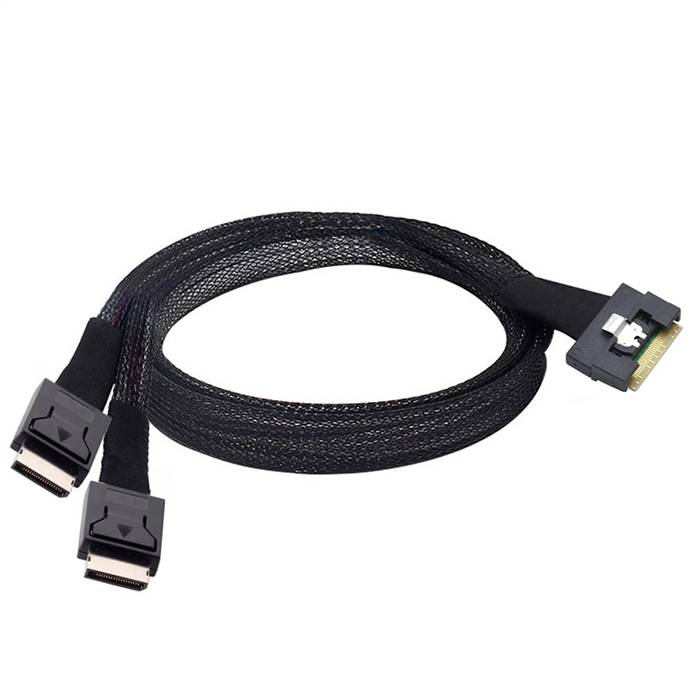

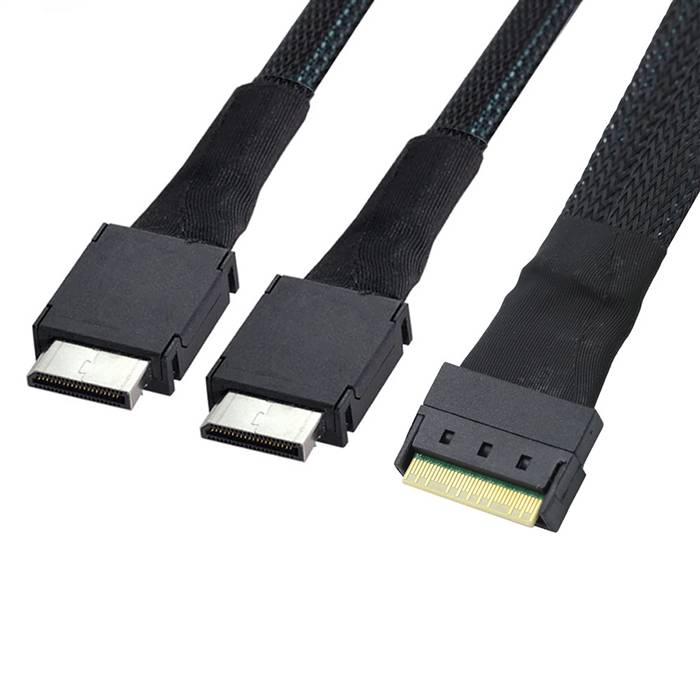

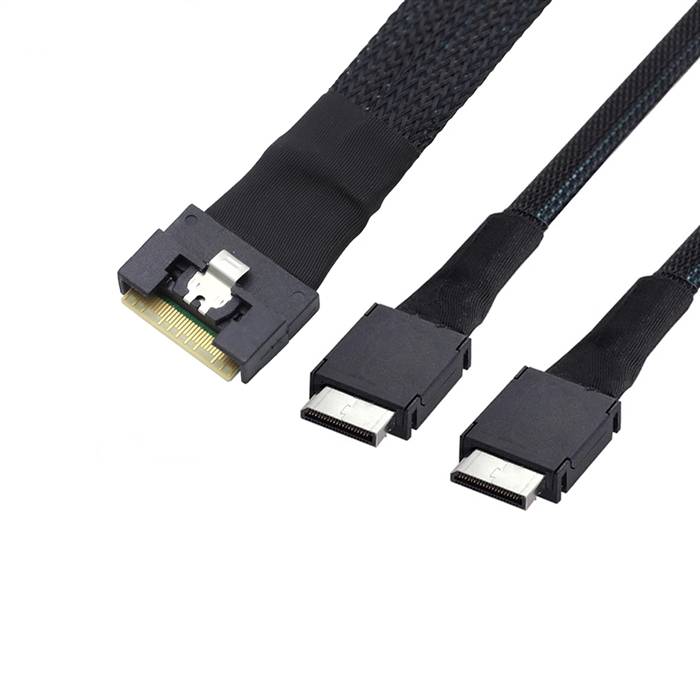

Fully Enclosed SlimSAS SFF-8654 8i to 2 OCulink SFF-8611 4x Cable

The Fully Enclosed SlimSAS SFF-8654 8i to 2 OCuLink SFF-8611 4x Cable is a ruggedized high-density breakout solution designed for demanding enterprise and industrial applications. This cable converts a single fully enclosed SlimSAS 8i host interface into two independent OCuLink 4x interfaces, providing enhanced physical protection and reliable high-speed connectivity. The fully enclosed connectors offer superior defense against environmental contaminants, mechanical damage, and electromagnetic interference, making this solution ideal for harsh operating conditions where both durability and performance are critical requirements.

Features

• Fully Enclosed Protection: IP67-rated connectors provide complete protection against dust, moisture, and physical damage
• High Density Breakout: Converts one 8i host port into two 4x OCuLink interfaces
• High Speed Performance: Supports data rates up to 16 GT/s (PCIe 4.0) per lane
• Enhanced EMI Shielding: Multi-layer shielding ensures excellent signal integrity in noisy environments
• Industrial Grade Construction: Designed to withstand harsh conditions and frequent mating cycles
• Secure Connection: Positive latching mechanisms ensure reliable connections in vibration-prone applications

Specifications

• Product Model: Fully Enclosed SlimSAS to Dual OCuLink Cable
• Host Connector: Fully Enclosed SlimSAS SFF-8654 8i, Male, Straight
• Device Connectors: 2x OCuLink SFF-8611 4x, Male, Straight
• Data Rate Support: Up to 16 GT/s (PCIe 4.0)
• Supported Protocols: PCIe 4.0/3.0, NVMe 1.4
• Wire Gauge: 30 AWG
• Impedance: 85? ±10%
• Shielding: Individual pair shielding with overall braid protection plus enclosed connector shielding
• Cable Length: 0.5m, 1.0m
• Operating Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• IP Rating: IP67 (host connector)
• Minimum Bend Radius: 35mm

Applications

• Industrial Computing: Ideal for manufacturing automation and robotics requiring robust connectivity
• Outdoor Equipment: Suitable for telecommunications infrastructure and outdoor installations
• Military and Aerospace: Perfect for applications demanding high reliability and environmental sealing
• High Density Servers: Deployed in 1U/2U servers requiring multiple OCuLink connections
• Test and Measurement: Essential for laboratory setups requiring protected high-speed data links
• Embedded Systems: Suitable for medical equipment and transportation systems requiring reliable interconnects
