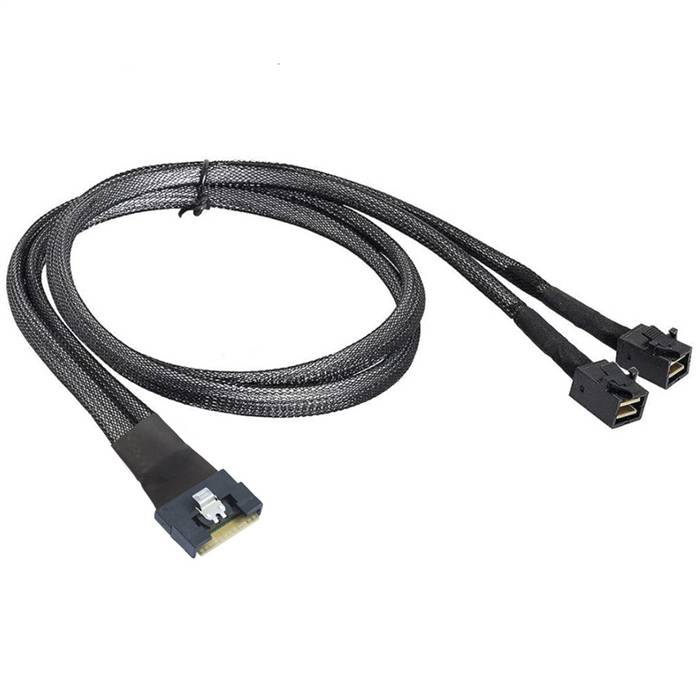

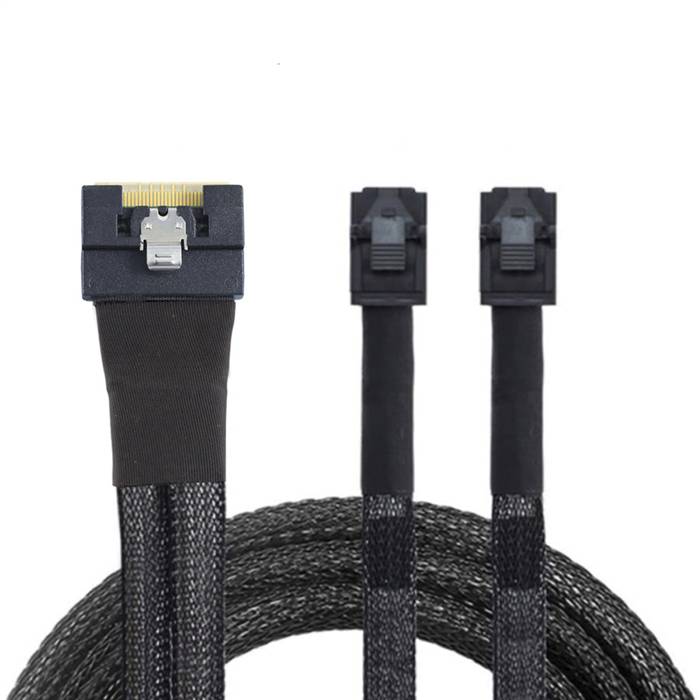

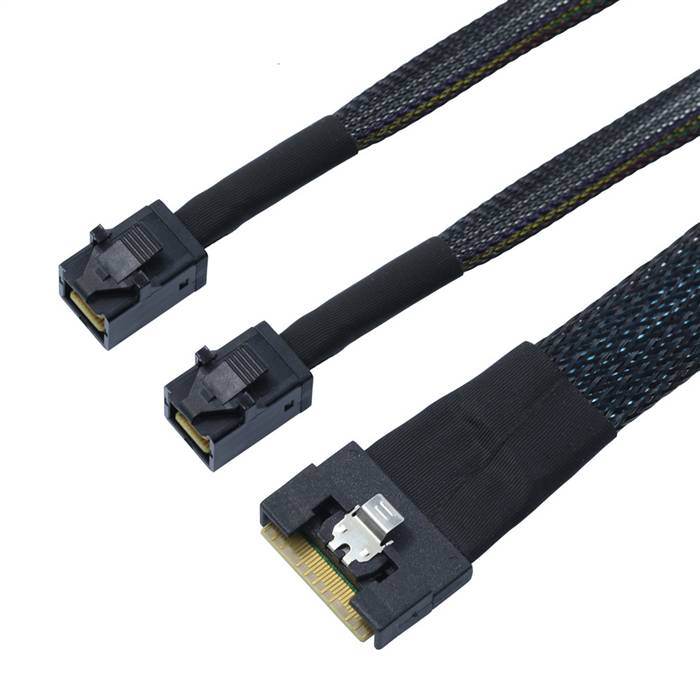

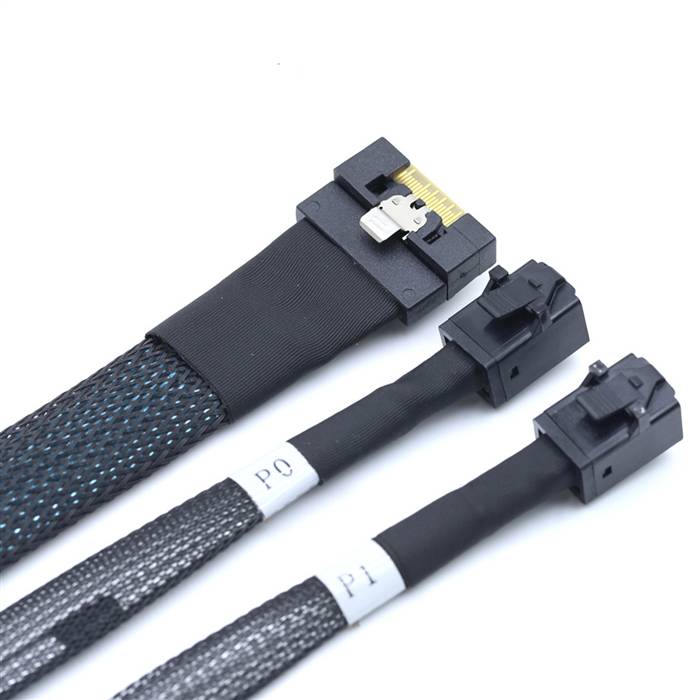

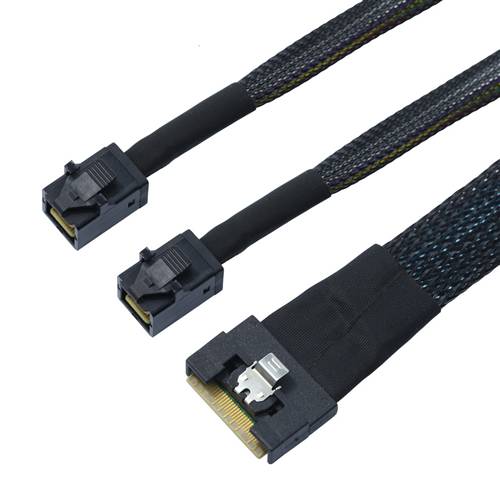

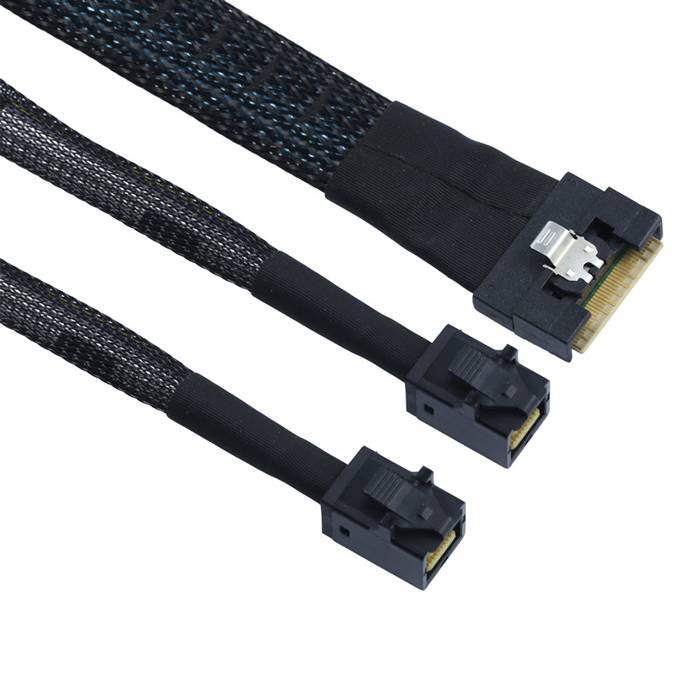

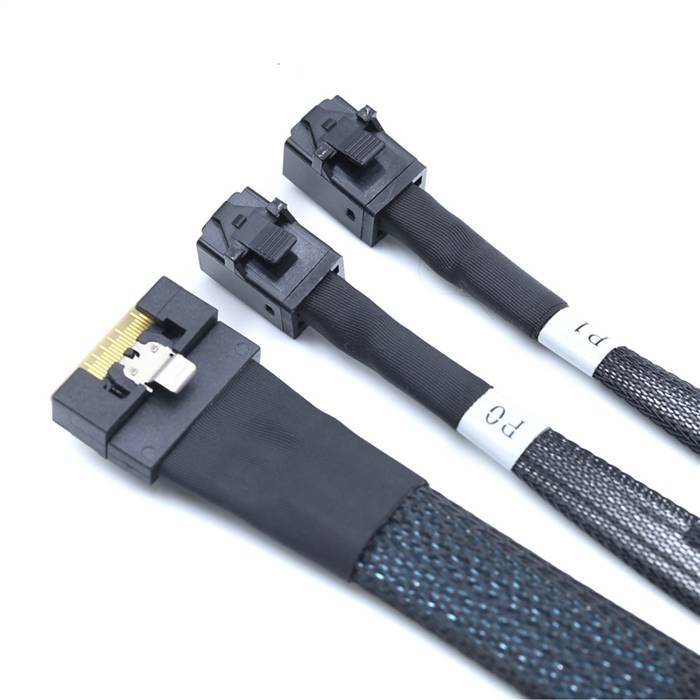

Fully Enclosed SlimSAS SFF-8654 8i to 2 Internal HD Mini SAS SFF-8643 4x 36P Cable

The Fully Enclosed SlimSAS SFF-8654 8i to 2 Internal HD Mini SAS SFF-8643 4x 36P Cable is a ruggedized breakout solution designed for demanding enterprise storage environments. This cable converts a single fully enclosed SlimSAS 8i host interface into two standard Internal HD Mini SAS 4x interfaces, providing enhanced physical protection while maintaining high-speed data transmission capabilities. The IP67-rated host connector offers superior defense against environmental contaminants, making this solution ideal for industrial applications and harsh environments where reliability and durability are critical requirements. Engineered for superior performance, this cable ensures secure connectivity between modern storage hosts and legacy SAS devices.

Features

• Fully Enclosed Protection: IP67-rated host connector provides complete protection against dust, moisture, and physical damage
• High Density Breakout: Converts one 8i host port into two 4x Mini SAS interfaces
• High Speed Performance: Supports data rates up to 24 Gbps (SAS 4.0)
• Enhanced Shielding: Multi-layer protection ensures signal integrity in electrically noisy environments
• Industrial Grade Construction: Designed to withstand vibrations, temperature extremes, and frequent mating cycles
• Backward Compatibility: Maintains connectivity with existing Mini SAS infrastructure
• Secure Connection: Positive latching mechanisms ensure reliable mating in vibration-prone applications

Specifications

• Product Model: Fully Enclosed SlimSAS to Dual Mini SAS Cable
• Host Connector: Fully Enclosed SlimSAS SFF-8654 8i, Male, Straight (IP67 rated)
• Device Connectors: 2x Internal HD Mini SAS SFF-8643 4x, 36-Position, Male, Straight
• Data Rate Support: Up to 24 Gbps (SAS 4.0), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 4.0/3.0, SATA 3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection plus enclosed connector shielding
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• IP Rating: IP67 (host connector)
• Minimum Bend Radius: 35mm

Applications

• Industrial Storage Systems: Ideal for manufacturing environments requiring robust connectivity and environmental protection
• Outdoor Telecommunications: Suitable for base stations and outdoor installations requiring weatherproof solutions
• Military and Aerospace: Perfect for applications demanding high reliability and environmental sealing
• Data Center Infrastructure: Deploying in hyperscale environments where equipment protection is critical
• Storage Array Connectivity: Connecting modern hosts to legacy Mini SAS storage systems
• Server OEM Solutions: Designed for server manufacturers requiring ruggedized connectivity options
• Test and Measurement: Essential for laboratory setups requiring protected high-speed data links in harsh environments
