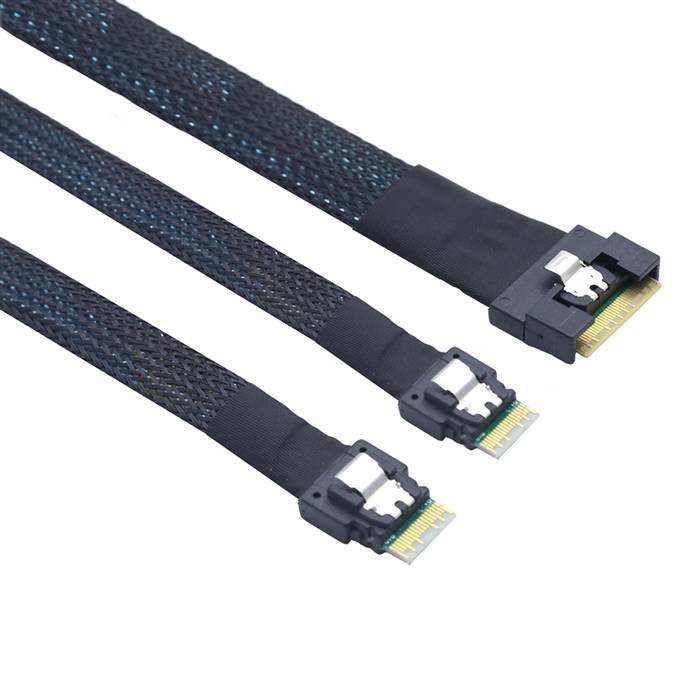

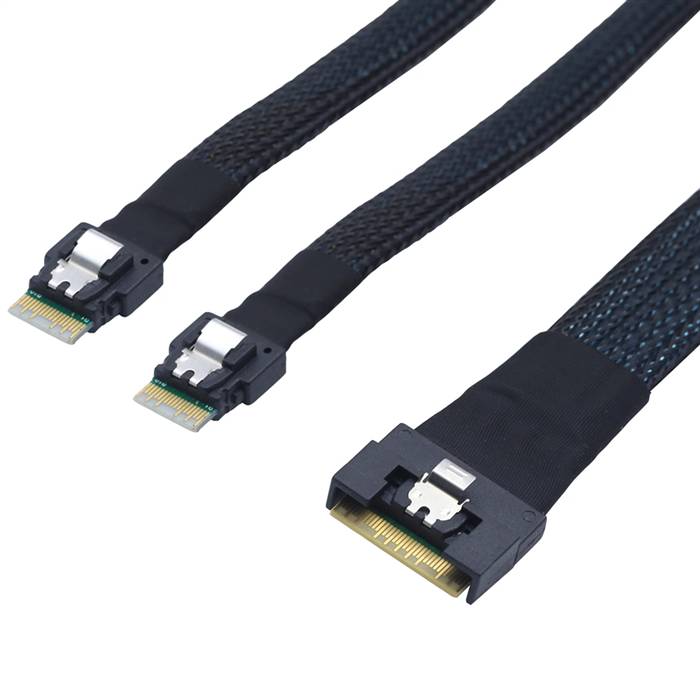

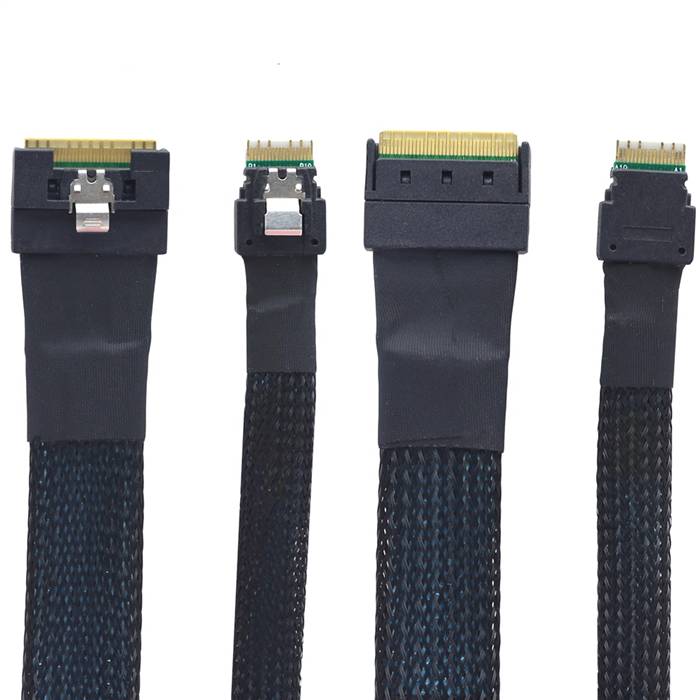

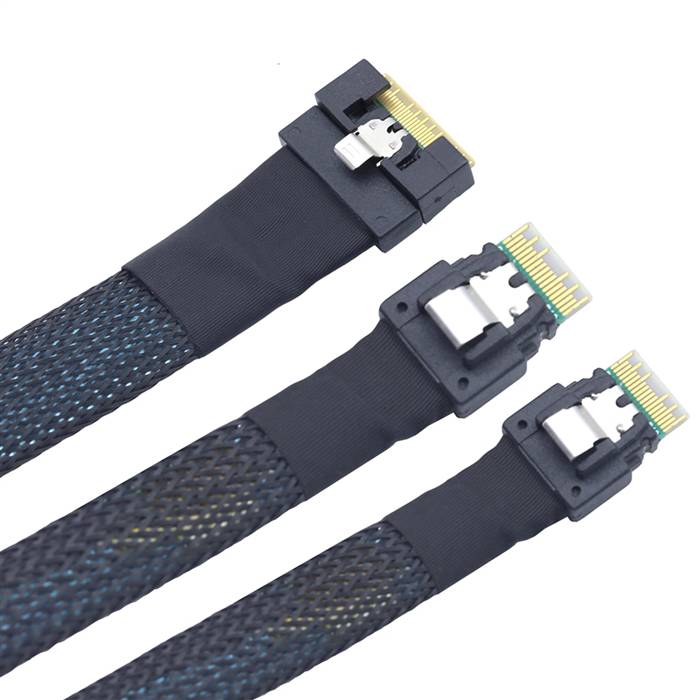

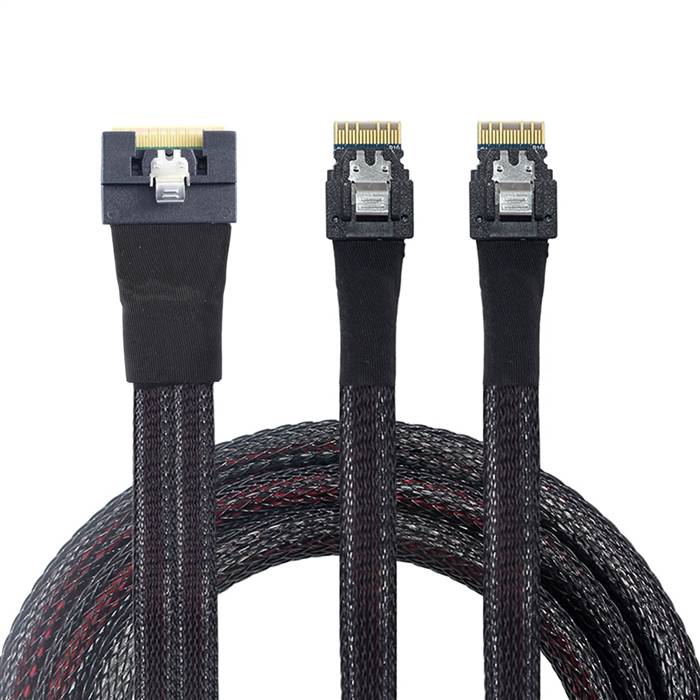

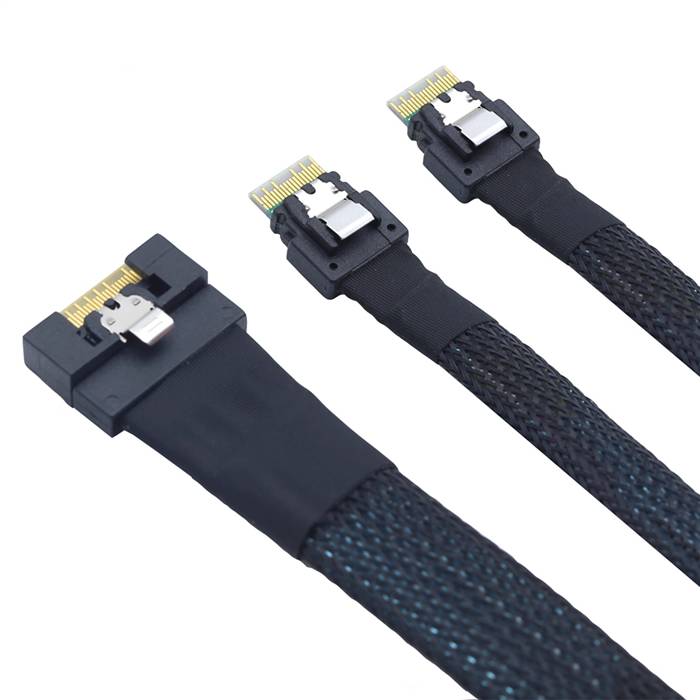

Fully Enclosed SlimSAS SFF-8654 8i to 2 SlimSAS SFF-8654 4i 38P Cable

The Fully Enclosed SlimSAS SFF-8654 8i to 2 SlimSAS SFF-8654 4i 38P Cable is a ruggedized breakout solution designed for demanding enterprise storage environments. This cable converts a single fully enclosed 8i host interface into two standard SlimSAS 4i interfaces, providing enhanced physical protection while maintaining high-speed data transmission capabilities. The IP67-rated host connector offers superior defense against environmental contaminants, making this solution ideal for industrial applications where reliability and durability are critical requirements.

Features

• Fully Enclosed Protection: IP67-rated host connector protects against dust, moisture, and physical damage
• High Density Breakout: Converts one 8i host port into two 4i interfaces
• High Speed Performance: Supports data rates up to 24 Gbps (SAS 4.0)
• Enhanced Shielding: Multi-layer protection ensures signal integrity in harsh environments
• Industrial Grade Construction: Designed to withstand demanding operating conditions
• Secure Connection: Positive latching mechanisms ensure reliable mating

Specifications

• Product Model: Fully Enclosed SlimSAS to Dual SlimSAS Cable
• Host Connector: Fully Enclosed SlimSAS SFF-8654 8i, Male, Straight (IP67 rated)
• Device Connectors: 2x SlimSAS SFF-8654 4i, 38-Position, Male, Straight
• Data Rate Support: Up to 24 Gbps (SAS 4.0), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 4.0/3.0, PCIe 4.0/3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• IP Rating: IP67 (host connector)

Applications

• Industrial Storage Systems: Ideal for manufacturing environments requiring robust connectivity
• Outdoor Equipment: Suitable for telecommunications infrastructure requiring environmental protection
• Data Center Infrastructure: Deploying in hyperscale environments where equipment protection is critical
• High Availability Systems: Essential for applications requiring maximum uptime and reliability
• Server OEM Solutions: Designed for server manufacturers requiring ruggedized connectivity
• Test and Measurement: Laboratory environments requiring protected high-speed data links
