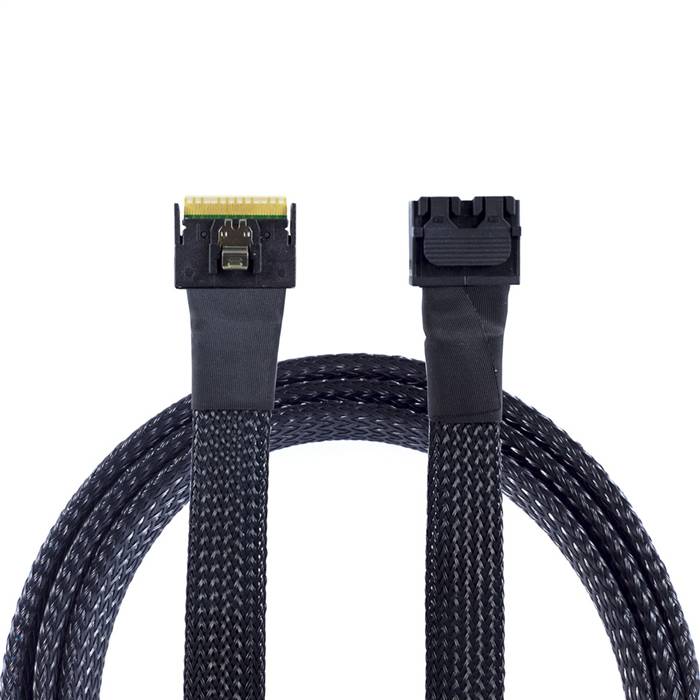

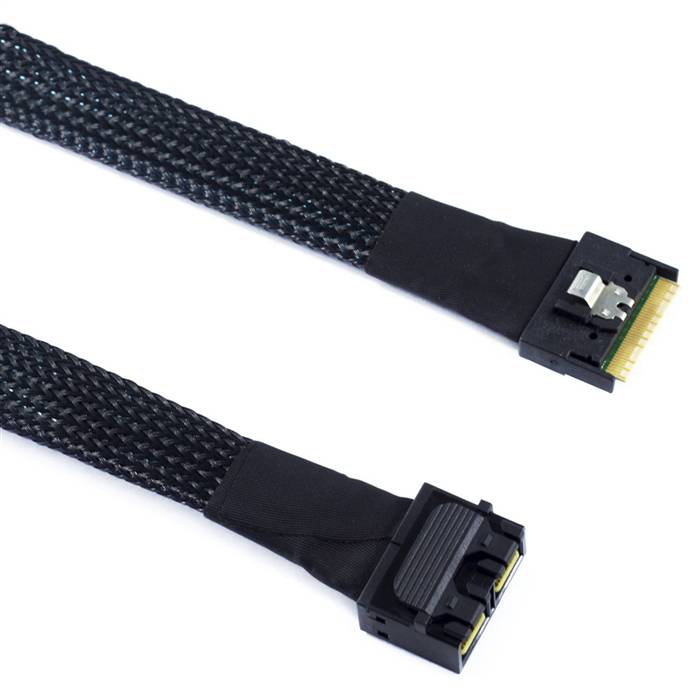

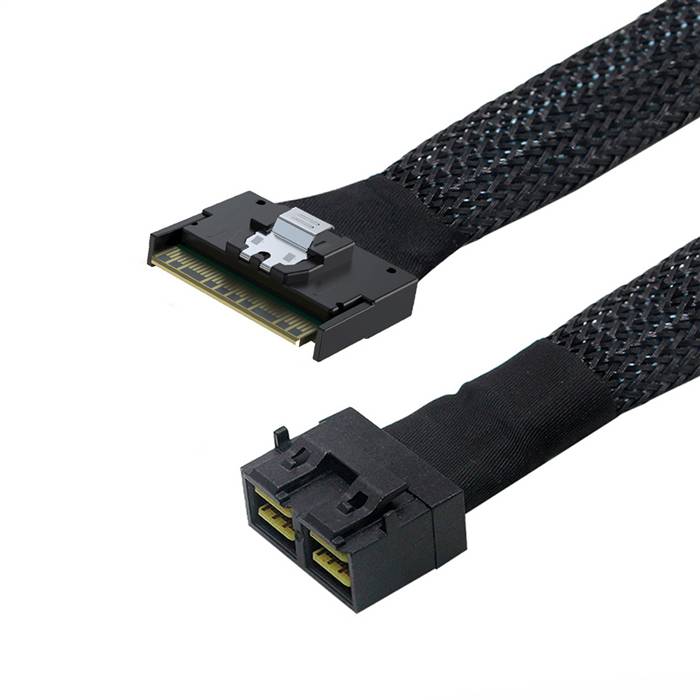

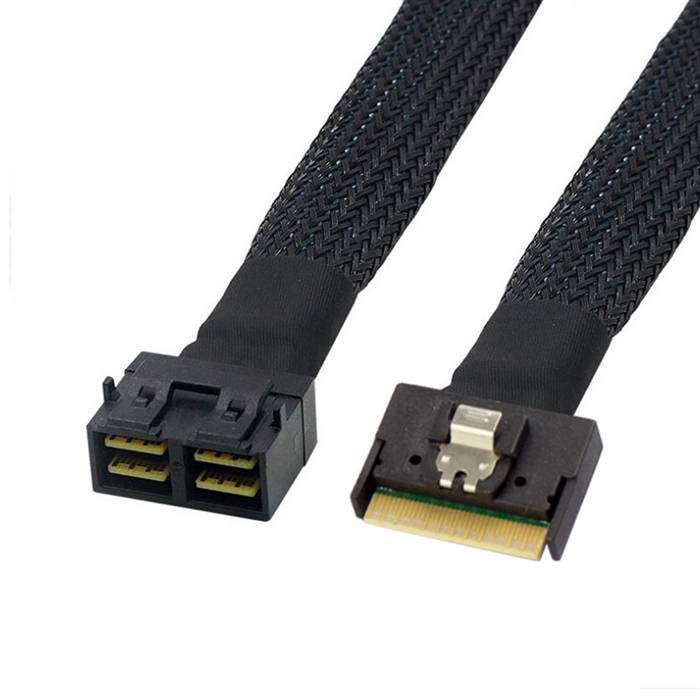

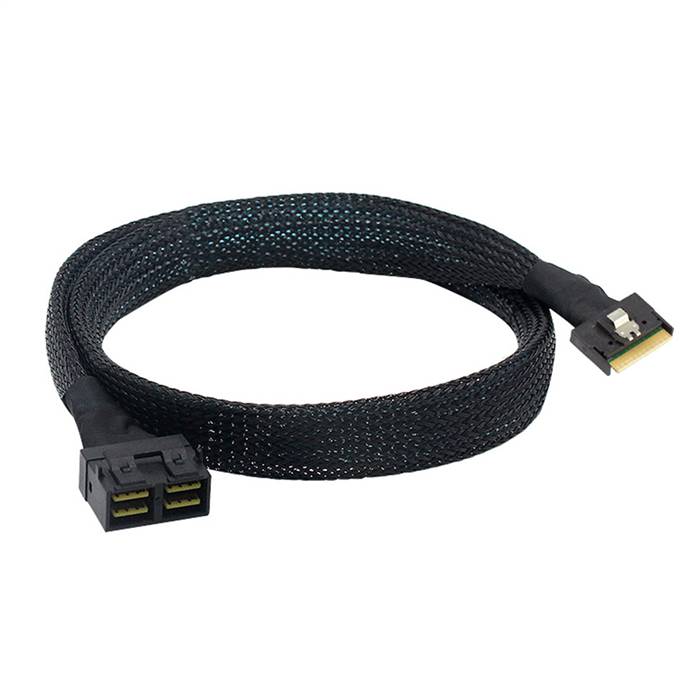

Fully Enclosed SlimSAS SFF-8654 8i to Internal HD Mini SAS SFF-8643 8x 72P Cable

The Fully Enclosed SlimSAS SFF-8654 8i to Internal HD Mini SAS SFF-8643 8x 72P Cable is a ruggedized high-speed interconnect solution designed for enterprise storage systems and industrial applications. This cable provides a reliable connection between a fully enclosed SlimSAS host interface and a standard Internal HD Mini SAS target interface, combining high-speed data transmission with enhanced physical protection. The fully enclosed SlimSAS connector offers superior defense against environmental contaminants and mechanical damage, while the Mini SAS end maintains compatibility with existing storage infrastructure. This solution is ideal for applications where durability, signal integrity, and protocol conversion are critical requirements.

Features

• Fully Enclosed Connector Design: SlimSAS end features IP67-rated protection against dust, moisture, and physical damage
• High Speed Performance: Supports data rates up to 24 Gbps (SAS 4.0) and 16 GT/s (PCIe 4.0)
• Enhanced EMI Shielding: Multi-layer shielding provides excellent protection against electromagnetic interference
• Industrial Grade Durability: Designed to withstand harsh operating conditions and frequent mating cycles
• Protocol Conversion: Enables connectivity between modern SlimSAS hosts and traditional Mini SAS devices
• Secure Connection: Positive latching mechanisms ensure reliable connections in vibration-prone environments

Specifications

• Product Model: Fully Enclosed SlimSAS to Mini SAS 8x Cable
• Host Connector: Fully Enclosed SlimSAS SFF-8654 8i, Male, Straight
• Device Connector: Internal HD Mini SAS SFF-8643 8x, 72-Position, Male, Straight
• Data Rate Support: Up to 24 Gbps (SAS 4.0), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 4.0/3.0, PCIe 4.0/3.0, SATA 3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection plus enclosed connector shielding
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: -40°C to +85°C
• Durability Rating: 10,000 mating cycles
• IP Rating: IP67 (SlimSAS connector)
• Minimum Bend Radius: 35mm

Applications

• Industrial Storage Systems: Ideal for manufacturing environments requiring robust connectivity
• Outdoor Equipment: Suitable for telecommunications and outdoor installations requiring environmental protection
• Military and Aerospace: Perfect for applications demanding high reliability and environmental sealing
• Data Center Infrastructure: Enables connectivity between modern servers and legacy storage systems
• Transportation Systems: Suitable for vehicular applications with vibration and environmental challenges
• High Availability Systems: Essential for applications where maximum uptime and connection reliability are critical
