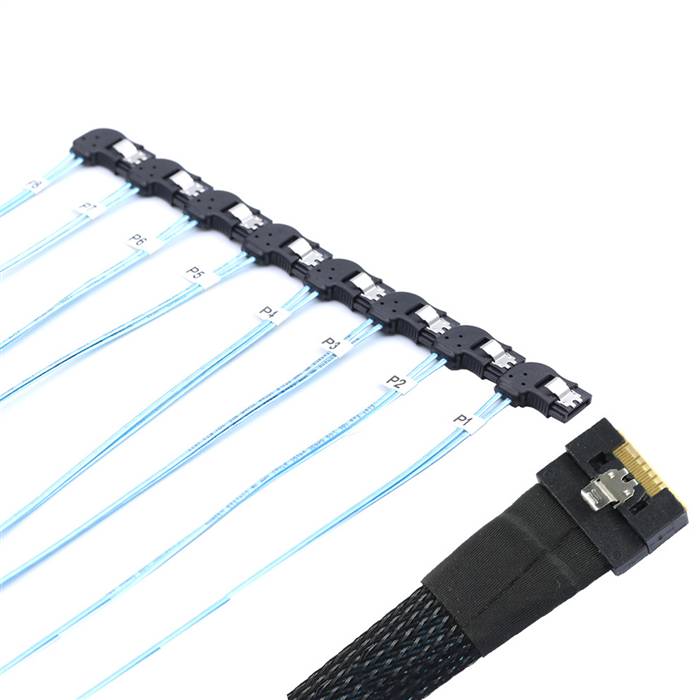

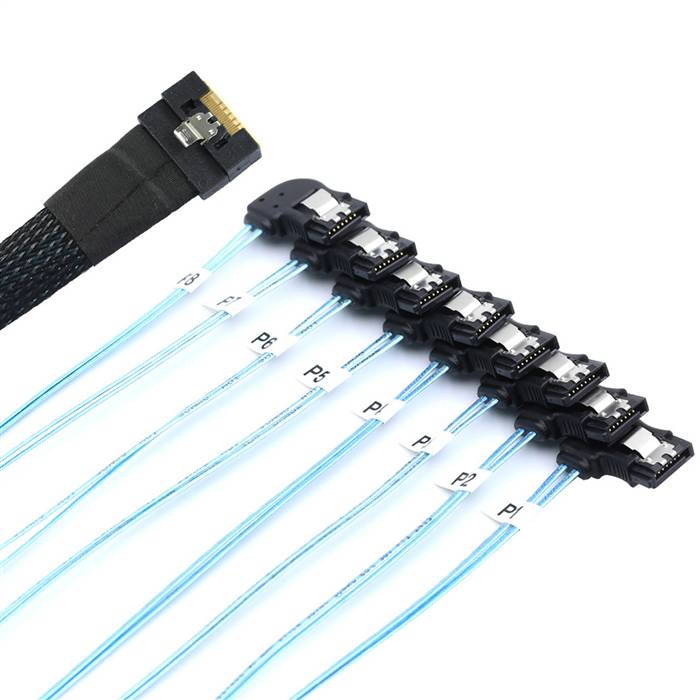

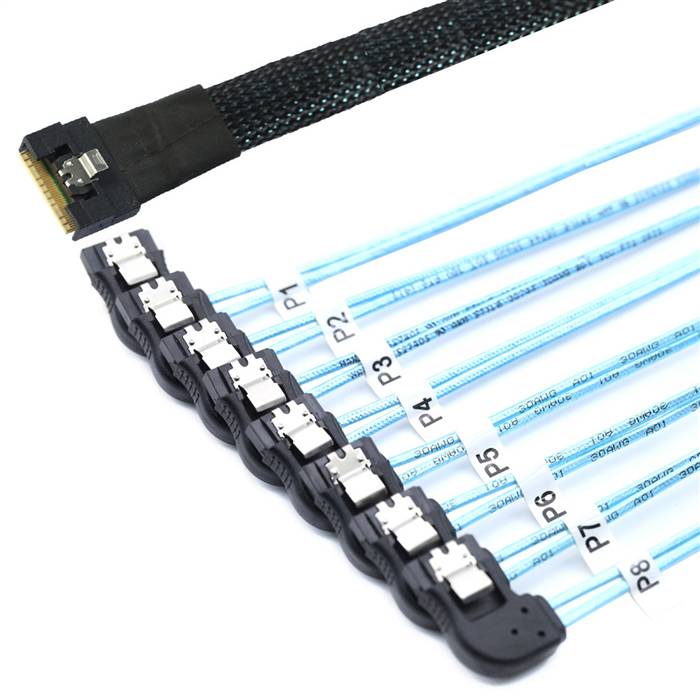

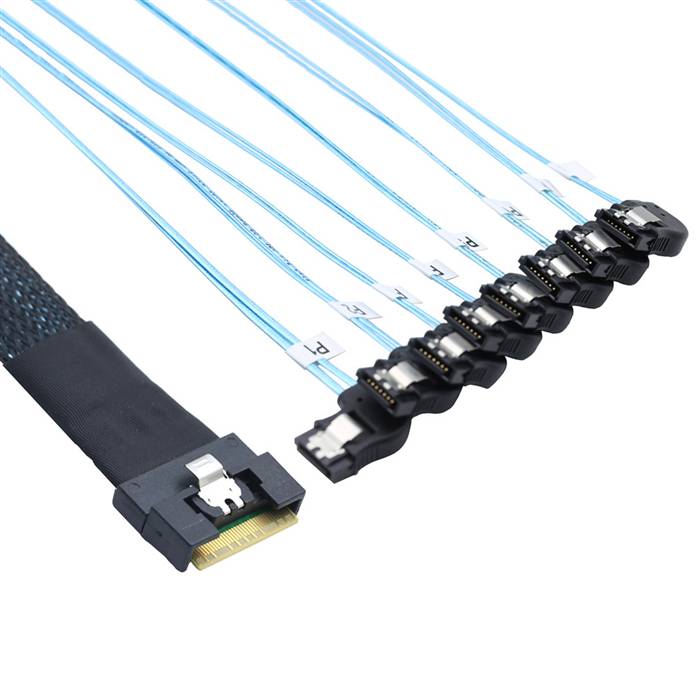

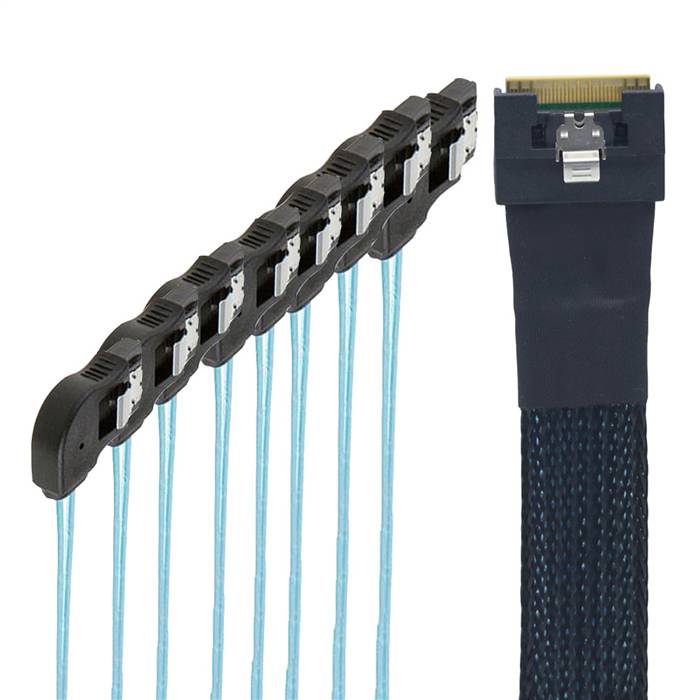

Fully Enclosed SlimSAS SFF-8654 8i to 8 Right Bend SATA 7P Cable

The Fully Enclosed SlimSAS SFF-8654 8i to 8 Right Bend SATA 7P Cable is a specialized high-density breakout solution designed for optimized cable management in space-constrained server configurations. This cable efficiently converts a single SlimSAS 8i host interface into eight independent SATA 7-pin channels, providing comprehensive connectivity for SATA drive expansions. The key feature is the right-angle orientation of the SATA connectors, which enables cleaner cable routing along the right side of server chassis and storage enclosures. The fully enclosed connector design offers superior physical protection against damage and excellent EMI shielding, ensuring reliable data transmission in demanding storage environments where space optimization and signal integrity are critical.

Features

• High-Density Breakout Design: Converts one SlimSAS 8i host port into eight individual SATA 7-pin interfaces
• Right-Angle Connector Orientation: 90-degree right bend SATA connectors facilitate optimized cable routing along server chassis right side
• Fully Enclosed Connector Design: Shielded SATA connectors provide enhanced physical protection and EMI/RFI shielding
• High-Speed Performance: Supports SATA 3.0 specifications with data rates up to 6 Gbps per port
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching reduces signal degradation
• Secure Connection Mechanism: Robust connector design ensures stable mating and long-term reliability
• Flexible Protocol Support: Maintains compatibility with SAS controllers for SATA drive connectivity

Specifications

• Product Model: SlimSAS to 8x SATA Cable (Right Bend)
• Host Connector: SlimSAS SFF-8654 8i, Male, Straight
• Device Connectors: 8x SATA 7-pin, Male, 90-degree Right Bend, Fully Enclosed
• Data Rate Support: Up to 6 Gbps per port (SATA 3.0)
• Supported Protocols: SATA 3.0
• Cable Type: Twinaxial
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles minimum
• Minimum Bend Radius: 30mm

Applications

• High-Density Server Configurations: Ideal for 1U/2U servers requiring right-side cable management solutions
• Storage Array Expansion: Enables efficient connectivity to multiple SATA drives in constrained spaces
• Data Center Infrastructure: Suitable for large-scale deployments where optimized airflow and cable management are critical
• Enterprise Storage Systems: Supports cost-effective storage expansion with right-angled SATA connections
• Rackmount Server Applications: Perfect for environments where right-side routing improves maintenance accessibility
• Cloud Storage Platforms: Enables high-density drive connections in hyper-scale computing environment
• OEM Storage Solutions: Designed for system integrators requiring specific right-angle connectivity options
