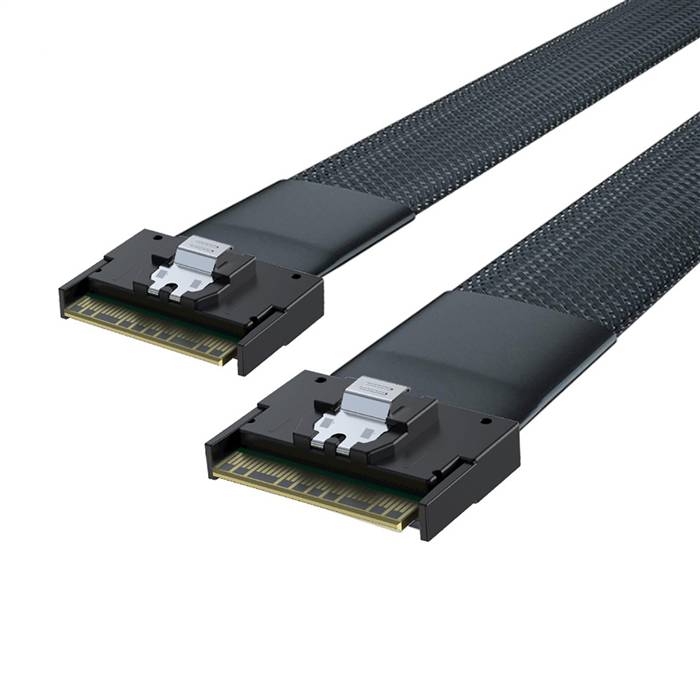

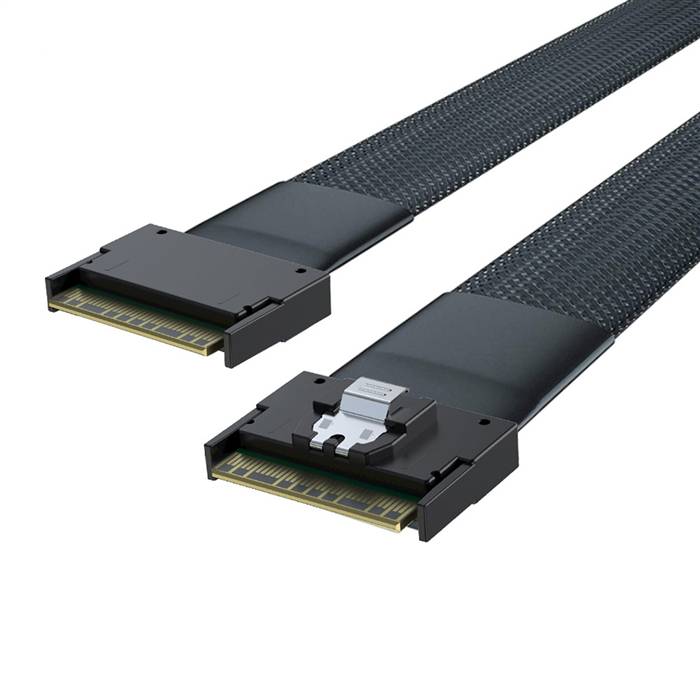

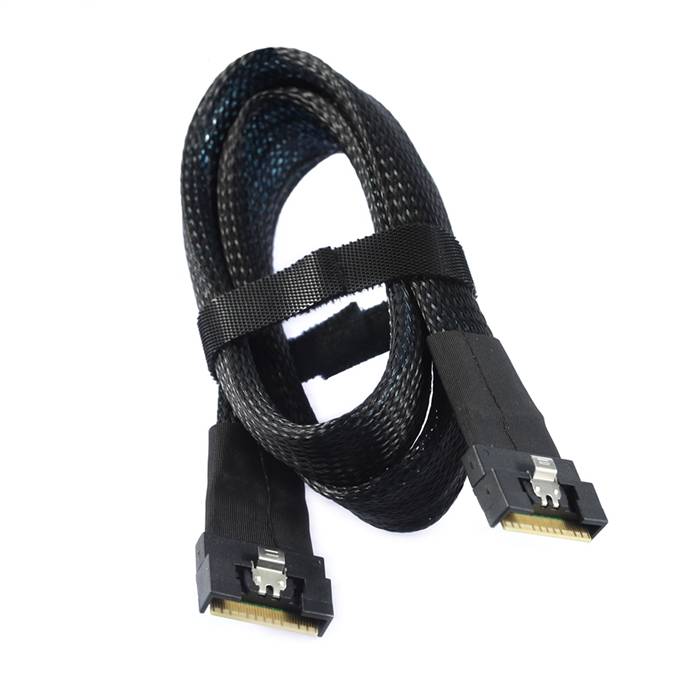

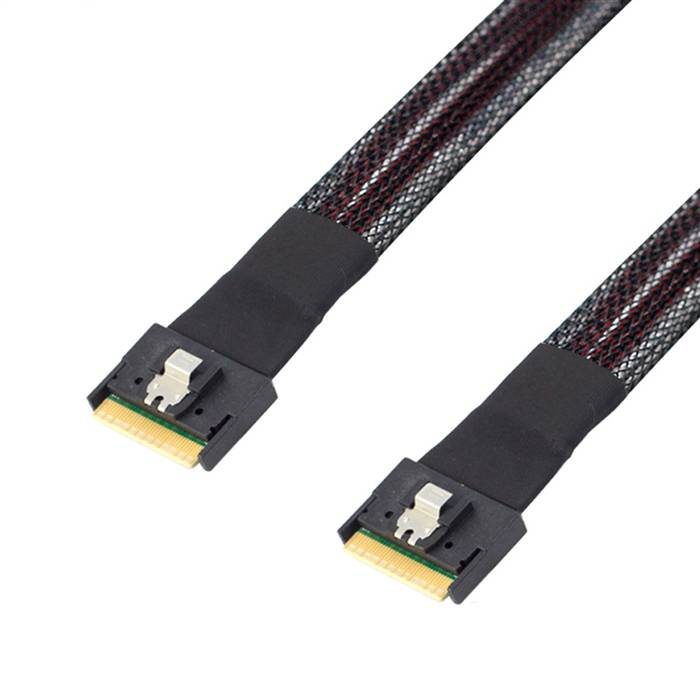

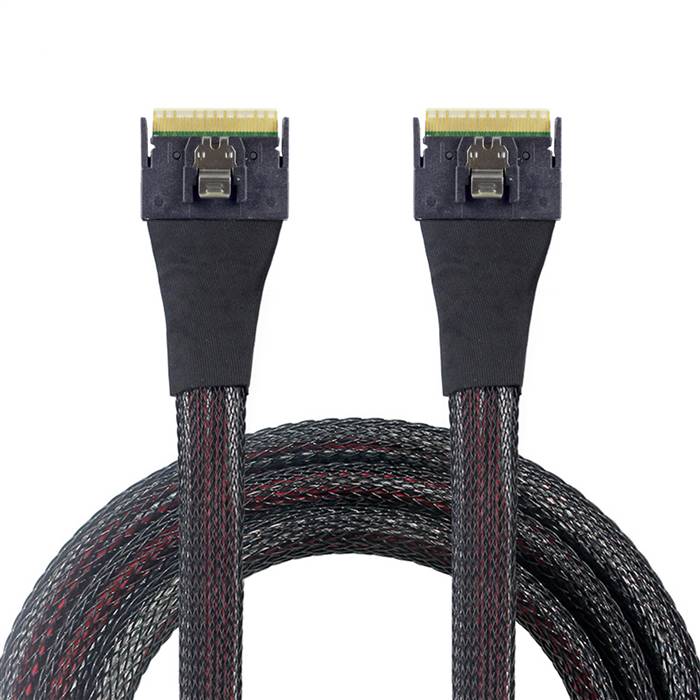

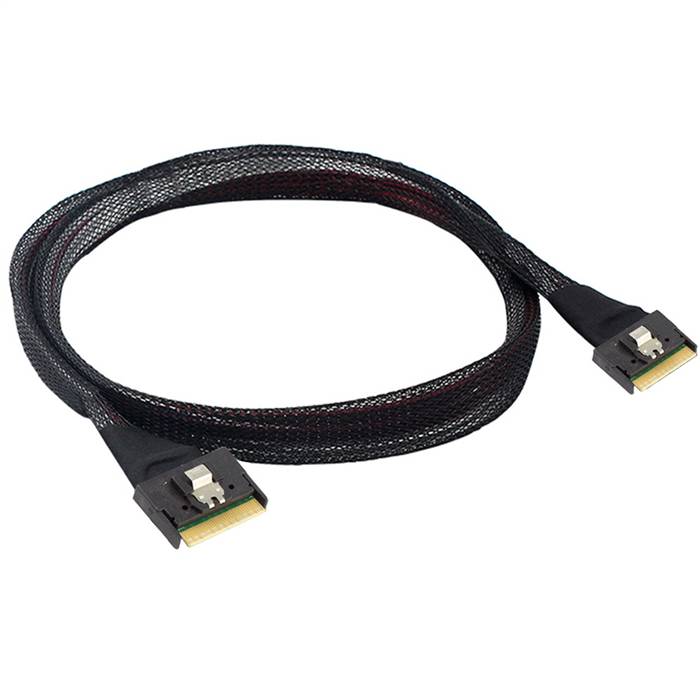

Fully Enclosed SlimSAS SFF-8654 8i to Fully Enclosed SlimSAS SFF-8654 8i Cable

The Fully Enclosed SlimSAS SFF-8654 8i to Fully Enclosed SlimSAS SFF-8654 8i Cable is a high-performance internal extension cable designed for enterprise storage systems and demanding server applications. This cable features fully enclosed connectors on both ends, providing enhanced protection against physical damage, dust, and electromagnetic interference. Engineered with straight-to-straight connector configuration, it ensures reliable connections between SlimSAS interfaces while maintaining optimal signal integrity. The fully enclosed design makes it particularly suitable for industrial environments and applications where additional connector protection is required.

Features

• Fully Enclosed Connector Design: Provides complete protection against physical damage and environmental contaminants
• High Speed Performance: Supports data rates up to 24 Gbps (SAS 4.0) and PCIe 4.0 protocols
• Enhanced EMI Protection: Superior shielding effectiveness through fully enclosed connector housing
• Reliable Connection: Secure latching mechanism ensures stable connections in vibration-prone environments
• Industrial Grade Construction: Designed to withstand harsh operating conditions
• Superior Signal Integrity: Precision engineering with matched impedance characteristics

Specifications

• Product Model: Fully Enclosed SlimSAS 8i to SlimSAS 8i Cable
• Connector A: Fully Enclosed SlimSAS SFF-8654 8i, Male, Straight
• Connector B: Fully Enclosed SlimSAS SFF-8654 8i, Male, Straight
• Data Rate Support: Up to 24 Gbps (SAS 4.0), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 4.0/3.0, PCIe 4.0/3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection plus enclosed connector shielding
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: -40°C to +105°C
• Minimum Bend Radius: 35mm
• Durability Rating: 10,000 mating cycles
• IP Rating: IP67 (connector level)

Applications

• Industrial Computing Environments: Suitable for manufacturing and industrial applications requiring robust connectivity
• Outdoor Equipment: Ideal for outdoor or harsh environment installations where environmental protection is critical
• Military and Aerospace: Suitable for applications requiring enhanced reliability and environmental sealing
• Transportation Systems: Perfect for vehicular and transportation applications with vibration and environmental challenges
• High Reliability Data Centers: Essential for data centers requiring maximum uptime and protection
• Medical Equipment: Suitable for medical devices requiring reliable, protected connections
• Test and Measurement: Ideal for laboratory environments where connector protection is important
