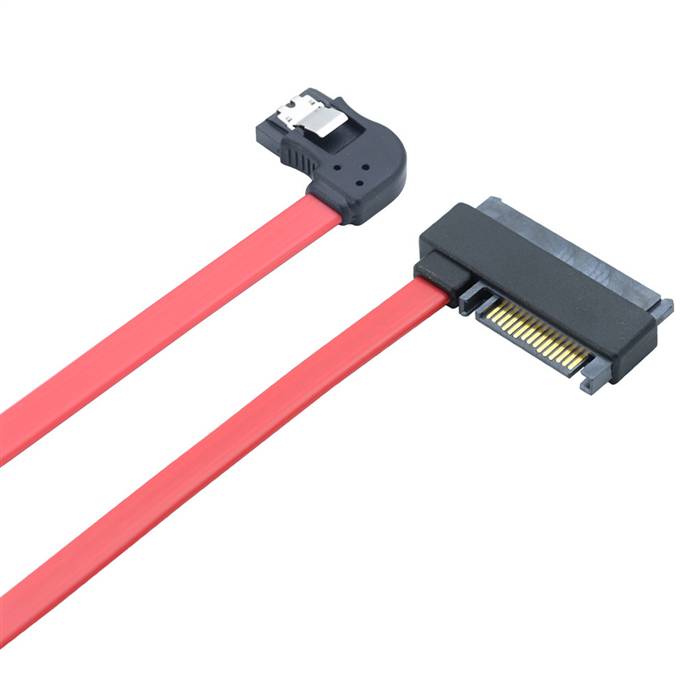

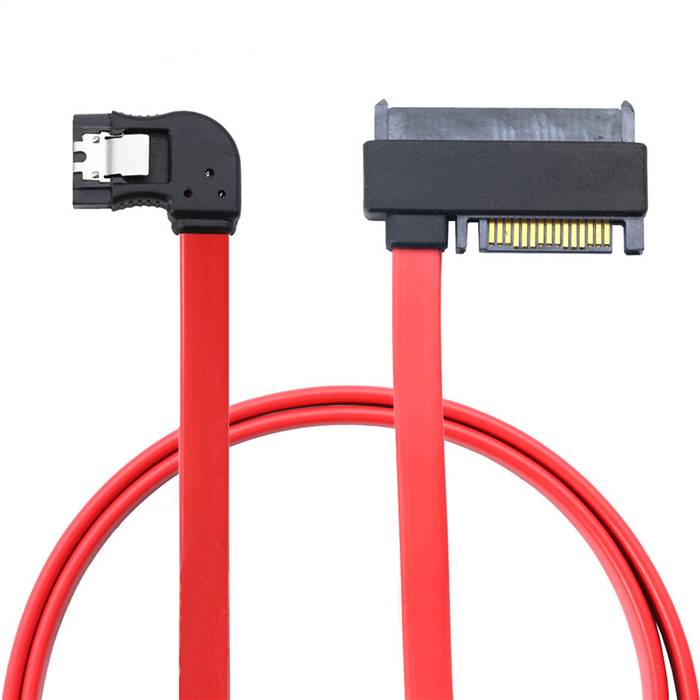

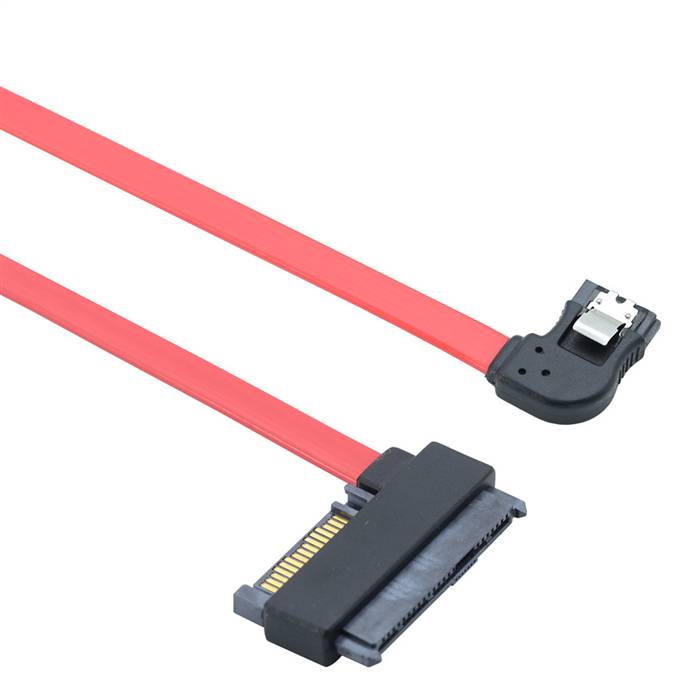

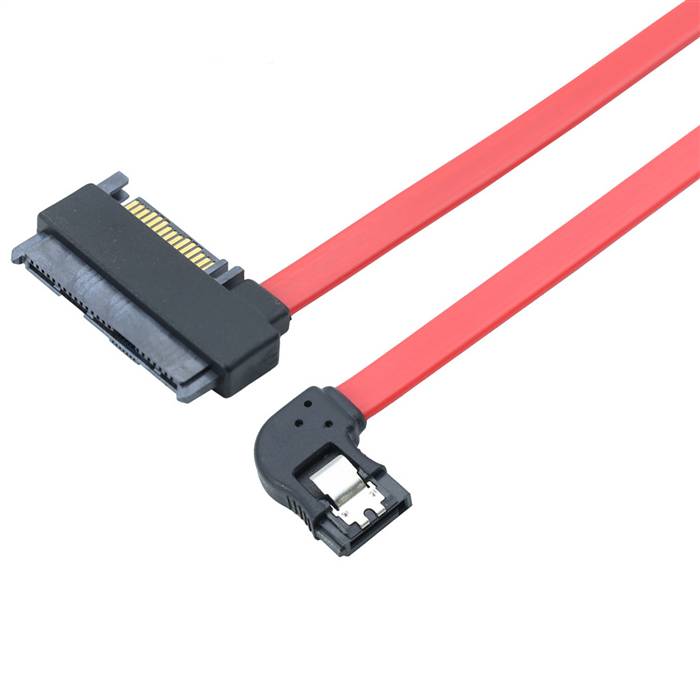

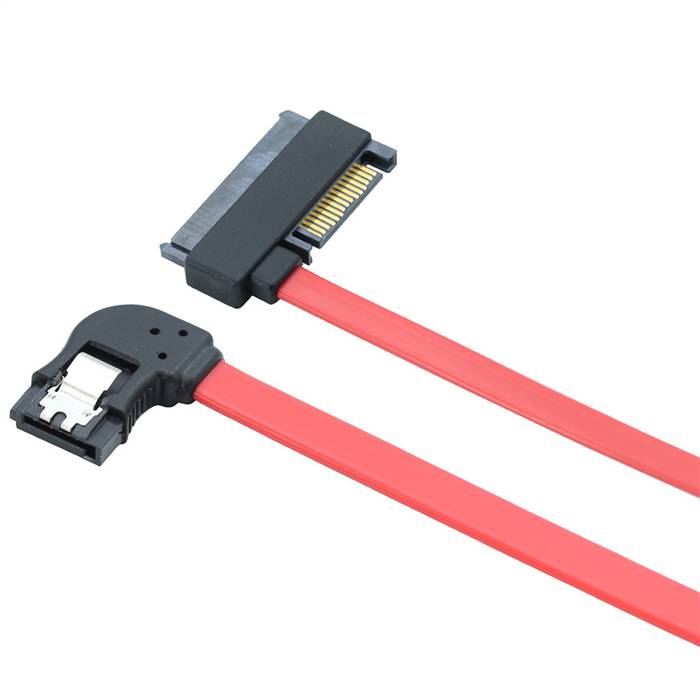

Left Bend SATA 7Pin to SAS SFF-8482 29P & 15P All-in-one Red Cable

The Left Bend SATA 7Pin to SAS SFF-8482 29P & 15P All-in-one Red Cable is a high-performance hybrid connectivity solution designed for enterprise storage systems and data-intensive environments requiring seamless integration between SATA devices and SAS infrastructure. This cable combines a left-bend SATA 7-pin connector with a SAS SFF-8482 29-position data connector and a separate 15-pin power connector, all integrated into a single all-in-one assembly with a distinctive red braided sleeving for enhanced durability and visual identification. The left-bend design enables optimal cable routing in space-constrained configurations where left-side clearance is critical, while the all-in-one construction simplifies connectivity by eliminating the need for additional power cables. Engineered to support high-speed data transmission and reliable power delivery, this solution ensures robust performance in storage arrays, servers, and data centers where left-side spatial optimization and organized cable management are essential.

Features

• Hybrid All-in-One Design: Integrates left-bend SATA 7-pin, SAS SFF-8482 29-pin data, and 15-pin power connectors in a single cable.
• Left-Bend Connector Optimization: Left-bend SATA connector addresses left-side spatial constraints and improves cable routing in tight spaces.
• Distinctive Red Braided Sleeving: Enhances durability, abrasion resistance, and visual identification in complex setups.
• High-Speed Data Transfer: Supports data rates up to 6 Gbps (SATA 3.0) and SAS 2.0 protocols.
• Integrated Power Delivery: 15-pin power connector ensures reliable power supply to SATA drives.
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching (100? ±10%) and reduced crosstalk.
• Secure Connection: Gold-plated contacts and robust latching mechanisms ensure reliable mating.
• Backward Compatibility: Fully compatible with SATA 3.0/2.0 and SAS 2.0/1.0 devices.

Specifications

• Product Model: Left Bend SATA to SAS SFF-8482 & Power All-in-one Red Cable
• Host Connector: SATA 7-pin, Male, Left Bend (45-degree orientation)
• Device Connectors: SAS SFF-8482 29-pin, Male (data) + 15-pin, Male (power)
• Data Rate Support: Up to 6 Gbps (SATA 3.0/SAS 2.0)
• Supported Protocols: SATA 3.0/2.0, SAS 2.0/1.0
• Cable Type: Internal Grade, Red Braided Sleeving with Integrated Power
• Wire Gauge: 30 AWG (data), 22 AWG (power)
• Impedance: 100? ±10% (data channels)
• Shielding: Individual data channel shielding with overall braid protection
• Braided Sleeving Material: Nylon or PET mesh in red for durability and flexibility
• Cable Length: 0.5m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles (SATA), 3,000 mating cycles (SAS)
• Minimum Bend Radius: 30mm

Applications

• Left-Side Constrained Storage Arrays: Connecting SATA drives to SAS backplanes in high-density RAID configurations and storage enclosures with left-side spatial limitations.
• Server Upgrade Projects: Enabling integration of SATA drives with SAS controllers in servers where left-bend connectors optimize cable routing.
• Data Center Modernization: Facilitating hybrid storage setups with SATA and SAS compatibility in environments requiring left-side clearance solutions.
• OEM Solutions: Designed for system integrators needing all-in-one SATA-to-SAS cables with left-bend connectivity for custom configurations.
• Test and Development: Useful for laboratory environments validating hybrid storage configurations in compact setups with left-side constraints.
• Disaster Recovery: Ensuring reliable data replication between SATA and SAS systems in dense server racks where left-bend cables prevent obstruction.
• High-Density Racks: Ideal for enterprise environments requiring left-side optimized cable management and simplified connectivity.
• Blade Server Environments: Essential for blade server configurations with extreme space limitations and left-side spatial constraints.

Note: This cable is designed specifically for connecting SATA drives to SAS interfaces, with the left-bend SATA connector addressing left-side spatial challenges. The SAS SFF-8482 connector integrates both data and power connections, ensuring compatibility with SAS infrastructure while supporting SATA drive functionality. The red braided sleeving provides mechanical protection and easy identification in complex configurations.
