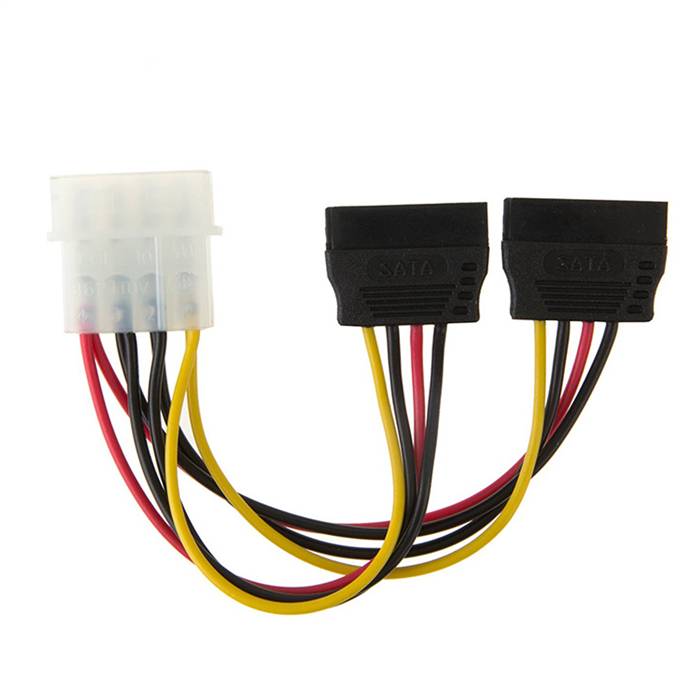

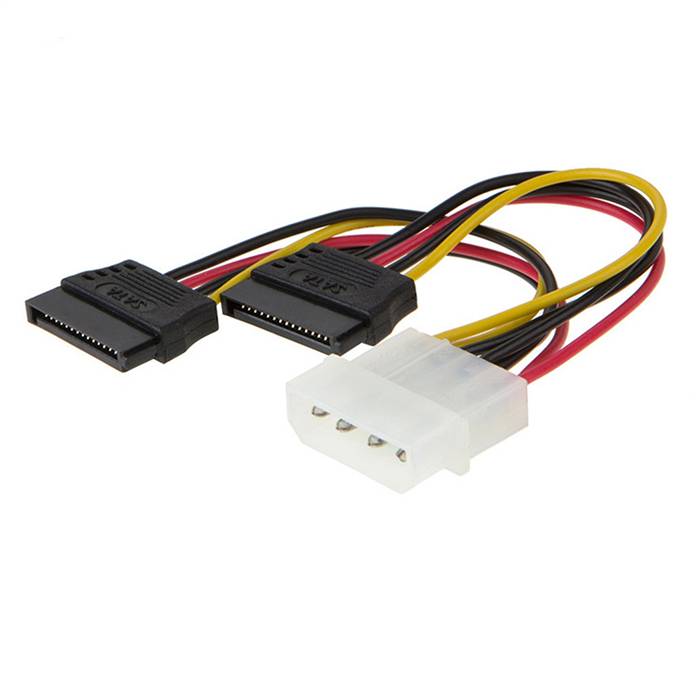

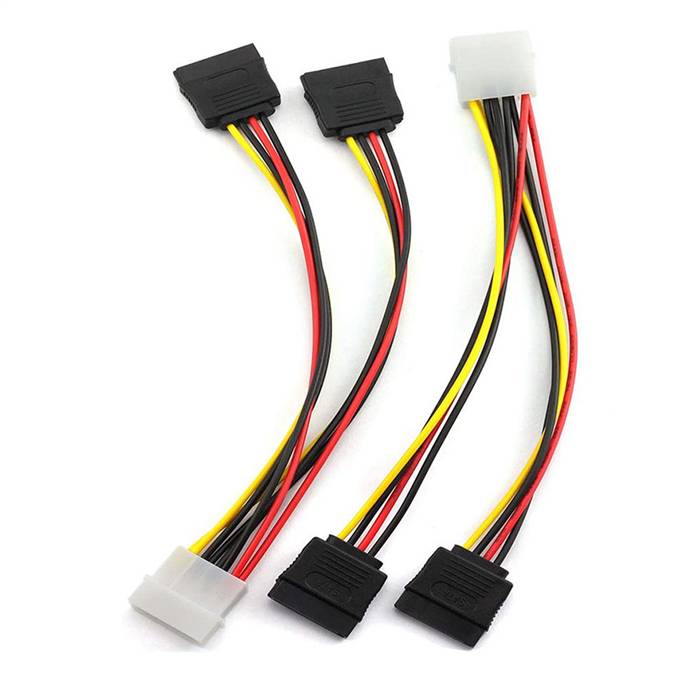

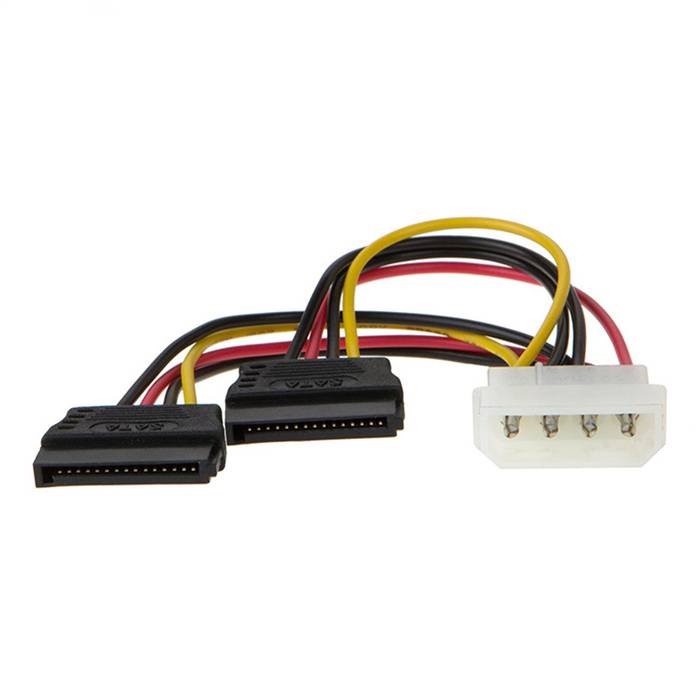

LP4 4Pin IDE Male to 2 SATA 15Pin Female Power Cable

The LP4 4Pin IDE Male to 2 SATA 15Pin Female Power Cable is a specialized power adapter solution designed for computing systems that require compatibility between legacy power supply interfaces and multiple modern SATA devices. This cable converts a single standard LP4 4-pin IDE power connector (also known as Molex or peripheral power connector) into two SATA 15-pin power connectors, enabling simultaneous power delivery to two SATA devices from older power supply units. Engineered with high-quality conductors and robust construction, this power adapter cable provides safe and efficient power conversion while maintaining compliance with SATA power specifications. The solution is ideal for system upgrades, legacy hardware maintenance, and environments where modern power connectors are unavailable, allowing users to connect multiple contemporary SATA drives to older power supplies without compromising performance or reliability.

Features

• Legacy-to-Modern Power Conversion: Converts LP4 4-pin IDE power connector to two SATA 15-pin power connectors
• Dual Device Support: Enables simultaneous power delivery to two SATA devices from a single legacy power source
• High-Current Support: Designed to handle power requirements for multiple SATA devices (up to 4.5A per connector)
• Secure Connection: Gold-plated contacts and secure latching mechanisms ensure reliable power delivery
• Voltage Compatibility: Properly converts +5V and +12V rails from IDE to SATA specifications
• Durable Construction: High-quality wires and molded connectors ensure long-term reliability
• Space-Efficient Design: Compact adapter solution eliminates the need for bulky converter boxes
• Wide Application: Suitable for various SATA devices including HDDs, SSDs, and optical drives

Specifications

• Product Model: LP4 4Pin IDE Male to 2 SATA 15Pin Female Power Cable
• Input Connector: LP4 4-pin IDE (Molex), Male
• Output Connectors: 2x SATA 15-pin, Female
• Voltage Support: +5V, +12V (properly converted from IDE to SATA standard)
• Current Rating: Up to 4.5A per pin (compliant with SATA power specifications)
• Wire Gauge: 18 AWG (primary power lines), 20 AWG (distribution lines)
• Cable Type: Internal Grade, Round Cable
• Shielding: Not applicable (power-only cable)
• Cable Length: 0.1m, 0.2m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm

Applications

• Legacy System Upgrades: Ideal for integrating multiple modern SATA drives into older computer systems
• Power Supply Adapters: Enables use of contemporary storage devices with older PSUs lacking native SATA power connectors
• Retro Computing: Essential for maintaining and upgrading vintage computer systems with modern storage solutions
• Test Benches: Laboratory environments requiring flexible power adapter solutions for various drive types
• Data Recovery: Useful for accessing modern SATA drives using legacy power supply equipment
• Embedded Systems: Industrial applications where legacy power interfaces need to support modern storage devices
• DIY Projects: Custom computer builds and modifications requiring power interface conversion
