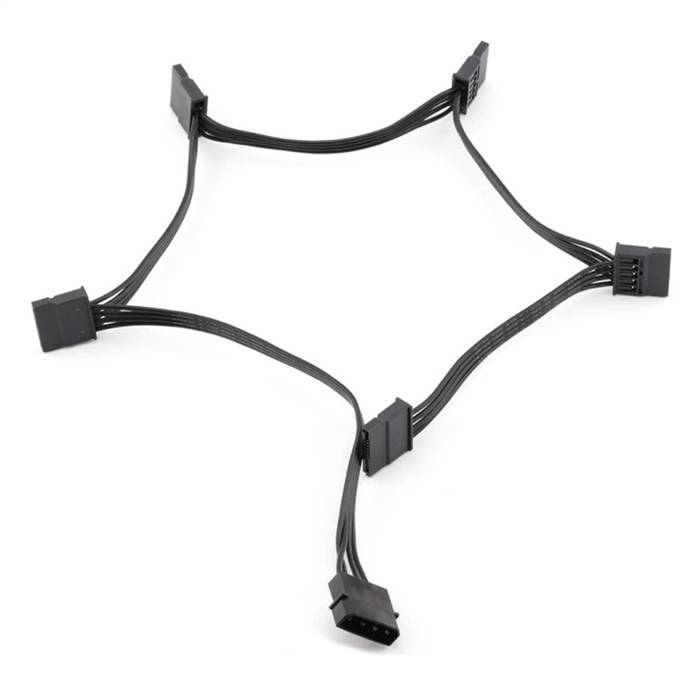

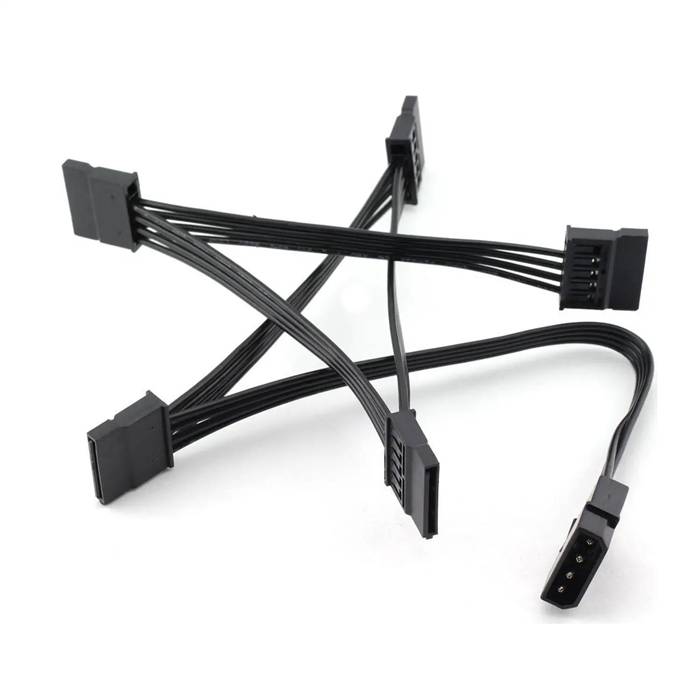

LP4 4Pin IDE Male to 5 SATA 15Pin Female Power Splitter Cable

The LP4 4Pin IDE Male to 5 SATA 15Pin Female Power Splitter Cable is a high-capacity power distribution solution designed for legacy computing systems requiring extensive power delivery to multiple modern SATA devices. This cable converts a single LP4 4-pin IDE power connector (Molex connector) into five standard SATA 15-pin power connectors, enabling simultaneous power delivery to five SATA devices from older power supply units. Engineered with high-quality conductors and robust construction, this power splitter cable ensures efficient power distribution while maintaining compliance with SATA specifications. The solution is ideal for large-scale legacy system upgrades, data recovery setups, and environments where multiple SATA drives need to be powered from a single legacy power source, eliminating cable clutter and simplifying power management in complex configurations.

Features

• High-Capacity Power Splitter: Converts one LP4 4-pin IDE connector to five SATA 15-pin power connectors
• Multi-Device Support: Powers up to five SATA devices simultaneously from a single legacy power source
• High-Current Handling: Designed to manage power requirements for multiple drives (up to 4.5A per connector)
• Secure Connection: Gold-plated contacts and latching mechanisms ensure reliable power delivery
• Voltage Compatibility: Accurately converts +5V and +12V rails from IDE to SATA standards
• Durable Construction: High-quality wires and molded connectors guarantee long-term reliability
• Efficient Cable Management: Reduces clutter by consolidating multiple power connections
• Legacy-to-Modern Adaptation: Bridges older power supplies with modern SATA storage devices

Specifications

• Product Model: LP4 4Pin IDE Male to 5 SATA 15Pin Female Power Splitter Cable
• Input Connector: LP4 4-pin IDE (Molex), Male
• Output Connectors: 5x SATA 15-pin, Female, Straight
• Voltage Support: +5V, +12V (converted from IDE to SATA standard)
• Current Rating: Up to 4.5A per pin (SATA-compliant)
• Wire Gauge: 18 AWG (primary lines), 20 AWG (distribution lines)
• Cable Type: Internal Grade, Round Cable
• Shielding: Not applicable (power-only cable)
• Cable Length: 0.3m, 0.5m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• Large-Scale Legacy Upgrades: Integrating multiple SATA drives into older systems with limited power connectors
• Data Recovery Labs: Powering numerous drives simultaneously during data retrieval operations
• Server and NAS Expansion: Adding multiple drives to legacy servers or network-attached storage systems
• Retro Computing Projects: Modernizing vintage systems with extensive SATA storage capabilities
• Test and Development Environments: Laboratories requiring flexible power distribution for multiple drives
• DIY and Custom Builds: Enthusiast projects involving legacy power supplies and modern storage arrays
• Backup Systems: Supporting multi-drive backup solutions with older power infrastructure
• Industrial Applications: Embedded systems where legacy power interfaces must support multiple modern drives
