Low Profile SlimSAS cables are the perfect solution for server and networking equipment that require reduced space. Our SlimSAS LP (Low Profile) cable assembly solutions are designed to meet the demands of today's data centres, networking, and telecommunications markets that use SAS.
The SlimSAS LP connector design is available in straight, right-angle, right-side-exit, and left-side-exit plug configurations, making it easy to mate with vertical board mount connectors. This allows for a wide range of interconnection configurations, including a backplane to the motherboard, a backplane to an add-in card, and a card to the motherboard.
Our SlimSAS LP cables and connectors support the latest industry standards, including SAS 3.0 / 4.0, PCIe Gen 3 / Gen 4, 56GT/s PAM-4, and 25G Ethernet. This makes them ideal for use in a wide range of applications, including data centres, networking, and telecommunications.
Features
- Compatible with PCIE Slimline LP Low profile SFF-8654 8I interface, connects to two SFF-8087 interface devices for high-speed data transmission.
- High-quality, highly conductive copper wire is used as the conductor to ensure the stability and reliability of signal transmission.
- Adopting SFF-8654 miniaturized LP design, saving space and easy to install and maintain.
- The outer layer of the cable is made of abrasion-resistant and high-temperature-resistant material, which has excellent anti-interference performance and ensures stable operation for a long time.
- Suitable for servers, storage devices and other scenarios that require high-speed data transmission, to meet a variety of high-speed data transmission needs.
Specifications

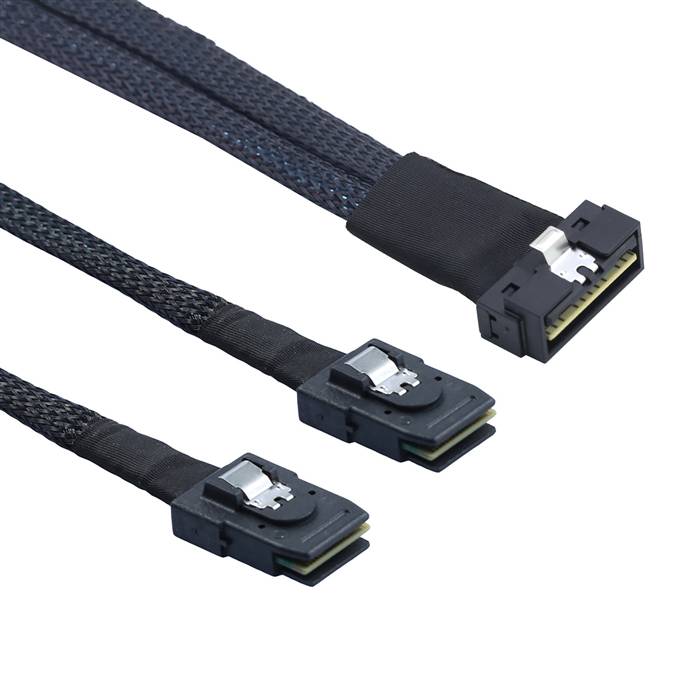

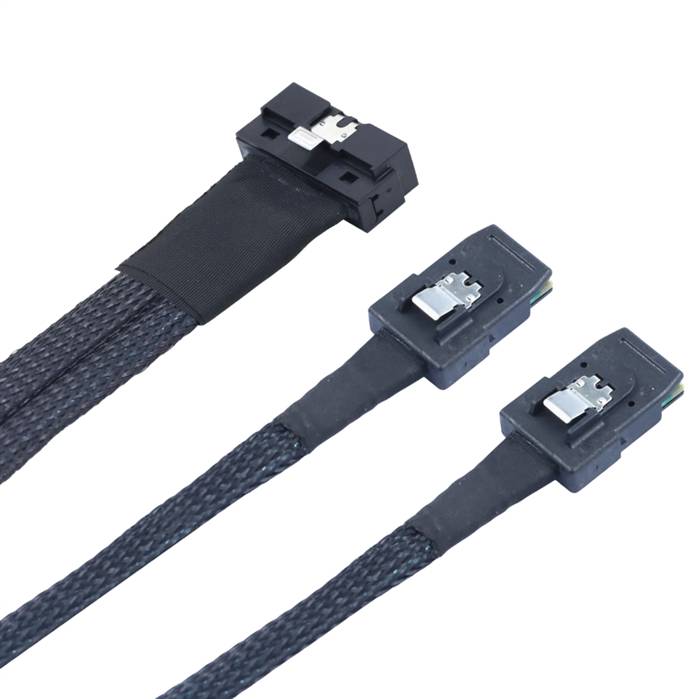

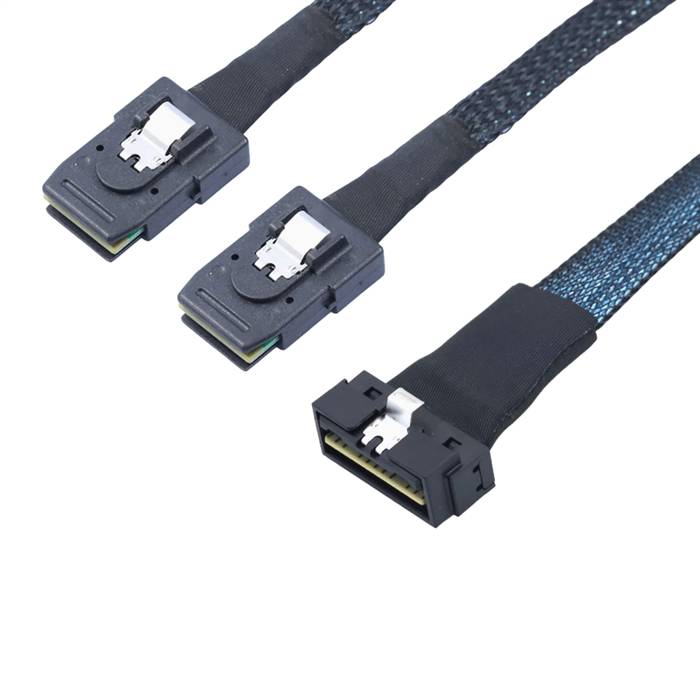

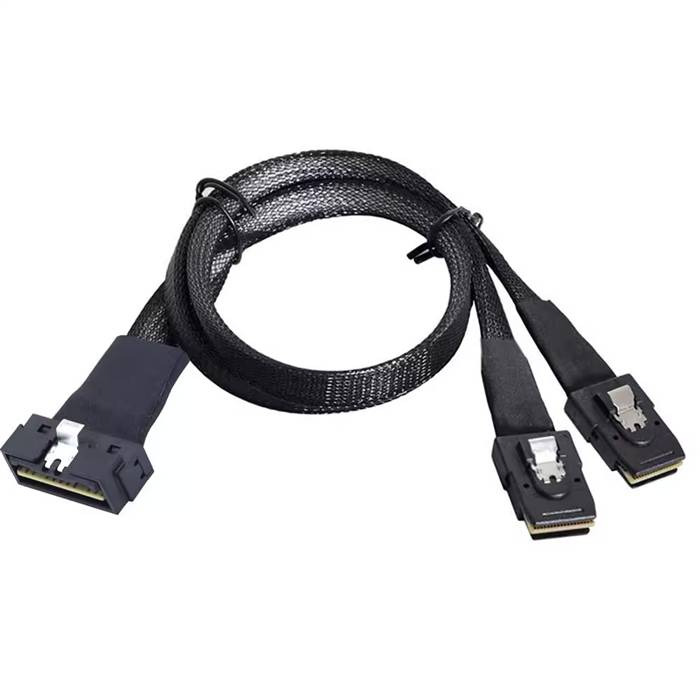

- Connector A: 1 x Low Profile SlimSAS 8i 74P STR (Straight)
- Connector B: 2 x Internal Mini SAS (SFF-8087) 36P STR (Straight)
- Cable Length: 0.5m, 0.8m, 1m
- Current Rating: 0.5Amperes maximum per pin when mated
- Voltage Rating: 30VAC per when mated or unmated
- Resistance: 30mohm max. initial, 15mohm maximum after stress test
- Dielectric Withstanding Voltage: 500 VAC for 1 minute no breakdown
- Insulation Resistance: 1000 Mohm minimum
- Mated Connector Impedance: 85 ?±15%
- Cable Absolute Impedance: 85 ?±10%
- Cable Pair Matching: ±5 ?
- Common Impedance: 25 to 40 ohms
- Insertion loss: -6dB maximum up to 4.5Ghz
- Crosstalk: -26 dB up to 24Ghz
