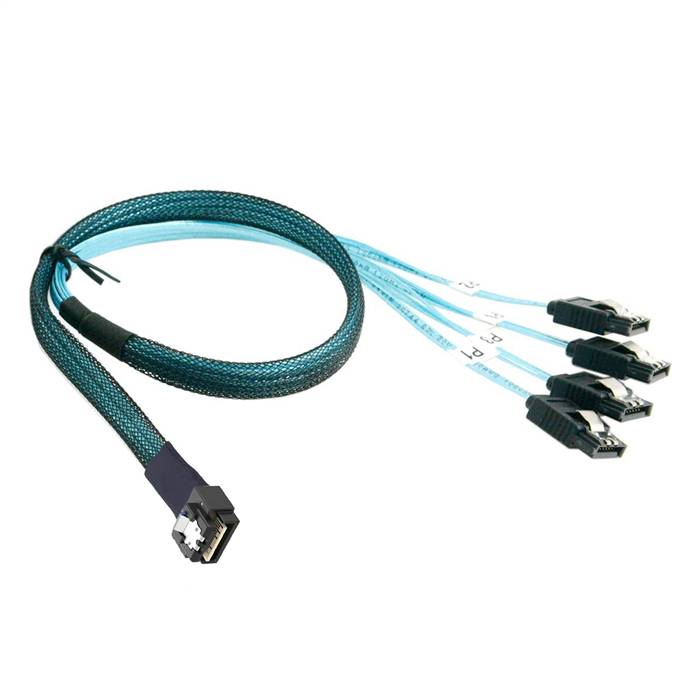

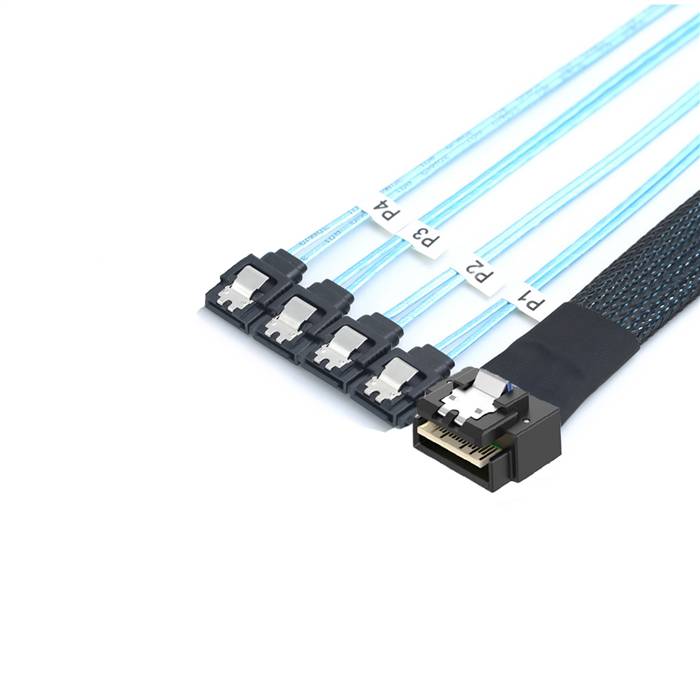

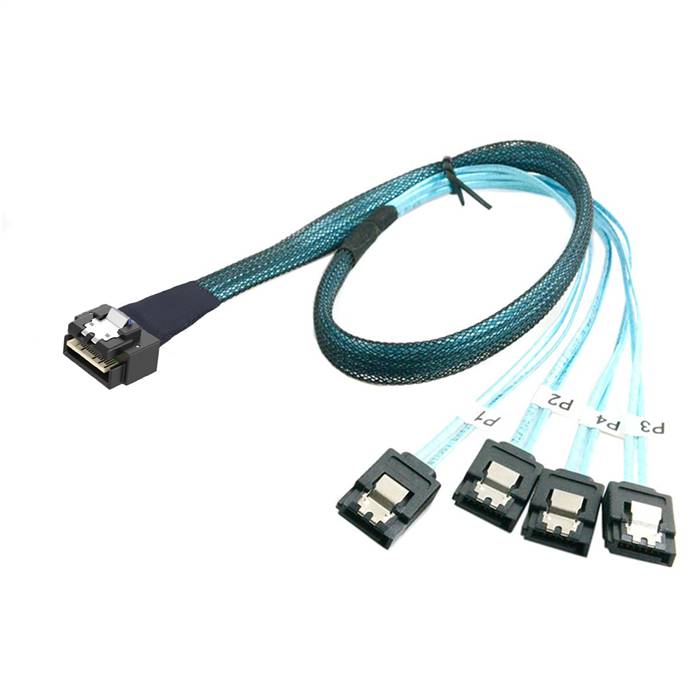

Low Profile SlimSAS SFF-8654 4x 38P to 4 Straight SATA 7P Cable

The Low Profile SlimSAS SFF-8654 4x 38P to 4 Straight SATA 7P Cable is a specialized breakout solution designed for modern high-density server and storage environments. This cable assembly converts a single low-profile SlimSAS SFF-8654 4x host interface into four independent SATA 7-pin data ports, featuring straight connectors that ensure reliable connections in space-constrained configurations. Engineered with a focus on space optimization and signal integrity, this solution provides an efficient connectivity option for deploying multiple SATA devices while maintaining the compact form factor required in today's enterprise storage systems.

Features

• Space Optimized Design: LP SFF-8654 connector enables deployment in ultra-slim server configurations where standard connectors cannot fit
• High Density Breakout: Converts one 4x host port into four individual SATA data ports, maximizing connectivity in limited spaces
• SATA 3.0 Performance: Supports 6.0 Gbps data transfer rates per port, ensuring compatibility with modern SATA SSDs and HDDs
• Enhanced Signal Integrity: Precision engineering with proper impedance matching and comprehensive shielding maintains signal quality across all channels
• Reliable Straight Connectors: Straight SATA connectors provide secure mating and stable connections in various mounting configurations

Specifications

• Product Model: LP SlimSAS to Quad SATA Cable
• Host Connector: LP SFF-8654 4x, 38-Position, Male, Straight (Low Profile)

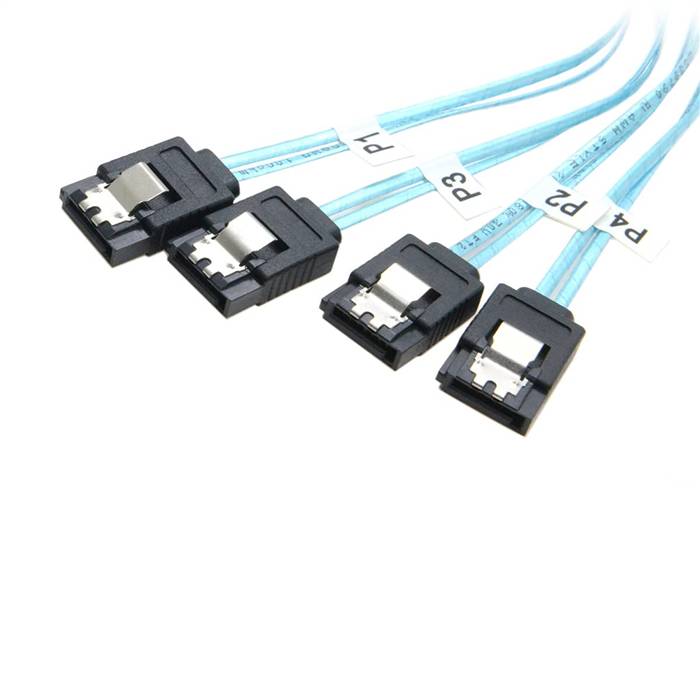

• Device Connectors: 4x SATA 7-pin Data, Male, Straight
• Data Rate Support: Up to 6.0 Gbps (SATA 3.0) per port
• Supported Protocols: SATA 3.0, SATA 2.0, SATA 1.0
• Wire Gauge: 30 AWG (signal transmission)
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.6m, 1.1m
• Operating Temperature: -20°C to +85°C
• Connector Height: 6.5mm (LP specification)
• Durability Rating: 5,000 mating cycles

Applications

• Ultra-Density Server Storage: Ideal for 1U and blade servers where LP connectors provide essential clearance for drive trays
• Data Center Infrastructure: Essential for hyperscale data centers requiring maximum storage density with low-profile connectivity
• Storage Array Backplanes: Perfect for connecting LP host interfaces to SATA backplanes in high-density storage configurations
• Enterprise Storage Systems: Suitable for connecting host adapters to multiple SATA devices in space-constrained environments
• Server OEM Integration: Designed for original equipment manufacturer server designs requiring low-profile cabling solutions with SATA connectivity
