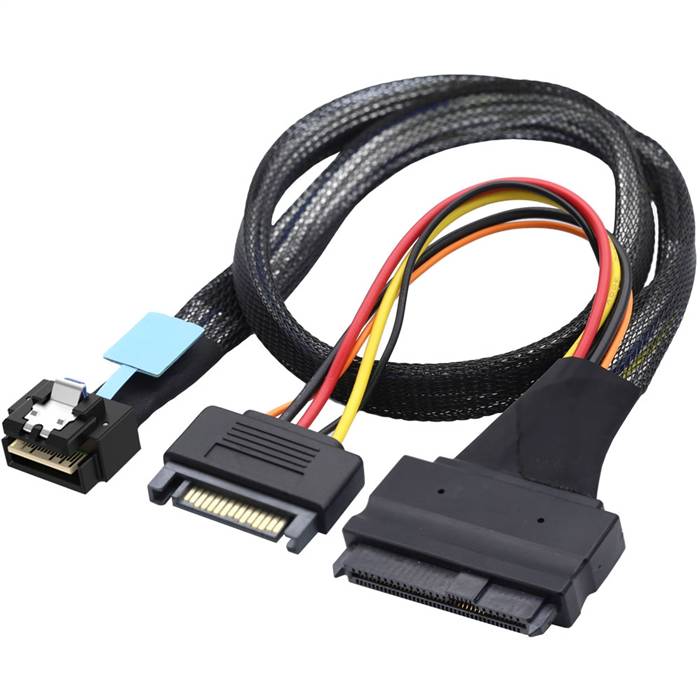

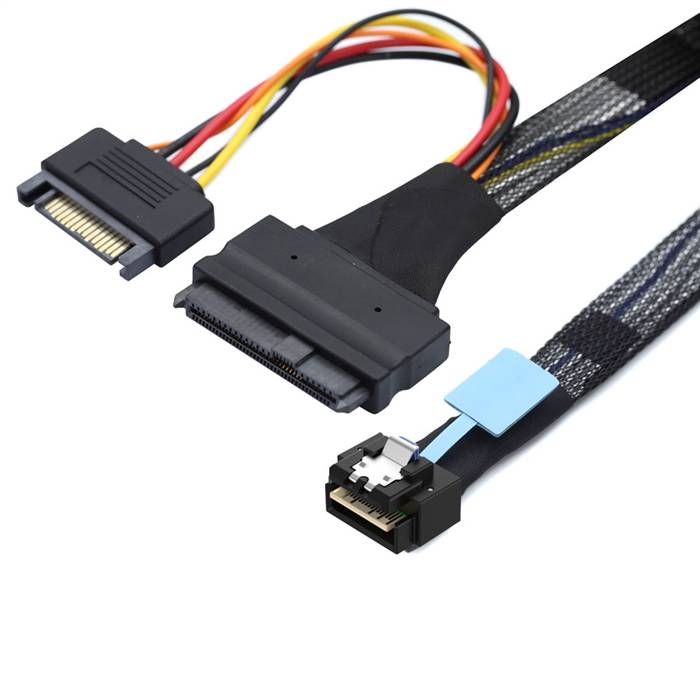

Low Profile SlimSAS SFF-8654 4x 38P to U.2 SFF-8639 with 15P Power Cable

The LP SFF-8654 4x 38P to U.2 SFF-8639 with 15P Power Cable is a specialized hybrid cable assembly designed for modern enterprise storage systems. This innovative solution combines high-speed data transmission with integrated power delivery, converting a low-profile SlimSAS SFF-8654 4x host interface into a U.2 SFF-8639 device interface with dedicated 15-pin power connectivity. The LP (Low Profile) connector design is specifically engineered for space-constrained environments, enabling efficient deployment in high-density server configurations while providing reliable performance for NVMe storage applications.

Features

• Integrated Power and Data Design: Combines PCIe data transmission and power delivery in a single cable assembly
• Low Profile Connector: LP SFF-8654 connector with reduced height enables deployment in ultra-slim server configurations
• High Speed Performance: Supports PCIe 4.0 specifications with data rates up to 16 GT/s
• Reliable Power Delivery: Integrated 15-pin SATA power connector ensures stable operation for U.2 NVMe SSDs
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and comprehensive shielding

Specifications

• Product Model: LP SlimSAS to U.2 with Power Cable
• Host Connector: LP SFF-8654 4x, 38-Position, Male, Straight (Low Profile)
• Device Connector: U.2 SFF-8639 Data + 15-pin SATA Power, Male
• Data Rate Support: Up to 16 GT/s (PCIe 4.0)
• Supported Protocols: PCIe 4.0/3.0, NVMe 1.3
• Power Rating: 12V, up to 9A per connector
• Wire Gauge: 30 AWG (signal), 20-22 AWG (power)
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.6m
• Operating Temperature: -20°C to +85°C
• Connector Height: 6.5mm (LP specification)

Applications

• Ultra-Density Server Storage: Ideal for 1U and blade servers where LP connectors provide essential clearance
• Data Center Infrastructure: Perfect for hyperscale data centers requiring maximum density with low-profile connectivity
• Enterprise NVMe Deployment: Connecting LP host interfaces to U.2 NVMe SSDs in storage arrays
• High-Density Storage Systems: Suitable for storage appliances where space optimization is critical
• Server OEM Integration: Designed for original equipment manufacturer server designs requiring low-profile cabling solutions
