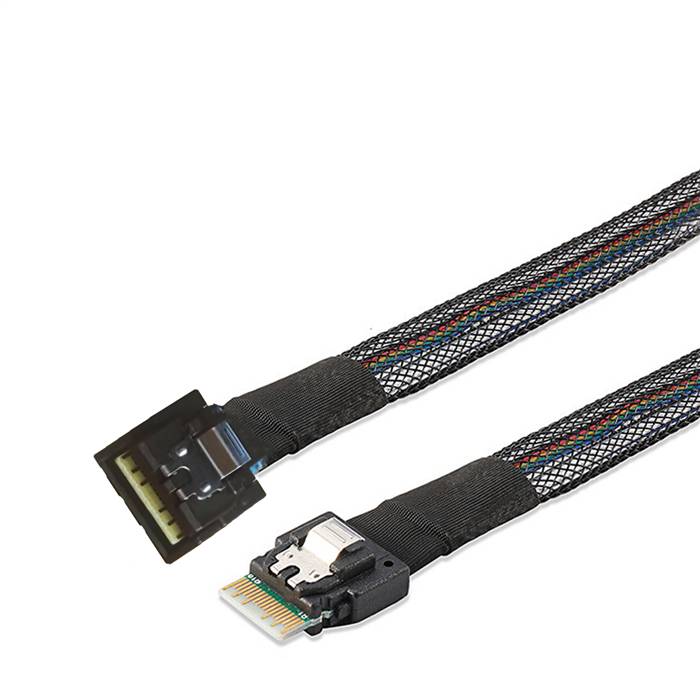

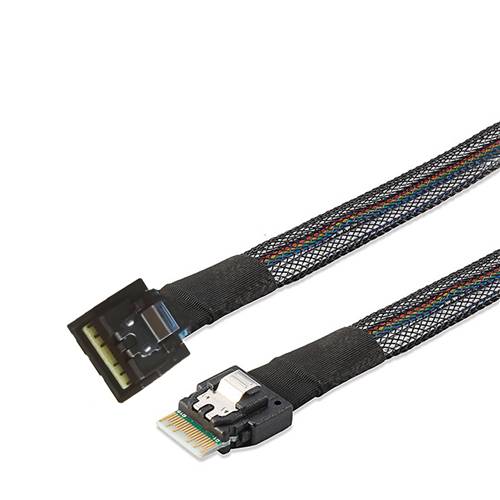

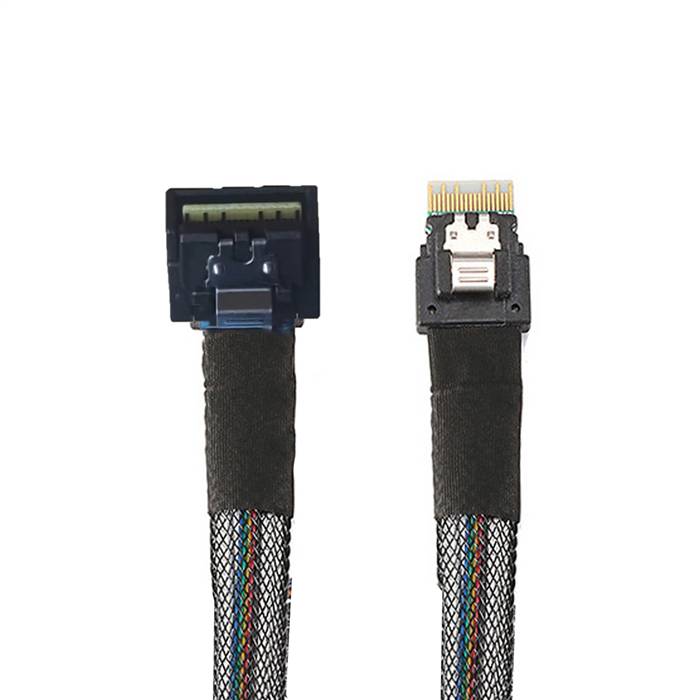

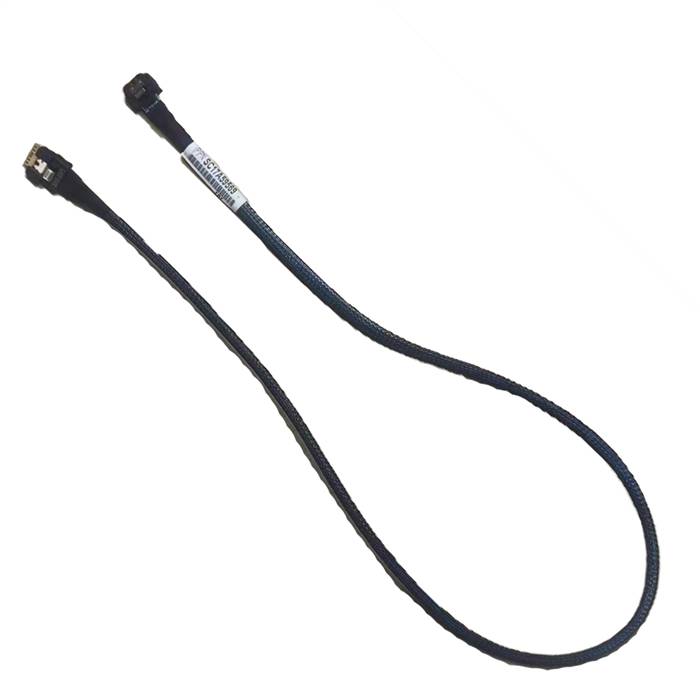

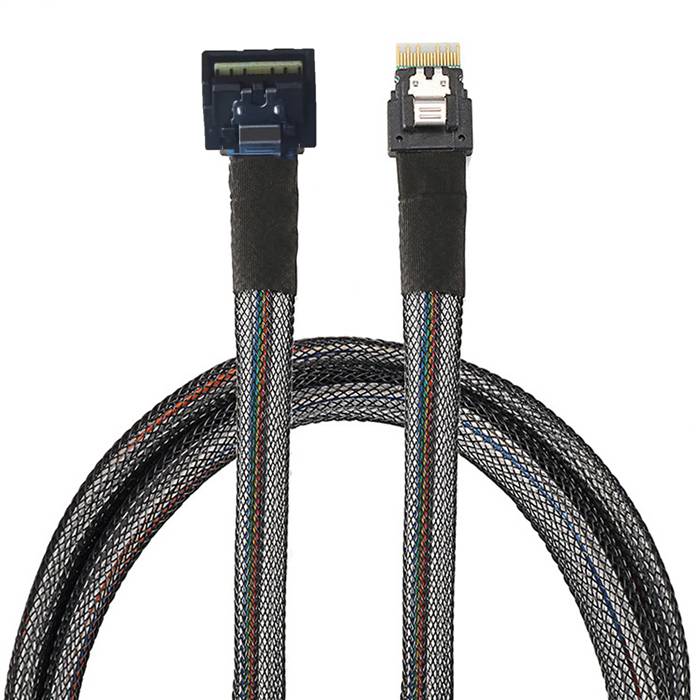

Low Profile SlimSAS SFF-8654 4x 38P to SlimSAS SFF-8654 4x 38P Cable, Straight to Straight

The Low Profile SlimSAS SFF-8654 4x 38P to SlimSAS SFF-8654 4x 38P Cable is a high-performance internal extension cable specifically designed for modern high-density server and storage environments. This straight-to-straight cable assembly features identical low-profile connectors on both ends, providing a reliable and space-efficient connectivity solution for extending SlimSAS connections within constrained server configurations. Engineered to maintain excellent signal integrity while maximizing space utilization, this cable is ideal for applications where consistent low-profile connectivity is required at both connection points.

• Dual Low Profile Design: Features LP SFF-8654 connectors on both ends for ultra-slim server deployment
• Space Optimized Configuration: 6.5mm connector height enables installation in space-constrained environments
• High Speed Performance: Supports data rates up to 24 Gbps (SAS 4.0) and PCIe 4.0 protocols
• Enhanced Signal Integrity: Precision engineering with 100? impedance matching and comprehensive shielding
• Reliable Connection: Secure latching mechanisms ensure stable connections in vibration-prone environments
• Consistent Performance: Matched connector design ensures uniform signal characteristics

• Product Model: LP SlimSAS to LP SlimSAS Extension Cable
• Connector A: LP SFF-8654 4x, 38-Position, Male, Straight
• Connector B: LP SFF-8654 4x, 38-Position, Male, Straight
• Data Rate Support: Up to 24 Gbps (SAS 4.0), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 4.0/3.0, PCIe 4.0/3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 0.7m, 0.8m
• Operating Temperature: -20°C to +85°C
• Connector Height: 6.5mm (LP specification)
• Durability Rating: 10,000 mating cycles
• Minimum Bend Radius: 30mm

• Ultra High Density Servers: Ideal for 1U and blade servers requiring consistent low-profile connectivity
• Data Center Infrastructure: Essential for hyperscale data centers maximizing rack space utilization
• Storage System Interconnections: Suitable for connecting between storage controllers and expanders in tight spaces
• Server OEM Integration: Designed for original equipment manufacturer server designs requiring uniform low-profile solutions
• Telecommunications Equipment: Applicable in telecom infrastructure requiring high-density, low-profile connectivity
• Test and Measurement: Useful for laboratory environments where consistent connector profiles are required
