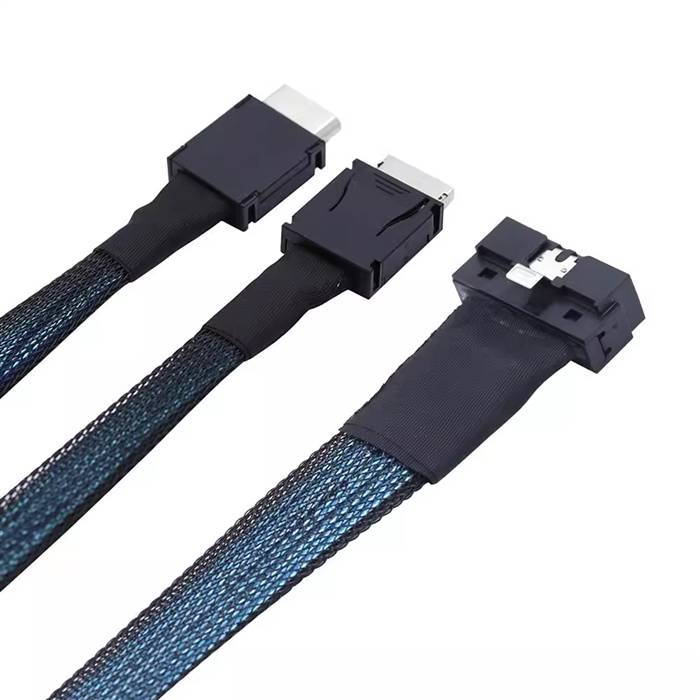

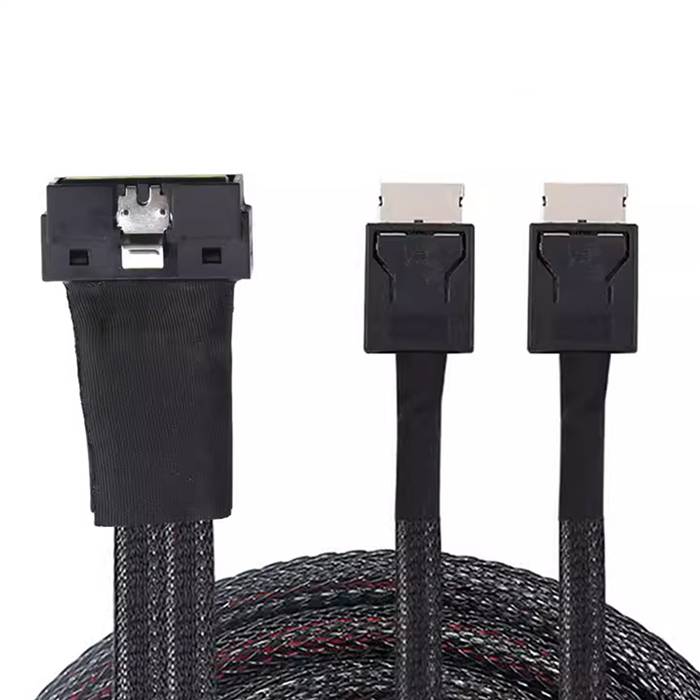

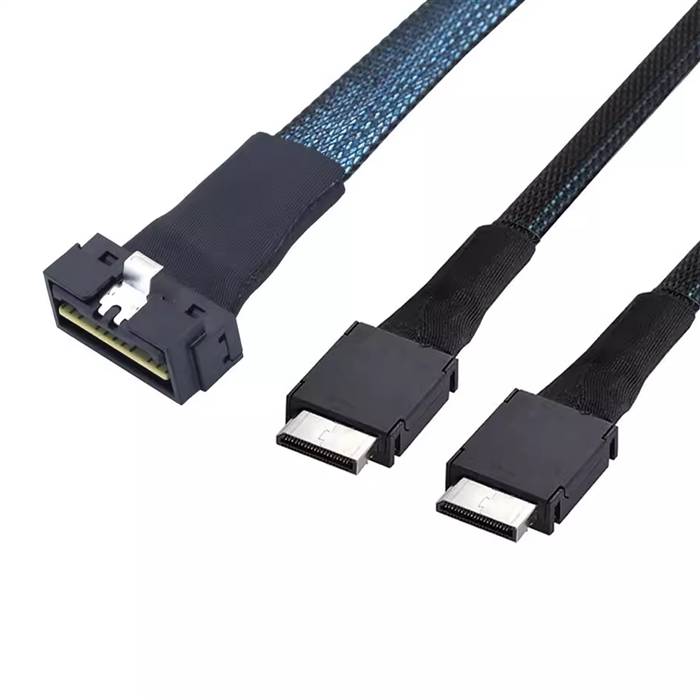

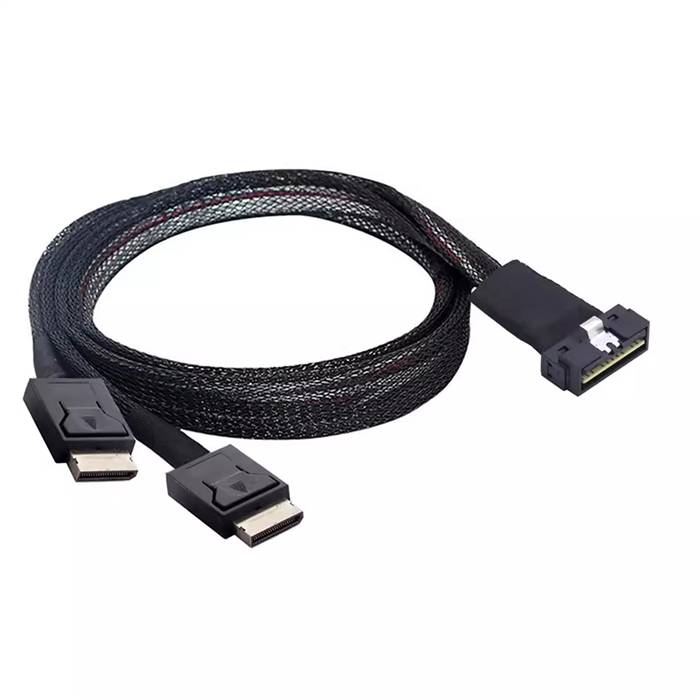

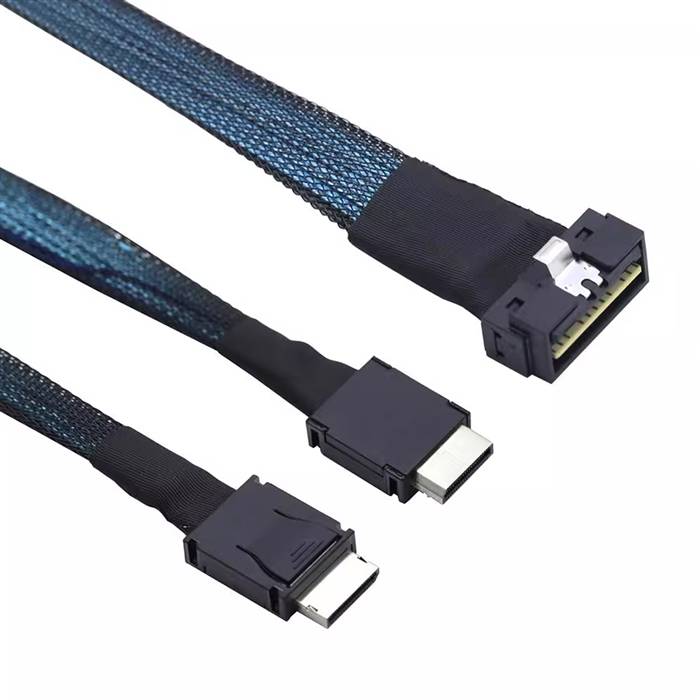

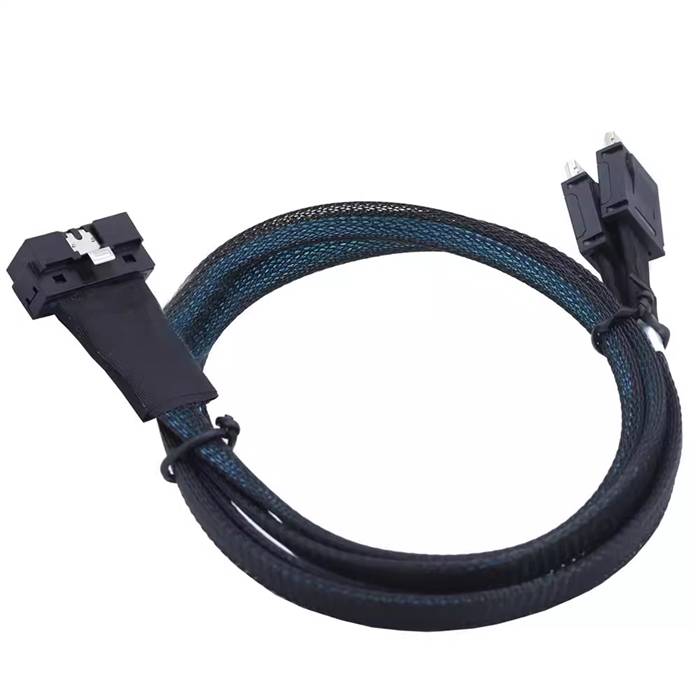

Low Profile SlimSAS SFF-8654 8x 74P to 2 OCulink SFF-8611 4x Cable, Straight to Straight

The Low Profile SlimSAS SFF-8654 8x 74P to 2 OCuLink SFF-8611 4x Cable is a high-performance breakout solution designed for modern enterprise storage and computing environments. This specialized cable converts a single 8-lane Low Profile SlimSAS host interface into two independent OCuLink SFF-8611 4x interfaces, providing flexible connectivity options for high-speed data transmission applications. Engineered with straight connectors on both ends, this solution ensures reliable connections while maintaining the space-saving advantages of low-profile design, making it ideal for dense server configurations where both performance and form factor are critical considerations.

Features

• High Density Breakout Design: Converts one 8x host port into two 4x OCuLink interfaces
• Low Profile Compatibility: LP SlimSAS connector enables deployment in space-constrained server environments
• High Speed Performance: Supports PCIe 4.0 specifications with data rates up to 16 GT/s per lane
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and comprehensive shielding
• Straight Connector Configuration: Ensures secure mating and reliable connections in various mounting scenarios
• Flexible Deployment: Supports both SAS and PCIe protocols for diverse application requirements

Specifications

• Product Model: LP SlimSAS 8x to Dual OCuLink Cable
• Host Connector: LP SlimSAS SFF-8654 8x, 74-Position, Male, Straight
• Device Connectors: 2x OCuLink SFF-8611 4x, Male, Straight
• Data Rate Support: Up to 16 GT/s (PCIe 4.0)
• Supported Protocols: PCIe 4.0/3.0, SAS 3.0
• Wire Gauge: 30 AWG
• Impedance: 85? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 1.0m
• Operating Temperature: -20°C to +85°C
• Connector Height: 6.5mm (LP specification)
• Durability Rating: 5,000 mating cycles

Applications

• High Density Server Configurations: Ideal for 1U and blade servers requiring flexible connectivity options
• Data Center Infrastructure: Essential for hyperscale data centers deploying mixed-protocol storage solutions
• Storage System Expansion: Suitable for connecting host interfaces to multiple storage devices or expanders
• High Performance Computing: Supports data-intensive applications in HPC environments requiring high-speed interconnects
• Server OEM Integration: Designed for original equipment manufacturer server designs requiring low-profile, high-speed connectivity solutions
• Test and Development: Useful for laboratory environments where flexible protocol support is required
