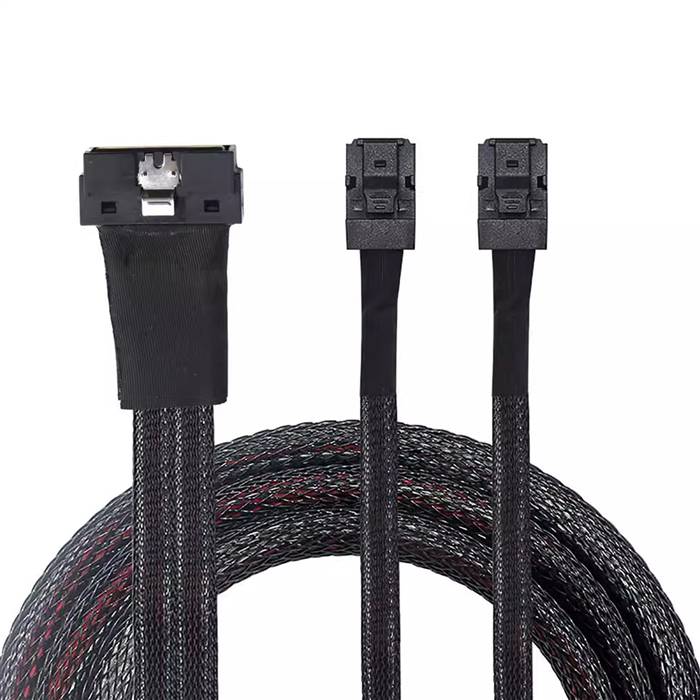

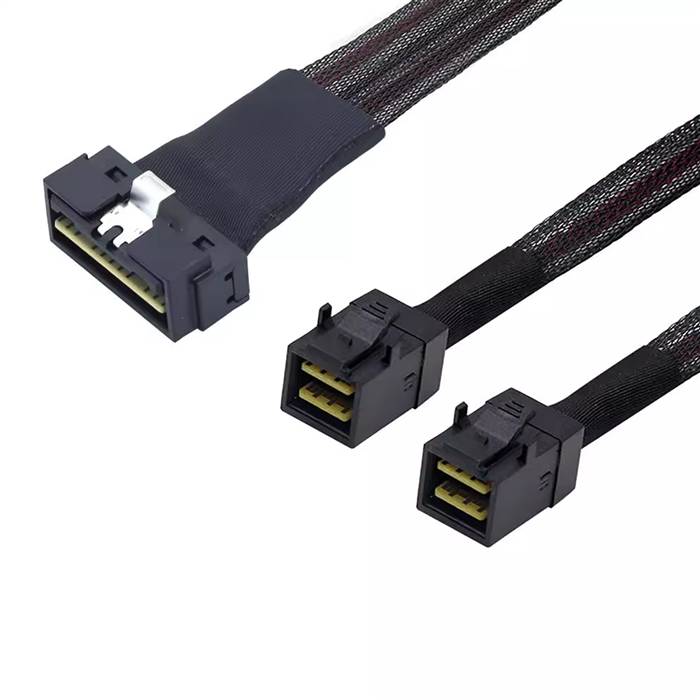

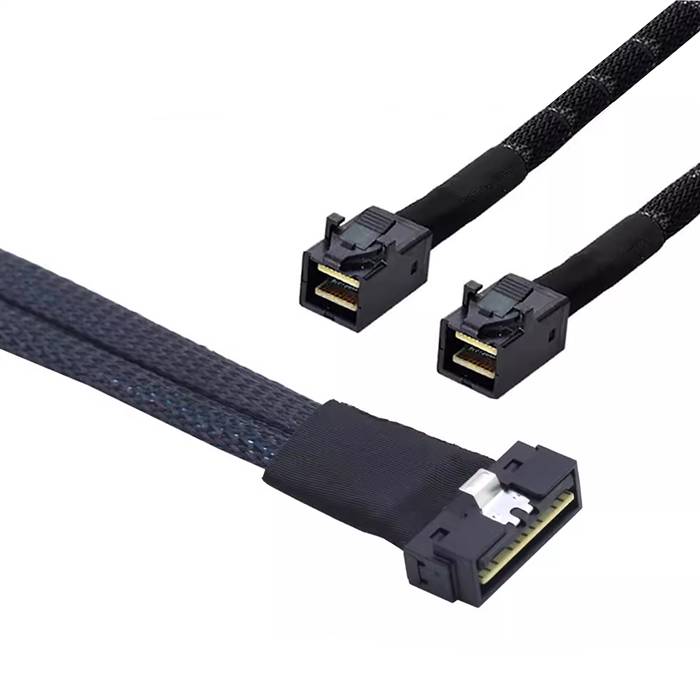

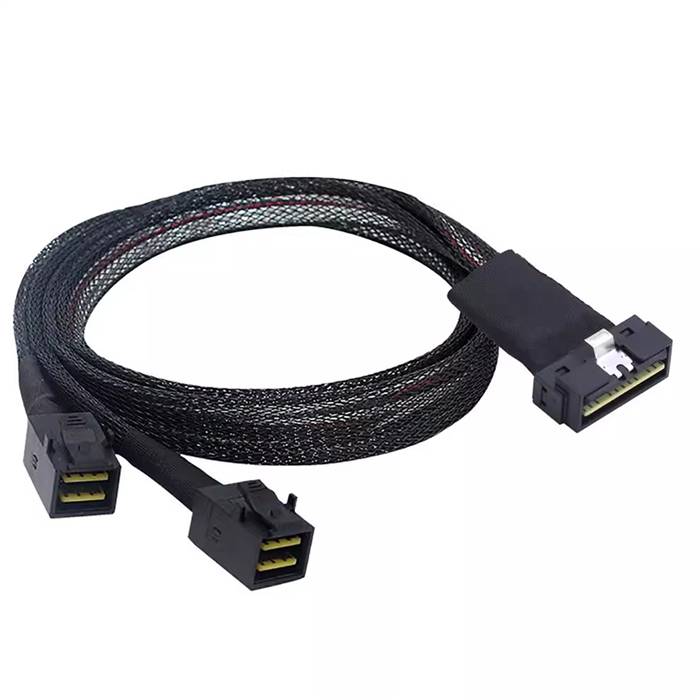

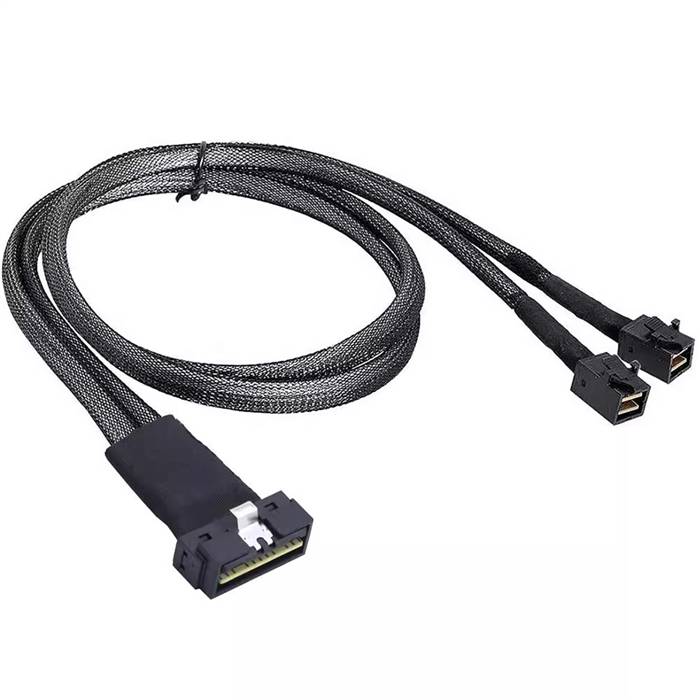

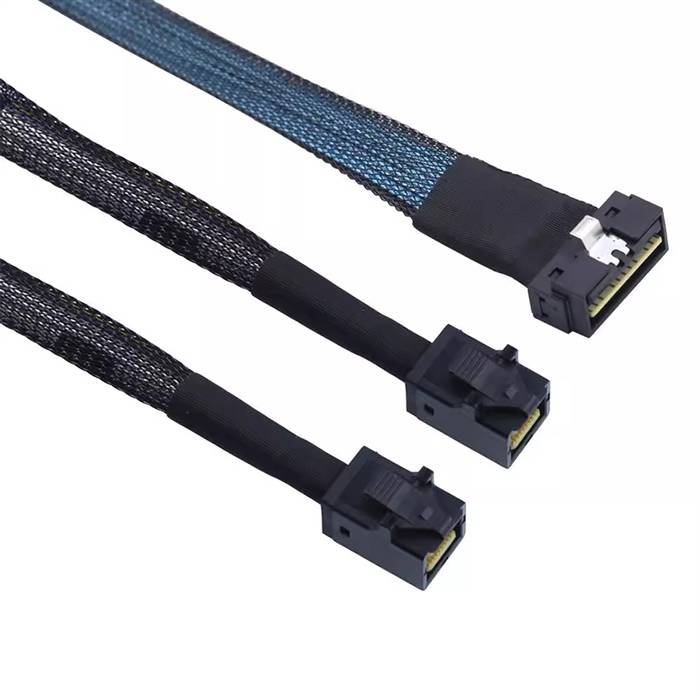

Low Profile SlimSAS SFF-8654 8x 74P to 2 Internal HD Mini SAS SFF-8643 4x 36P Cable, Straight to Straight

The Low Profile SlimSAS SFF-8654 8x 74P to 2 Internal HD Mini SAS SFF-8643 4x 36P Cable is a high-performance breakout solution designed for modern enterprise storage environments. This cable converts a single 8-lane Low Profile SlimSAS host interface into two independent Internal HD Mini SAS interfaces, utilizing straight connectors on both ends to ensure reliable and secure connections. Engineered for high-density server configurations, this solution provides flexible connectivity options while maintaining the space-saving advantages of low-profile design, making it ideal for applications where consistent performance and form factor optimization are essential requirements.

Features

• High Density Breakout Capability: Converts one 8x host port into two 4x Mini SAS interfaces
• Low Profile Design: LP SlimSAS connector enables deployment in space-constrained server environments
• Straight Connector Configuration: Ensures secure mating and reliable connections in various server configurations
• High Speed Performance: Supports data rates up to 24 Gbps (SAS 4.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and comprehensive shielding
• Flexible Protocol Support: Compatible with both SAS and SATA protocols for diverse storage applications

Specifications

• Product Model: LP SlimSAS 8x to Dual Mini SAS Cable
• Host Connector: LP SlimSAS SFF-8654 8x, 74-Position, Male, Straight
• Device Connectors: 2x Internal HD Mini SAS SFF-8643 4x, 36-Position, Male, Straight
• Data Rate Support: Up to 24 Gbps (SAS 4.0)
• Supported Protocols: SAS 4.0/3.0, SATA 3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 0.7m, 1.0m
• Operating Temperature: -20°C to +85°C
• Connector Height: 6.5mm (LP specification)
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• High Density Server Storage: Ideal for 1U and blade servers requiring multiple Mini SAS connections
• Data Center Infrastructure: Essential for hyperscale data centers deploying high-density storage solutions
• Storage Array Connectivity: Perfect for connecting LP host interfaces to Mini SAS backplanes in JBOD configurations
• Enterprise Storage Systems: Suitable for large-scale storage deployments requiring reliable SAS connectivity
• Server OEM Integration: Designed for original equipment manufacturer server designs requiring low-profile solutions
• Test and Development Environments: Useful for laboratory setups where straight connectors are preferred for testing purposes
