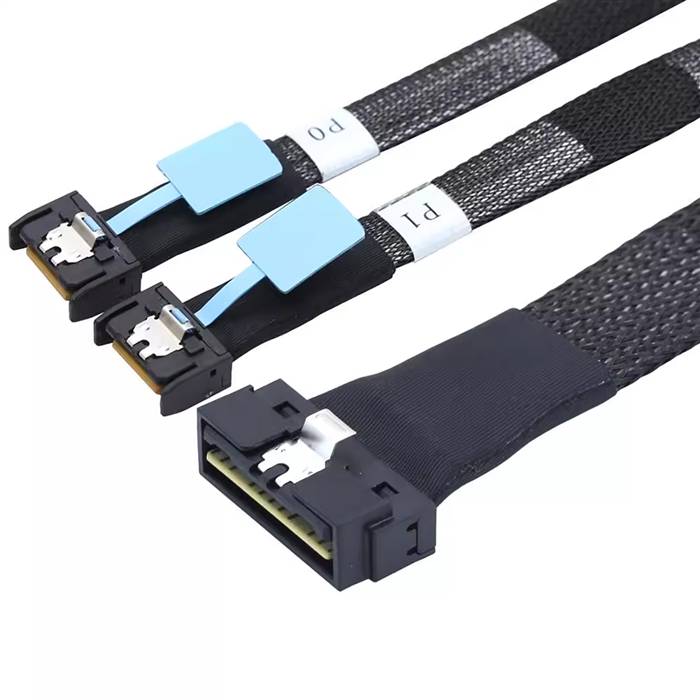

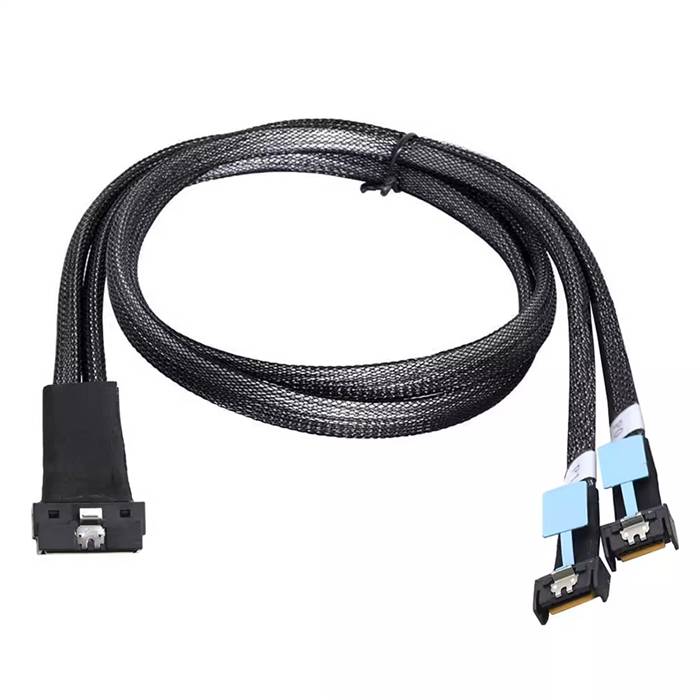

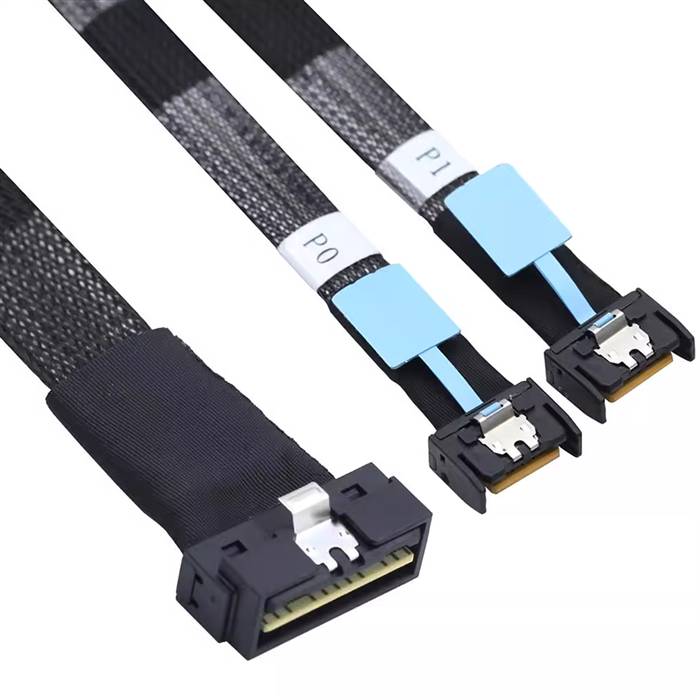

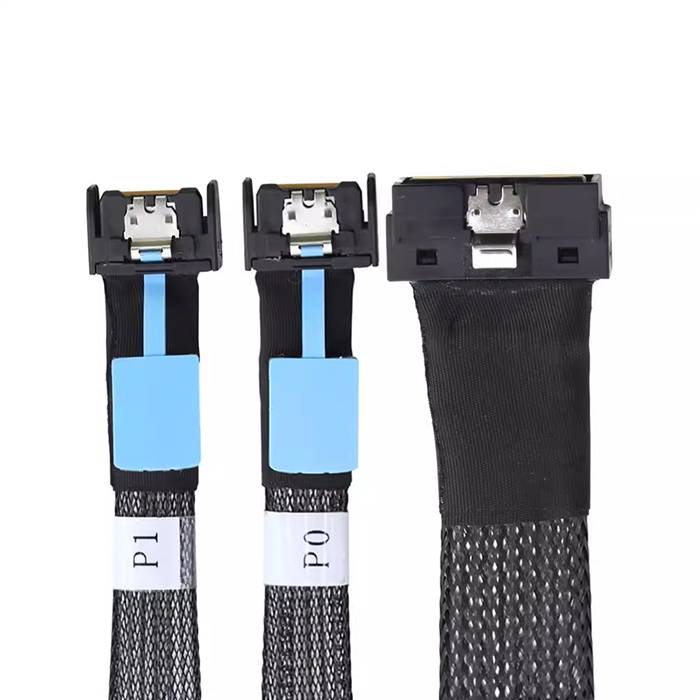

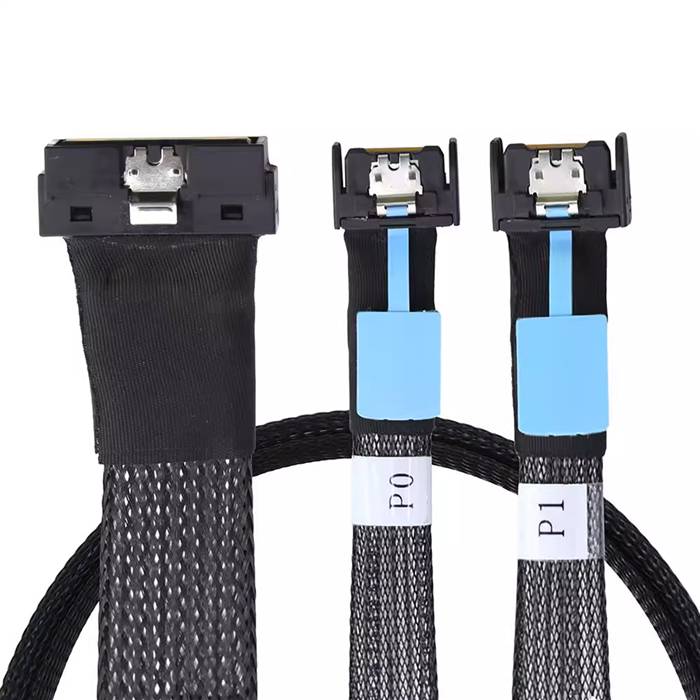

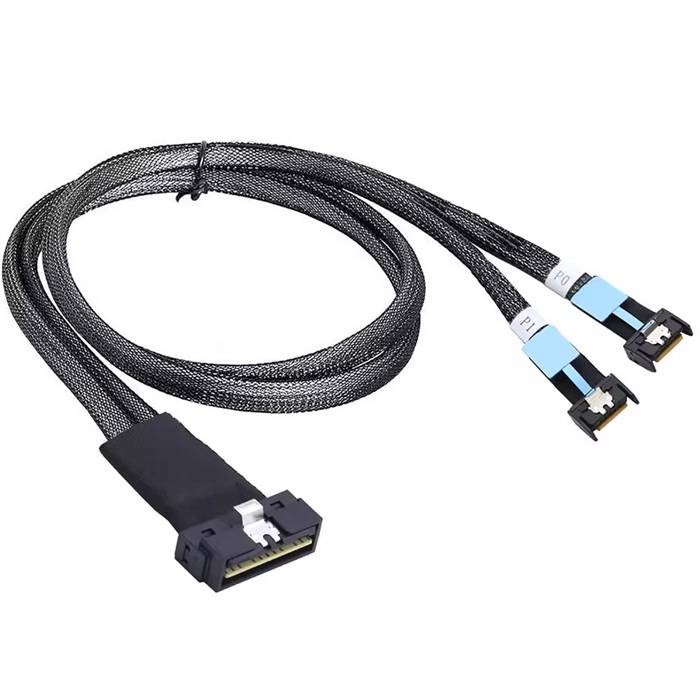

Low Profile SlimSAS SFF-8654 8x 74P to 2 MCIO 4x 38P Cable, Straight to Straight

The Low Profile SlimSAS SFF-8654 8x 74P to 2 MCIO 4x 38P Cable is a high-performance breakout solution designed for next-generation enterprise storage and server environments. This cable converts a single 8-lane Low Profile SlimSAS host interface into two independent MCIO 4x interfaces, utilizing straight connectors to ensure reliable and secure connections. Engineered for high-density configurations, this solution provides flexible connectivity options while maintaining the space-saving advantages of low-profile design, making it ideal for modern data centers and storage systems where both performance and form factor optimization are critical.

Features

• High Density Breakout Design: Converts one 8x host port into two 4x MCIO interfaces
• Low Profile Compatibility: LP SlimSAS connector enables deployment in space-constrained server environments
• High Speed Performance: Supports data rates up to 32 GT/s (PCIe 5.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and comprehensive shielding
• Straight Connector Configuration: Ensures secure mating and reliable connections in various server configurations
• Flexible Protocol Support: Compatible with PCIe and NVMe protocols for diverse storage applications

Specifications

• Product Model: LP SlimSAS 8x to Dual MCIO 4x Cable
• Host Connector: LP SlimSAS SFF-8654 8x, 74-Position, Male, Straight
• Device Connectors: 2x MCIO 4x, 38-Position, Male, Straight
• Data Rate Support: Up to 32 GT/s (PCIe 5.0)
• Supported Protocols: PCIe 5.0/4.0, NVMe 1.4
• Wire Gauge: 30 AWG
• Impedance: 85? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: -20°C to +85°C
• Connector Height: 6.5mm (LP specification)
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• High Density Server Configurations: Ideal for 1U and blade servers requiring multiple MCIO connections
• Data Center Infrastructure: Essential for hyperscale data centers deploying high-density storage solutions
• NVMe Storage Systems: Suitable for connecting host interfaces to MCIO-based NVMe storage devices
• Enterprise Storage Arrays: Perfect for JBOD and storage array configurations requiring port bifurcation
• Server OEM Integration: Designed for original equipment manufacturer server designs requiring low-profile, high-speed connectivity
• Cloud Computing Environments: Supports storage deployments where space optimization and high performance are critical
