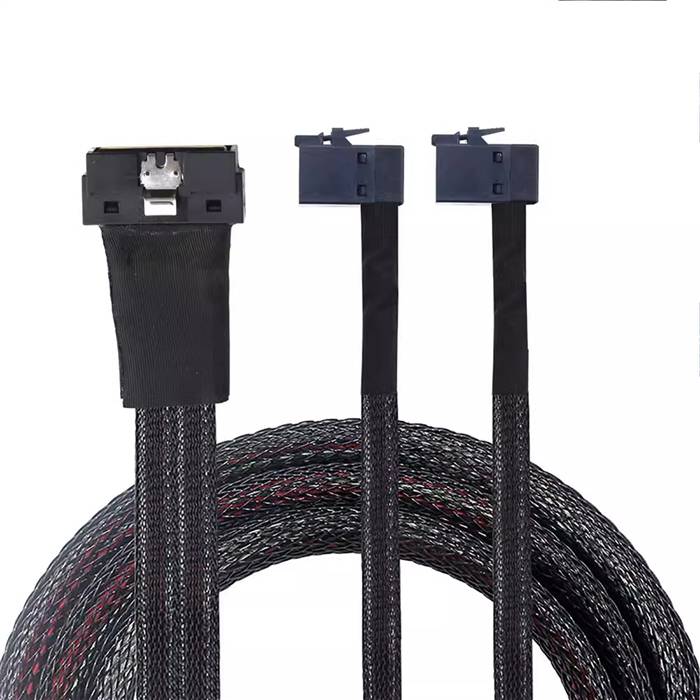

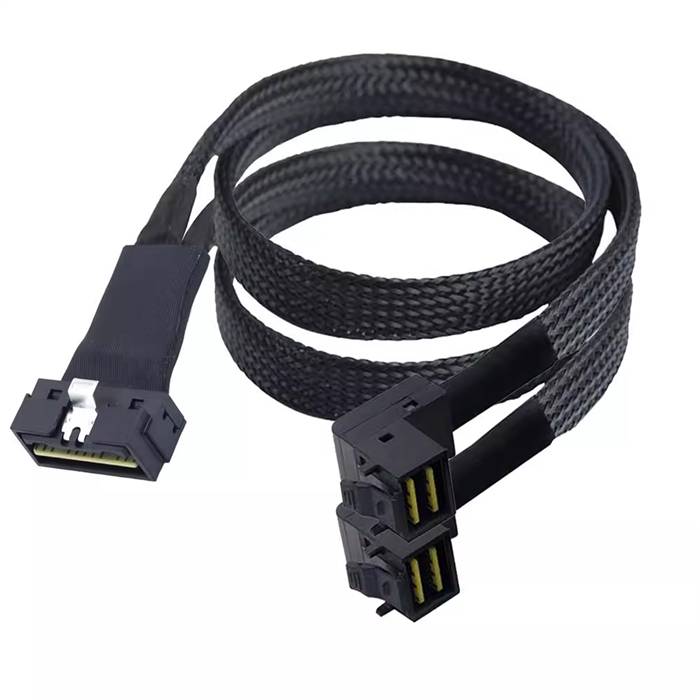

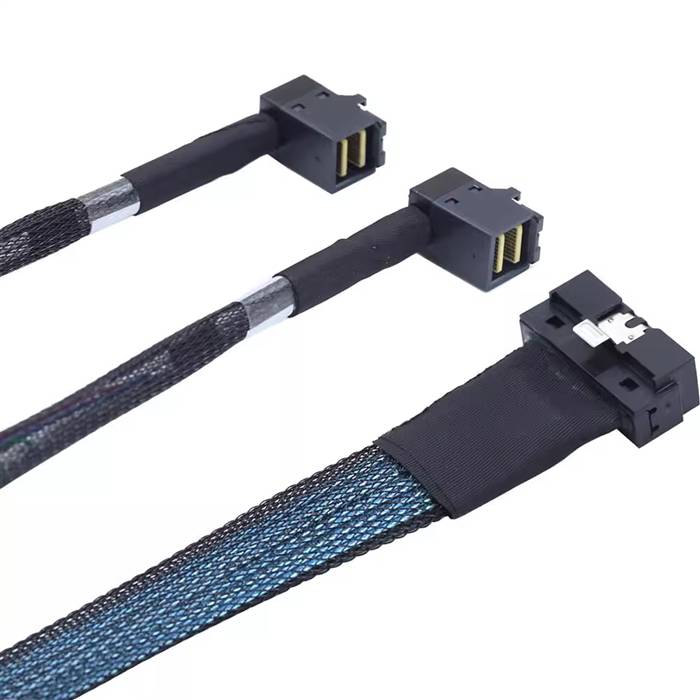

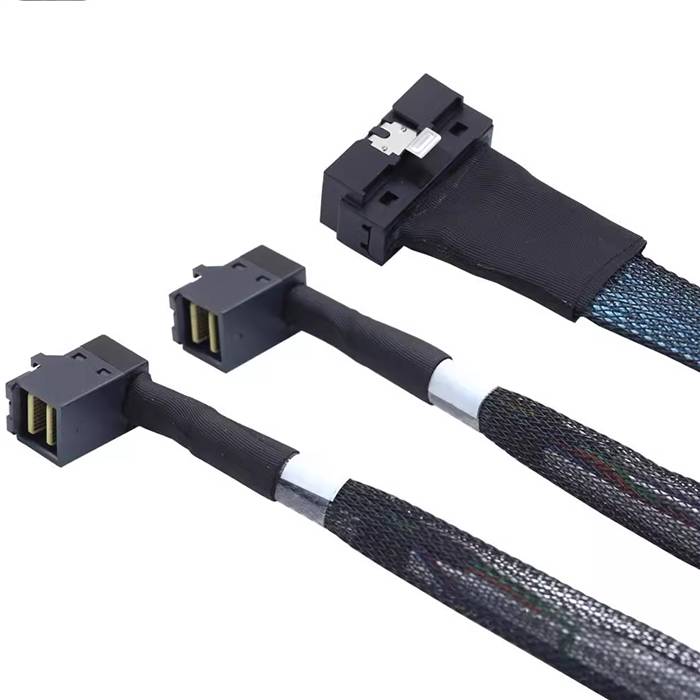

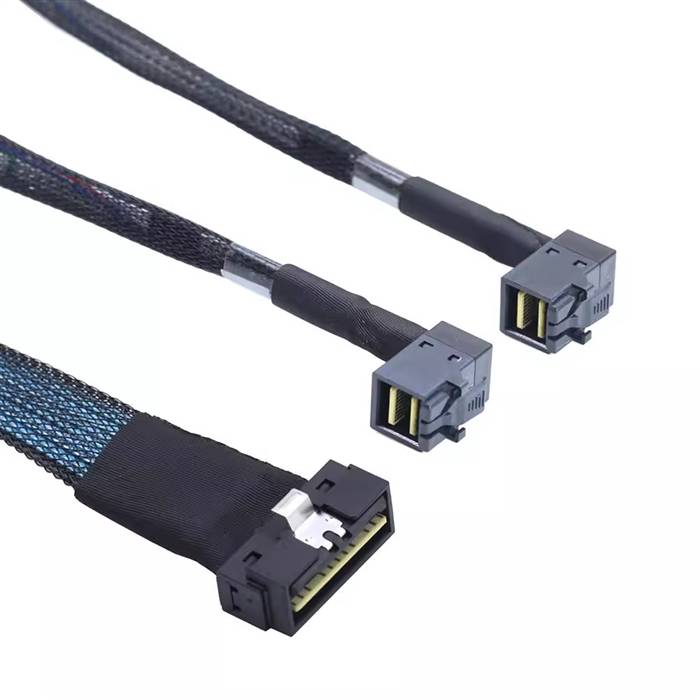

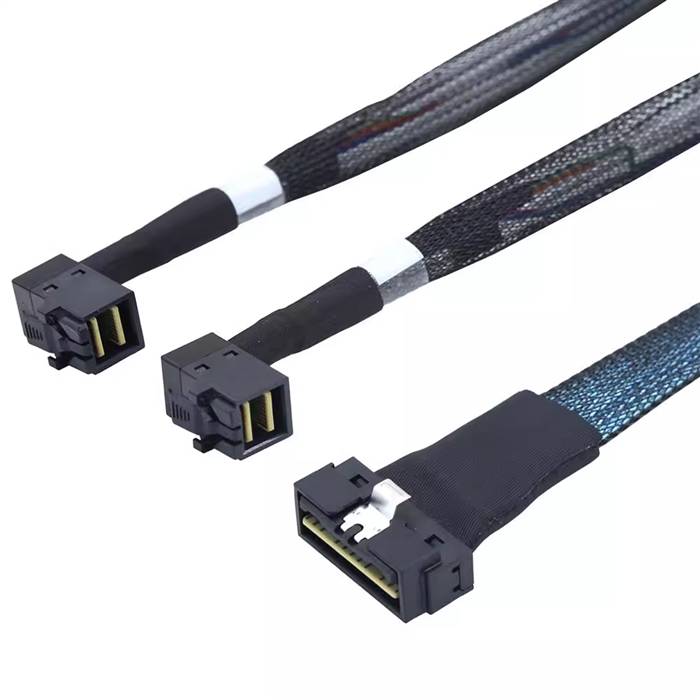

Low Profile SlimSAS SFF-8654 8x 74P to 2 Right Angle Internal HD Mini SAS SFF-8643 4x 36P Cable

The Low Profile SlimSAS SFF-8654 8x 74P to 2 Right Angle Internal HD Mini SAS SFF-8643 4x 36P Cable is a specialized breakout solution designed for modern high-density server and storage environments. This cable converts a single 8-lane Low Profile SlimSAS host interface into two independent Internal HD Mini SAS interfaces, featuring right-angle connectors that optimize cable routing in space-constrained configurations. Engineered for enterprise storage applications, this solution provides reliable high-speed connectivity while maintaining the space-saving advantages of low-profile design, making it ideal for dense server deployments where both performance and form factor are critical.

Features

• High Density Breakout Design: Converts one 8x host port into two 4x Mini SAS interfaces
• Right Angle Connector Configuration: 90-degree Mini SAS connectors enable clean cable routing
• Low Profile Compatibility: LP SlimSAS connector enables deployment in ultra-slim server environments
• High Speed Performance: Supports data rates up to 24 Gbps (SAS 4.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching
• Space Optimization: Right-angle design minimizes obstruction in dense server configurations

Specifications

• Product Model: LP SlimSAS 8x to Dual Mini SAS Right Angle Cable
• Host Connector: LP SlimSAS SFF-8654 8x, 74-Position, Male, Straight
• Device Connectors: 2x Internal HD Mini SAS SFF-8643 4x, 36-Position, Male, Right Angle
• Data Rate Support: Up to 24 Gbps (SAS 4.0)
• Supported Protocols: SAS 4.0/3.0, SATA 3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: -20°C to +85°C
• Connector Height: 6.5mm (LP specification)
• Durability Rating: 5,000 mating cycles

Applications

• High Density Server Configurations: Ideal for 1U and blade servers requiring optimized cable routing
• Data Center Infrastructure: Essential for hyperscale data centers deploying high-density storage solutions
• Storage Array Backplanes: Perfect for connecting LP host interfaces to Mini SAS backplanes
• Enterprise Storage Systems: Suitable for large-scale storage deployments requiring space-efficient connectivity
• Server OEM Integration: Designed for original equipment manufacturer server designs requiring low-profile solutions
• Cloud Computing Environments: Supports storage deployments where space optimization and airflow management are critical
