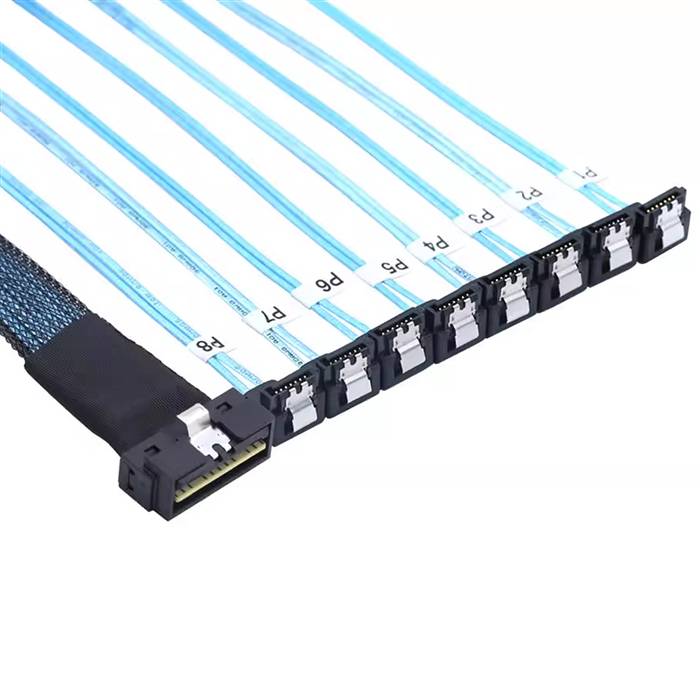

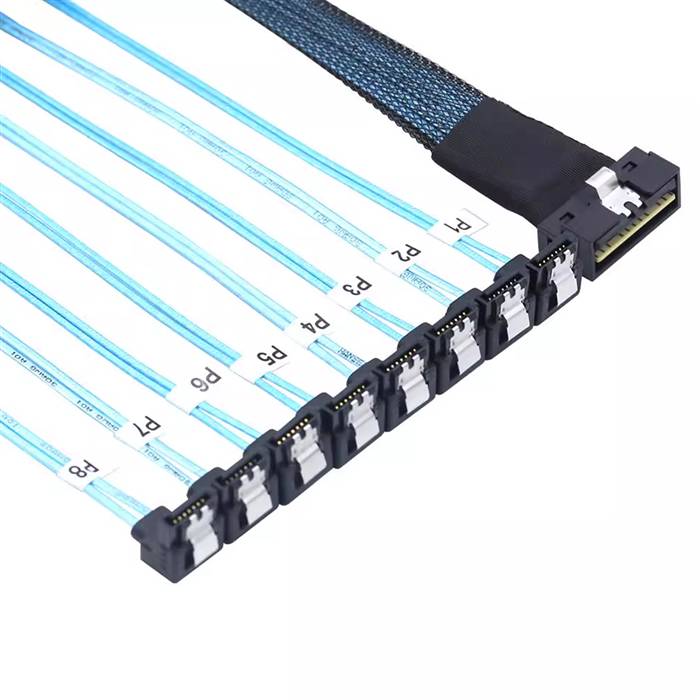

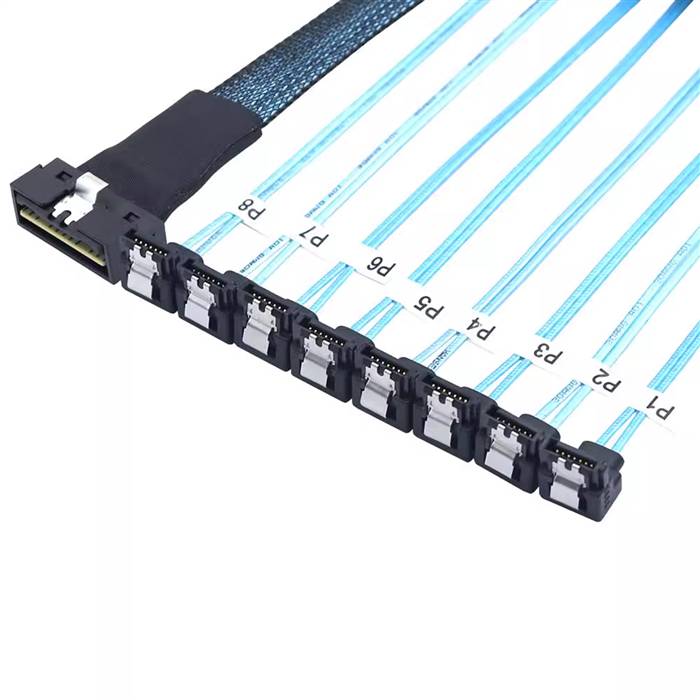

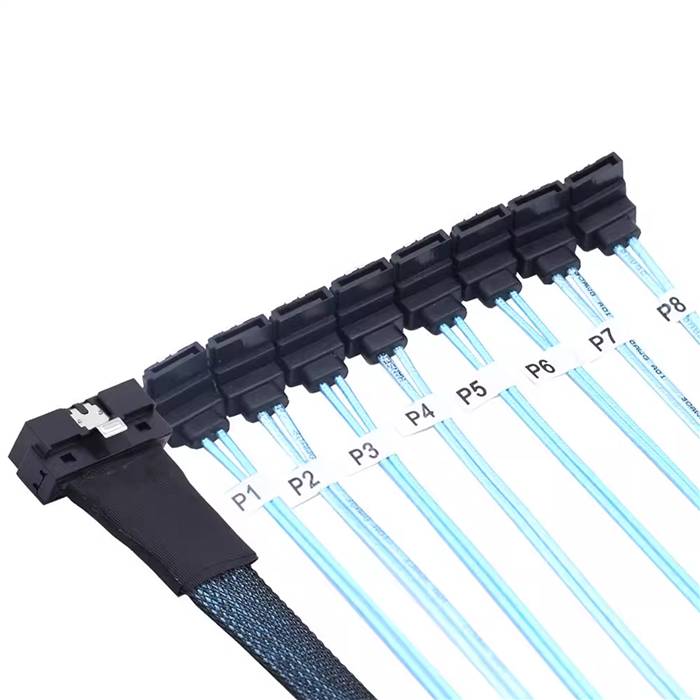

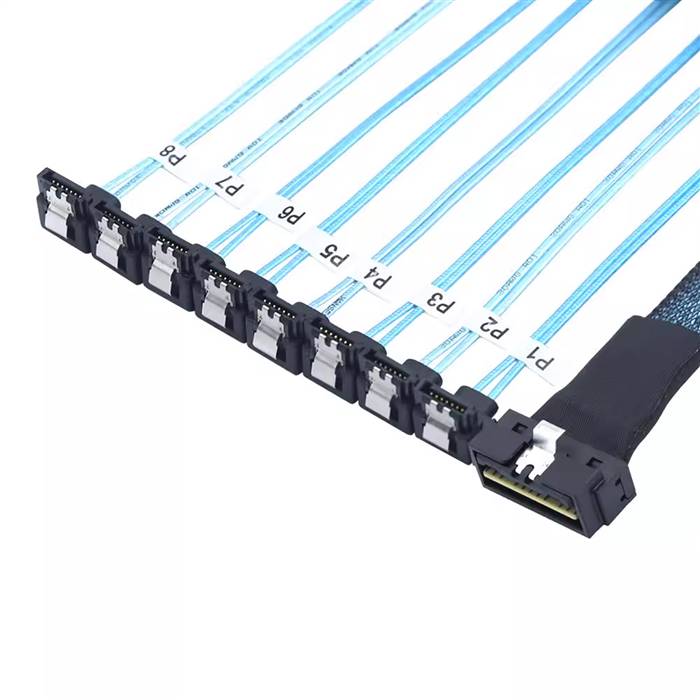

Low Profile SlimSAS SFF-8654 8x 74P to 8 Right Angle SATA 7P Cable

The Low Profile SlimSAS SFF-8654 8x 74P to 8 Right Angle SATA 7P Cable is a high-density breakout solution designed for modern enterprise storage systems requiring maximum connectivity in space-constrained environments. This specialized cable converts a single 8-lane Low Profile SlimSAS host interface into eight independent SATA 7-pin data ports, featuring right-angle connectors that optimize cable routing and minimize obstruction in dense server configurations. Engineered for high-performance storage applications, this solution provides reliable SATA connectivity while maintaining the low-profile advantages essential for today's high-density server and storage deployments.

Features

• High Density Breakout Design: Converts one 8x host port into eight individual SATA data channels
• Right Angle Connector Configuration: 90-degree SATA connectors enable clean cable routing and space optimization
• Low Profile Compatibility: LP SlimSAS connector (6.5mm height) fits ultra-slim server configurations
• SATA 3.0 Performance: Supports 6.0 Gbps data transfer rates per port
• Enhanced Signal Integrity: Precision engineering with proper impedance matching and comprehensive shielding
• Thermal Management: Right-angle design improves airflow in dense server environments

Specifications

• Product Model: LP SlimSAS 8x to 8 SATA Right Angle Cable
• Host Connector: LP SlimSAS SFF-8654 8x, 74-Position, Male, Straight
• Device Connectors: 8x SATA 7-pin Data, Male, Right Angle (90 degrees)
• Data Rate Support: Up to 6.0 Gbps (SATA 3.0) per port
• Supported Protocols: SATA 3.0, SATA 2.0, SATA 1.0
• Wire Gauge: 30 AWG
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: -20°C to +85°C
• Connector Height: 6.5mm (LP specification)
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• Ultra High Density Servers: Ideal for 1U and blade servers requiring maximum SATA connectivity
• Data Center Storage: Essential for hyperscale data centers deploying high-density storage solutions
• Storage Array Backplanes: Perfect for connecting LP host interfaces to SATA backplanes in JBOD configurations
• Enterprise Storage Systems: Suitable for large-scale storage deployments requiring multiple SATA connections
• Server OEM Integration: Designed for original equipment manufacturer server designs requiring low-profile, high-density SATA connectivity
• Cloud Infrastructure: Supports storage deployments in cloud environments where space optimization is critical
