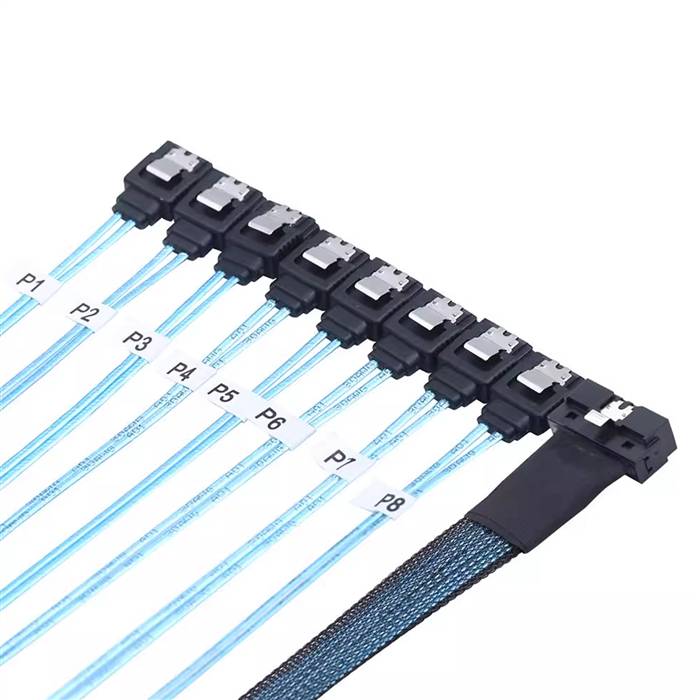

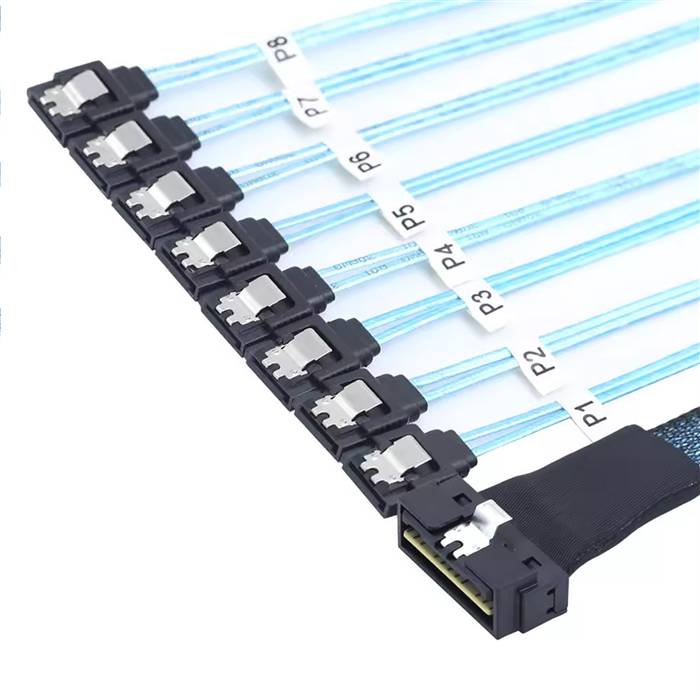

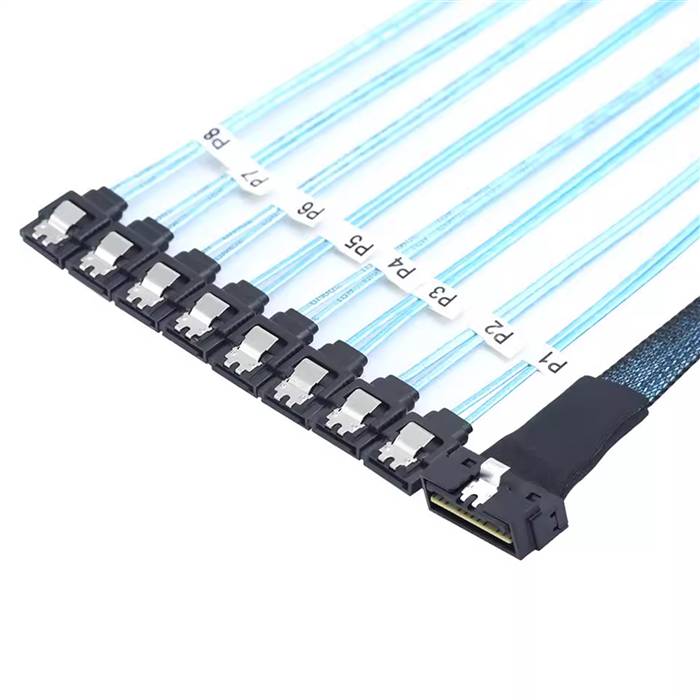

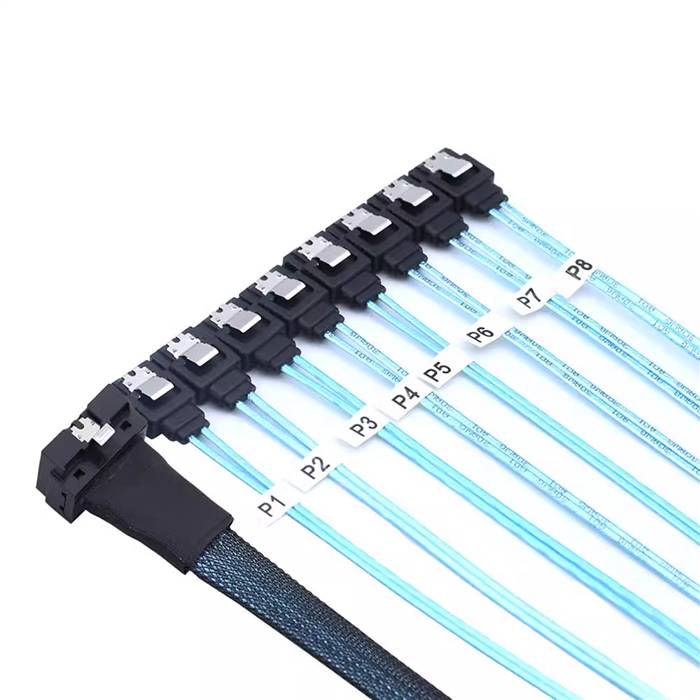

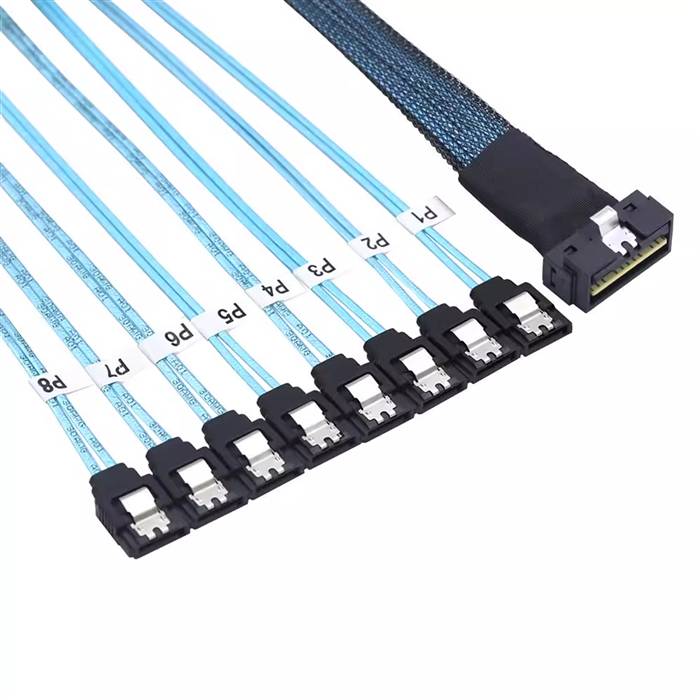

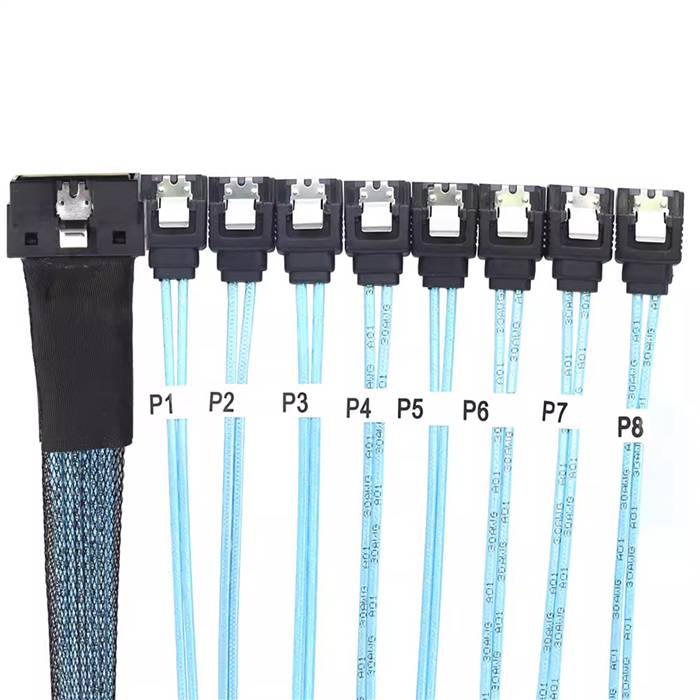

Low Profile SlimSAS SFF-8654 8x 74P to 8 Straight SATA 7P Cable

The Low Profile SlimSAS SFF-8654 8x 74P to 8 Straight SATA 7P Cable is a high-density breakout solution engineered for enterprise storage systems requiring maximum connectivity in space-constrained environments. This specialized cable converts a single 8-lane Low Profile SlimSAS host interface into eight independent SATA 7-pin data ports, utilizing straight connectors that ensure reliable and secure connections in various server configurations. Designed for high-performance storage applications, this solution provides dependable SATA connectivity while maintaining the low-profile advantages essential for modern high-density server and storage deployments.

Features

• High Density Breakout Capability: Converts one 8x host port into eight individual SATA data channels
• Straight Connector Design: Standard straight SATA connectors ensure secure mating and reliable connections
• Low Profile Compatibility: LP SlimSAS connector (6.5mm height) enables deployment in ultra-slim server configurations
• SATA 3.0 Performance: Supports 6.0 Gbps data transfer rates per port
• Enhanced Signal Integrity: Precision engineering with proper impedance matching and comprehensive shielding
• Durable Construction: Robust connectors and quality materials ensure long-term reliability

Specifications

• Product Model: LP SlimSAS 8x to 8 SATA Straight Cable
• Host Connector: LP SlimSAS SFF-8654 8x, 74-Position, Male, Straight
• Device Connectors: 8x SATA 7-pin Data, Male, Straight
• Data Rate Support: Up to 6.0 Gbps (SATA 3.0) per port
• Supported Protocols: SATA 3.0, SATA 2.0, SATA 1.0
• Wire Gauge: 30 AWG
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: -20°C to +85°C
• Connector Height: 6.5mm (LP specification)
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• High Density Server Storage: Ideal for 1U and blade servers requiring maximum SATA connectivity
• Data Center Infrastructure: Essential for hyperscale data centers deploying high-density storage solutions
• Storage Array Backplanes: Perfect for connecting LP host interfaces to SATA backplanes in JBOD configurations
• Enterprise Storage Systems: Suitable for large-scale storage deployments requiring multiple SATA connections
• Server OEM Integration: Designed for original equipment manufacturer server designs requiring low-profile, high-density SATA connectivity
• Test and Development Environments: Excellent for laboratory and development settings requiring reliable SATA connectivity
