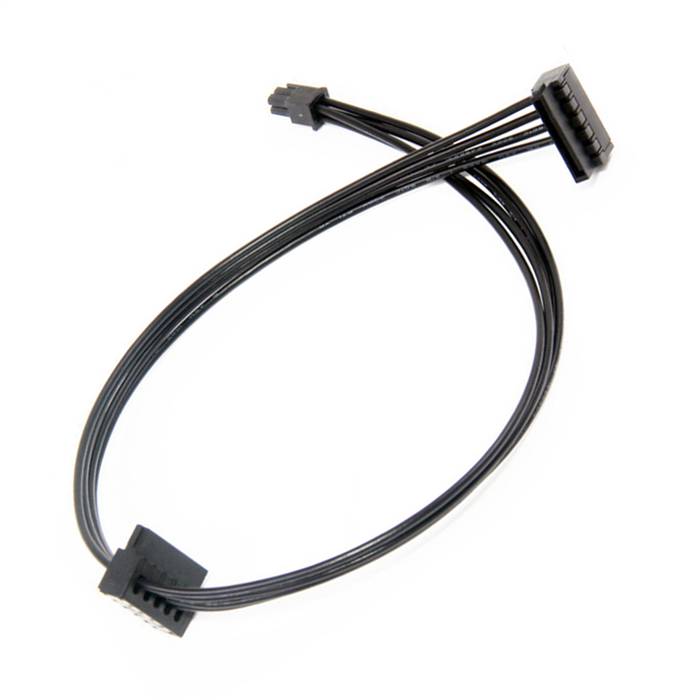

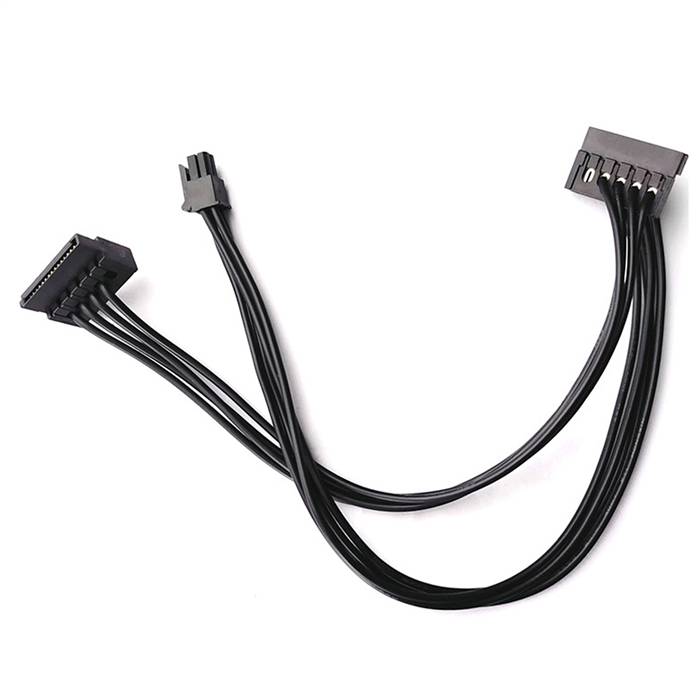

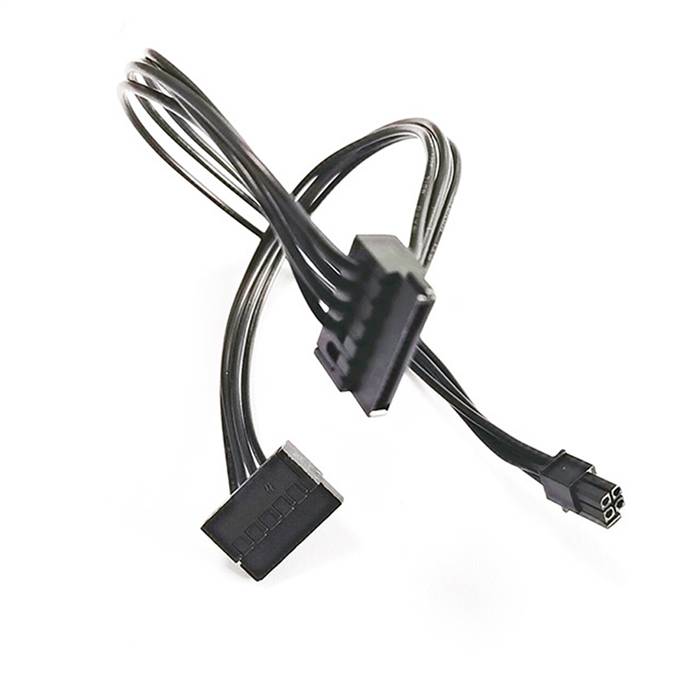

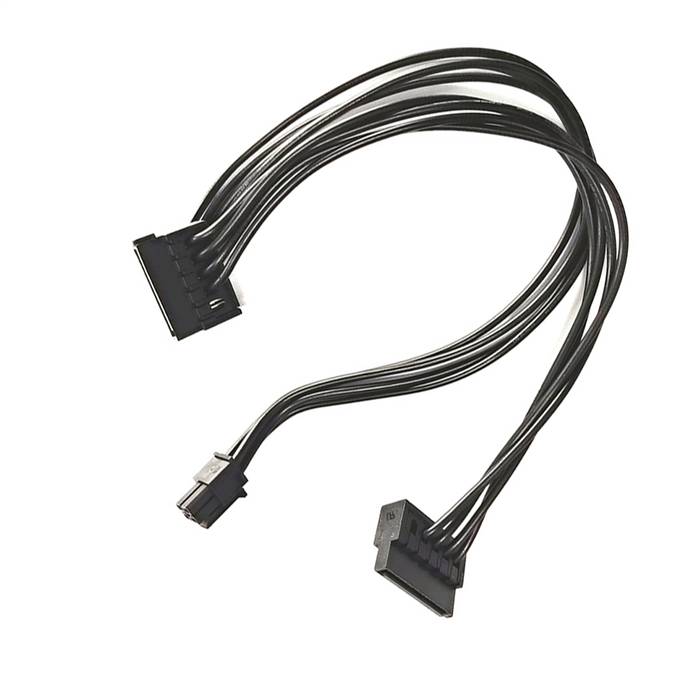

ATX Mini 4Pin to Dual SATA 15Pin Female Power Cable

The ATX Mini 4Pin to Dual SATA 15Pin Female Power Cable is a specialized power adapter solution designed for modern computing systems that require efficient power distribution from compact power supply interfaces to multiple SATA devices. This cable converts a single ATX Mini 4-pin power connector (also known as a floppy power connector or SP4) into two standard SATA 15-pin power connectors, enabling simultaneous power delivery to two SATA devices from a single compact power source. Engineered with high-quality conductors and robust construction, this power adapter cable provides reliable power distribution while maintaining compliance with SATA power specifications. The solution is ideal for small form factor systems, embedded applications, and other environments where space optimization and efficient power management are critical, particularly when dealing with legacy or compact power supply units that feature Mini 4-pin connectors instead of standard peripheral connectors.

Features

• Compact Power Conversion: Converts ATX Mini 4-pin (SP4) connector to two SATA 15-pin power connectors
• Dual Device Support: Enables simultaneous power delivery to two SATA devices from a single source
• High-Current Capability: Designed to handle power requirements for multiple SATA devices (up to 4.5A per connector)
• Secure Connection: Gold-plated contacts and secure latching mechanisms ensure reliable power delivery
• Backward Compatibility: Fully compatible with SATA 3.0, 2.0, and 1.0 power specifications
• Durable Construction: High-quality wires and molded connectors ensure long-term reliability
• Space Optimization: Compact design ideal for small form factor systems and embedded applications
• Efficient Power Distribution: Eliminates the need for multiple individual power cables in compact systems

Specifications

• Product Model: ATX Mini 4Pin to Dual SATA 15Pin Female Power Cable
• Input Connector: ATX Mini 4-pin (SP4), Female
• Output Connectors: 2x SATA 15-pin, Female
• Voltage Support: +5V, +12V (typical for Mini 4-pin to SATA adaptation)
• Current Rating: Up to 4.5A per pin (compliant with SATA power specifications)
• Wire Gauge: 20-22 AWG (power lines)
• Cable Type: Internal Grade, Round Cable
• Shielding: Not applicable (power-only cable)
• Cable Length: 0.2m, 0.3m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• Small Form Factor PCs: Ideal for compact computer builds with limited power connector availability
• Embedded Systems: Essential for industrial and embedded applications using Mini 4-pin power sources
• Legacy System Upgrades: Enables modern SATA drive integration with older power supplies featuring Mini 4-pin connectors
• Gaming Consoles: Modification projects requiring additional SATA power connections from compact interfaces
• Test Benches: Laboratory environments needing flexible power distribution from various connector types
• NAS Devices: Network-attached storage systems in compact enclosures requiring efficient power distribution
• OEM Applications: Designed for system integrators working with custom or compact form factors
• Retro Computing: Revival projects involving older hardware with Mini 4-pin power interfaces
