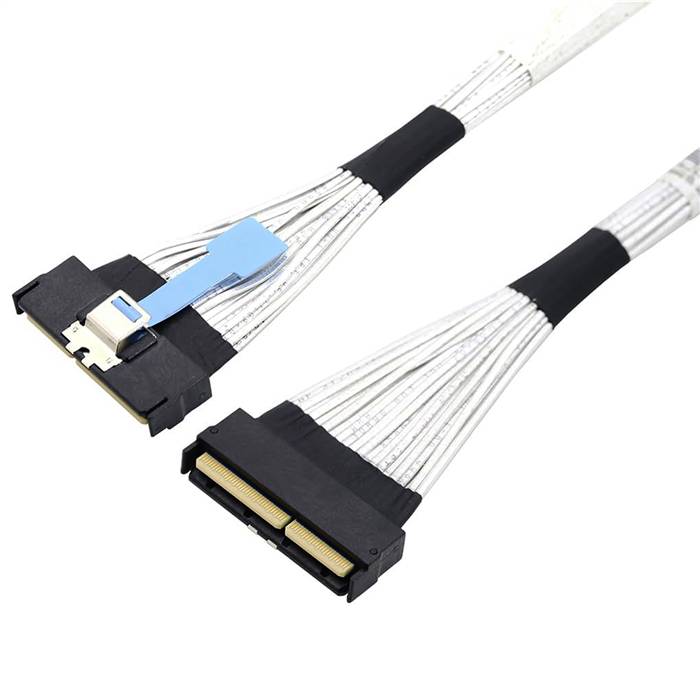

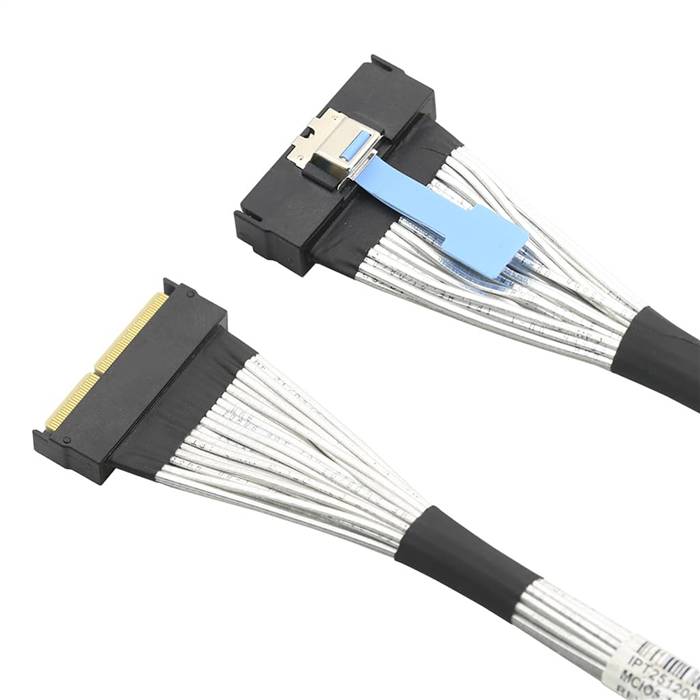

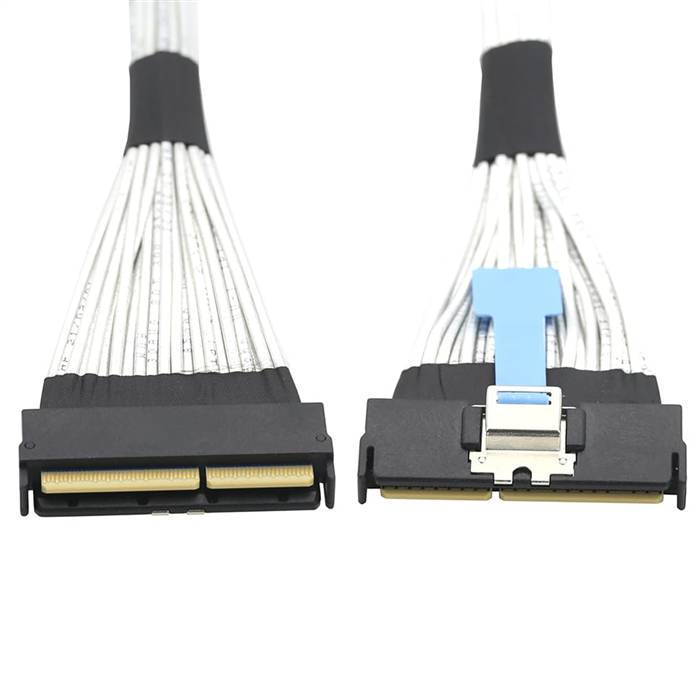

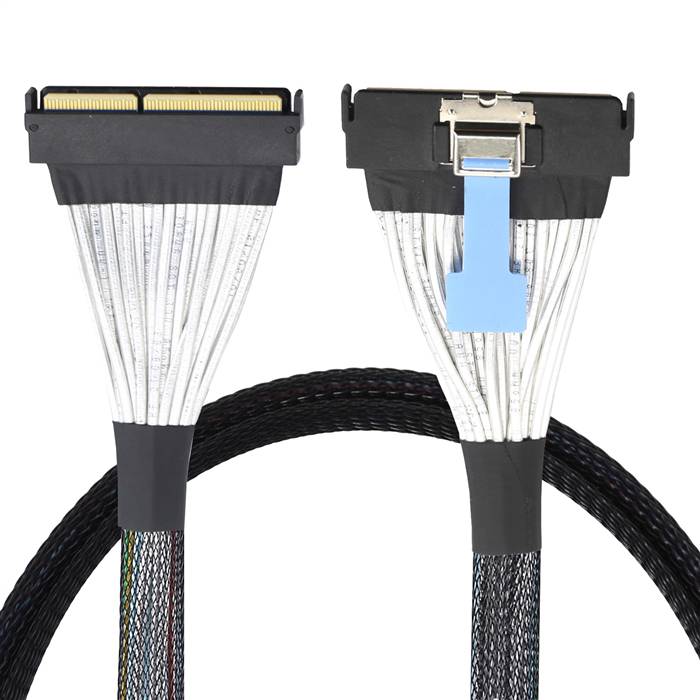

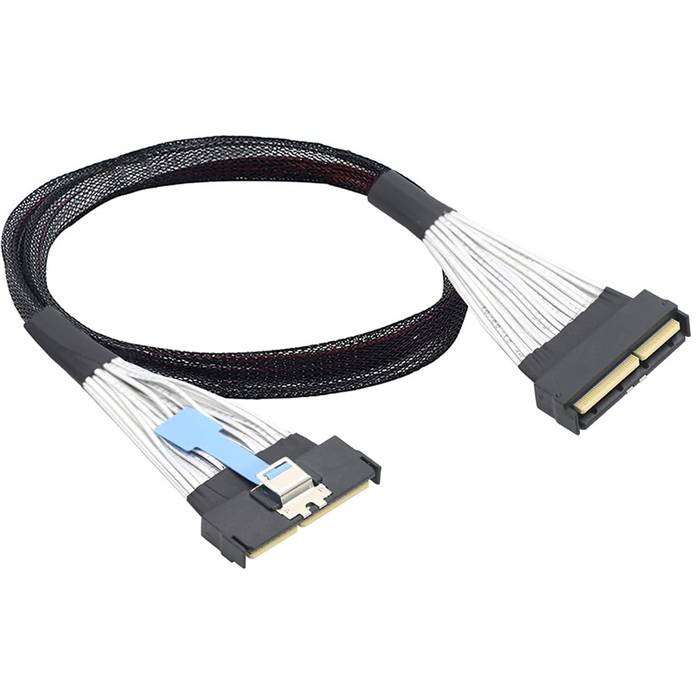

MCIO 16x 124P to MCIO 16x 124P Cable, Straight to Straight

This MCIO 16x 124P to MCIO 16x 124P Cable is a high-performance server data connection cable, adopting MCIO (Multi-purpose Cable I/O) interface standard, supporting PCIe 5.0 and SAS (Serial Attached SCSI) protocol, designed for high-density, high-speed data transmission scenarios. The 124-pin (124P) high-density terminal connection enables 16-channel (16X) signal transmission, which is suitable for the efficient interconnection of servers, storage devices and data centers.

Features

• High-performance transmission: Supports PCIe 5.0 at 32GT/s to meet the needs of high-speed devices such as NVMe SSDs and GPU acceleration cards.
• High-density connectivity: 124P MCIO interface saves space and is suitable for compact server and storage device layouts.
• Strong compatibility: Backward compatible with PCIe 4.0/3.0 and SAS 3.0/4.0 protocols, suitable for mainstream server platforms.
• Stable and Reliable: Passes plugging force test, vibration test and signal integrity test.

Specifciations

• Connector A: 1 MCIO x16 (SFF-TA-1016) Str.
• Connector B: 1 MCIO x16 (SFF-TA-1016) Str.
• Connector Gender: Male-to-Male
• Length: 0.3m, 0.5m
• Pitch(mm): 0.6
• Number of Pins : 124
• Current-Maximum per contact: 0.5A
• Voltage Rating: 30V DC per contact max
• Dielectric Withstanding Voltage: 300V DC
• Durability: 200 Cycles
• Plating Contact area: See Customer Drawing
• Operating Temperature: -25°C to +65°C

Applications

• Interconnecting server backplanes and expansion cards
• All-flash storage ar ray (AFA) high-speed data channel
• Artificial Intelligence/Machine Learning (AI/ML) hardware acceleration connectivity
• Data center high-density cabling solutions
