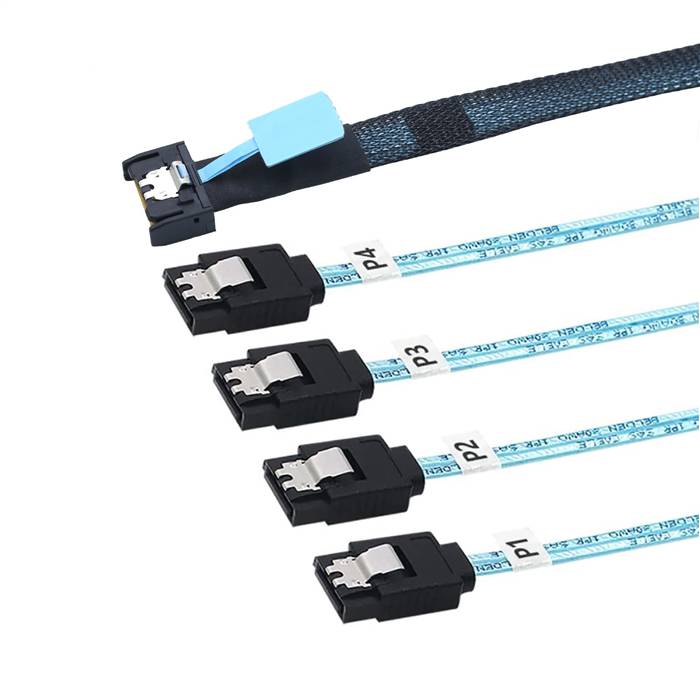

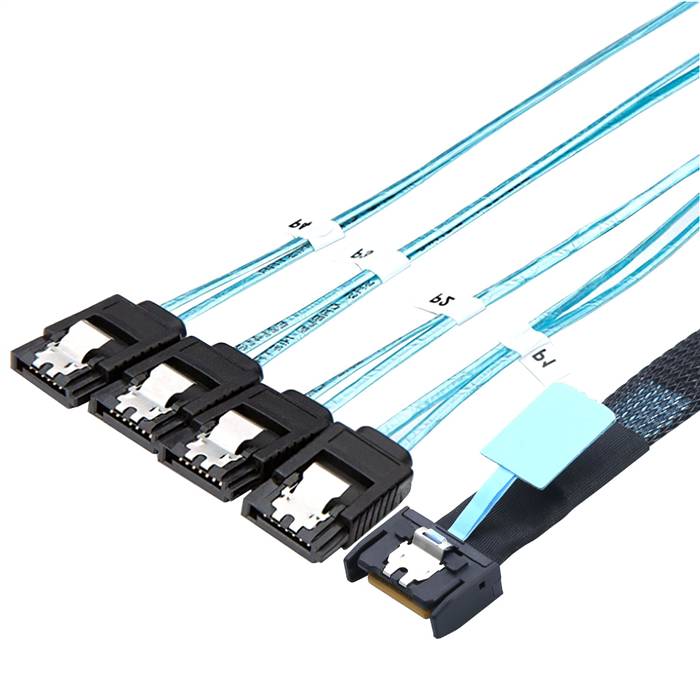

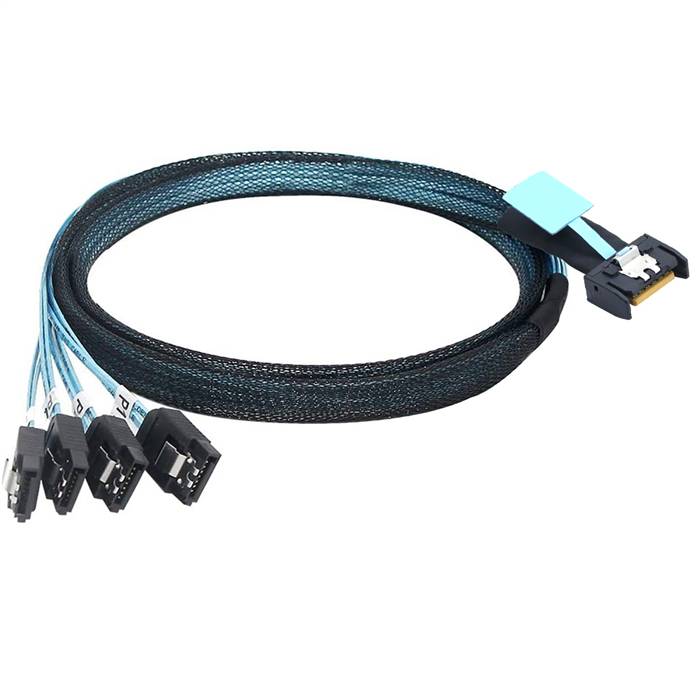

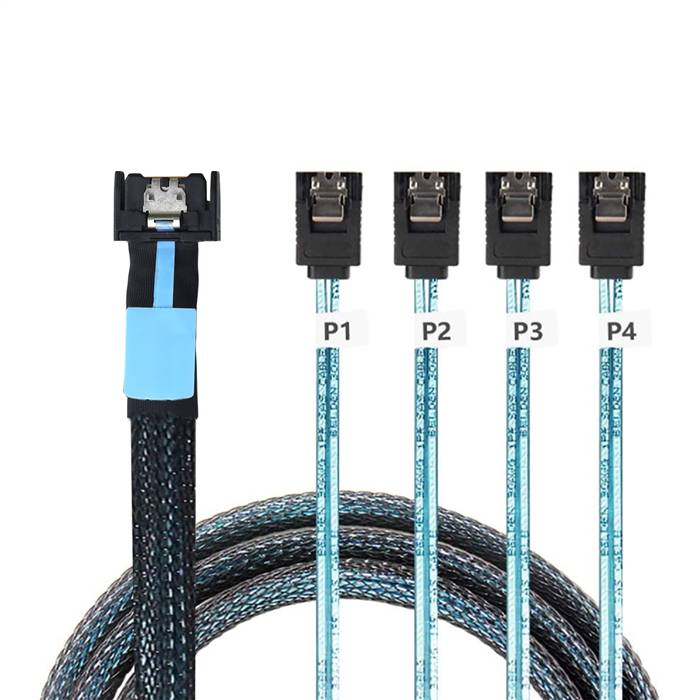

MCIO 4x 38P to 4 Straight SATA 7P Cable

The MCIO 4x 38P to 4 Straight SATA 7P Cable is a high-performance breakout solution engineered for enterprise server and storage environments requiring reliable connectivity and straightforward installation. This specialized cable assembly efficiently converts a single MCIO (SFF-TA-1016) 4-lane host interface into four independent SATA 7-pin data ports, utilizing traditional straight connectors that provide robust and secure connections in various server configurations. Designed for maximum compatibility and ease of use, this solution offers dependable connectivity for multiple SATA SSDs or HDDs while maintaining excellent signal integrity in demanding data center environments.

Features

• Standard Straight Connector Design: Traditional straight SATA connectors ensure secure mating and reliable connections in diverse server configurations
• High Density Breakout Solution: Efficiently transforms one MCIO 4x host port into four individual SATA data channels, optimizing connectivity in standard server setups
• Full SATA 3.0 Compatibility: Supports 6.0 Gbps data transfer rates per port, guaranteeing compatibility with current SATA SSDs and enterprise HDDs
• Reliable Signal Integrity: Precision engineering with proper impedance matching and comprehensive shielding ensures stable signal transmission across all channels
• Durable Construction: Robust connector design and quality cable materials ensure long-term reliability in continuous operation environments

Specifications

• Product Model: MCIO to Quad SATA Straight Cable
• Host Connector: MCIO (SFF-TA-1016) 4x, 38-Position, Male, Straight
• Device Connectors: 4x SATA 7-pin Data, Male, Straight Configuration
• Data Rate Support: Up to 6.0 Gbps (SATA 3.0) per port
• Supported Protocols: SATA 3.0, SATA 2.0, SATA 1.0
• Cable Configuration: Breakout fanout design
• Wire Gauge: 30 AWG for optimal signal transmission
• Shielding: Individual pair shielding with overall protective layer
• Standard Lengths: 0.5m, 0.8m, 1.0m
• Operating Temperature: -20°C to +85°C
• Connector Durability: Minimum 5,000 mating cycles
• Bend Radius: 35mm minimum recommended

Applications

• Standard Server Configurations: Ideal for traditional server setups where straight connectors provide optimal compatibility and reliability
• Data Center Storage: Essential for enterprise data centers requiring dependable SATA connectivity for storage expansion
• Backup Storage Systems: Suitable for backup and archive storage solutions requiring multiple SATA connections
• General Purpose Servers: Perfect for general enterprise servers and storage appliances needing reliable SATA connectivity
• Test and Development Environments: Excellent for laboratory and development settings where standard connectors are preferred for flexibility
• Storage Expansion Projects: Ideal for storage capacity expansion in existing server infrastructure with standard connector requirements
