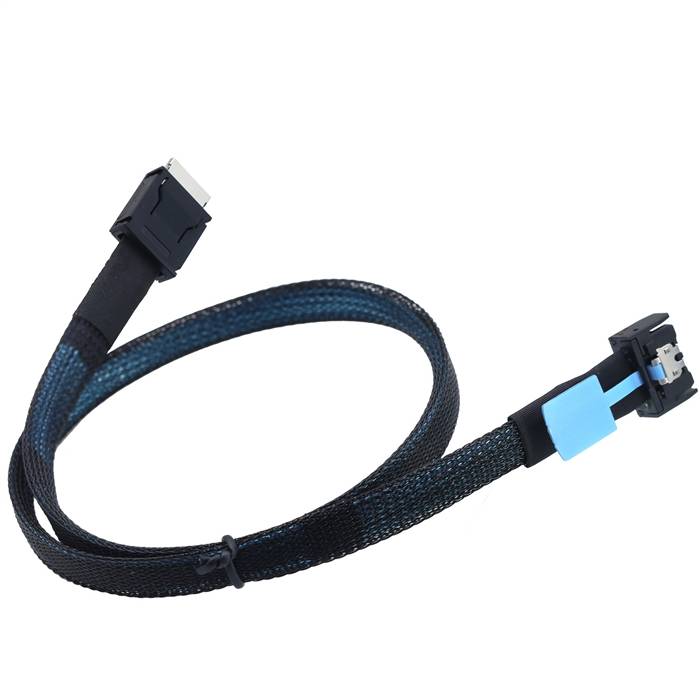

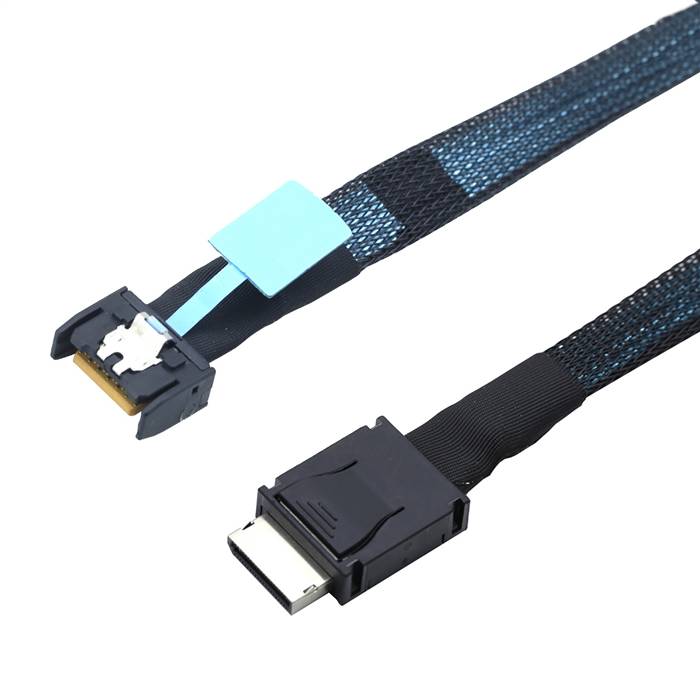

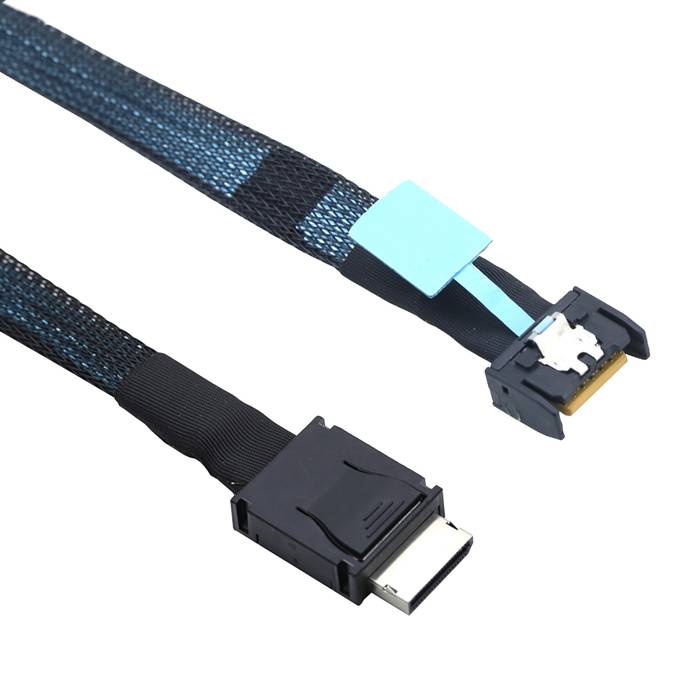

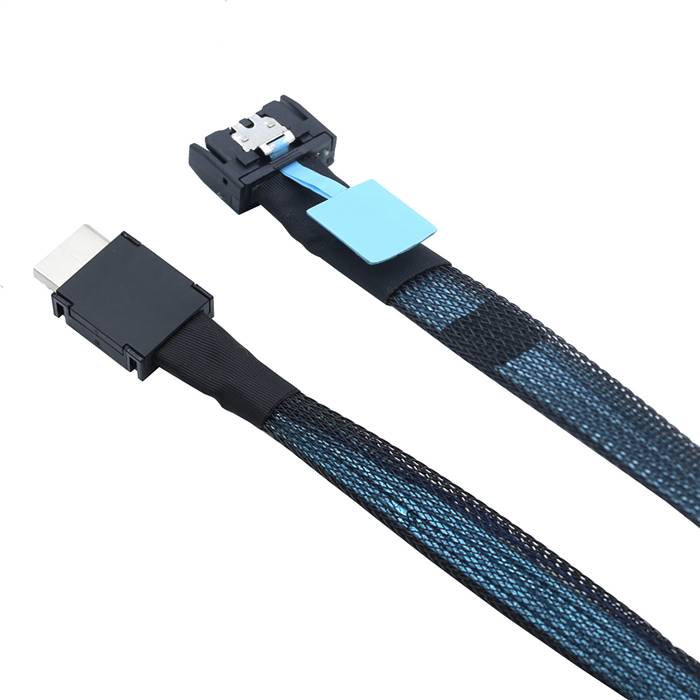

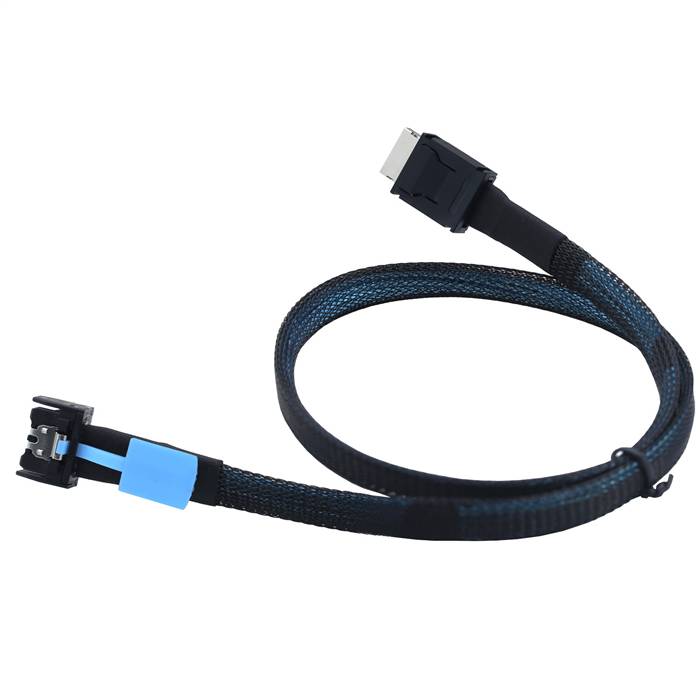

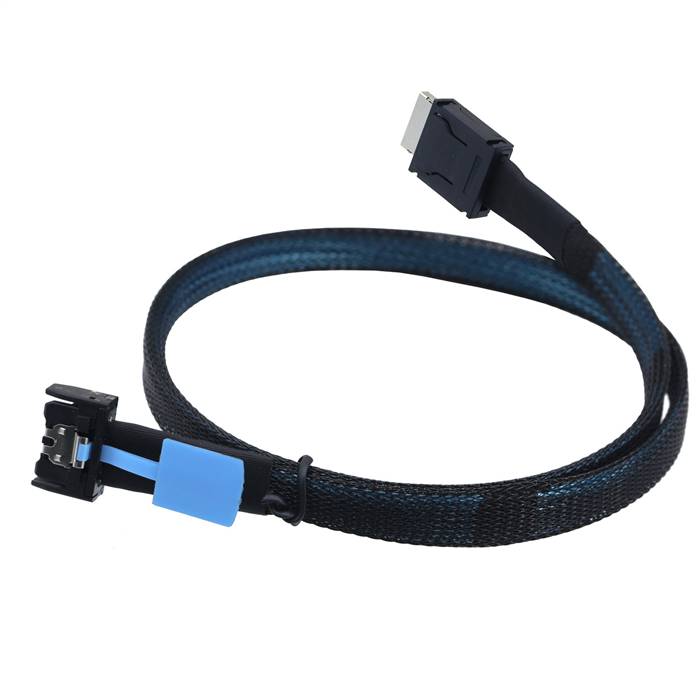

MCIO 4x 38P to OCulink SFF-8611 4x Cable, Straight to Straight

The MCIO 4x 38P to OCuLink SFF-8611 4x Cable is a high-performance internal data transfer solution designed for enterprise storage systems and server applications. This straight-to-straight cable assembly provides a direct and reliable connection between the compact 4-lane MCIO host interface and the standard OCuLink SFF-8611 target interface. Engineered to support high-speed data transmission protocols, this cable ensures optimal signal integrity while offering a robust and straightforward connectivity solution for various computing environments.

Features

• High Speed Data Transfer: Supports data rates up to 32 Gbps with PCIe 4.0 compatibility
• Reliable Straight Connectors: Straight-to-straight configuration ensures secure and stable connections
• Enhanced Signal Integrity: Precision engineering with proper impedance matching and comprehensive shielding
• Compact Design: MCIO 4x 38P connector provides high-density connectivity in limited spaces
• Multi Protocol Support: Compatible with both PCIe and SAS protocols for flexible deployment

Specifications

• Product Model: MCIO to OCuLink Straight Cable
• Host Connector: MCIO 4x, 38-Position, Male, Straight
• Device Connector: OCuLink SFF-8611 4x, Male, Straight
• Data Rate Support: Up to 32 Gbps (PCIe 4.0)
• Supported Protocols: PCIe 4.0/3.0, SAS 3.0
• Wire Gauge: 30 AWG
• Impedance: 85? ±15%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: -20°C to +85°C
• Minimum Bend Radius: 30mm
• Durability Rating: 5,000 mating cycles

Applications

• Enterprise Server Systems: Connecting MCIO host interfaces to storage devices in rack servers
• Data Center Infrastructure: Ideal for data center environments requiring reliable high-speed connections
• Storage Arrays: Suitable for connecting to SAS expanders and storage subsystems
• High Performance Computing: Supporting data-intensive applications in HPC environments
• Industrial Applications: Applicable in industrial control systems requiring robust data transfer solutions
