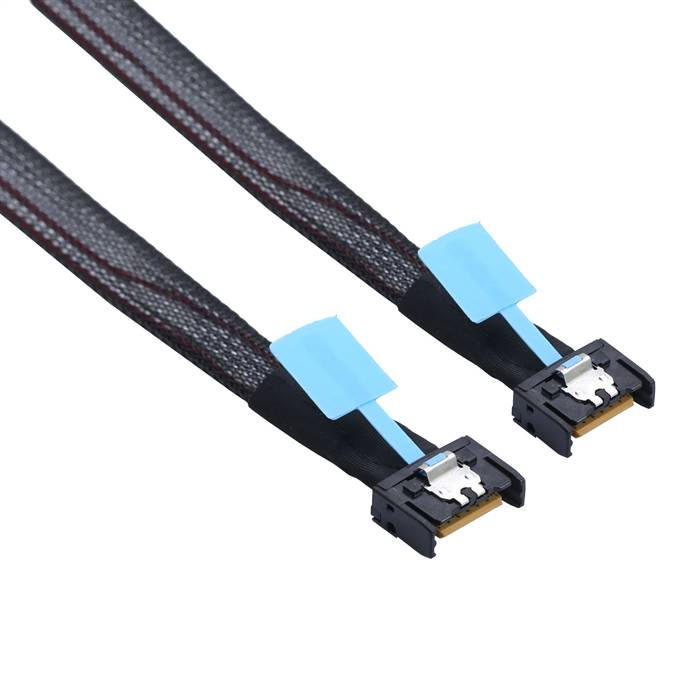

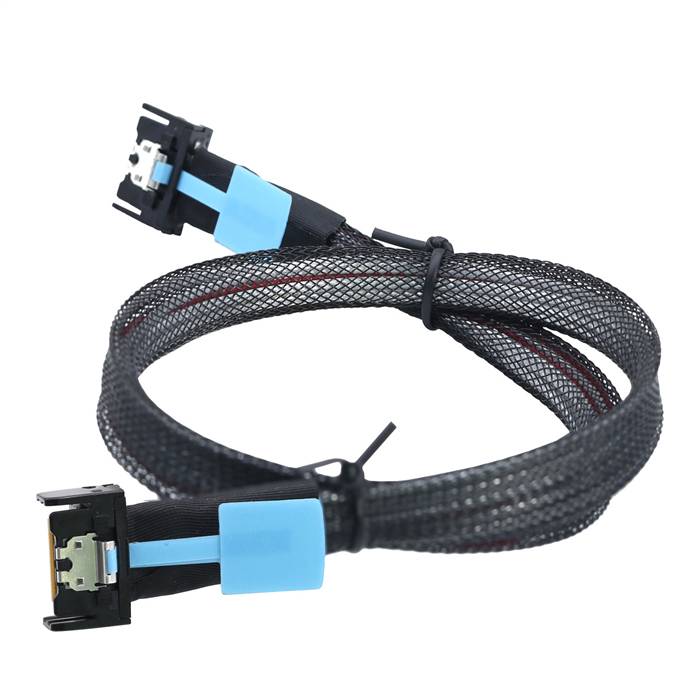

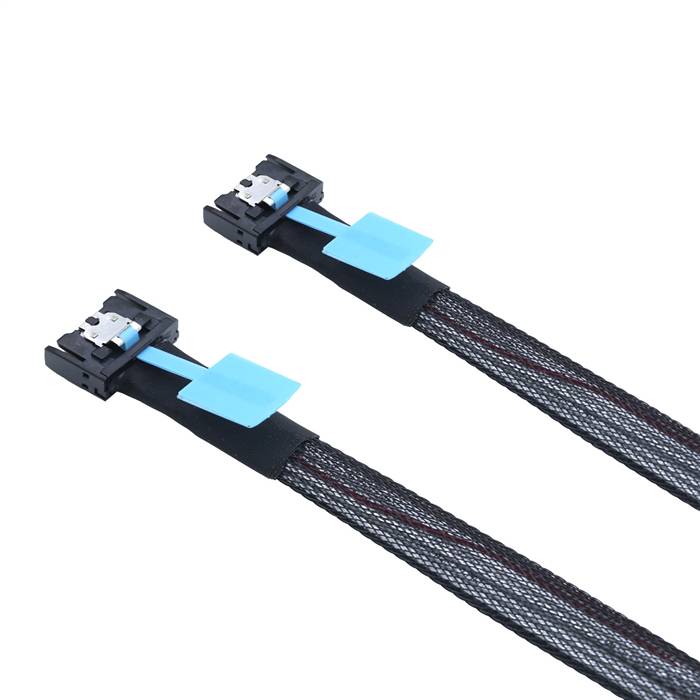

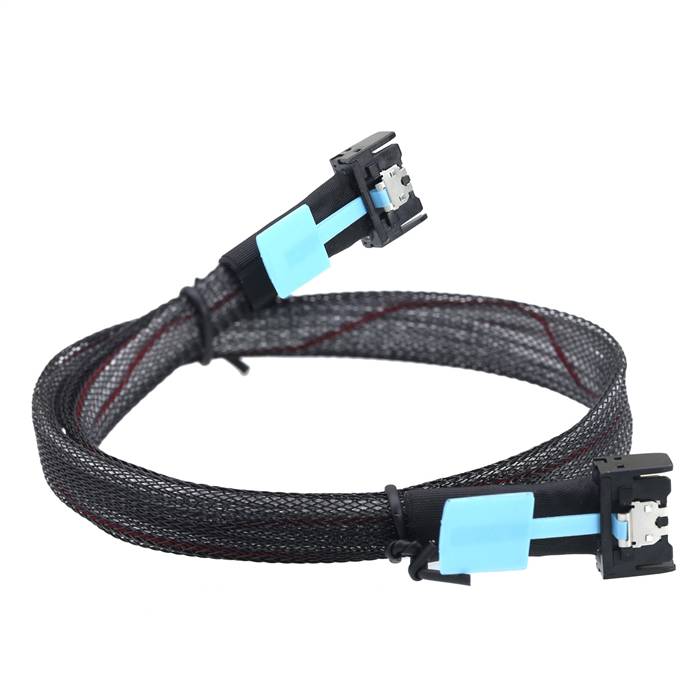

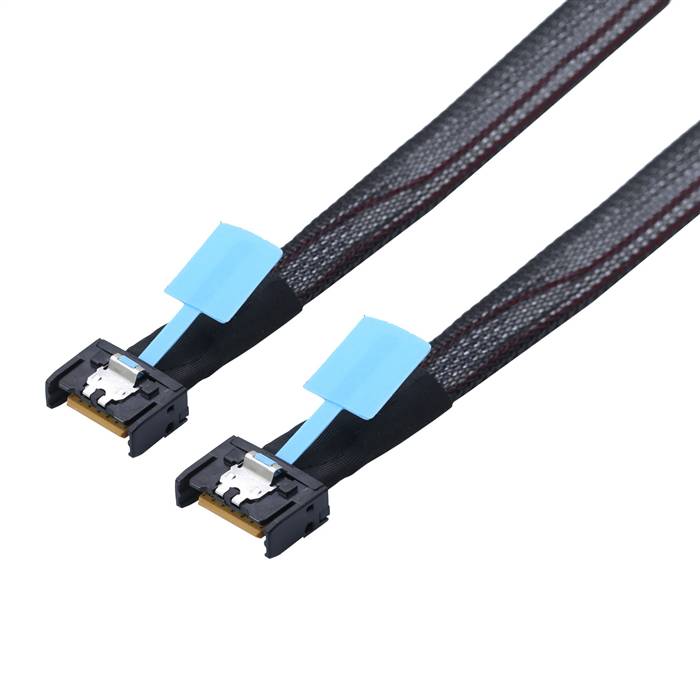

MCIO 4x 38P to MCIO 4x 38P Cable, Straight to Straight

The MCIO 4x 38P to MCIO 4x 38P Cable is a high-performance internal extension cable designed for enterprise server systems and data center environments. This straight-to-straight cable assembly provides a direct and reliable connection between two MCIO 4x interfaces, enabling flexible system configuration and expansion. Engineered to support high-speed data transmission protocols, this cable ensures optimal signal integrity while maintaining the compact form factor and high-density advantages of the MCIO connector system.

Features

• High Speed Performance: Supports data rates up to 32 Gbps with PCIe 4.0 compatibility
• Identical Connector Design: Straight MCIO 4x 38P connectors on both ends ensure easy installation
• Superior Signal Integrity: Precision engineering with matched impedance and comprehensive shielding
• Space Efficient: Maintains the compact form factor of MCIO connectors for high-density deployments
• Reliable Construction: Robust connectors with secure latching mechanisms ensure stable connections

Specifications

• Product Model: MCIO 4x to MCIO 4x Extension Cable
• Connector A: MCIO 4x, 38-Position, Male, Straight
• Connector B: MCIO 4x, 38-Position, Male, Straight
• Data Rate Support: Up to 32 Gbps (PCIe 4.0)
• Supported Protocols: PCIe 4.0/3.0, SAS 3.0
• Wire Gauge: 30 AWG
• Impedance: 85? ±15%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length:  0.5m, 0.8m, 1.0m
• Operating Temperature: -20°C to +85°C
• Minimum Bend Radius: 30mm
• Durability Rating: 5,000 mating cycles

Applications

• Server Internal Expansion: Extending MCIO connections within rack servers and storage systems
• Data Center Infrastructure: Flexible cabling solutions for high-density data center environments
• Storage System Configuration: Connecting MCIO-based components in storage arrays and JBOD systems
• Test and Development: Laboratory and prototyping applications requiring MCIO extension cables
• System Integration: Enabling flexible component placement in custom server configurations
• High Performance Computing: Supporting high-speed interconnections in HPC and cluster environments
