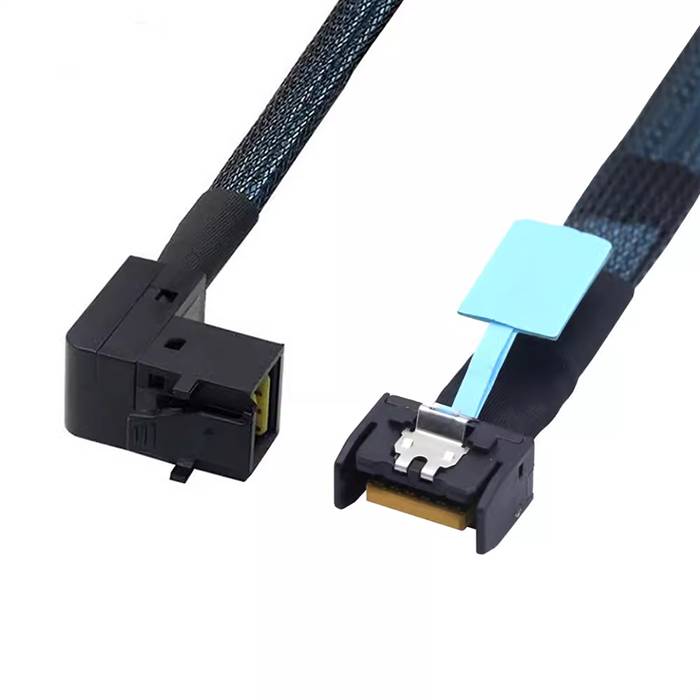

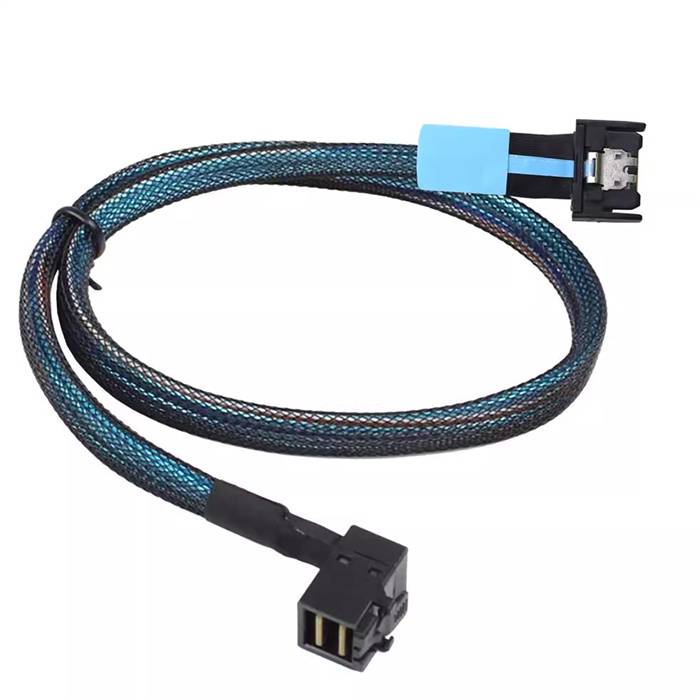

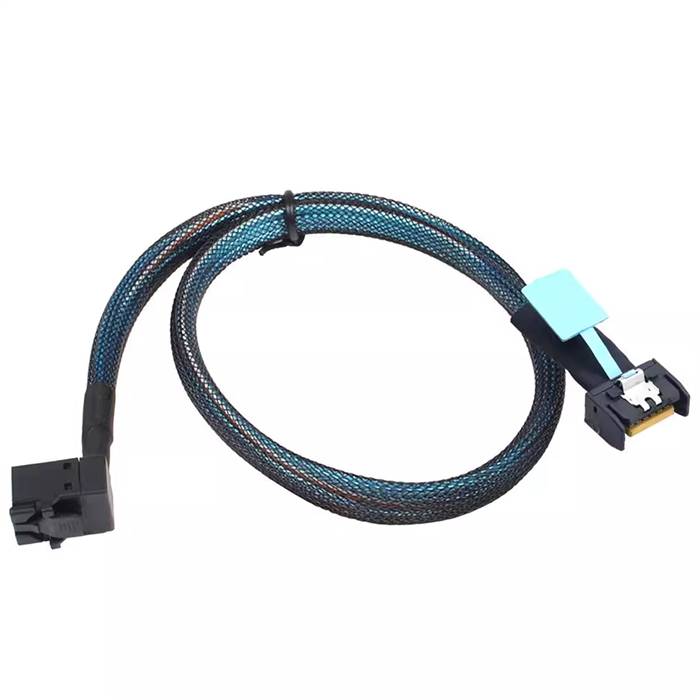

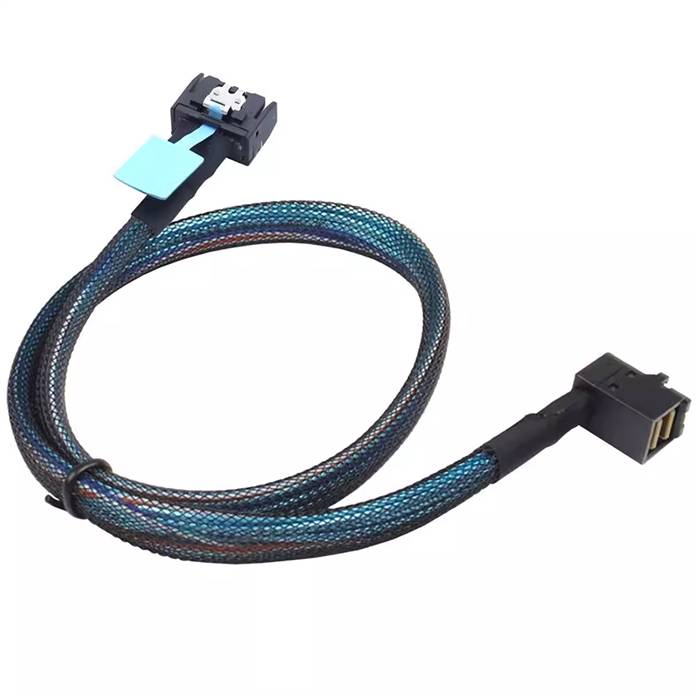

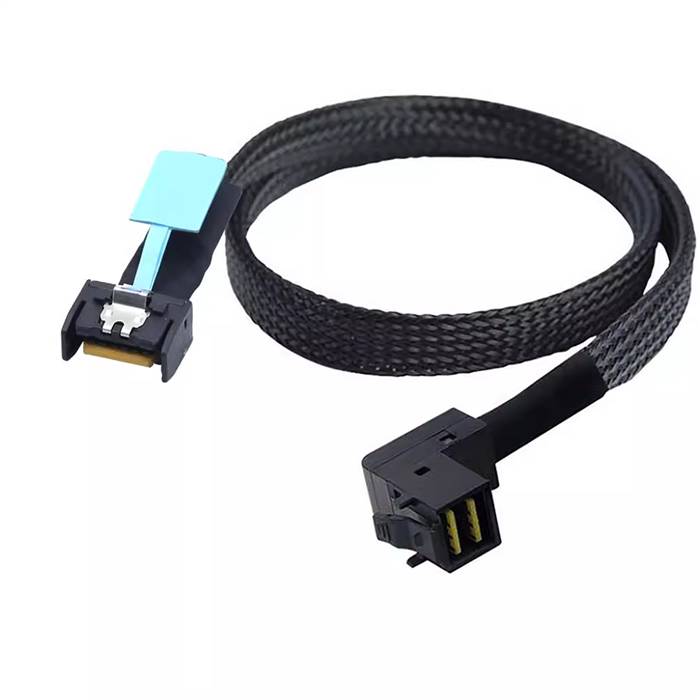

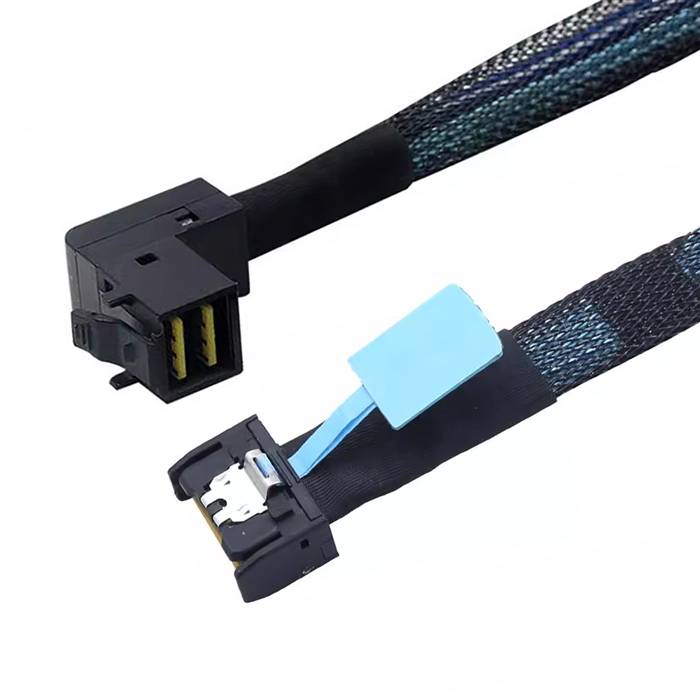

MCIO 4x 38P to Right Angle Internal HD Mini SAS SFF-8643 4x 36P Cable

The MCIO 4x 38P to Right Angle Internal HD Mini SAS SFF-8643 4x 36P Cable is a high-performance internal server cable designed for modern data center and enterprise storage environments. This specialized cable provides a reliable connection between the compact 4-lane MCIO host interface and the industry-standard SFF-8643 interface, featuring a right-angle connector design that enables superior cable routing in space-constrained server configurations. Engineered for next-generation storage applications, this solution ensures optimal signal performance while addressing crucial cable management and airflow challenges.

Features

• Space Optimized Right Angle Design: 90-degree right-angle SFF-8643 connector facilitates clean cable routing and minimizes obstruction
• High Speed Performance: Supports data rates up to 12 Gbps per lane with SAS 3.0 compatibility
• Enhanced Signal Integrity: Precision engineering with proper impedance matching and comprehensive shielding
• High Density Connectivity: Compact connectors maximize space utilization in server environments
• Reliable Construction: Robust connectors with secure latching mechanisms ensure stable connections

Specifications

• Product Model: MCIO to Right Angle Internal HD Mini SAS Cable
• Host Connector: MCIO 4x, 38-Position, Male, Straight
• Device Connector: Internal HD Mini SAS SFF-8643 4x, 36-Position, Male, Right Angle
• Data Rate Support: Up to 12 Gbps (SAS 3.0)
• Supported Protocols: SAS 3.0, SAS 2.1, SATA 3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±15%
• Shielding: Individual pair shielding with overall protection
• Cable Length: 0.5m, 0.8m, 1.0m
• Operating Temperature: -20°C to +85°C
• Minimum Bend Radius: 30mm recommended
• Durability Rating: 5,000 mating cycles

Applications

• High Density Server Storage: Ideal for 1U/2U rack servers where right-angle connectors provide crucial clearance
• Storage Array Backplanes: Perfect for connecting MCIO host interfaces to SFF-8643 backplanes
• Data Center Infrastructure: Essential for environments requiring maximum storage density
• Enterprise Storage Systems: Suitable for connecting host bus adapters to SAS drive subsystems
• Cloud Computing: Supports large-scale storage deployments where high-density connectivity is critical
