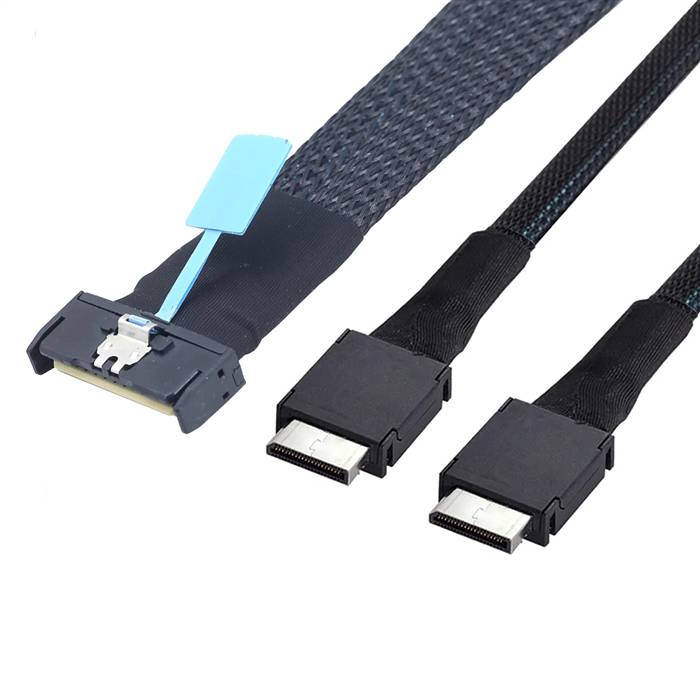

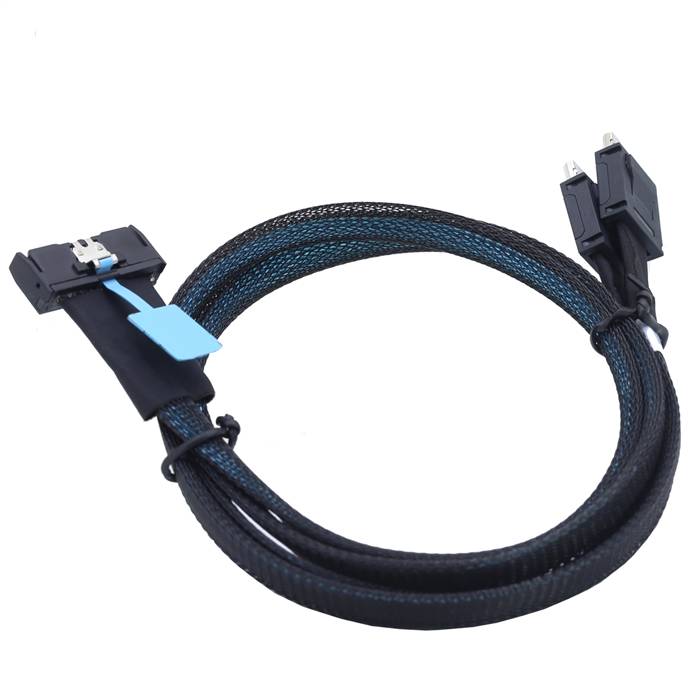

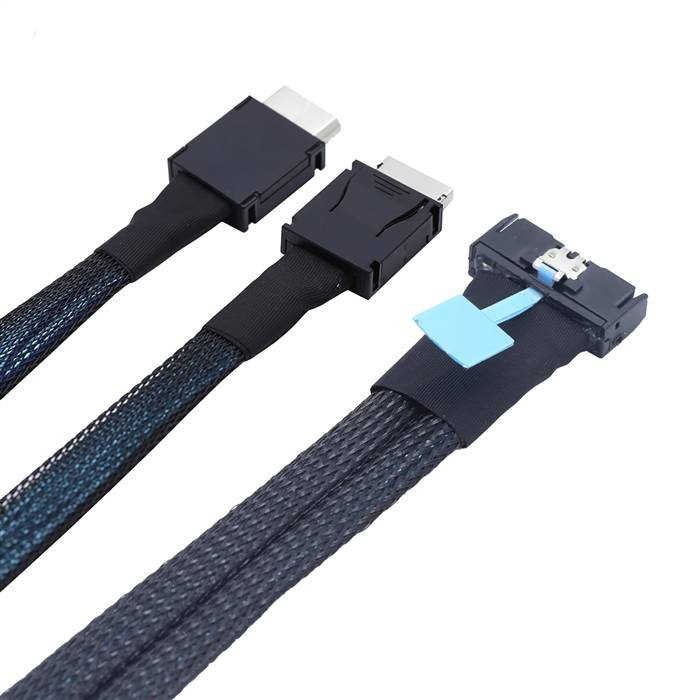

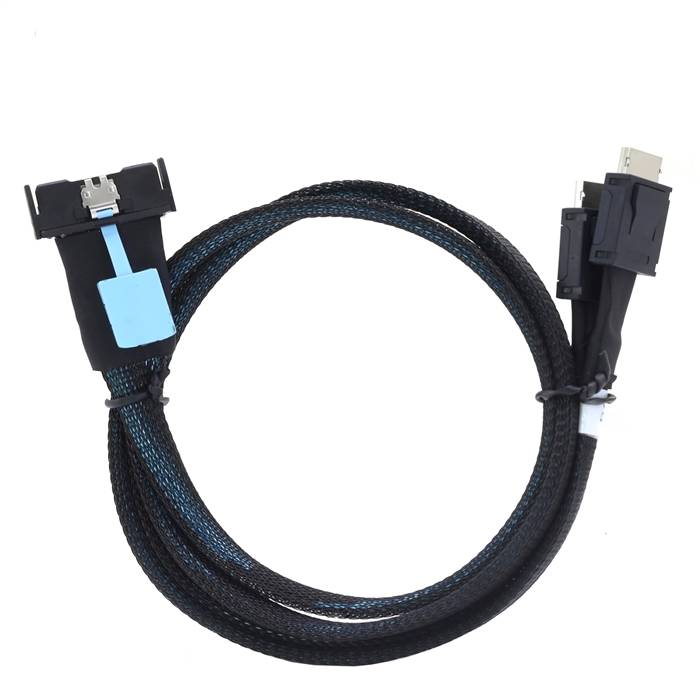

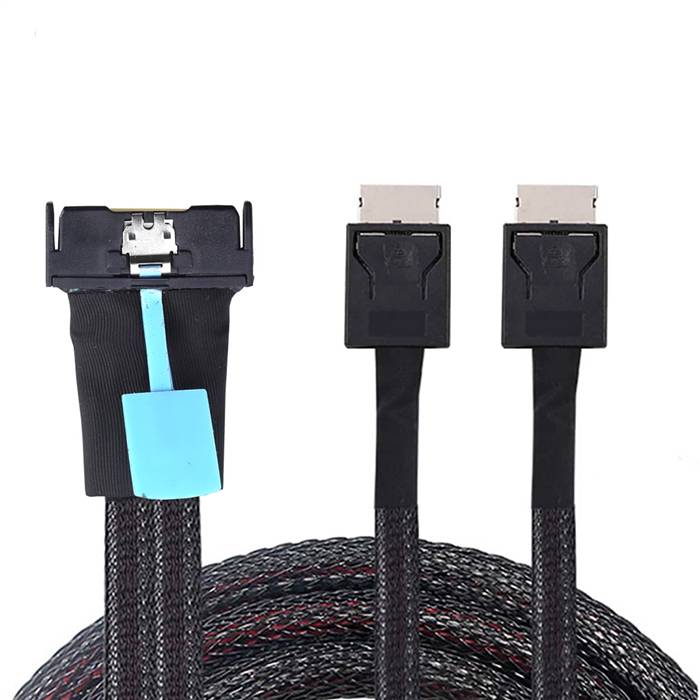

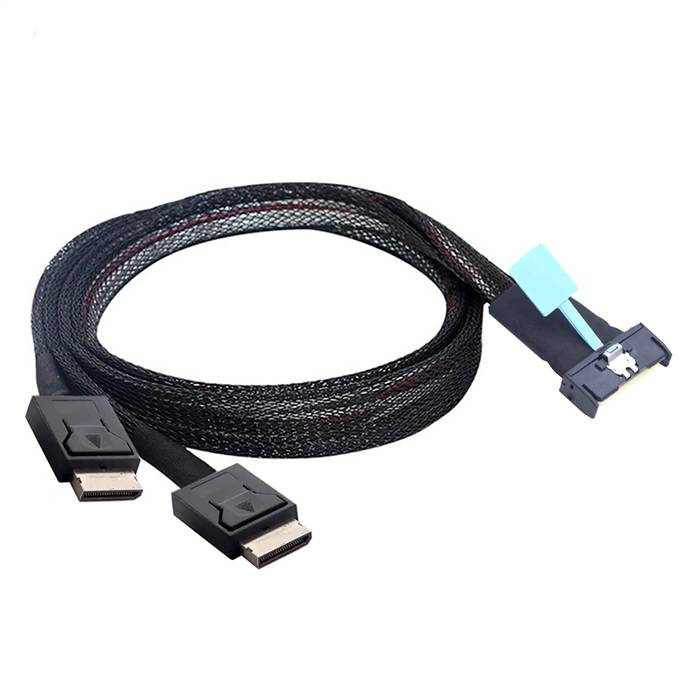

MCIO 8x 74P to 2 OCulink SFF-8611 4x Cable, Straight to Straight

The MCIO 8x 74P to 2 OCuLink SFF-8611 4x Cable is a high-performance internal breakout cable designed for next-generation data centers, enterprise storage, and high-performance computing applications. This cable provides a critical interface conversion, splitting a single high-bandwidth MCIO (Mini Cool Edge IO) 8-lane host port into two independent OCuLink (SFF-8611) 4-lane channels. It is engineered to the SFF-TA-1016 standard on the host side to deliver exceptional signal integrity, supporting PCIe protocols to enable flexible, high-speed data transfer for NVMe storage and accelerator cards in demanding computing environments.

Features

• High-Density Interface Breakout: Efficiently bifurcates a single SFF-TA-1016 (MCIO) 8-lane port into two separate SFF-8611 (OCuLink) 4-lane ports, perfect for PCIe 4.0 and PCIe 5.0 applications, maximizing connectivity in space-constrained systems.
• High-Speed PCIe Support: Designed specifically for the PCIe protocol, this cable is ideal for connecting to NVMe SSDs, GPUs, and other high-performance peripherals that utilize the OCuLink interface, delivering low latency and high bandwidth.
• Superior Signal Integrity: Constructed with precision-engineered twin-axial cables and robust multi-layer shielding to minimize insertion loss, crosstalk, and EMI, ensuring pristine signal quality and stable performance at high data rates.
• Optimized for Dense Layouts: The compact form factor of both MCIO and OCuLink connectors, combined with a flexible cable jacket, facilitates neat routing and improves internal airflow within dense server and workstation chassis.
• Secure and Reliable Connection: Features high-quality connectors with positive latching mechanisms (MCIO dual-push-pull and OCuLink screw-lock) to ensure a secure and vibration-resistant connection, vital for data integrity.

Specifications

• Product Model: MCIO 8x to 2x OCuLink 4x Breakout Cable
• Connector A: MCIO (SFF-TA-1016) 8x, 74-Position, Male, Straight
• Connector B: 2x OCuLink (SFF-8611) 4x, Male, Straight
• Connector Gender: Male to Male
• Cable Type: Straight to Straight (Breakout)
• Cable Length: Standard options: 0.5m, 0.8m, 1.0m (Custom lengths available)
• Data Rate Support: Up to 32.0 GT/s (PCIe 5.0)
• Supported Protocols: PCI Express (PCIe) 4.0/5.0
• Wire Gauge: 30 AWG
• Shielding: Individual pair shielding with overall braid + foil shield
• Operating Temperature: -20°C to +85°C

Applications

• NVMe Storage Expansion: Connecting a motherboard or add-in card with an MCIO port to multiple NVMe SSDs or storage enclosures utilizing the OCuLink interface.
• GPU and Accelerator Connectivity: Providing high-bandwidth links for auxiliary processing units, AI accelerators, or GPUs in workstations and servers that feature OCuLink ports.
• High-Performance Workstations: Used in workstations for content creation, engineering simulation, and scientific computing that require high-speed, flexible internal cabling for maximum I/O bandwidth.
• Data Center Infrastructure: Deploying in data centers for specialized computing nodes that require a direct, high-speed connection from a host CPU to accelerators or storage.
• System Integration and Prototyping: Facilitating system builds, prototypes, or upgrades where a modern MCIO host interface needs to connect to development boards or components equipped with OCuLink interfaces.
