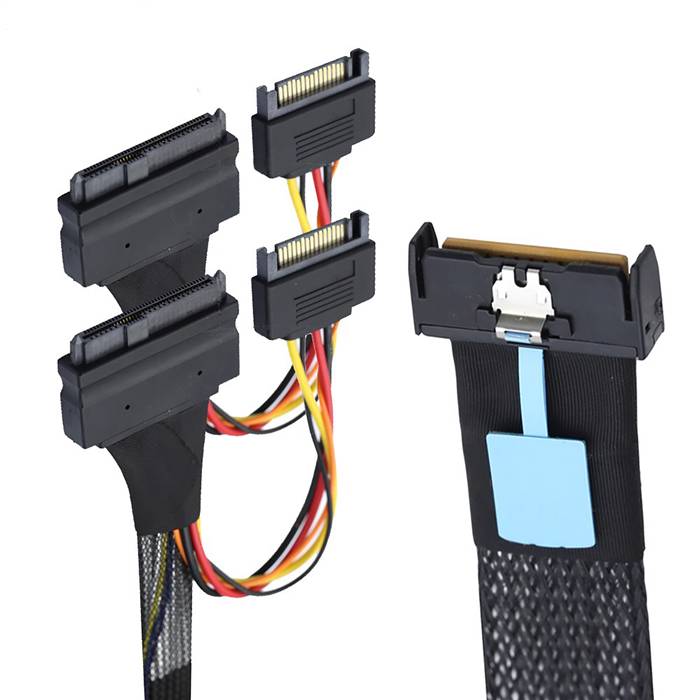

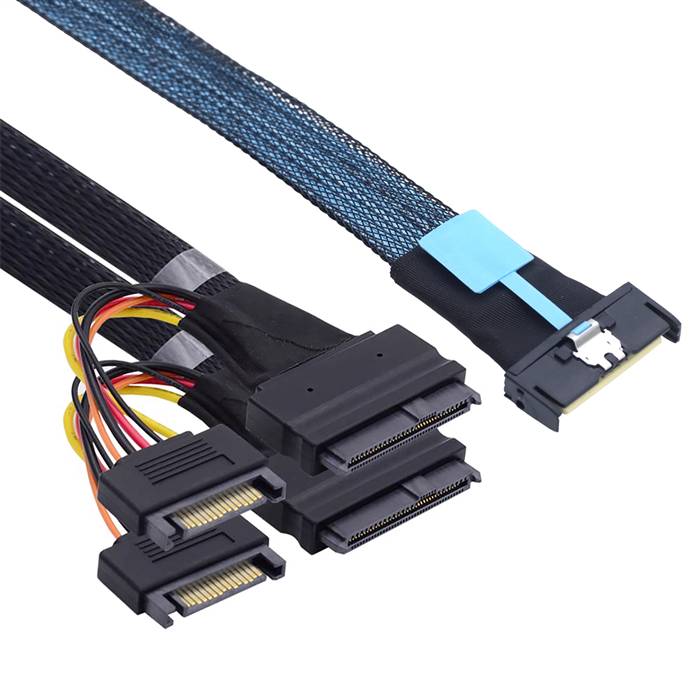

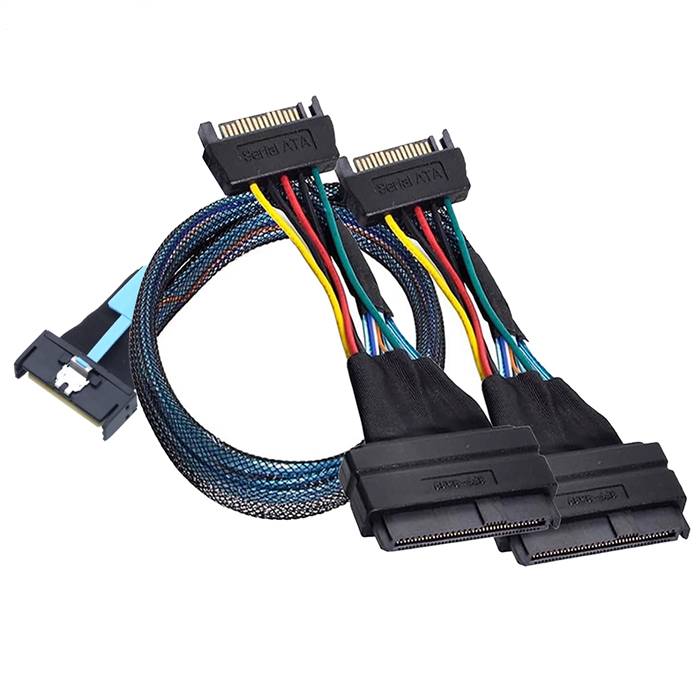

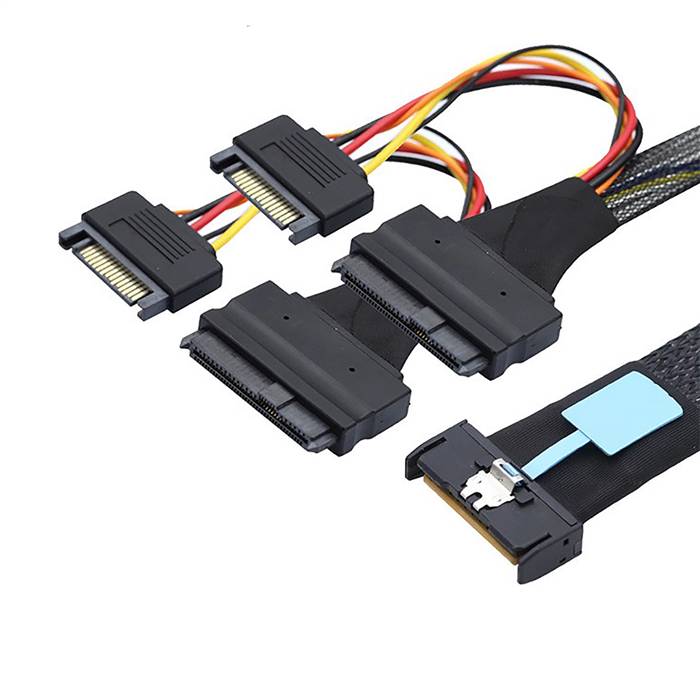

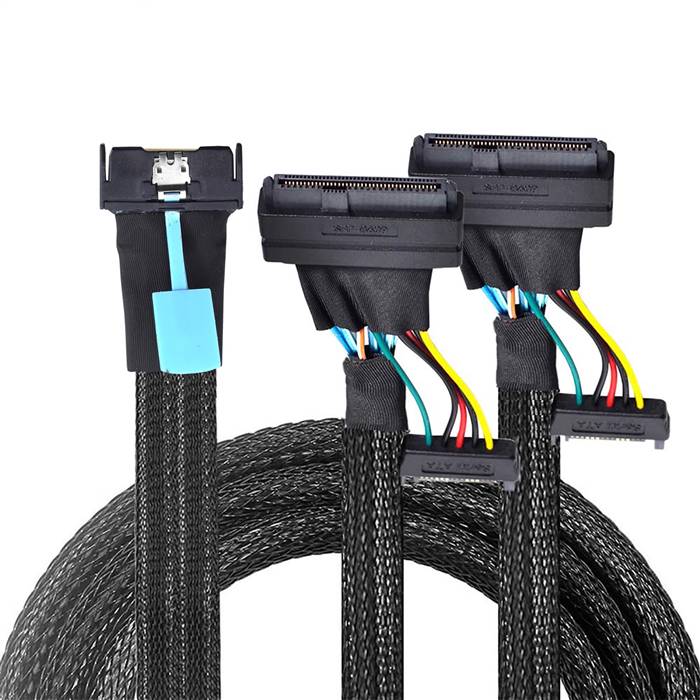

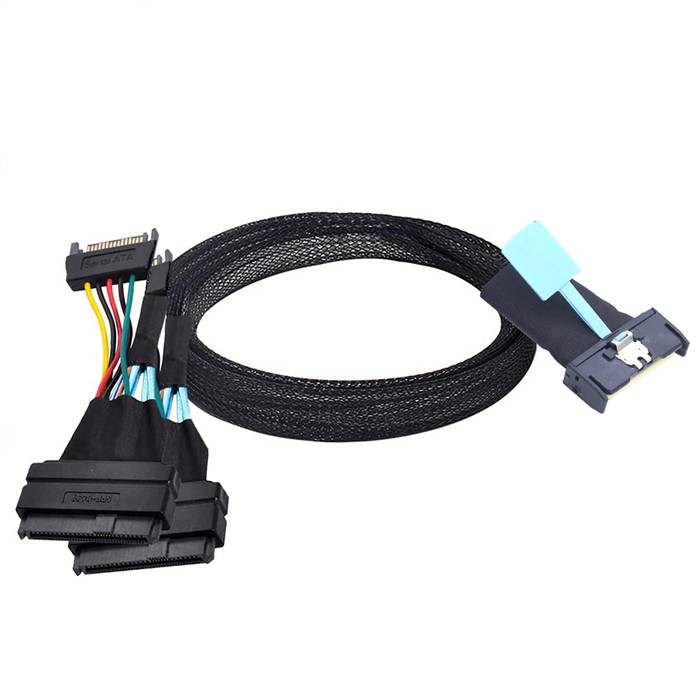

MCIO 8x 74P to 2 U.2 SFF-8639 with 15P Power Cable

The MCIO 8x 74P to 2 U.2 SFF-8639 with 15P Power Cable is a highly specialized hybrid cable assembly designed for enterprise storage systems requiring both high-speed data transmission and integrated power delivery. This innovative solution converts a single 8-lane MCIO (SFF-TA-1016) host interface into two fully independent U.2 (SFF-8639) drive interfaces, each with dedicated power connectivity through a 15-pin power connector. Engineered for next-generation data centers, it seamlessly integrates data and power transmission, providing a complete connectivity solution for high-performance NVMe storage deployment while simplifying cable management and improving airflow in server environments.

Features

• Integrated Data and Power Solution: Combines PCIe 5.0 data transmission with dedicated power delivery in a single cable assembly, eliminating the need for separate power cables and reducing cable clutter.
• Dual U.2 Connectivity: Efficiently fans out one x8 MCIO host port to two standard U.2 (SFF-8639) interfaces, enabling connection of two NVMe SSDs from a single host port.
• PCIe 5.0 Performance: Supports data rates up to 32.0 GT/s per lane, delivering the bandwidth necessary for high-performance NVMe SSDs in enterprise storage applications.
• Complete Power Delivery: Integrated 15-pin power connectors provide stable and reliable power to connected U.2 devices, ensuring proper drive operation without additional cabling.
• Optimized Signal Integrity: Features precision twin-axial construction with comprehensive shielding to maintain signal integrity at PCIe 5.0 speeds while minimizing crosstalk and EMI.

Specifications

• Product Model: MCIO to Dual U.2 with Power Cable
• Host Connector: MCIO (SFF-TA-1016) 8x, 74-Position, Male
• Device Connector 1: U.2 (SFF-8639) Data + 15-pin Power, Male
• Device Connector 2: U.2 (SFF-8639) Data + 15-pin Power, Male
• Data Rate Support: Up to 32.0 GT/s (PCIe 5.0)
• Supported Protocols: PCI Express 4.0/5.0, NVMe 1.4
• Power Rating: 12V, up to 9A per connector (depending on wire gauge)
• Wire Gauge: 30 AWG (signal), 20-22 AWG (power)
• Shielding: Dual shielding: individual pair shielding + overall braid
• Cable Length: 0.5m, 1.0m (standard options)
• Operating Temperature: -20°C to +85°C
• Safety Certification: UL/cUL (standard), CE (optional)

Applications

• Enterprise NVMe Storage Systems: Connecting server motherboards with MCIO interfaces to multiple U.2 NVMe SSDs in storage servers and all-flash arrays.
• Data Center Storage Expansion: Deploying high-density NVMe storage in hyperscale data centers where integrated power and data solutions reduce cabling complexity.
• Storage Server Backplanes: Providing both data and power connectivity for U.2 drive backplanes in rackmount servers and storage appliances.
• High-Performance Computing: Supporting high-speed storage requirements in HPC environments where both bandwidth and power delivery are critical.
• Cloud Infrastructure: Enabling efficient storage scaling in cloud server infrastructure with optimized cable management and airflow characteristics.
