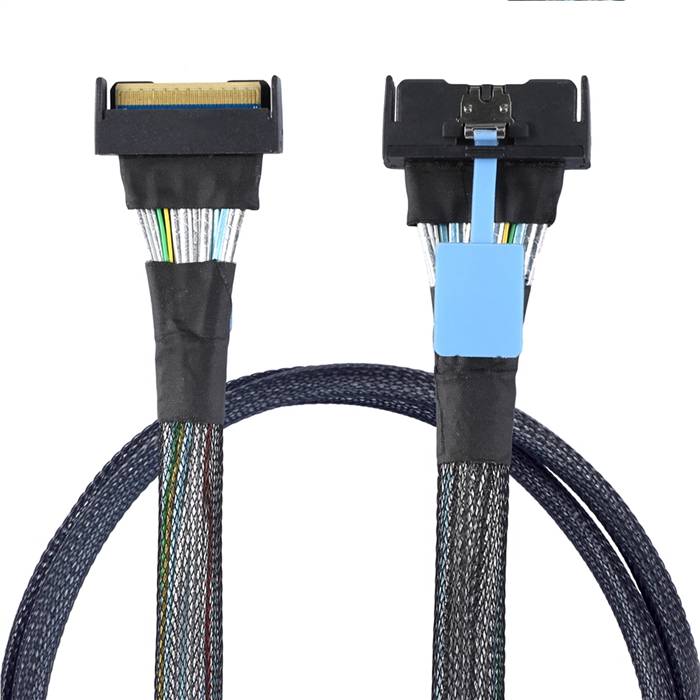

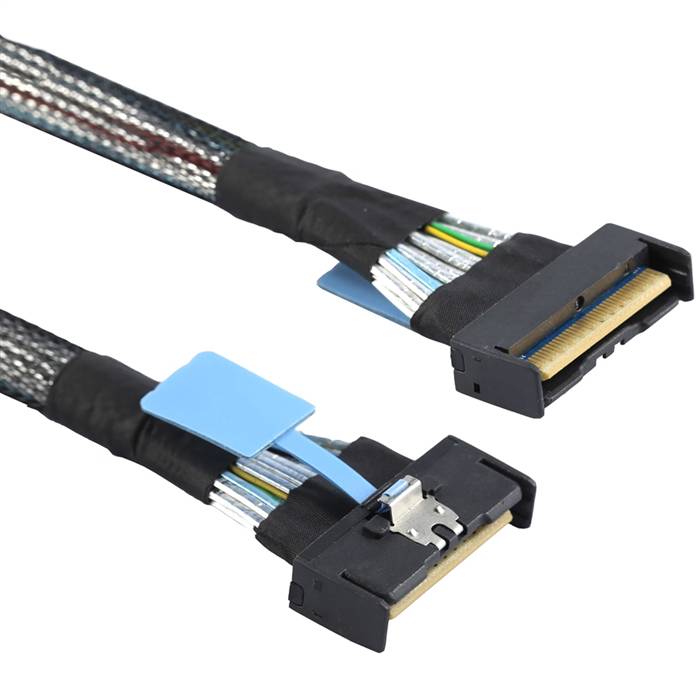

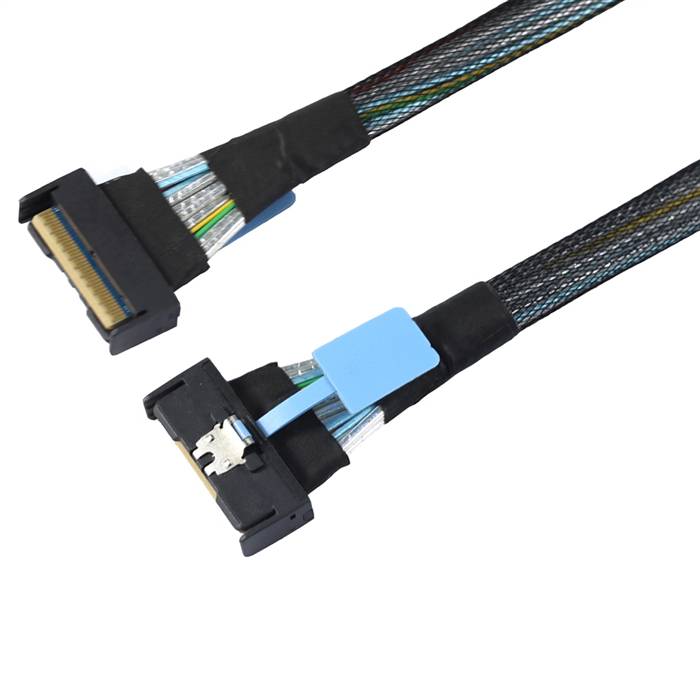

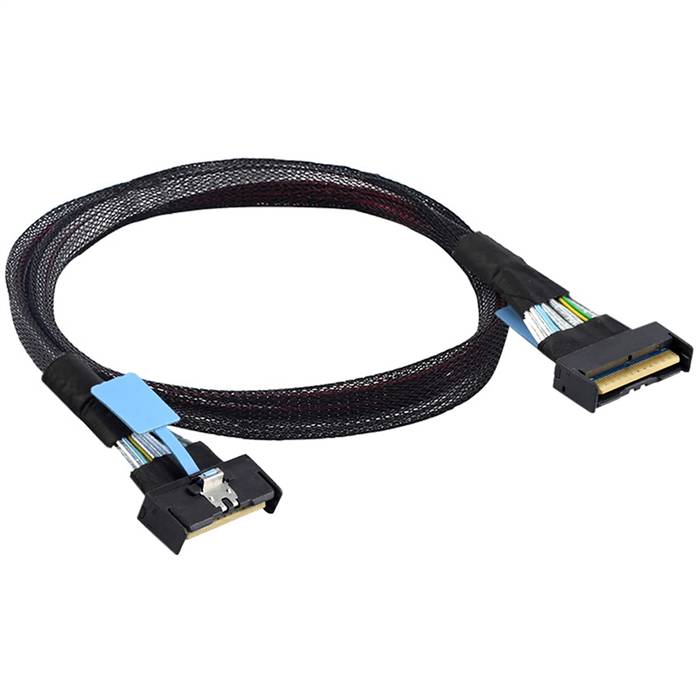

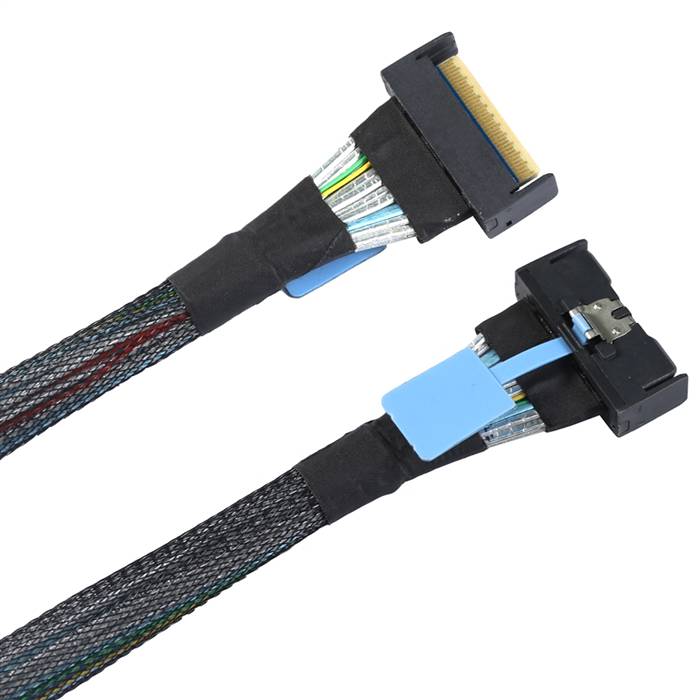

MCIO 8x 74P to MCIO 8x 74P Cable, Straight to Straight

High-performance, shielded interconnect cable featuring MCIO (Mini Cool Edge IO) 74-pin connectors on both ends. Specifically designed for PCIe Gen 5 applications, this MCIO 8x 74P to MCIO 8x 74P Cable supports high-speed data transfer up to 32 GT/s per lane while maintaining signal integrity over extended lengths.

Features

• Pitch 0.6mm connector design, plug with pull tab
• 1.57mm PCB card thickness compatible with PCIe riser card
• Supports 85 ohm impedance applications
• 34-30AWG cables are optional
• Straight, right angle, side exit and customization cable plug are optional
• Supports signaling rates up to PCIe Gen5 and PCIe Gen6
• Compliance to SFF-TA-1016

Specifciations

• Connector A: 1 MCIO SFF-TA-1016 8X 74Pin Straight
• Connector B: 1 MCIO SFF-TA-1016 8X 74Pin Straight
• Connector Gender: Male-to-Male
• Series: SFF-TA-1016 MCIO
• Cable Length: 0.5m, 1m
• Signal Wire Size: 30AWG
• Lock to mating part: With Latch
• Plating: Au 30u” min on contact area
• Pull tab : Yes
• Connector Color: Black
• Flammability: PCB UL94V-0, thermoplastic resin UL94V-0

Mechanical Characteristic

• Latched Mating Force: 25N Maximum
• Latched Retention:  50N Minimum
• Durability : 200 Cycles

Electrical Characteristic

• Voltage: 30VAC per contact
• Current: 0.5A per contact
• Dielectric Withstanding Voltage: 300 VDC minimum for 100 ms
• Insulation Resistance: 10 M? minimum between adjacent pins

Applications

• Data center & Networking Equipment
• Servers/Storage Devices
• SAS/SATA/PCIe HBA Interfaces
• Switches/Routers
• Wireless Base Stations and Radios
