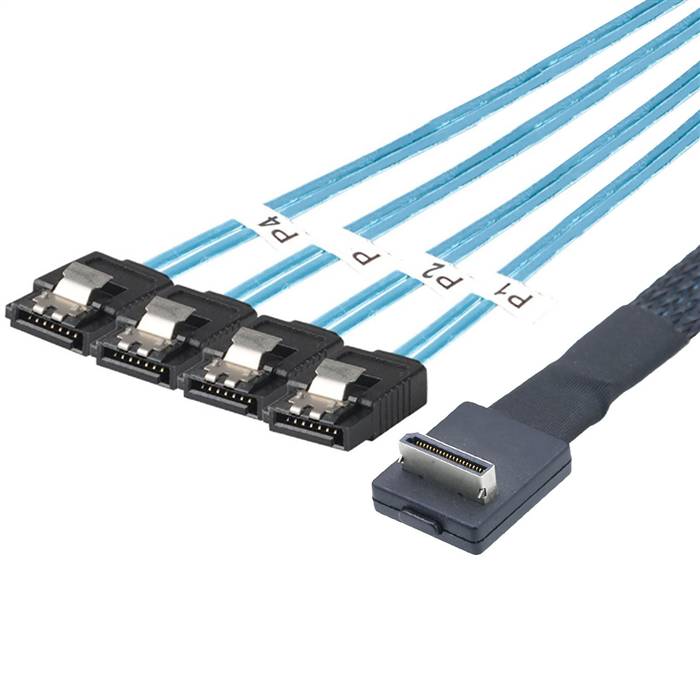

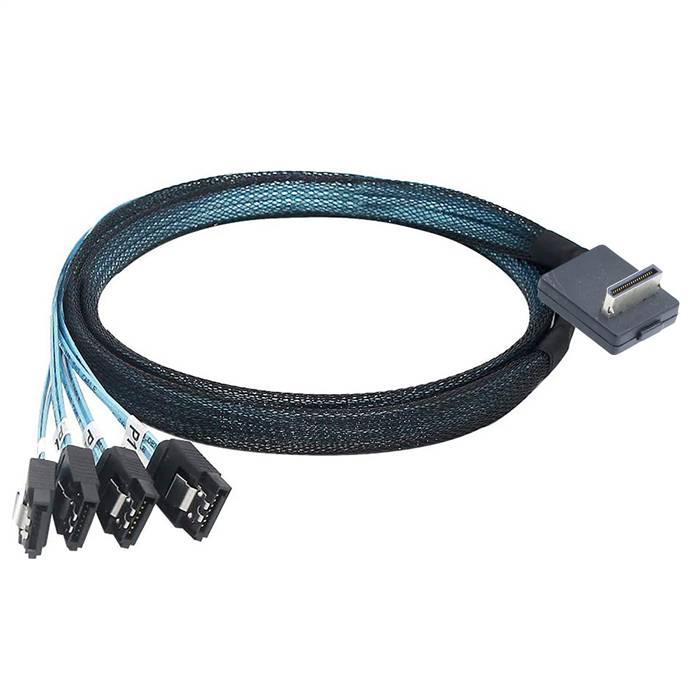

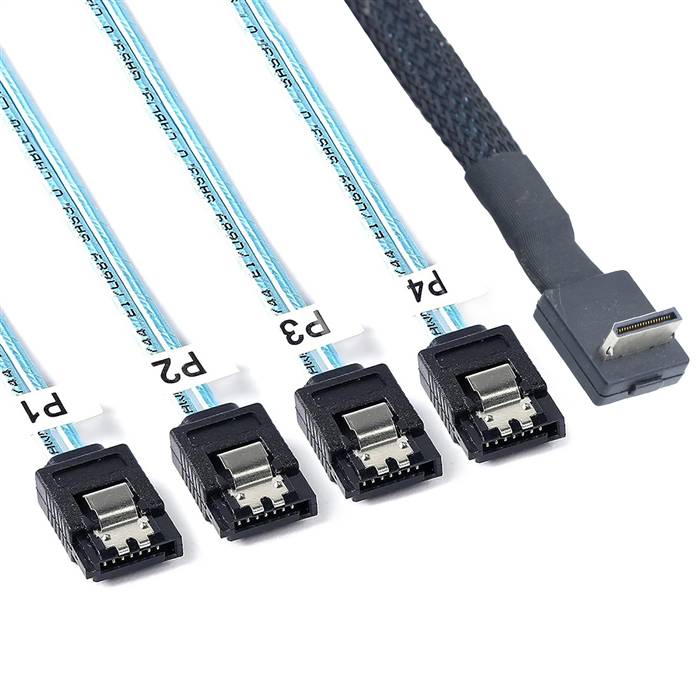

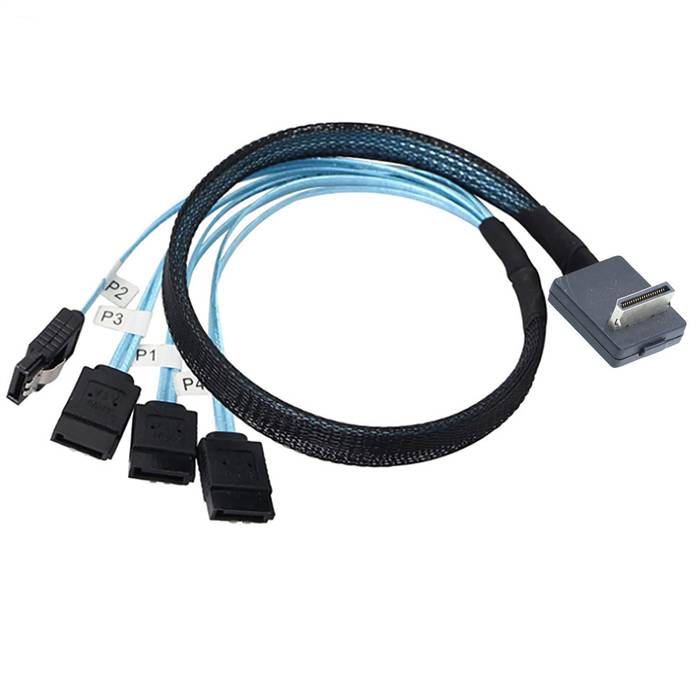

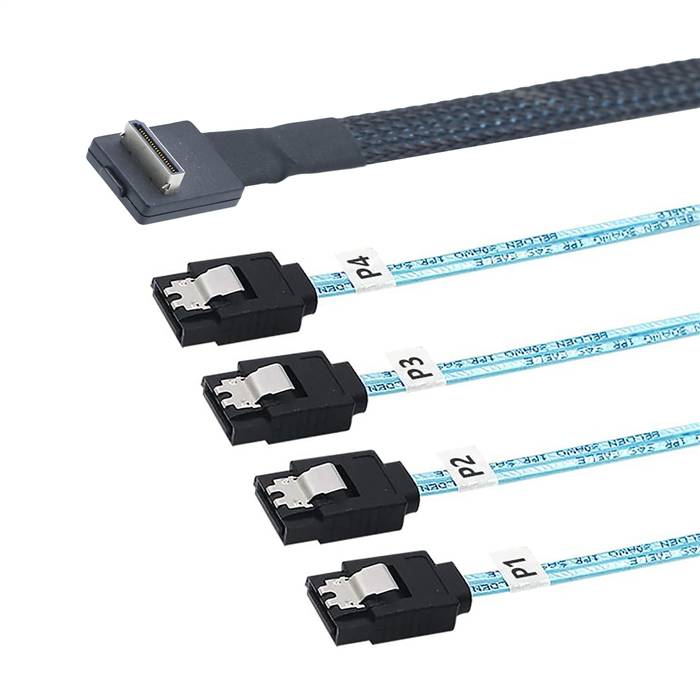

Right Angle OCulink SFF-8611 4i to 4 Straight SATA 7P Cable

The Right Angle OCuLink SFF-8611 4i to 4 Straight SATA 7P Cable is a space-optimized protocol conversion solution designed for high-density server configurations. This specialized cable features a right-angle OCuLink connector that enables efficient cable routing in confined spaces while converting a single PCIe-based host interface into four independent SATA 7-pin interfaces. Engineered for superior signal integrity and reliable performance, this solution is ideal for modern data centers requiring both protocol conversion and optimized space utilization in demanding computing environments.

Features

• Space-Optimized Design: Right-angle OCuLink connector facilitates clean cable management in tight spaces
• Protocol Conversion: Bridges PCIe host interfaces to multiple SATA storage devices
• High-Density Connectivity: Single host port supports connection to four SATA devices
• High-Speed Performance: Supports SATA 3.0 data rates up to 6 Gbps
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and shielding
• Secure Connection: Robust connectors ensure reliable mating and vibration-resistant operation
• Hot-Plug Capable: Supports hot-swap functionality for maintenance and upgrades
• Durable Construction: Quality materials ensure long-term reliability in 24/7 operation

Specifications

• Product Model: Right Angle OCuLink to Quad SATA Cable
• Host Connector: OCuLink SFF-8611 4i, Male, Right Angle
• Device Connectors: 4x SATA 7-pin, Male, Straight
• Data Rate Support: Up to 6 Gbps (SATA 3.0)
• Supported Protocols: PCIe 4.0/3.0, SATA 3.0
• Wire Gauge: 30 AWG (data), 22 AWG (power)
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 1.0m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles (OCuLink), 1,500 cycles (SATA)
• Minimum Bend Radius: 30mm

Applications

• High-Density Servers: Ideal for 1U/2U server configurations requiring space-optimized SATA connectivity
• Storage Arrays: Enabling efficient SATA drive connections in compact storage systems
• Data Center Modernization: Facilitating infrastructure upgrades in space-constrained environments
• Backup Solutions: Perfect for connecting multiple backup drives with optimized cable routing
• OEM Server Manufacturing: Essential for system integrators building compact storage solutions
• Cloud Infrastructure: Supporting cost-effective, high-density storage configurations
• Test and Development: Useful for laboratory environments with limited space requirements
• Embedded Systems: Suitable for industrial applications requiring multiple SATA connections in compact form factors
