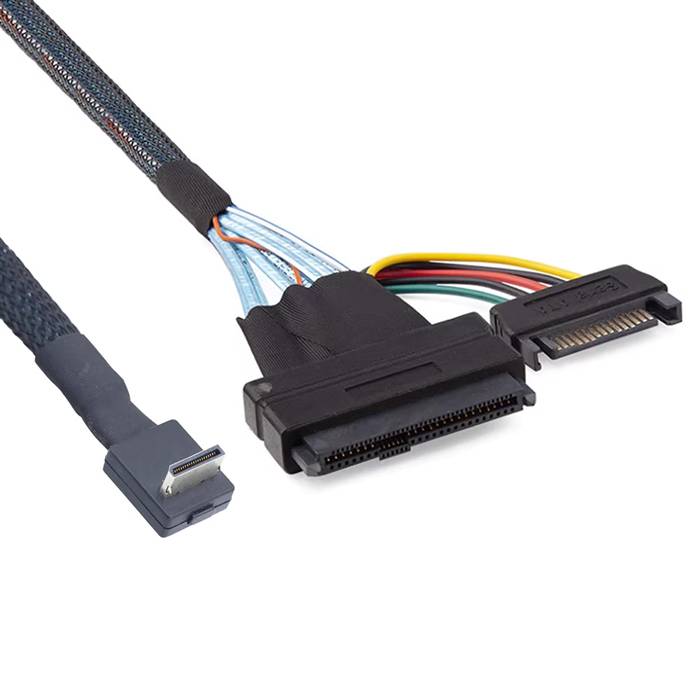

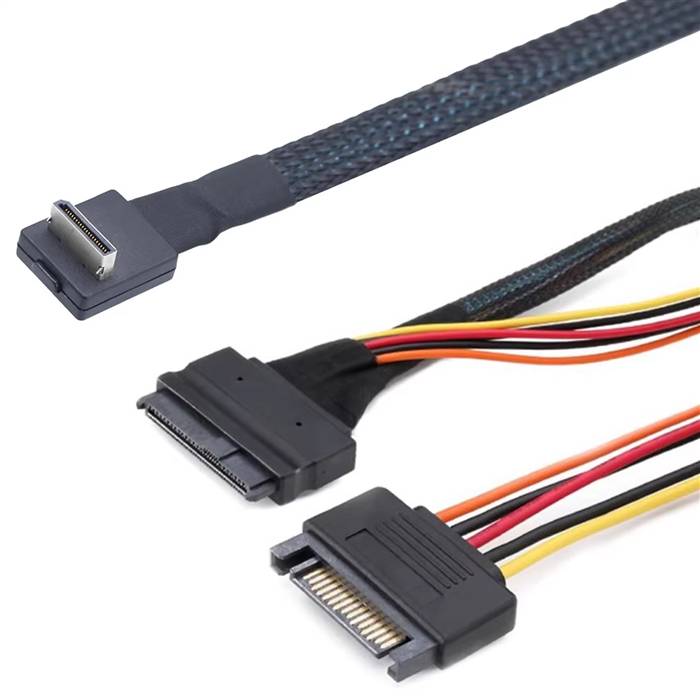

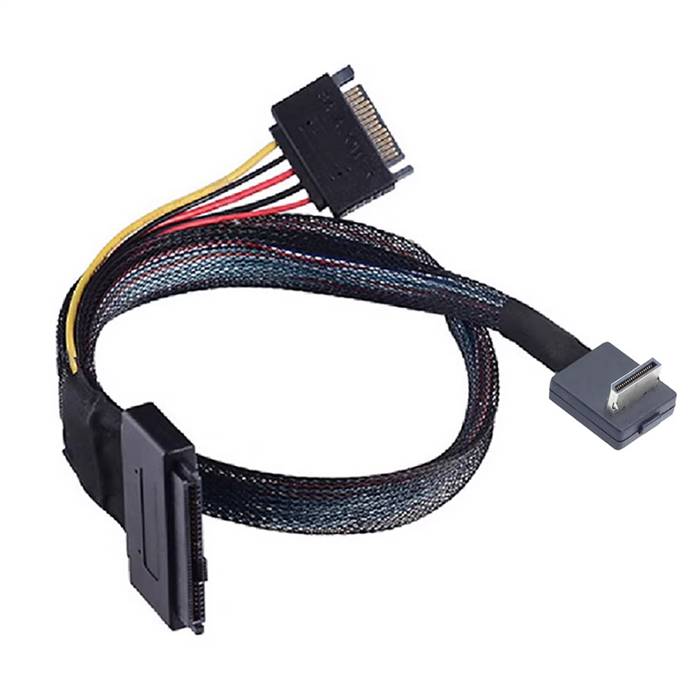

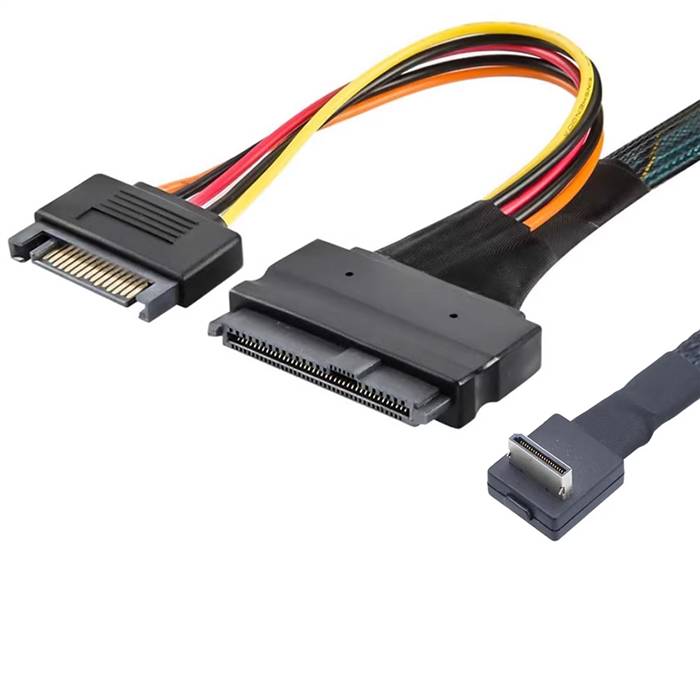

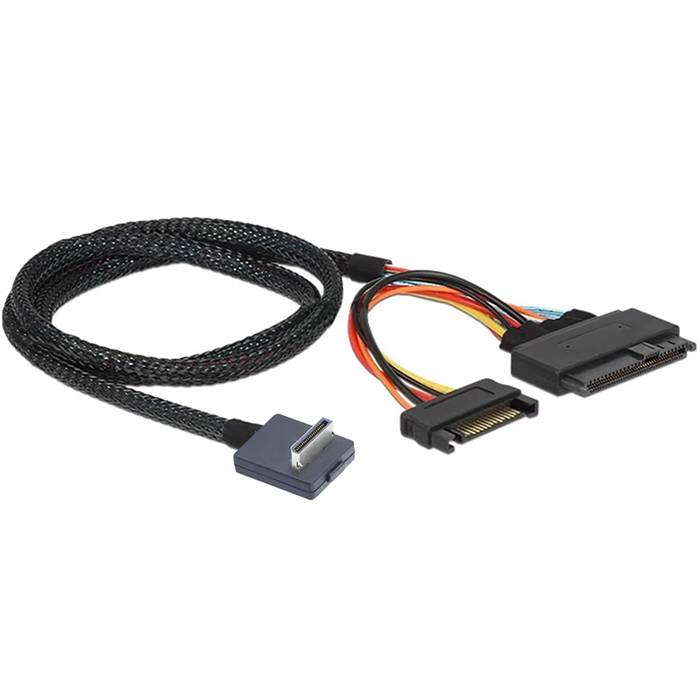

Right Angle OCulink SFF-8611 4i to U.2 SFF-8639 with 15P Power Cable

The Right Angle OCuLink SFF-8611 4i to U.2 SFF-8639 with 15P Power Cable is a space-optimized hybrid solution designed for high-density server and storage configurations. This cable features a right-angle OCuLink connector that enables efficient cable routing in confined spaces while providing both data transmission and power delivery to U.2 NVMe SSDs. It converts a single OCuLink SFF-8611 4i host interface to a U.2 SFF-8639 interface with integrated SATA power, making it ideal for space-constrained environments requiring reliable high-speed storage connectivity with optimized cable management.

Features

• Space-Optimized Design: Right-angle OCuLink connector facilitates clean cable routing in tight spaces
• Hybrid Solution: Combines data transmission and power delivery in a single cable assembly
• High-Speed Performance: Supports PCIe 4.0 data rates up to 16 GT/s per lane
• Integrated Power Delivery: 15-pin SATA power connector eliminates need for separate power cables
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and shielding
• Secure Connection: Robust connectors ensure reliable mating and vibration-resistant operation
• Compact Form Factor: Ideal for high-density server and storage configurations
• Dual Protocol Support: Compatible with NVMe PCIe and SATA protocols

Specifications

• Product Model: Right Angle OCuLink to U.2 with Power Cable
• Host Connector: OCuLink SFF-8611 4i, Male, Right Angle
• Device Connector: U.2 SFF-8639, 68-Position, Male, Straight
• Power Connector: SATA 15-pin Power
• Data Rate Support: Up to 16 GT/s (PCIe 4.0)
• Supported Protocols: PCIe 4.0/3.0, NVMe 1.4/1.3, SATA 3.2
• Power Rating: 12V/5V (conforms to SATA power specifications)
• Wire Gauge: 30 AWG (data), 22 AWG (power)
• Impedance: 85? ±10% (OCuLink), 100? ±10% (U.2)
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m , 1.0m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles (data connectors), 1,500 cycles (power connector)
• Minimum Bend Radius: 30mm

Applications

• High-Density Servers: Ideal for 1U/2U server configurations requiring space-optimized storage connectivity
• Storage Arrays: Perfect for connecting PCIe hosts to U.2 NVMe drives in compact storage systems
• Data Center Infrastructure: Supporting high-density deployments in space-constrained environments
• Server Upgrade Projects: Enabling modern servers with OCuLink ports to connect to U.2 storage devices
• OEM Server Manufacturing: Essential for system integrators building compact storage solutions
• Cloud Computing: Ideal for hyperscale environments requiring efficient storage connectivity
• Test and Development: Useful for laboratory setups with limited space requirements
• AI and Machine Learning: Supporting high-performance storage configurations in compute-intensive applications
