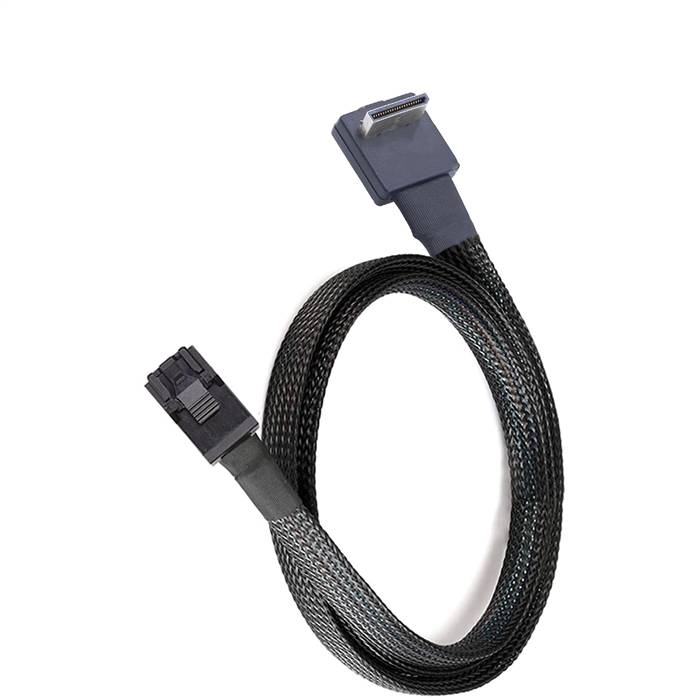

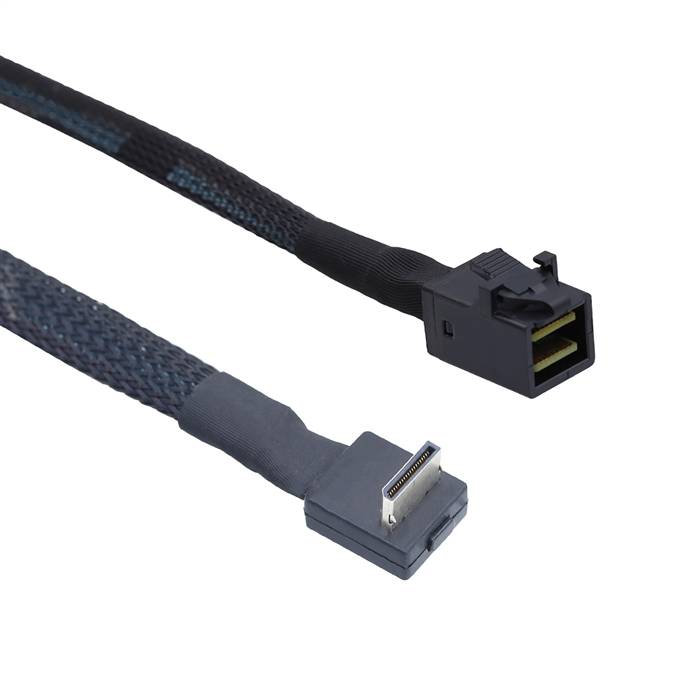

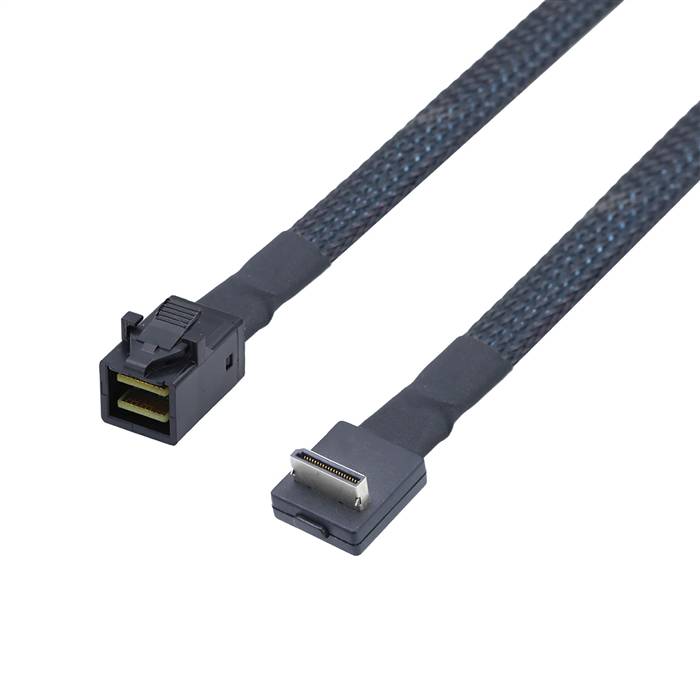

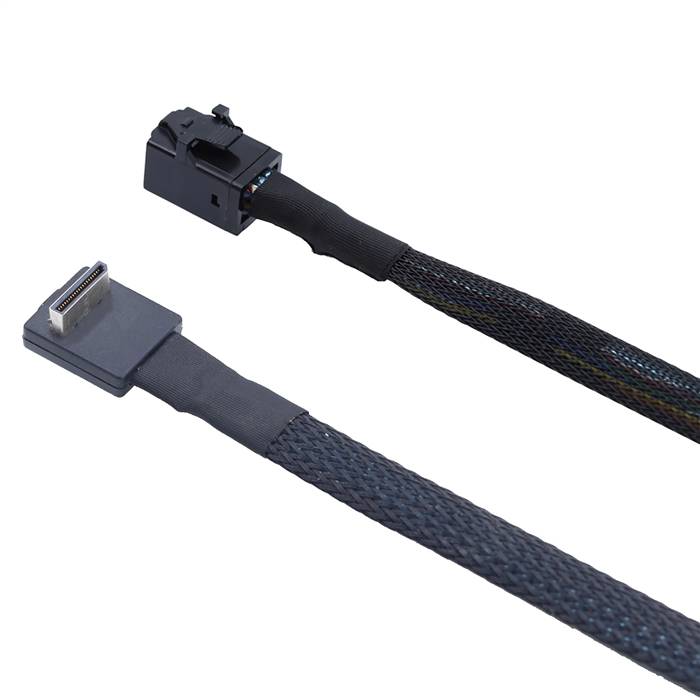

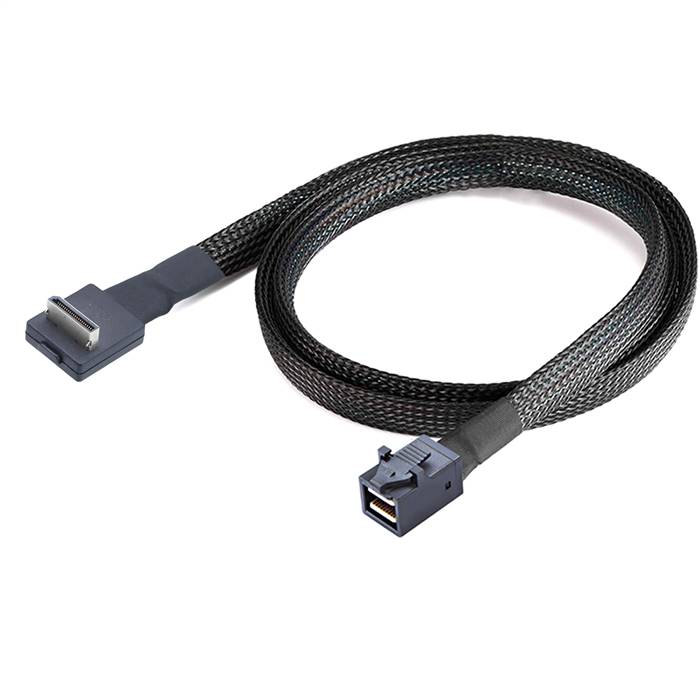

Right Angle OCulink SFF-8611 4i to Internal HD Mini SAS SFF-8643 4x 36P Cable

The Right Angle OCuLink SFF-8611 4i to Internal HD Mini SAS SFF-8643 4x 36P Cable is a space-optimized protocol conversion solution designed for high-density server and storage configurations. This specialized cable features a right-angle OCuLink connector that enables efficient cable routing in confined spaces while converting PCIe-based host interfaces to SAS/SATA storage connections. Engineered for superior signal integrity and reliable performance, this solution is ideal for modern data centers requiring both protocol conversion and optimized space utilization in demanding computing environments.

Features

• Space-Optimized Design: Right-angle OCuLink connector facilitates clean cable management in tight spaces
• Protocol Conversion: Bridges PCIe host interfaces to SAS/SATA storage devices
• High-Speed Performance: Supports data rates up to 24 Gbps (SAS 4.0) and 16 GT/s (PCIe 4.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and shielding
• Secure Connection: Robust connectors ensure reliable mating and vibration-resistant operation
• High-Density Deployment: Compact design enables efficient use of space in server configurations
• Dual Protocol Support: Compatible with SAS and SATA storage protocols
• Durable Construction: Quality materials ensure long-term reliability in 24/7 operation

Specifications

• Product Model: Right Angle OCuLink to Internal Mini SAS HD Cable
• Host Connector: OCuLink SFF-8611 4i, Male, Right Angle
• Device Connector: Internal HD Mini SAS SFF-8643 4x, 36-Position, Male, Straight
• Data Rate Support: Up to 24 Gbps (SAS 4.0), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 4.0/3.0, SATA 3.0, PCIe 4.0/3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m,  1.0m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 30mm

Applications

• High-Density Servers: Ideal for 1U/2U server configurations requiring protocol conversion
• Storage Array Integration: Space-optimized connectivity for modern servers to legacy SAS storage
• Data Center Modernization: Facilitating infrastructure upgrades in space-constrained environments
• Rack-Mount Systems: Enabling clean cable management in full-depth rack installations
• OEM Server Manufacturing: Essential for system integrators building compact storage solutions
• Cloud Infrastructure: Supporting high-density deployments in hyperscale computing environments
• Test and Development: Useful for laboratory environments with limited space requirements
• Embedded Systems: Suitable for industrial applications requiring protocol conversion in compact form factors
