Right Angle OCulink SFF-8611 4i to SlimSAS SFF-8654 4i Cable

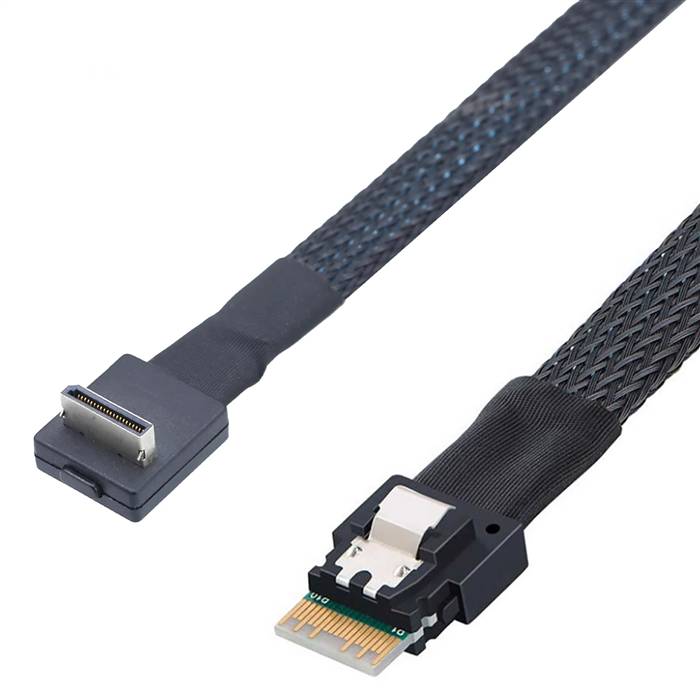

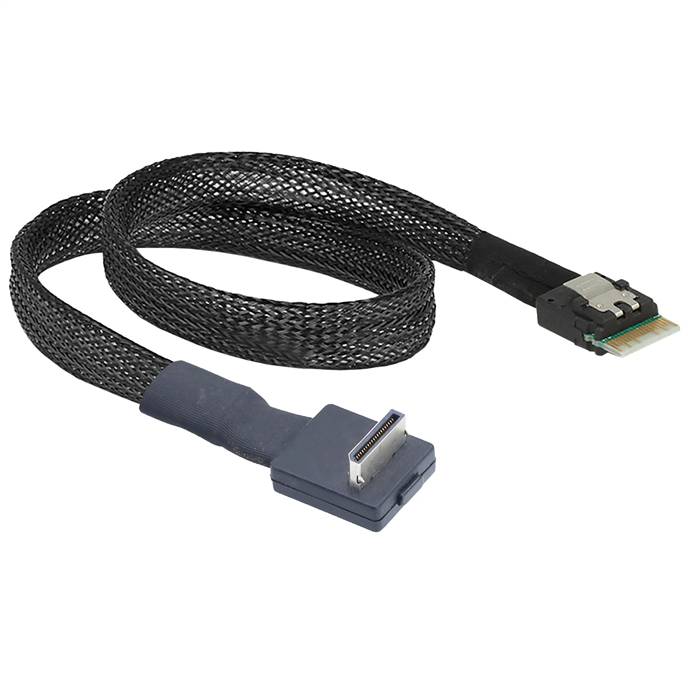

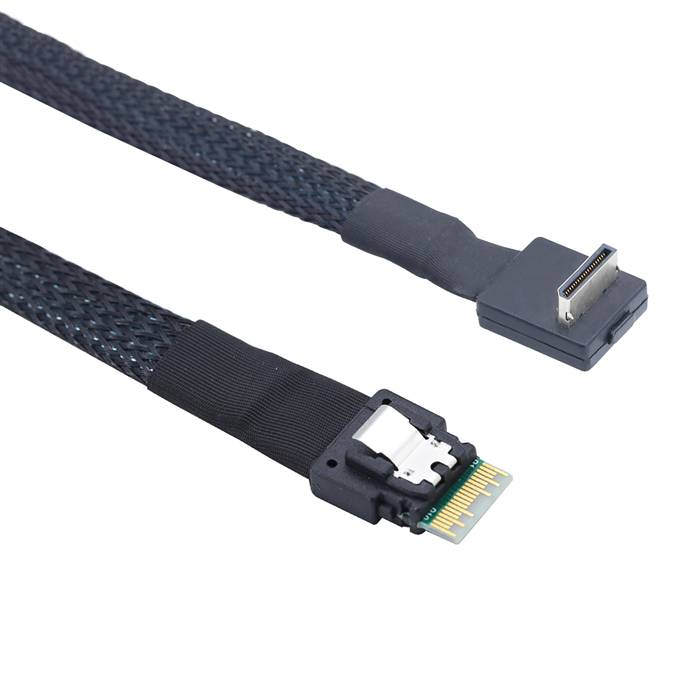

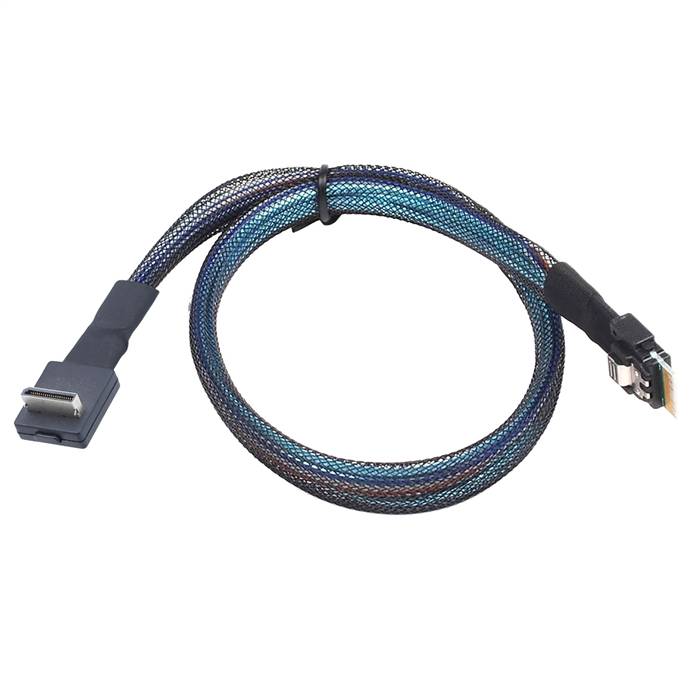

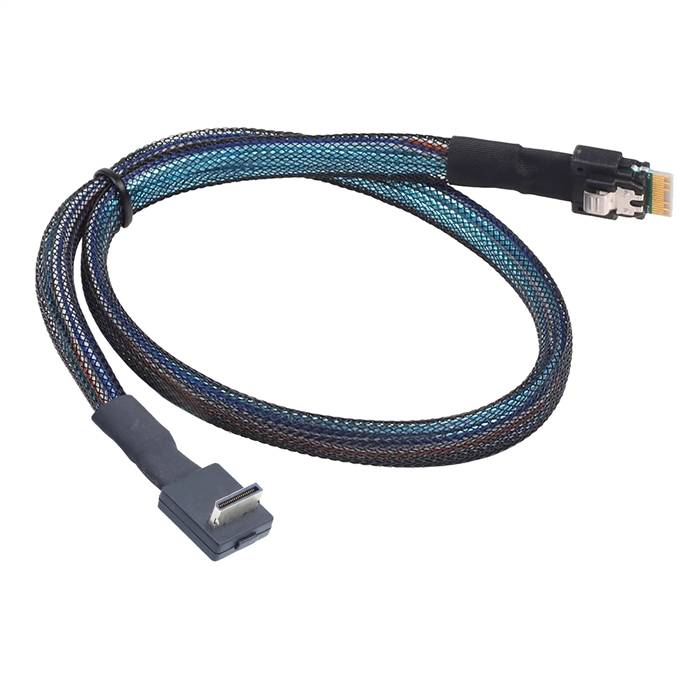

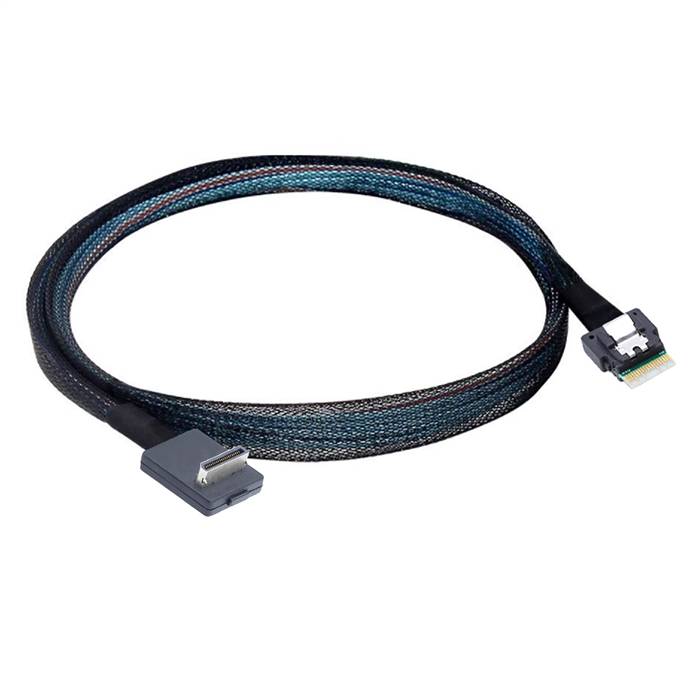

The Right Angle OCuLink SFF-8611 4i to SlimSAS SFF-8654 4i Cable is a high-performance internal connectivity solution designed for space-constrained server and storage environments. This cable features a right-angle OCuLink connector on one end and a SlimSAS connector on the other, providing optimal cable routing in tight spaces while maintaining reliable high-speed data transmission between PCIe-based components. The right-angle design enables cleaner cable management and improved airflow in high-density server configurations, making it ideal for modern data center applications where space optimization is critical.

Features

• Space-Optimized Design: Right-angle OCuLink connector allows for efficient cable routing in confined spaces
• High-Speed Performance: Supports PCIe 4.0 data rates up to 16 GT/s per lane
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching and shielding
• Secure Connection: Robust connectors ensure reliable mating and vibration-resistant operation
• Compact Form Factor: SlimSAS connector provides high-density connectivity solution
• Protocol Support: Fully compatible with PCIe 4.0/3.0 standards
• Durable Construction: Quality materials ensure long-term reliability in 24/7 operation
• Hot-Plug Capable: Supports hot-swap functionality for maintenance and upgrades

Specifications

• Product Model: Right Angle OCuLink to SlimSAS Cable
• Host Connector: OCuLink SFF-8611 4i, Male, Right Angle
• Device Connector: SlimSAS SFF-8654 4i, Male, Straight
• Data Rate Support: Up to 16 GT/s (PCIe 4.0)
• Supported Protocols: PCIe 4.0/3.0
• Wire Gauge: 30 AWG
• Impedance: 85? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.5m, 1.0m
• Operating Temperature: -20°C to +85°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm
• Current Rating: 1.0A per pin maximum

Applications

• High-Density Servers: Ideal for 1U/2U server configurations requiring space-optimized connectivity
• Storage Systems: Connecting PCIe switches to storage controllers in compact arrays
• GPU Accelerator Connections: Enabling efficient cabling for GPU servers and AI workloads
• Rack-Mount Systems: Perfect for full-depth rack installations with limited clearance
• OEM Server Manufacturing: Essential for system integrators building compact server solutions
• Data Center Infrastructure: Supporting high-density deployments in hyperscale environments
• Test and Development: Useful for laboratory setups with space constraints
• Embedded Systems: Suitable for industrial applications requiring reliable PCIe connectivity
