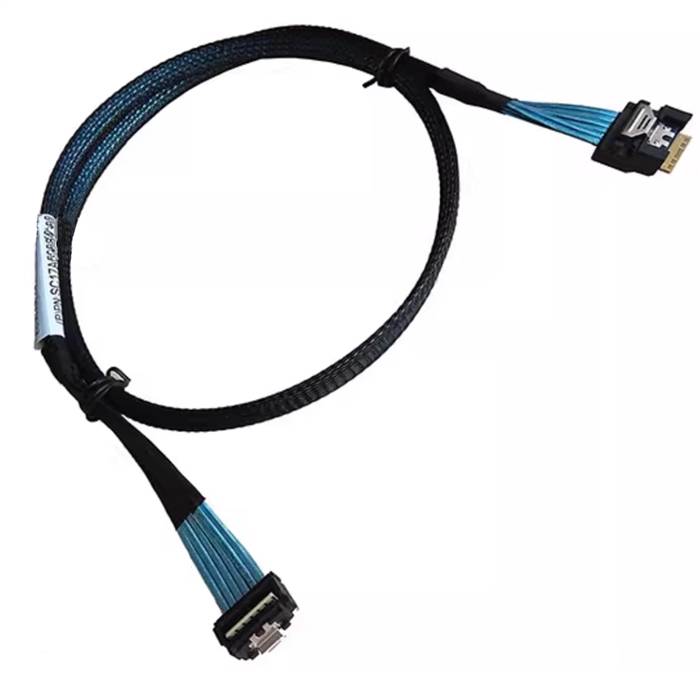

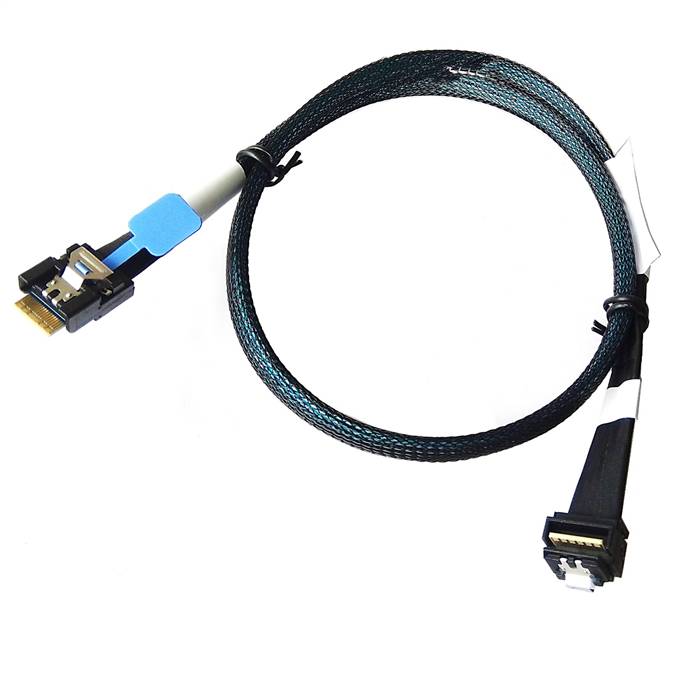

Low Profile SlimSAS SFF-8654 4x 38P to SlimSAS SFF-8654 4x 38P Cable, Right Angle to Straight

The Low Profile SlimSAS SFF-8654 4x 38P to SlimSAS SFF-8654 4x 38P Cable is a specialized extension solution designed for modern high-density server and storage environments. This right-angle to straight cable assembly features a low-profile connector on one end and a standard straight connector on the other, providing flexible connectivity options in space-constrained configurations. Engineered to maintain signal integrity while offering installation flexibility, this solution is ideal for applications where connector orientation and space limitations are critical factors in system design.

Features

• Space Optimized Design: LP SFF-8654 connector enables deployment in ultra-slim server configurations with limited clearance
• Flexible Connector Orientation: Right-angle to straight configuration provides installation flexibility in various mounting scenarios
• High Speed Performance: Supports data rates up to 24 Gbps (SAS 4.0) and PCIe 4.0 protocols
• Enhanced Signal Integrity: Precision engineering with 100? impedance matching and comprehensive shielding
• Reliable Connection: Secure latching mechanisms ensure stable connections in demanding environments

Specifications

• Product Model: LP SlimSAS to SlimSAS Extension Cable

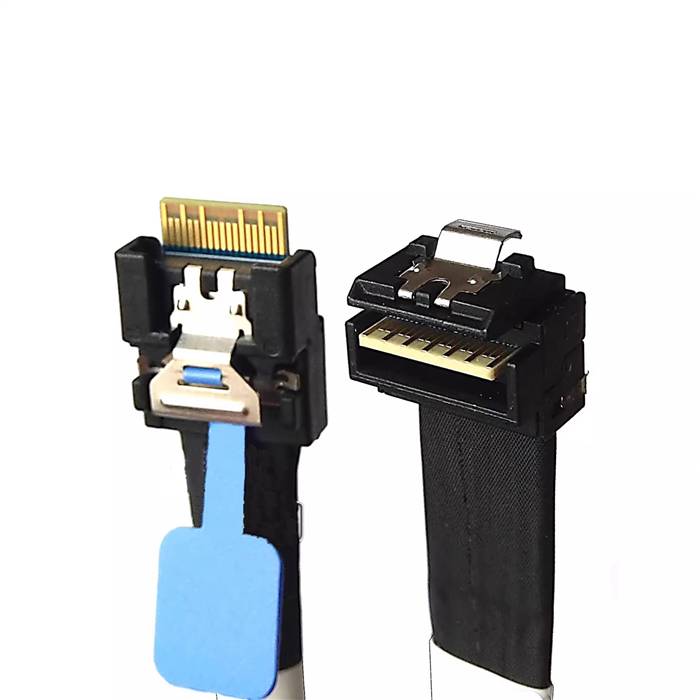

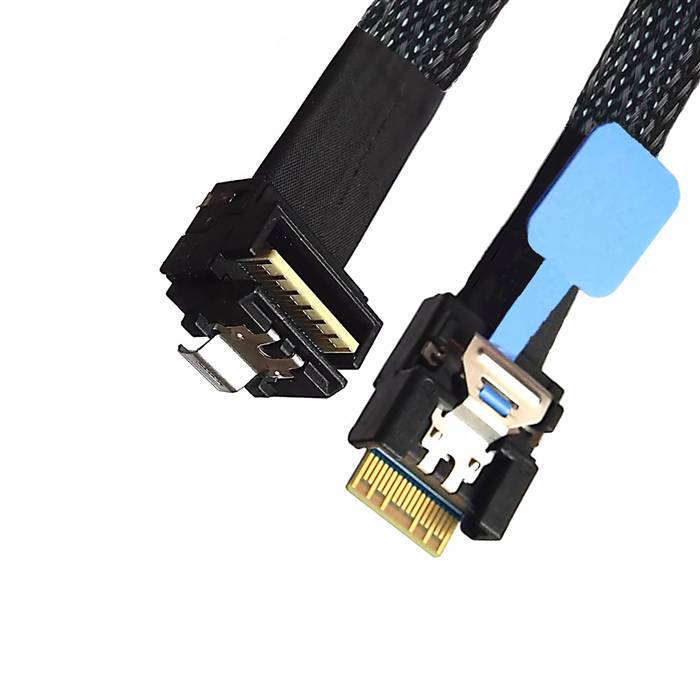

• Host Connector: LP SFF-8654 4x, 38-Position, Male, Right Angle
• Device Connector: SlimSAS SFF-8654 4x, 38-Position, Male, Straight
• Data Rate Support: Up to 24 Gbps (SAS 4.0), 16 GT/s (PCIe 4.0)
• Supported Protocols: SAS 4.0/3.0, PCIe 4.0/3.0
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Individual pair shielding with overall braid protection
• Cable Length: 0.7m, 0.8m
• Operating Temperature: -20°C to +85°C
• Connector Height: 6.5mm (LP specification)
• Durability Rating: 10,000 mating cycles

Applications

• High Density Server Configurations: Ideal for 1U and blade servers where LP connectors provide essential clearance
• Data Center Infrastructure: Essential for hyperscale data centers requiring flexible connector orientations
• Storage Array Interconnections: Suitable for connecting between storage controllers and backplanes in tight spaces
• Server OEM Integration: Designed for original equipment manufacturer server designs requiring specific connector orientations
• Test and Development Environments: Useful for laboratory setups where flexible cable routing is required
• Telecommunications Equipment: Applicable in telecom infrastructure requiring high-density connectivity solutions
