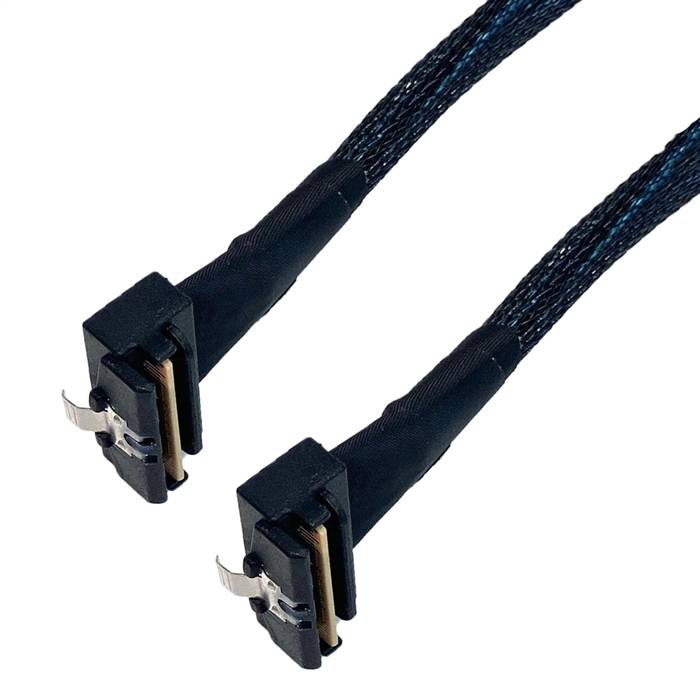

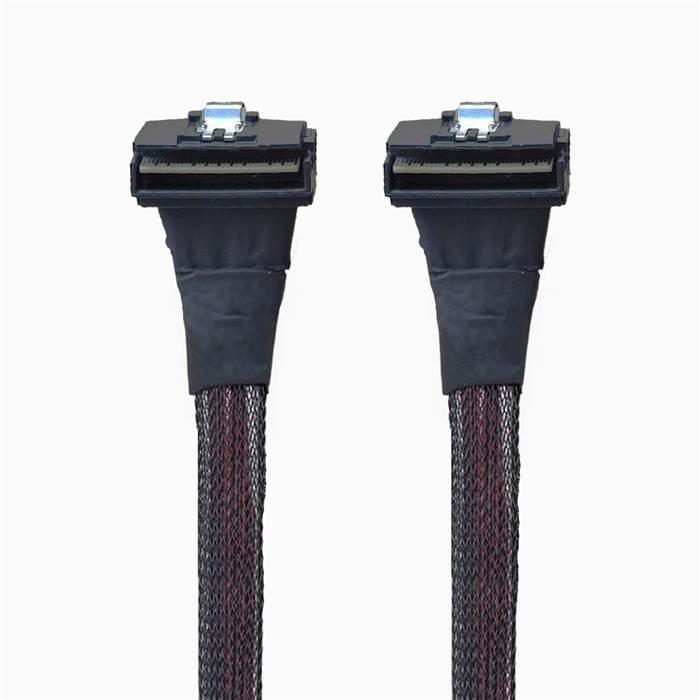

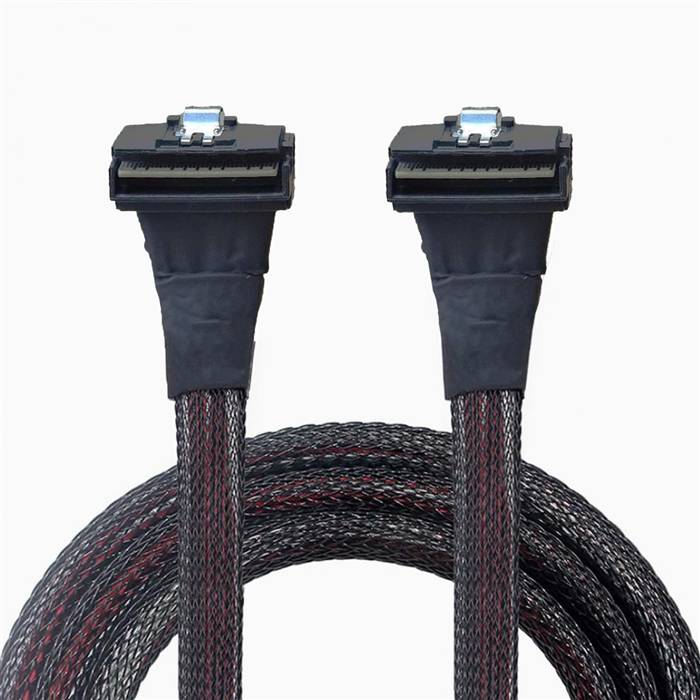

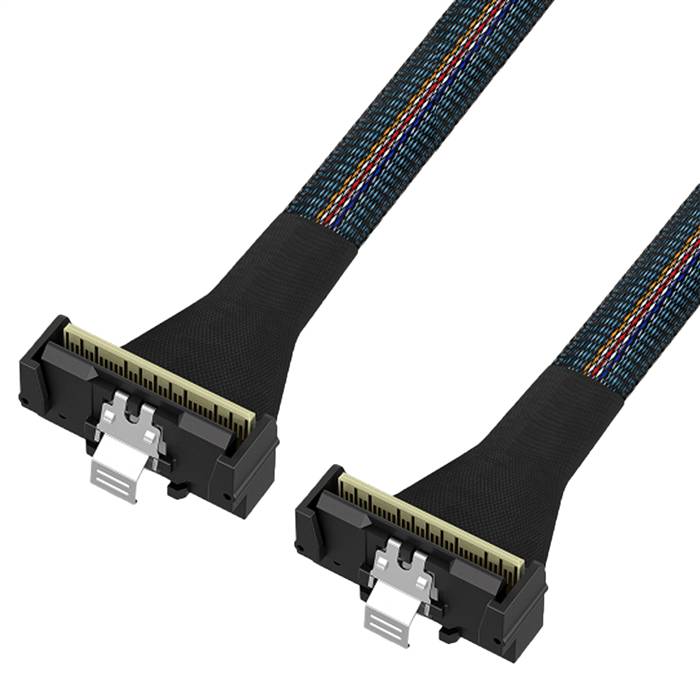

Low Profile SlimSAS SFF-8654 8x 74P to Low Profile SlimSAS SFF-8654 8x 74P Cable, Right Angle to Right Angle

The Low Profile SlimSAS SFF-8654 8x 74P to Low Profile SlimSAS SFF-8654 8x 74P Cable (Right Angle to Right Angle) is a specialized internal server cable designed for ultra-high-density data center and enterprise storage environments where space optimization is critical. This cable features identical right-angle connectors on both ends, providing a compact and efficient connection solution between two Low Profile SlimSAS (SFF-8654) 8-lane interfaces. Engineered to the SFF-8654 standard, it delivers exceptional signal integrity while maximizing space utilization in the most constrained server configurations, making it ideal for high-speed data transfer applications where minimal vertical clearance and optimal cable routing are essential requirements.

Features

• Dual Right-Angle Design: Both connectors feature right-angle orientation, providing the most compact connection solution for ultra-high-density server configurations where vertical space is severely limited.
• Space-Optimized Architecture: Enables installation in 1U and blade server environments where traditional straight connectors would cause interference with adjacent components or chassis walls.
• High-Speed Data Transmission: Supports SAS 4.0 (24 Gbps) and PCIe 4.0 (16 GT/s) protocols, ensuring reliable high-bandwidth performance for demanding storage applications.
• Enhanced Signal Integrity: Utilizes precision twin-axial cables with multi-layer shielding (individual pair shielding with overall braid + foil) to maintain signal quality while accommodating the right-angle configuration.
• Secure Latching Mechanism: Incorporates robust connectors with positive locking features to ensure stable connections in vibration-prone environments, preventing accidental disconnection.
• Thermal Efficiency: The low-profile design minimizes airflow obstruction, contributing to improved thermal management in densely packed server configurations.

Specifications

• Product Model: Low Profile SlimSAS SFF-8654 8x to SlimSAS SFF-8654 8x Cable (Right Angle to Right Angle)
• Connector A: Low Profile SlimSAS (SFF-8654) 8x, 74-Position, Male, Right Angle
• Connector B: Low Profile SlimSAS (SFF-8654) 8x, 74-Position, Male, Right Angle
• Connector Gender: Male to Male
• Cable Type: Right Angle to Right Angle
• Cable Length: Standard options: 0.5m, 0.8m, 1m (Custom lengths available up to 1.0m)
• Data Rate Support: Up to 24.0 Gbps (SAS-4), 16.0 GT/s (PCIe 4.0)
• Supported Protocols: SAS 3.0/4.0, PCI Express (PCIe) 4.0
• Wire Gauge: 32 AWG (optimized for flexibility in right-angle configurations)
• Impedance: 85 ? differential impedance
• Shielding: Individual pair shielding with overall braid and foil shield
• Operating Temperature: -40°C to +85°C
• Insertion Loss: < 4.0 dB/m at 16 GHz
• Return Loss: > 10 dB at 16 GHz
• Minimum Bend Radius: 15mm (enabled by specialized cable construction)

Applications

• Ultra-High-Density Servers: Specifically designed for 1U server configurations and blade systems where dual right-angle connectors are essential for component clearance.
• Space-Constrained Storage Arrays: Ideal for high-density storage enclosures where backplane-to-controller connections require minimal vertical profile.
• NVMe Expansion Systems: Provides critical connectivity in all-flash arrays and computational storage systems where space optimization is paramount.
• Hyperscale Data Centers: Deploys in large-scale data center environments where rack space utilization and thermal efficiency are primary concerns.
• Edge Computing Deployment: Essential for compact edge computing infrastructure where extreme space constraints demand optimized connector orientation.
• OEM Server Manufacturing: Used by server manufacturers designing next-generation platforms with maximized component density and optimized airflow characteristics.
• Retrofit and Upgrade Scenarios: Enables upgrades in existing infrastructure where space limitations previously prevented using standard straight connectors.
