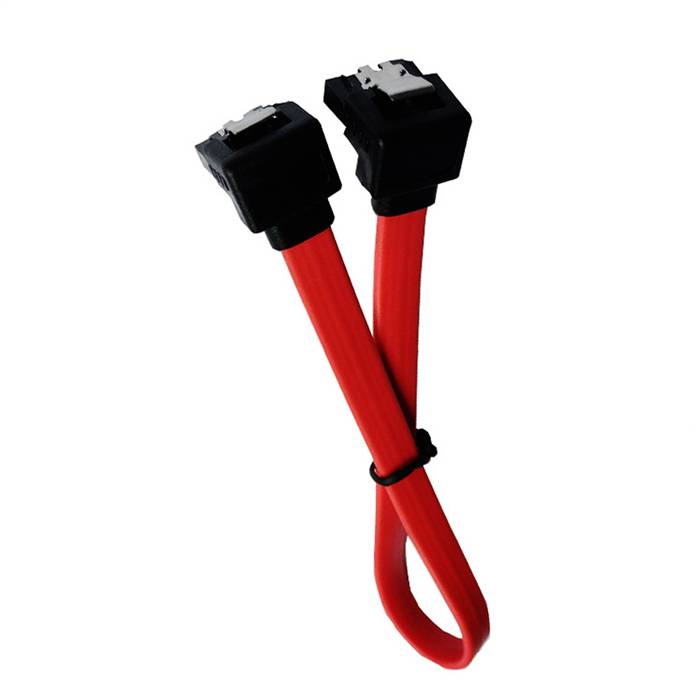

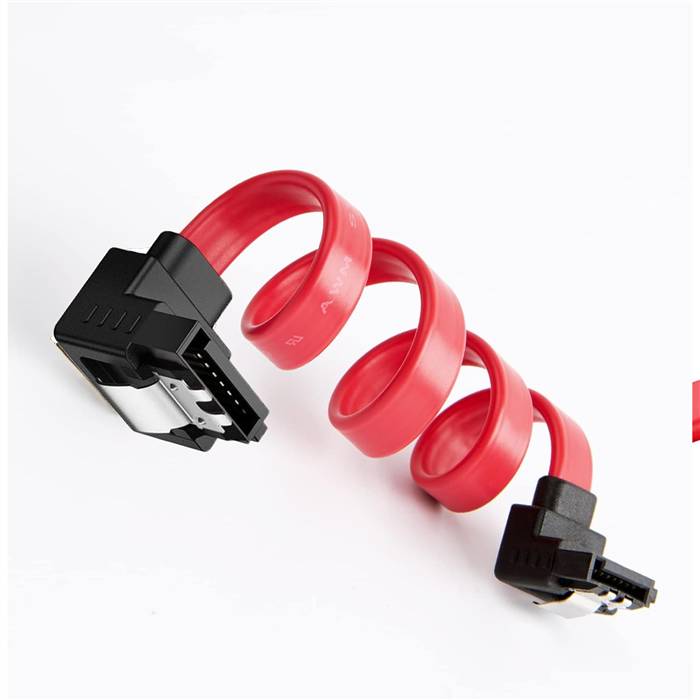

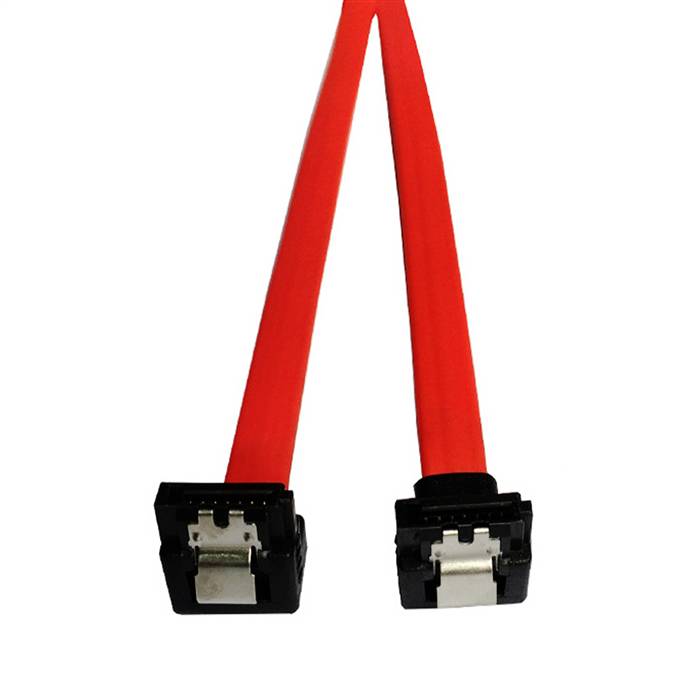

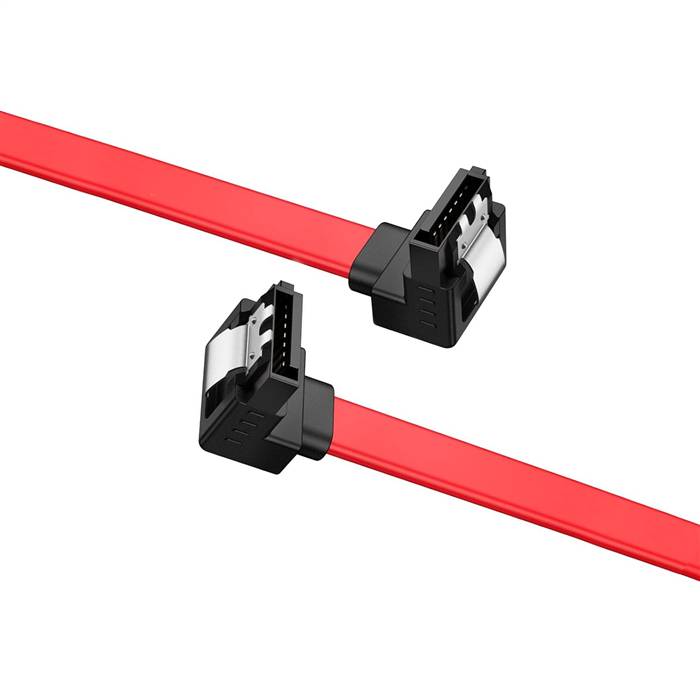

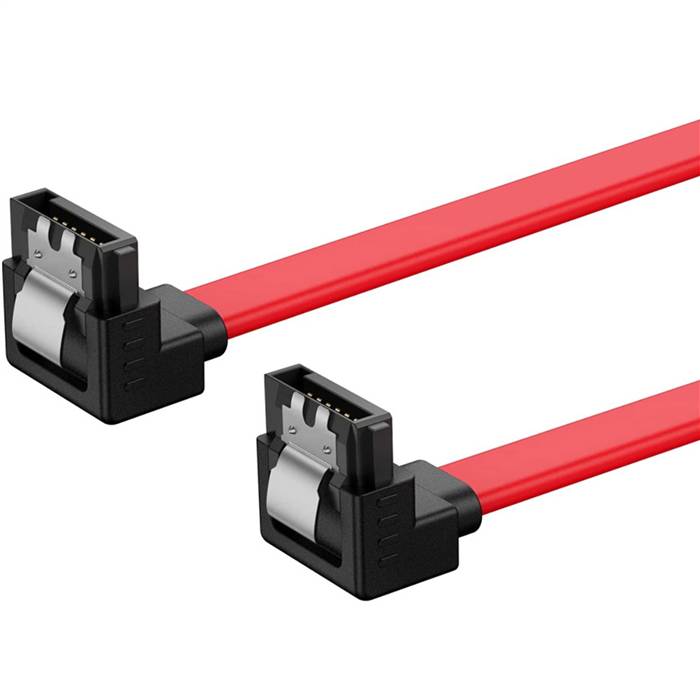

SATA 7Pin to SATA 7Pin Red Cable, Right Angle to Right Angle

The SATA 7Pin to SATA 7Pin Red Cable, Right Angle to Right Angle is a high-performance internal connectivity solution designed for ultra-compact computing environments and space-optimized storage systems where maximum space efficiency and visual identification are essential. This cable features right-angle connectors on both ends with a distinctive red color, providing the highest level of space savings in severely constrained configurations while ensuring easy visual identification in complex setups. The dual right-angle design allows for optimal cable routing in tight spaces where traditional straight connectors would cause interference or require excessive bending, while the red color enhances visibility for efficient cable management. Engineered with precision-molded connectors and high-quality conductors, this cable supports the full SATA 3.0 specification while maintaining backward compatibility with earlier SATA standards. This solution is ideal for high-density server racks, slim storage arrays, gaming systems, and other space-sensitive applications where every millimeter of clearance matters and quick cable identification is crucial.

Features

• Dual Right-Angle Configuration: Right-angle connectors on both ends for maximum space savings
• Distinctive Red Color: Enhances visual identification and organization in complex setups
• High-Speed Data Transfer: Supports data rates up to 6 Gbps (SATA 3.0)
• Ultra-Compact Design: Optimized for severely space-constrained environments
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching
• Secure Connection: Gold-plated contacts and secure latching mechanism ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices
• Durable Construction: Molded strain relief and high-quality materials ensure long-term reliability

Specifications

• Product Model: SATA 7Pin Right Angle to Right Angle Red Cable
• Connectors: 2x SATA 7-pin, Male, Right Angle
• Color: Red (throughout cable and connectors)
• Data Rate Support: Up to 6 Gbps (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Flat Cable
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Aluminum foil shielding for EMI protection
• Cable Length: 0.2m, 0.3m, 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm

Applications

• Ultra-Dense Server Racks: Ideal for high-density server configurations with minimal clearance and enhanced visibility
• Slim Storage Arrays: Perfect for compact storage enclosures and JBOD systems requiring space-efficient connectivity
• Gaming Rigs: High-performance gaming systems with windowed cases where space optimization and aesthetics matter
• Blade Server Environments: Essential for blade server configurations with extreme space limitations
• Small Form Factor PCs: Ideal for mini-ITX and other compact computer builds where space is critical
• NAS Devices: Network-attached storage systems with limited internal space requiring quick cable identification
• Data Centers: Large-scale deployments where color-coded cables simplify maintenance in space-constrained racks
• OEM Applications: Designed for system integrators requiring maximum space optimization with visual organization

Note: The dual right-angle configuration provides the highest level of space savings in severely constrained environments, while the red color ensures quick identification and efficient cable management. This combination is particularly valuable in high-density deployments where both space optimization and maintenance efficiency are critical requirements. The cable maintains all performance characteristics of standard SATA cables while offering superior space efficiency and visual distinction.
