Right Bend Internal Mini SAS SFF-8087 to 4x SATA 7P Cable

Home > MiniSAS Cables > SAS & Mini SAS >

Right Bend Internal Mini SAS SFF-8087 36P to Four SATA 7P Cable

Alternative Views:

Our Price: $10.00

Availability: Typically within 2 Business Days

Product Code: CAB-RB8087-4XSATA

Select Length*:

Qty:

Description

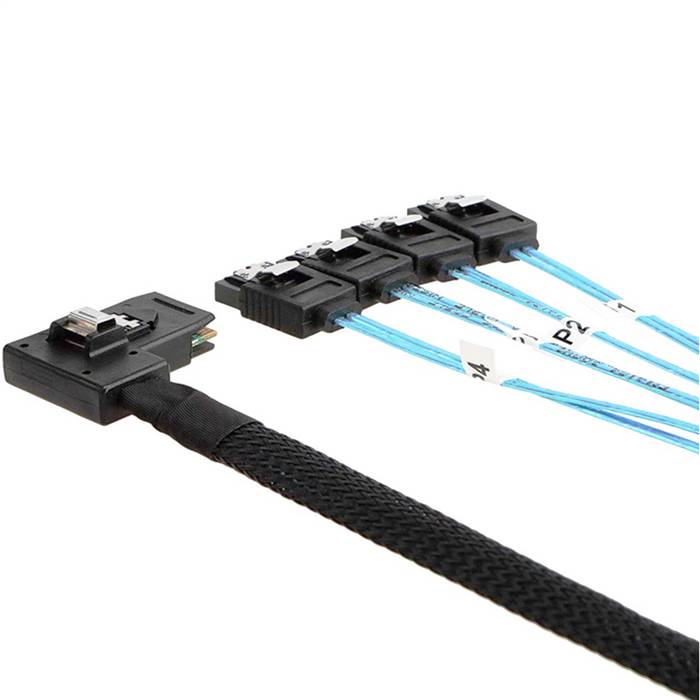

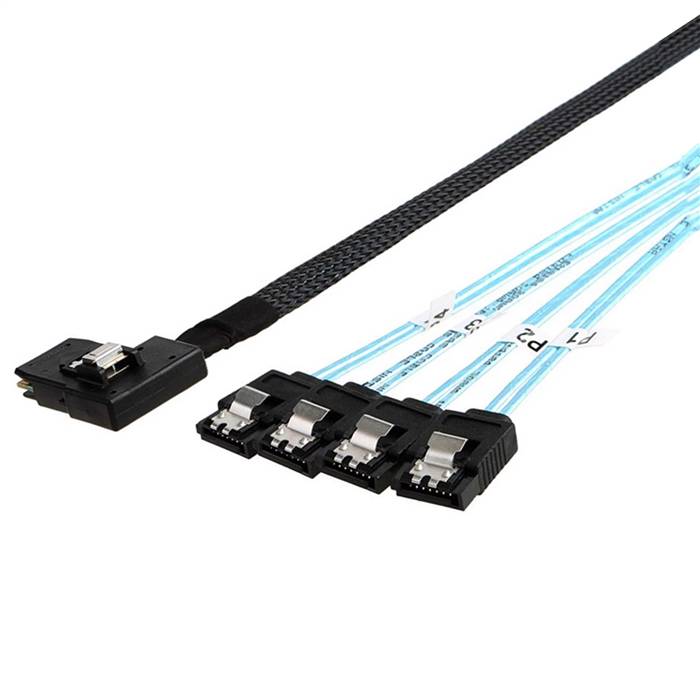

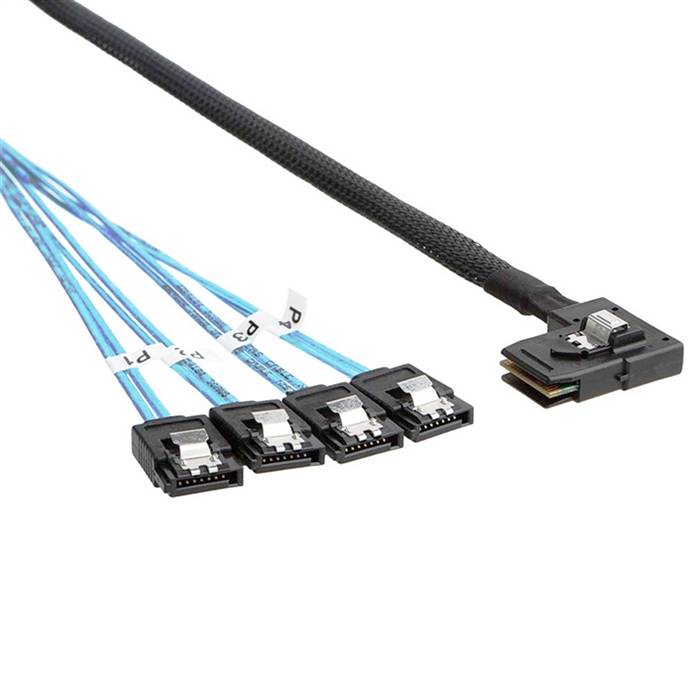

Right Bend Internal Mini SAS SFF-8087 36P to Four SATA 7P Cable features one Right Bend 36-pin plug (SFF-8087), which fans out to four SATA 7-pin receptacles, providing a reliable solution for connecting a Mini SAS backplane to a SAS / SATA RAID controller or motherboard.

Features

Internal Mini SAS SFF-8087 is a high-speed data storage interface designed for high-throughput and fast data access.
Connects a RAID or PCIe controller with an SFF-8087 port to 4 discrete SATA drives
Mini SAS to SATA adapter provides reliable internal connectivity between a Serial attached SCSI controller card in a computer system and direct attached storage devices with a SATA connector
Connect up to 4 SATA drives to span RAID controller arrays and share performance across two PCIe 2.0 x8 lanes with compatible host bus adapters
Supports up to 6Gbs data transfer rate per drive

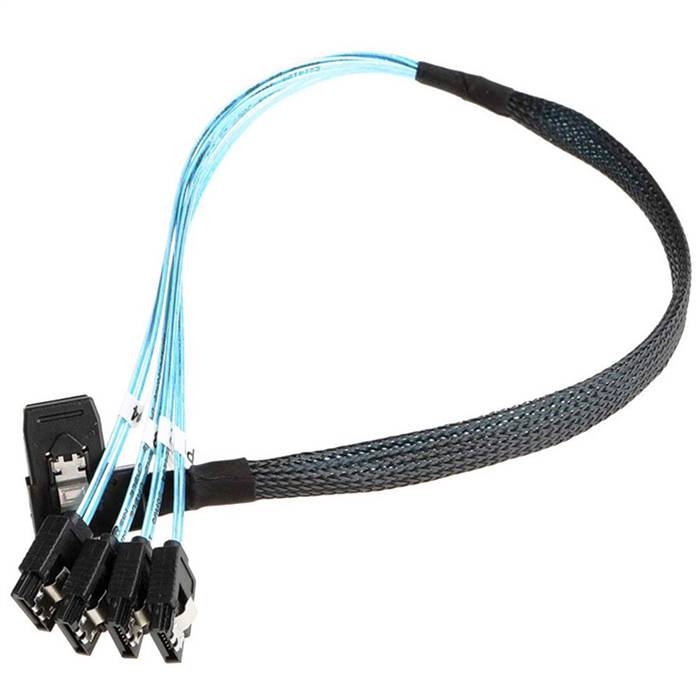

Woven mesh sheath covers half of the cable for easy routing;

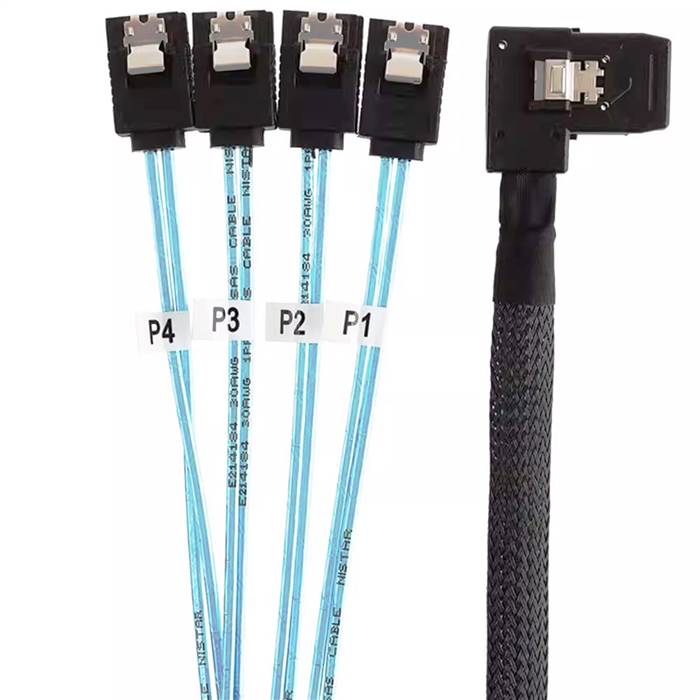

P1 to P4 markers provide easy ID after installation

Specifications

Connector A: 1 x Internal Mini SAS SFF-8087 36P RB (Right Bend)
Connector B: 4 x SATA (7 pin, Data) STR (Straight)
Length: 0.5~1 meter
Data Transfer Rate: 6Gbps
Wire Gauge: 30 AWG
Impedance: 100 Ohms

Share your knowledge of this product with other customers... Be the first to write a review
