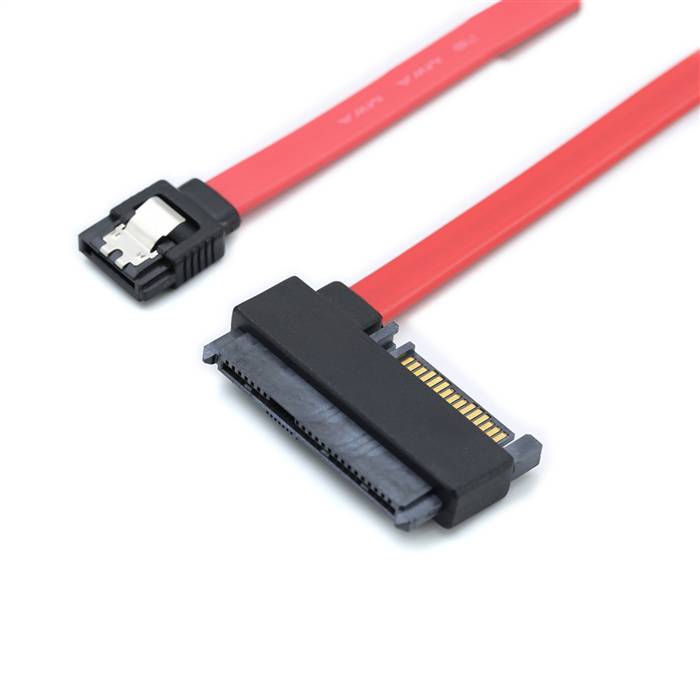

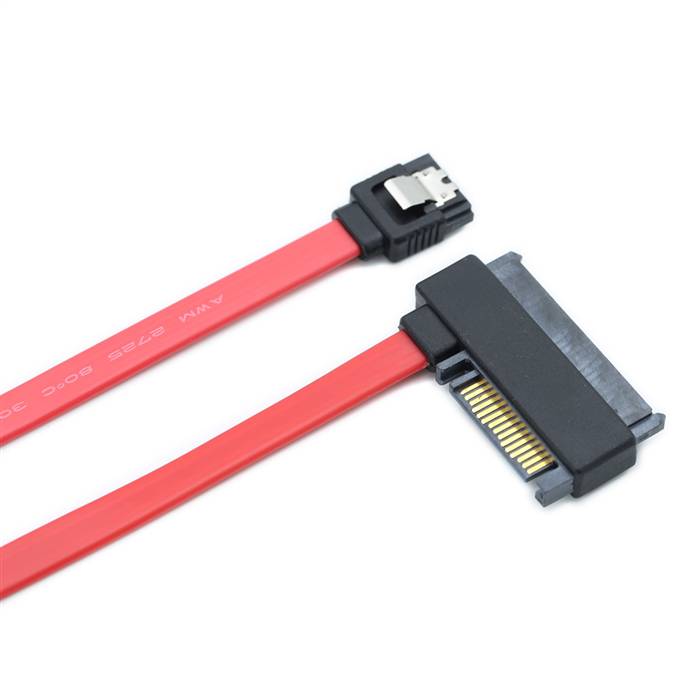

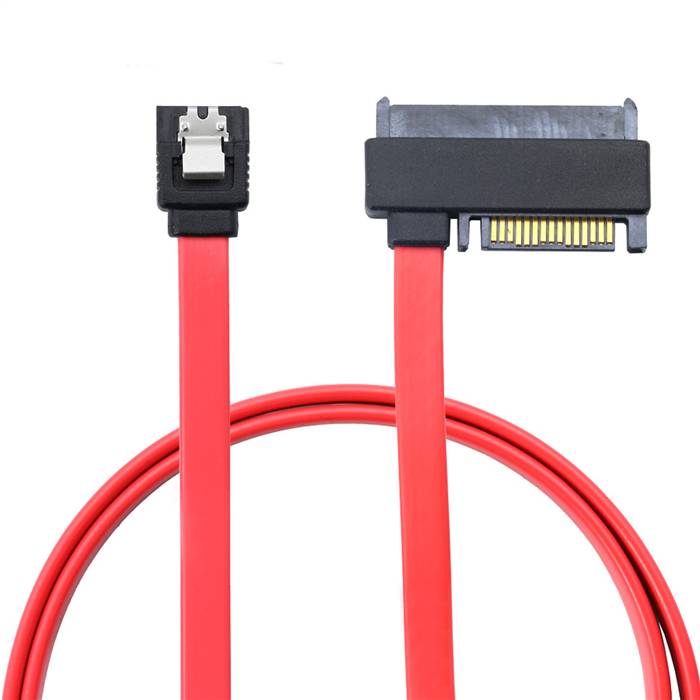

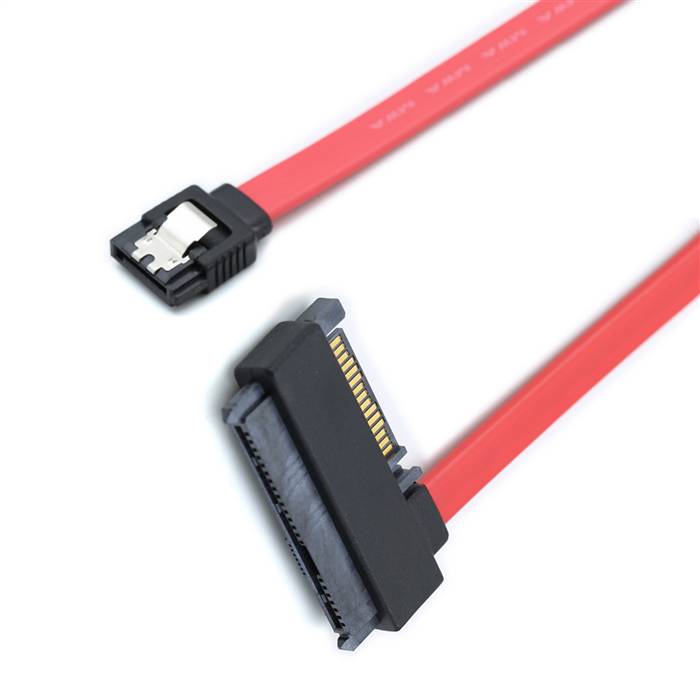

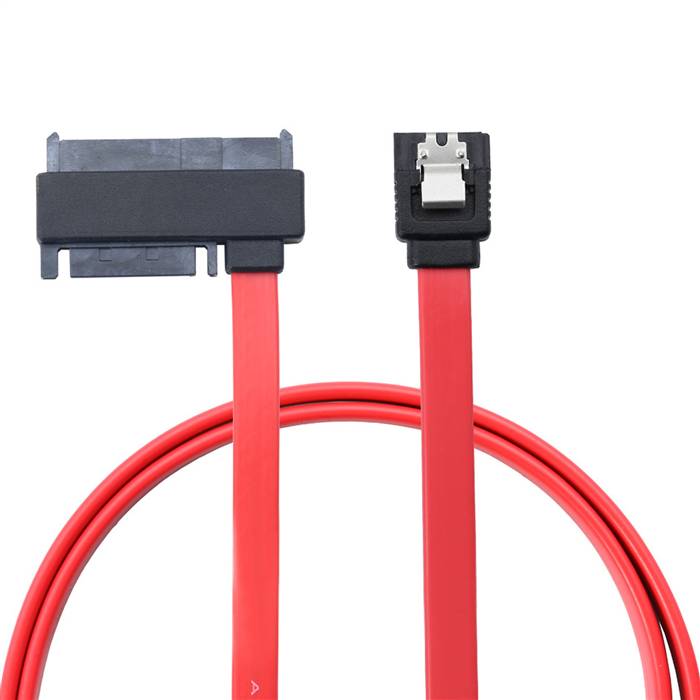

Straight SATA 7Pin to SAS SFF-8482 29P & 15P All-in-one Red Cable

The Straight SATA 7Pin to SAS SFF-8482 29P & 15P All-in-one Red Cable is a high-performance hybrid connectivity solution designed for enterprise storage systems and data-intensive environments requiring seamless integration between SATA devices and SAS infrastructure. This cable combines a standard Straight SATA 7-pin connector with a SAS SFF-8482 29-position data connector and a separate 15-pin power connector, all integrated into a single all-in-one assembly with a distinctive red braided sleeving for enhanced durability and visual identification. Engineered to support high-speed data transmission and reliable power delivery, this solution enables direct connectivity between SATA drives and SAS controllers or backplanes without the need for additional adapters. The robust construction and all-in-one design simplify cable management, reduce clutter, and ensure optimal performance in storage arrays, servers, and data centers.

Features

• Hybrid All-in-One Design: Integrates SATA 7-pin, SAS SFF-8482 29-pin data, and 15-pin power connectors in a single cable
• Distinctive Red Braided Sleeving: Enhances durability, abrasion resistance, and visual identification in complex setups
• High-Speed Data Transfer: Supports data rates up to 6 Gbps (SATA 3.0) and SAS 2.0 protocols
• Integrated Power Delivery: 15-pin power connector ensures reliable power supply to SATA drives
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching (100? ±10%) and reduced crosstalk
• Secure Connection: Gold-plated contacts and robust latching mechanisms ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 3.0/2.0 and SAS 2.0/1.0 devices
• Simplified Cable Management: All-in-one design reduces clutter and improves airflow in dense configurations

Specifications

• Product Model: Straight SATA to SAS SFF-8482 & Power All-in-one Red Cable
• Host Connector: SATA 7-pin, Male, Straight
• Device Connectors: SAS SFF-8482 29-pin, Male (data) + 15-pin, Male (power)
• Data Rate Support: Up to 6 Gbps (SATA 3.0/SAS 2.0)
• Supported Protocols: SATA 3.0/2.0, SAS 2.0/1.0
• Cable Type: Internal Grade, Red Braided Sleeving with Integrated Power
• Wire Gauge: 30 AWG (data), 22 AWG (power)
• Impedance: 100? ±10% (data channels)
• Shielding: Individual data channel shielding with overall braid protection
• Braided Sleeving Material: Nylon or PET mesh in red for durability and flexibility
• Cable Length: 0.5m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles (SATA), 3,000 mating cycles (SAS)
• Minimum Bend Radius: 35mm

Applications

• Storage Array Integration: Connecting SATA drives to SAS backplanes in RAID configurations and storage enclosures
• Server Upgrade Projects: Enabling integration of SATA drives with SAS controllers in existing server infrastructure
• Data Center Modernization: Facilitating hybrid storage setups with SATA and SAS compatibility
• Backup and Archive Systems: Ideal for backup servers requiring direct SATA-to-SAS connectivity
• OEM Solutions: Designed for system integrators needing all-in-one SATA-to-SAS cable solutions
• Test and Development: Useful for laboratory environments validating hybrid storage configurations
• Disaster Recovery: Ensuring reliable data replication between SATA and SAS systems
• High-Density Racks: Space-optimized configurations in enterprise environments requiring simplified cable management

Note: This cable is designed specifically for connecting SATA drives to SAS interfaces. The SAS SFF-8482 connector integrates both data and power connections, ensuring compatibility with SAS infrastructure while supporting SATA drive functionality. The red braided sleeving provides both mechanical protection and easy identification in complex setups.
