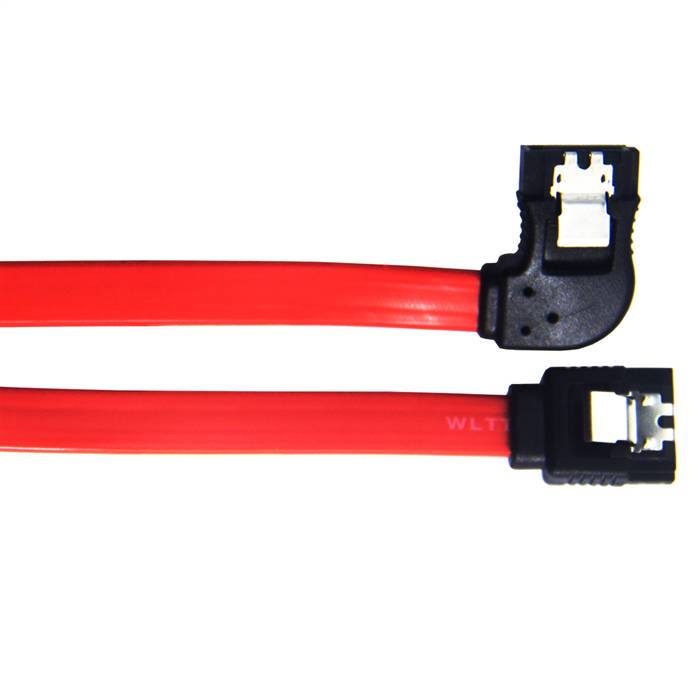

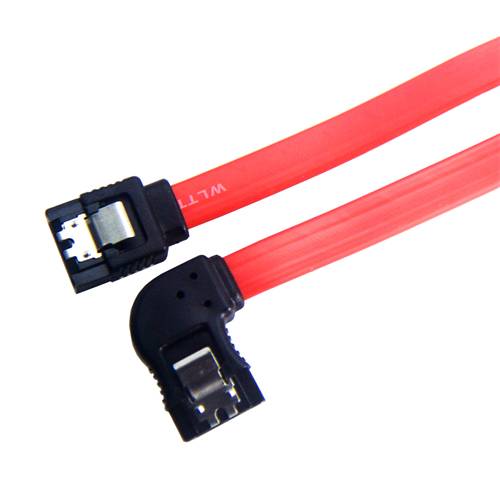

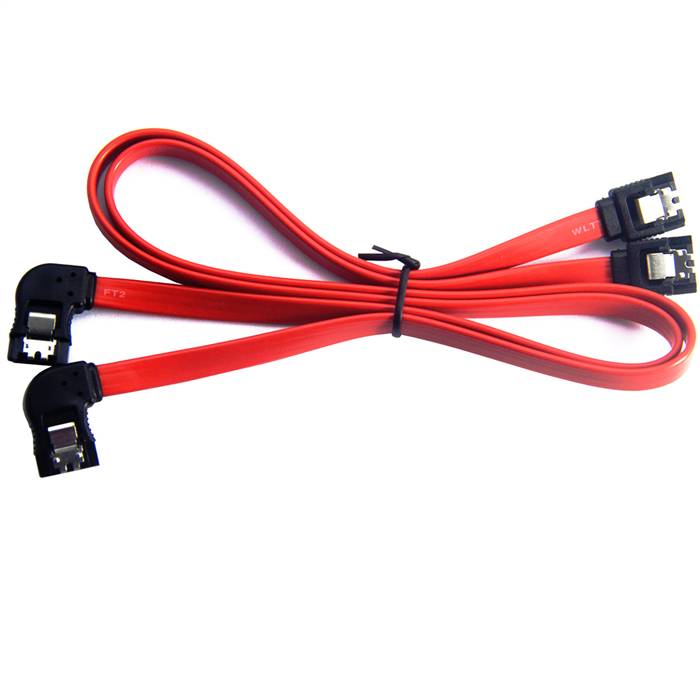

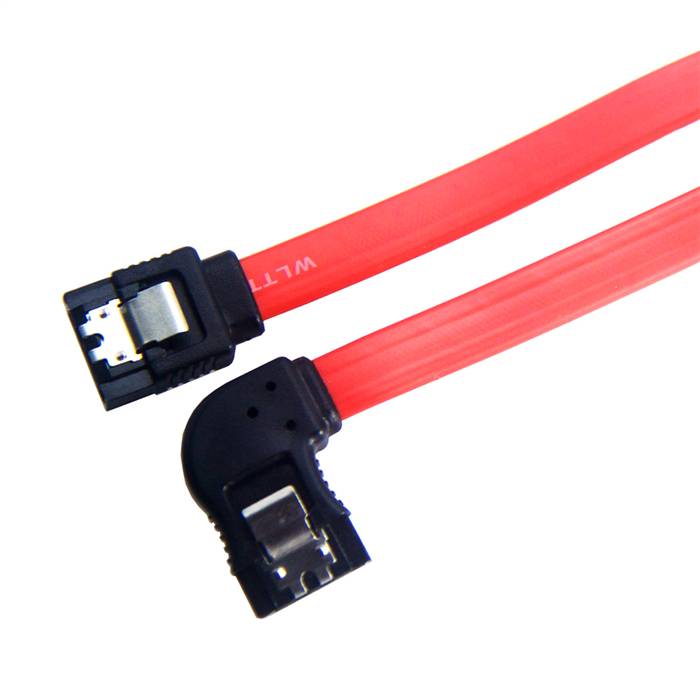

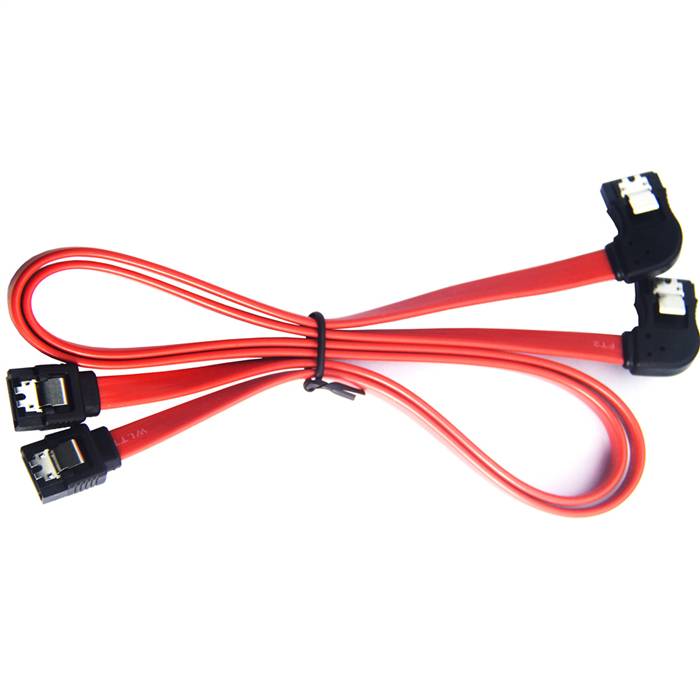

SATA 7Pin to SATA 7Pin Red Cable, Straight to Left Bend

The SATA 7Pin to SATA 7Pin Red Cable, Straight to Left Bend is a specialized internal connectivity solution designed for computing environments with unique spatial constraints and asymmetric layout requirements. This cable features a straight connector on one end and a left-bend connector on the opposite end, with a distinctive red color that enhances visibility and organization in complex setups. The left-bend design enables optimal cable routing in systems where connectors must avoid obstructions on the left side, while the straight connector ensures easy mating on the host side. Engineered with precision-molded connectors and high-quality conductors, this cable supports the full SATA 3.0 specification while maintaining backward compatibility with earlier SATA standards. The red color provides quick identification in dense configurations, making it ideal for non-standard server architectures, custom storage arrays, and specialized computing environments requiring both performance and organized cable management.

Features

• Asymmetric Connector Design: Straight connector on one end and left-bend connector on the opposite end
• Distinctive Red Color: Enhances visual identification and organization in complex setups
• High-Speed Data Transfer: Supports data rates up to 6 Gbps (SATA 3.0)
• Left-Side Clearance Optimization: Left-bend connector addresses specific spatial constraints in asymmetric layouts
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching
• Secure Connection: Gold-plated contacts and secure latching mechanism ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices
• Durable Construction: Molded strain relief and high-quality materials ensure long-term reliability

Specifications

• Product Model: SATA 7Pin Straight to Left Bend Red Cable
• Connector A: SATA 7-pin, Male, Straight
• Connector B: SATA 7-pin, Male, Left Bend (45-degree orientation)
• Color: Red (throughout cable and connectors)
• Data Rate Support: Up to 6 Gbps (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Flat Cable
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Aluminum foil shielding for EMI protection
• Cable Length: 0.2m, 0.3m, 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm

Applications

• Asymmetric Server Designs: Ideal for non-standard server architectures with left-side spatial constraints
• Custom Storage Arrays: Perfect for storage systems requiring left-oriented cable routing solutions
• High-Density Racks: Space-optimized configurations in data center environments with enhanced visibility
• Gaming Systems: Custom gaming rigs with unique layout requirements and aesthetic cable management
• Workstation Builds: Professional workstations with asymmetric internal layouts requiring organized connectivity
• OEM Applications: Designed for system integrators dealing with unique form factor requirements
• Test and Development: Laboratory environments requiring specialized cable orientation solutions
• Industrial Computing: Suitable for industrial PCs with asymmetric internal layouts and maintenance requirements

Note: The left-bend connector addresses specific spatial challenges in configurations where traditional straight or right-angle connectors cannot provide adequate left-side clearance. The red color ensures quick identification and efficient cable management in complex systems. This combination is particularly valuable in environments with non-standard layouts where both space optimization and maintenance efficiency are critical requirements. The cable maintains all performance characteristics of standard SATA cables while offering specialized orientation and visual distinction.
