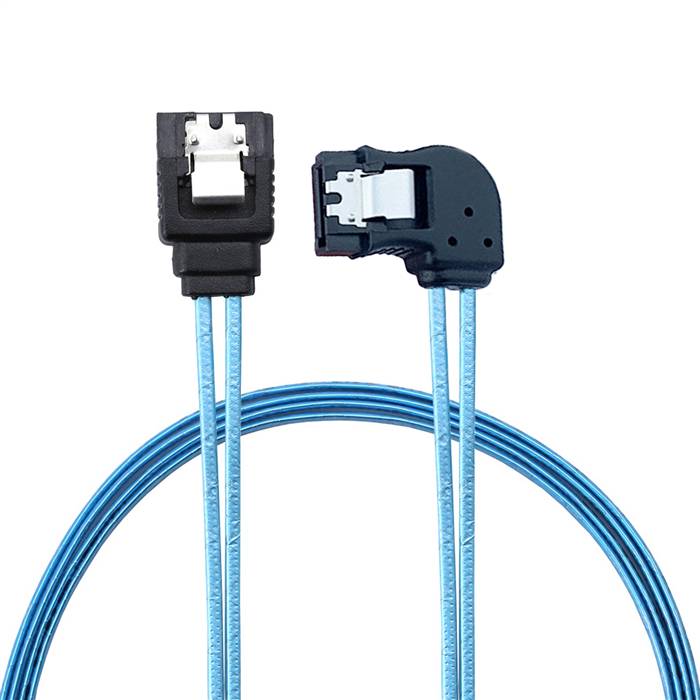

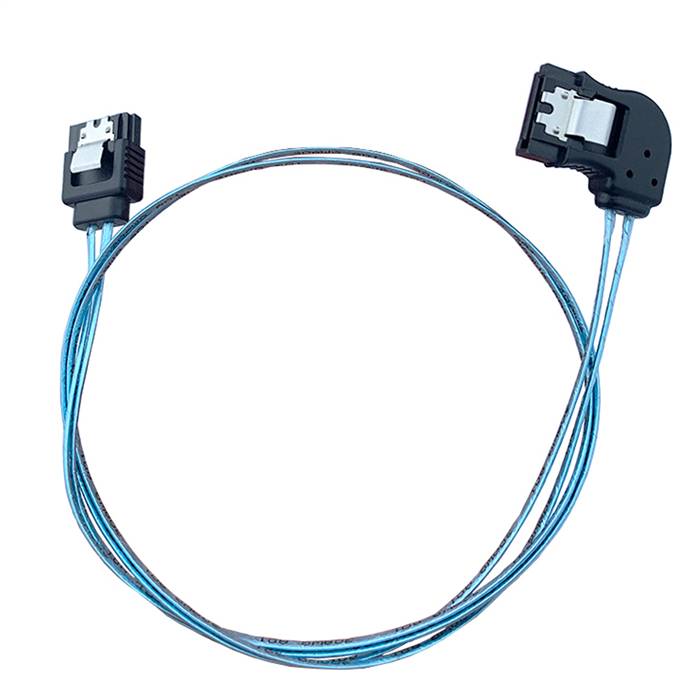

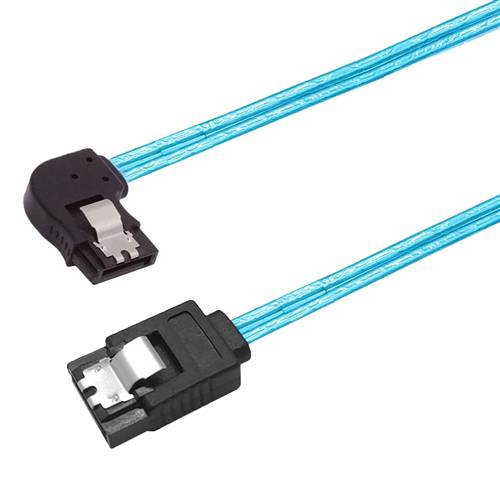

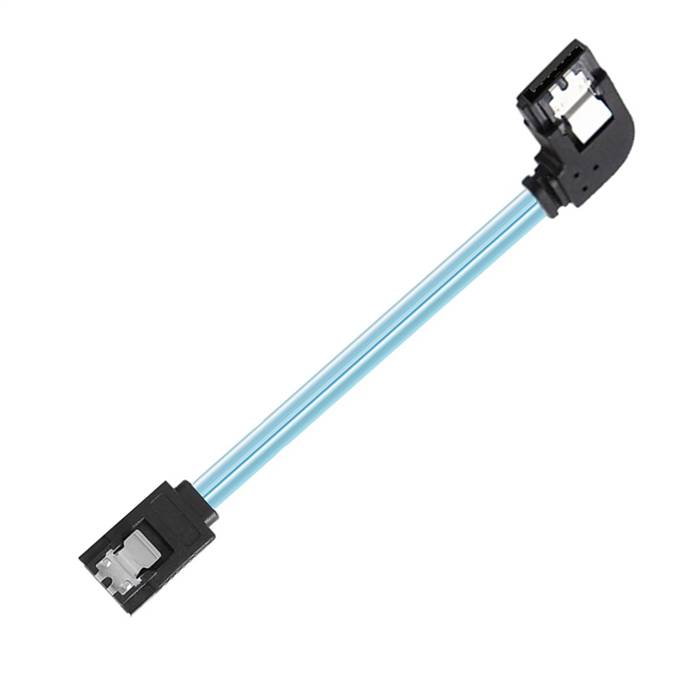

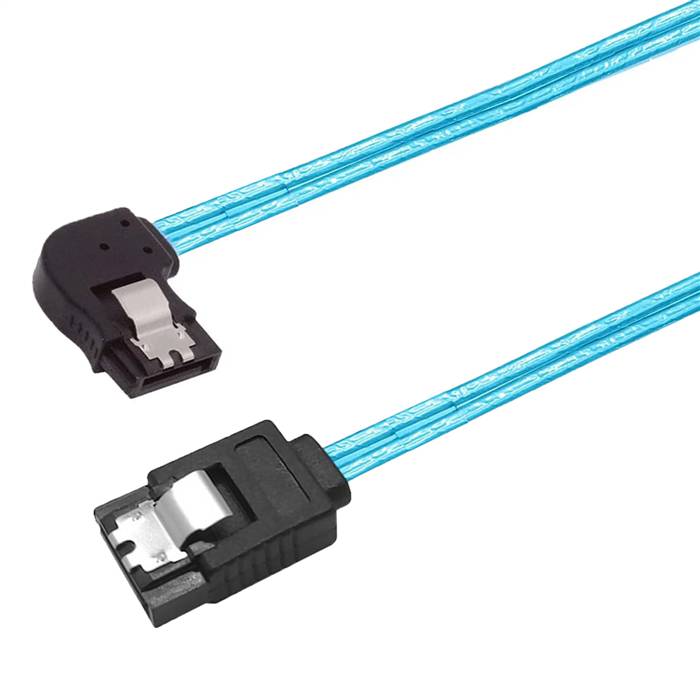

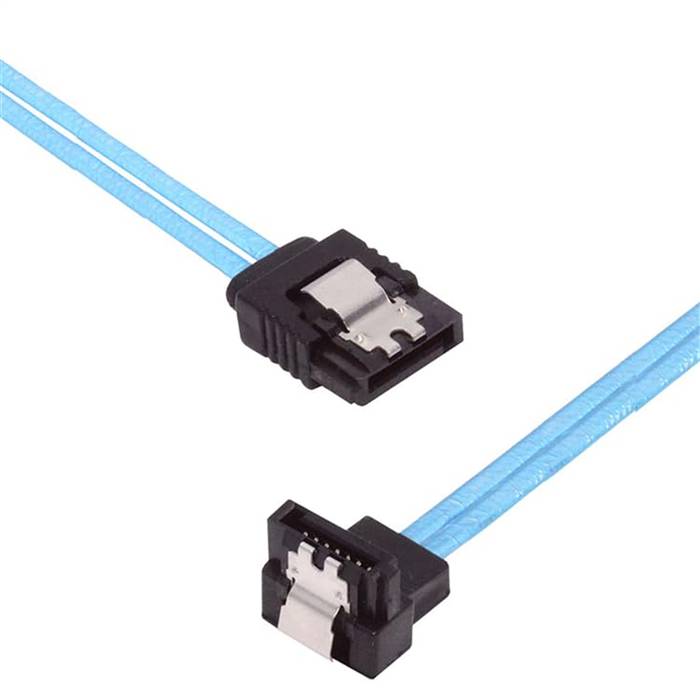

SATA 7Pin to SATA 7Pin Cable, Straight to Left Bend

The SATA 7Pin to SATA 7Pin Cable, Straight to Left Bend is a specialized internal connectivity solution engineered for modern computing and storage systems where unconventional space constraints and unique cable routing requirements exist. This cable features a standard straight connector on one end and a left-bend connector on the other, providing an innovative approach to cable management in asymmetrical or tightly packed configurations. The left-bend design allows for optimized cable routing in specific chassis layouts where traditional straight or right-angle connectors cannot adequately address clearance issues. Engineered to support high-speed data transmission, this cable ensures reliable connectivity between SATA controllers and storage devices while addressing unique spatial challenges in advanced system designs.

Features

• Asymmetrical Connector Design: Straight to left-bend configuration for specialized installation scenarios
• High-Speed Data Transfer: Supports data rates up to 6 Gbps (SATA 3.0)
• Space-Specific Optimization: Left-bend connector addresses unique clearance requirements in asymmetrical layouts
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching (100? ±10%)
• Secure Connection: Gold-plated contacts and positive latching mechanism ensure reliable mating
• EMI Protection: Comprehensive shielding minimizes electromagnetic interference
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices
• Durable Construction: Reinforced strain relief and high-quality materials ensure long-term reliability

Specifications

• Product Model: SATA Straight to Left-Bend Cable
• Connector A: SATA 7-pin, Male, Straight
• Connector B: SATA 7-pin, Male, Left Bend (45-degree orientation)
• Data Rate Support: Up to 6 Gbps (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Flat Cable
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Aluminum foil shielding for EMI protection
• Cable Length: 0.3m, 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm

Applications

• Asymmetrical Chassis Designs: Ideal for non-standard computer cases with unique layout requirements
• Custom Server Configurations: Suitable for proprietary server designs requiring left-oriented cable routing
• High-Density Storage Arrays: Perfect for storage systems where left-bend connectors provide optimal clearance
• Specialized Workstations: Designed for professional workstations with unconventional internal layouts
• OEM and Custom Builds: Essential for system integrators dealing with unique form factor requirements
• Test and Development Environments: Useful for prototyping systems with specific cable routing needs
• Industrial Computing Systems: Suitable for industrial PCs with non-standard internal configurations
• Retrofit and Upgrade Projects: Enables compatibility with legacy systems requiring left-bend connectivity solutions
