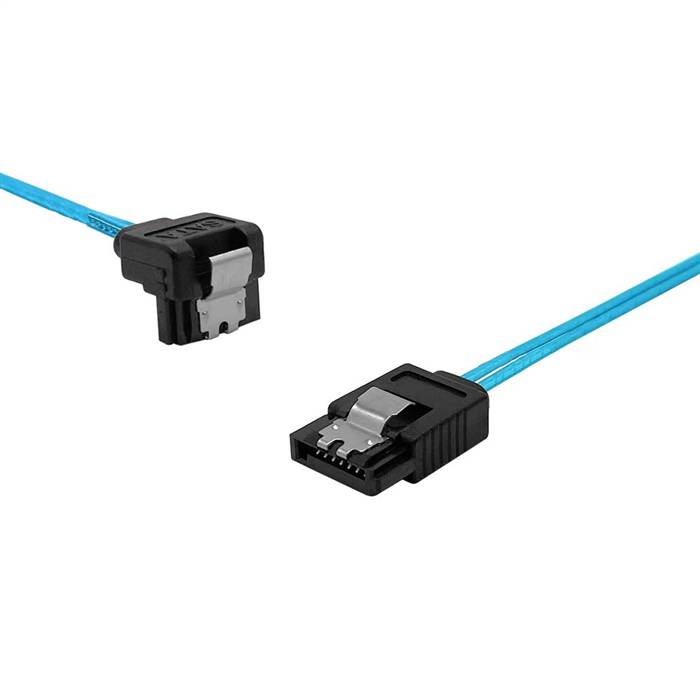

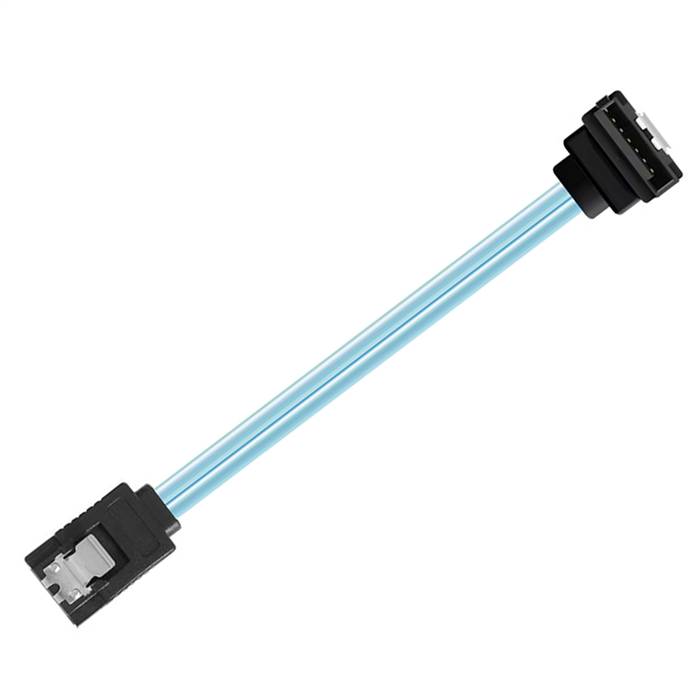

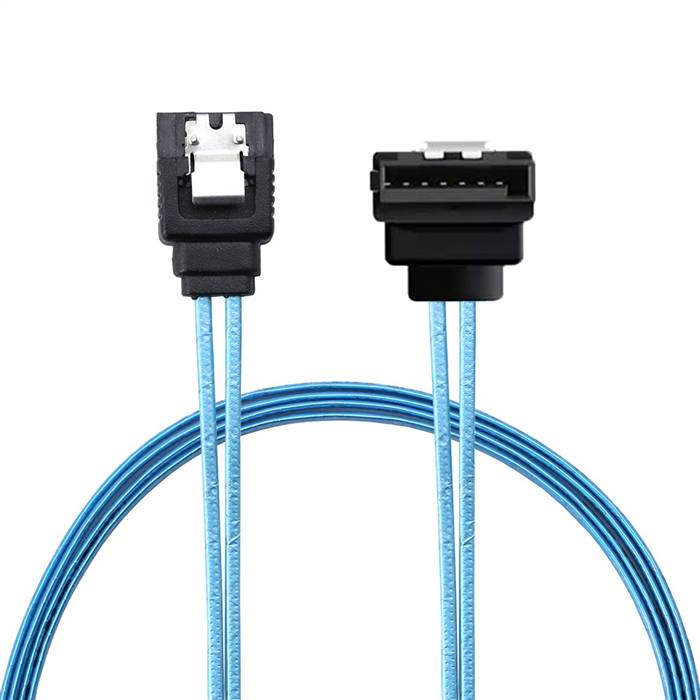

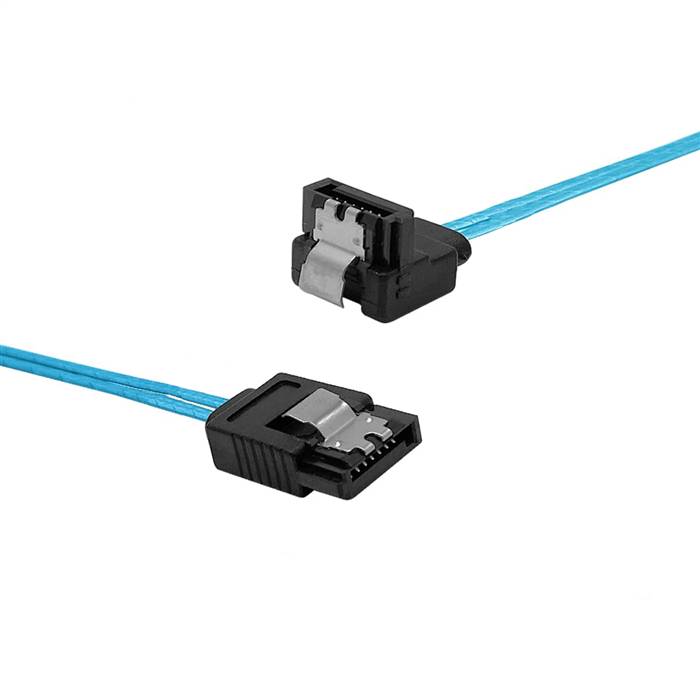

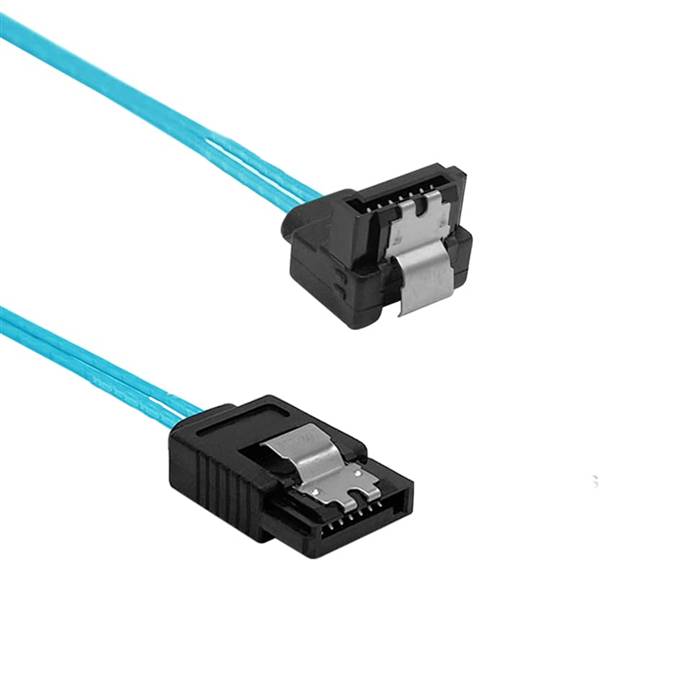

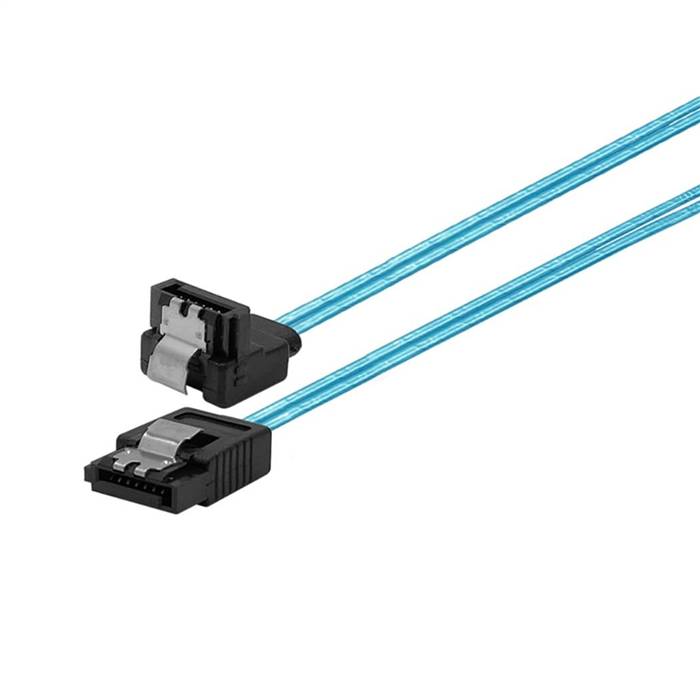

SATA 7Pin to SATA 7Pin Cable, Straight to Right Angle

The SATA 7Pin to SATA 7Pin Cable, Straight to Right Angle is a high-performance internal connectivity solution designed for modern computing and storage systems where space optimization and efficient cable management are critical. This cable features a straight connector on one end and a right-angle connector on the other, providing flexible installation options in tight spaces such as compact desktops, servers, and storage enclosures. Engineered to support high-speed data transmission, this cable ensures reliable connectivity between SATA controllers and storage devices while minimizing cable strain and improving airflow within systems. The right-angle design reduces bending stress and prevents obstruction of adjacent components, making it ideal for high-density configurations.

Features

• Hybrid Connector Design: Straight to right-angle configuration for versatile installation.
• High-Speed Data Transfer: Supports data rates up to 6 Gbps (SATA 3.0).
• Space Optimization: Right-angle connector reduces cable strain and saves space in compact systems.
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching (100? ±10%).
• Secure Connection: Gold-plated contacts and latching mechanism ensure reliable mating.
• EMI Protection: Shielding minimizes electromagnetic interference.
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices.
• Durable Construction: Molded strain relief and high-quality materials ensure longevity.

Specifications

• Product Model: SATA Straight to Right-Angle Cable
• Connector A: SATA 7-pin, Male, Straight
• Connector B: SATA 7-pin, Male, Right Angle
• Data Rate Support: Up to 6 Gbps (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Flat or Round Cable
• Wire Gauge: 26-30 AWG
• Impedance: 100? ±10%
• Shielding: Aluminum foil or braided shielding for EMI protection
• Cable Length: 0.1m, 0.2m, 0.3m, 0.5m (custom lengths available)
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm

Applications

• Compact Desktop Systems: Ideal for small form factor PCs where space is limited.
• Server and Storage Enclosures: Enables efficient cable routing in high-density racks.
• Gaming Consoles: Provides flexible connectivity for internal storage upgrades.
• NAS Devices: Suitable for network-attached storage systems requiring optimized cable management.
• Digital Signage and Media Players: Ensures reliable connections in space-constrained environments.
• OEM and Custom Builds: Designed for system integrators needing tailored cable solutions.
• Test and Development Labs: Useful for prototyping and validating storage configurations.
• Home Theater PCs: Optimizes airflow and reduces clutter in entertainment systems.
