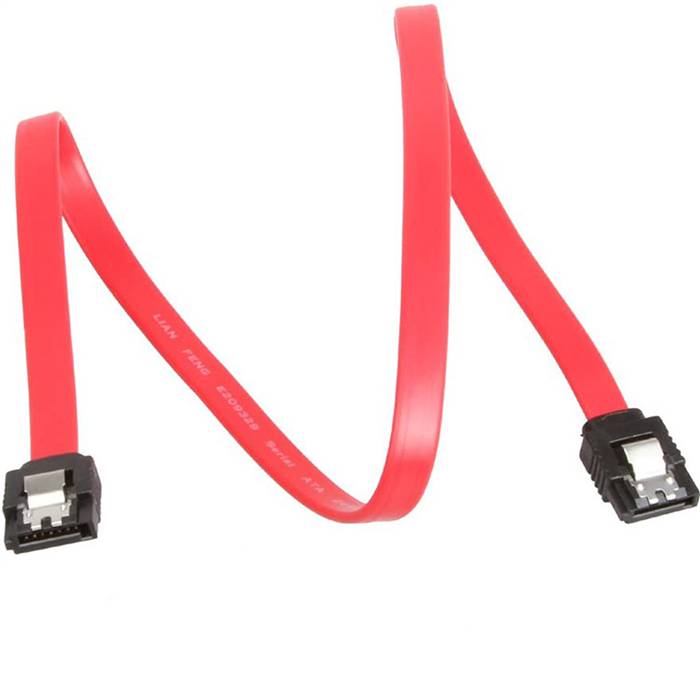

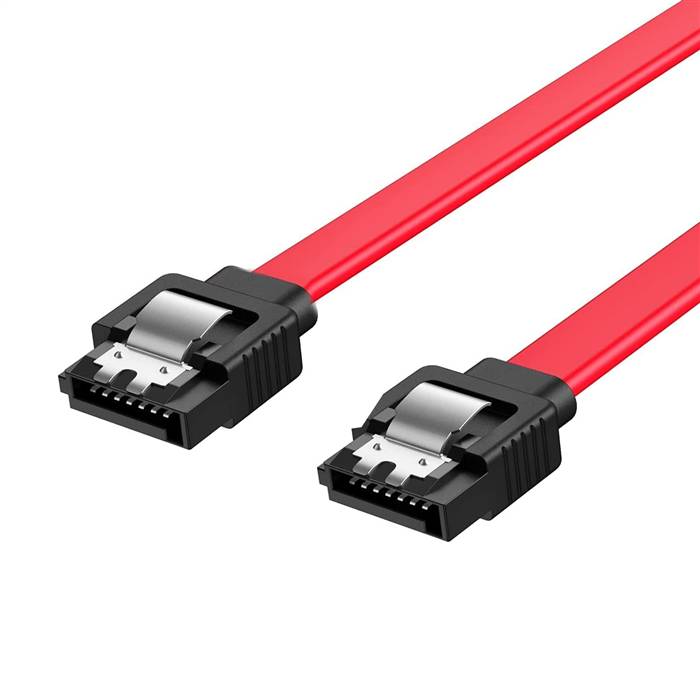

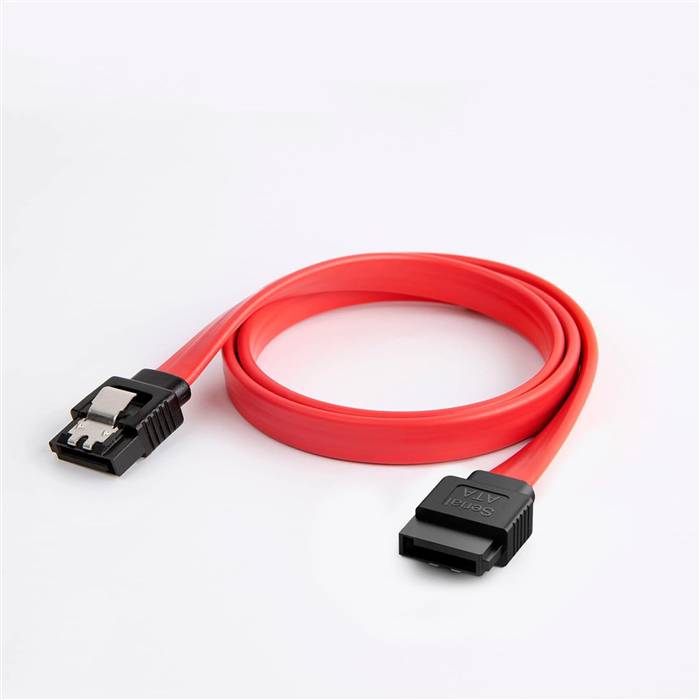

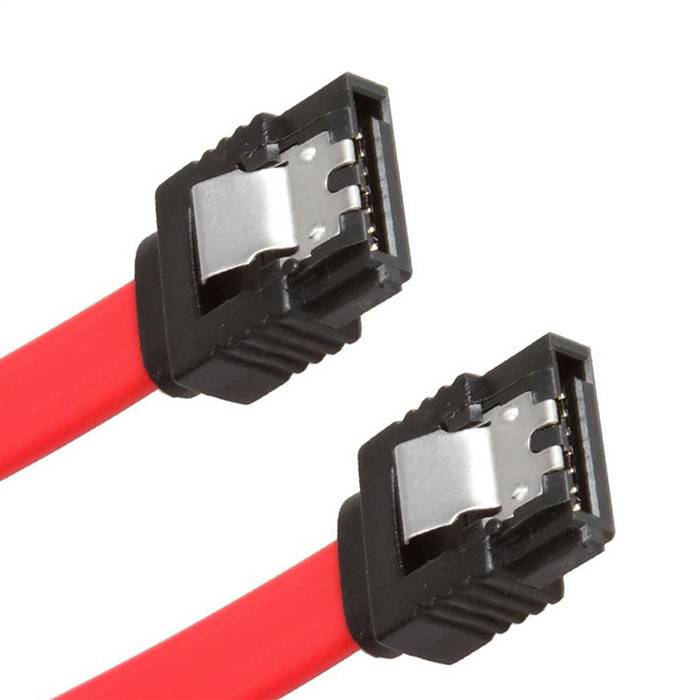

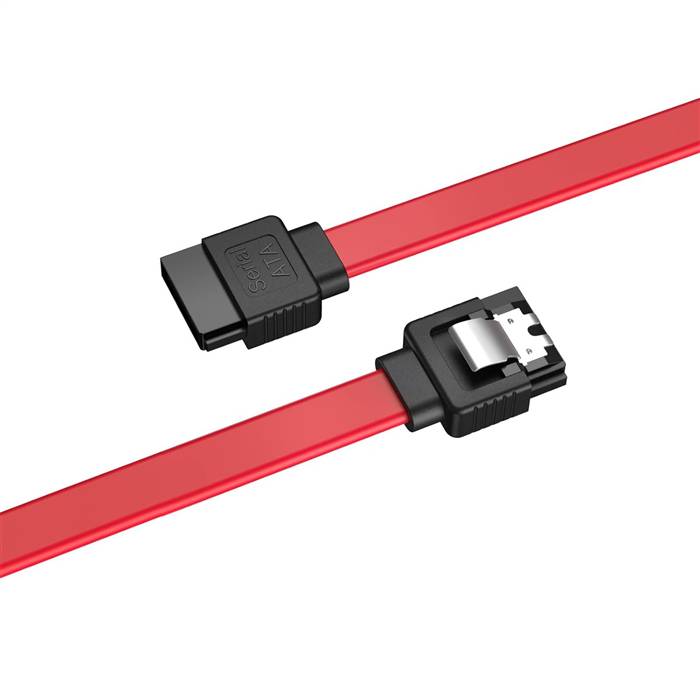

SATA 7Pin to SATA 7Pin Red Cable, Straight to Straight

The SATA 7Pin to SATA 7Pin Red Cable, Straight to Straight is a high-performance internal connectivity solution designed for modern computing and storage systems where durability, visual identification, and reliable data transmission are essential. This cable features straight connectors on both ends with a distinctive red color, providing easy identification in complex setups while ensuring optimal signal integrity. Engineered with precision-molded connectors and high-quality conductors, this cable supports the full SATA 3.0 specification while maintaining backward compatibility with earlier SATA standards. The straight connector design facilitates easy installation in various system configurations, and the red color enhances visibility for efficient cable management. This solution is ideal for desktop computers, servers, storage arrays, and other devices requiring internal SATA connectivity with improved organization and durability.

Features

• Dual Straight Connectors: Straight connectors on both ends for easy installation and cable management
• Distinctive Red Color: Enhances visual identification and organization in complex setups
• High-Speed Data Transfer: Supports data rates up to 6 Gbps (SATA 3.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching
• Secure Connection: Gold-plated contacts and secure latching mechanism ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices
• Durable Construction: Molded strain relief and high-quality materials ensure long-term reliability
• Flexible Design: Thin and flexible cable for easy routing in tight spaces

Specifications

• Product Model: SATA 7Pin Straight to Straight Red Cable
• Connectors: 2x SATA 7-pin, Male, Straight
• Color: Red (throughout cable and connectors)
• Data Rate Support: Up to 6 Gbps (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Flat Cable
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Aluminum foil shielding for EMI protection
• Cable Length: 0.2m, 0.3m, 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm

Applications

• Desktop Computers: Connecting motherboards to internal hard drives and SSDs with enhanced visibility
• Server Systems: Internal storage connections in rack servers and storage systems requiring color-coded organization
• Storage Arrays: Drive connections in RAID arrays and storage enclosures where quick identification is crucial
• Gaming Rigs: High-performance gaming systems with windowed cases where aesthetics matter
• Workstations: Professional workstations requiring reliable and easily identifiable storage connections
• Data Centers: Large-scale deployments where color-coded cables simplify maintenance and troubleshooting
• OEM Applications: Designed for system integrators and manufacturers requiring reliable SATA connectivity with visual organization
• Test Benches: Laboratory environments where quick cable identification improves efficiency

Note: The red color provides both aesthetic appeal and functional benefits by making the cable easily identifiable in complex systems. This is particularly useful in environments with multiple cables where quick identification reduces maintenance time and improves organization. The cable maintains all the performance characteristics of standard SATA cables while offering enhanced visual distinction.
