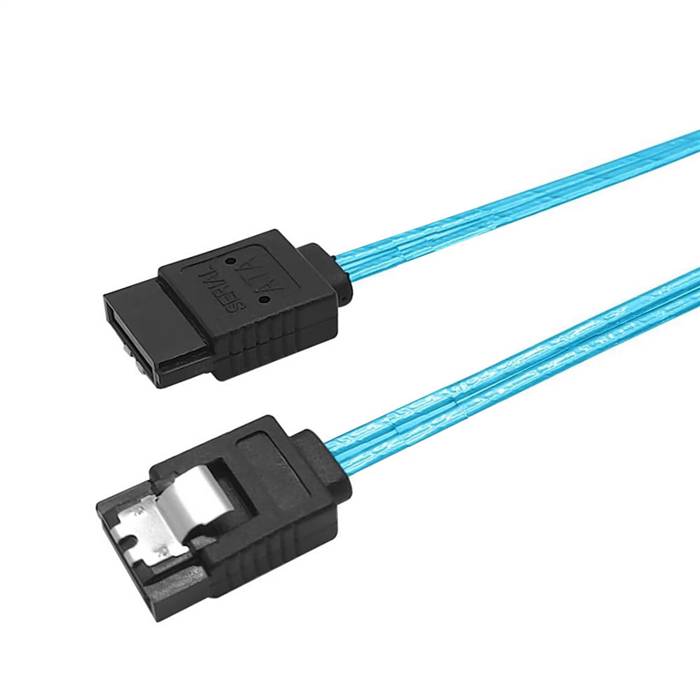

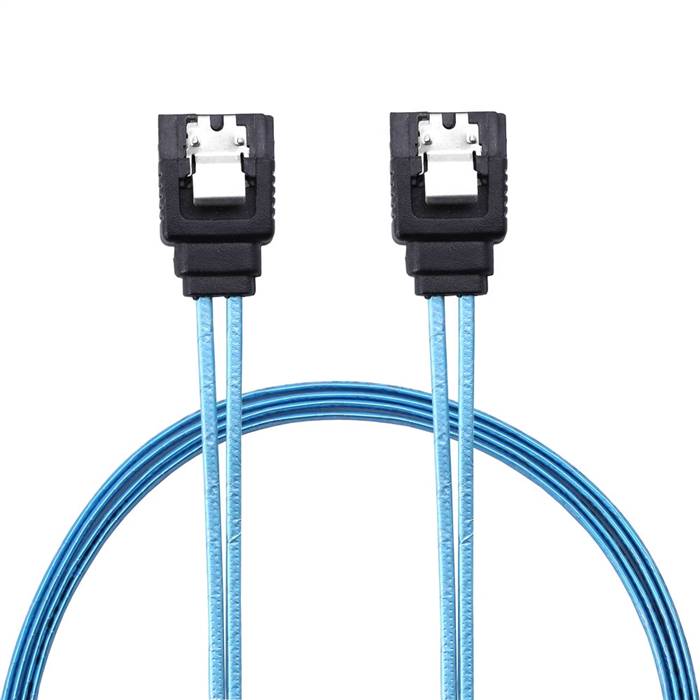

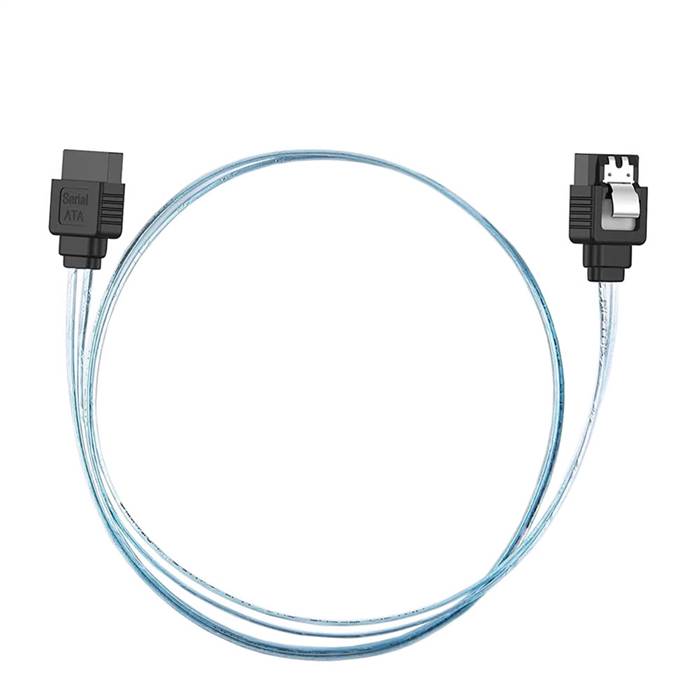

SATA 7Pin to SATA 7Pin Cable, Straight to Straight

The SATA 7Pin to SATA 7Pin Cable, Straight to Straight is a high-performance connectivity solution designed for internal storage systems and data transfer applications. This cable provides a reliable point-to-point connection between SATA devices with straight connectors on both ends, ensuring optimal signal integrity and data transmission performance. Engineered with precision-molded connectors and high-quality conductors, this cable supports the full SATA 3.0 specification while maintaining backward compatibility with earlier SATA standards. The straight connector design facilitates easy installation in various system configurations, making it ideal for desktop computers, servers, storage arrays, and other devices requiring internal SATA connectivity.

Features

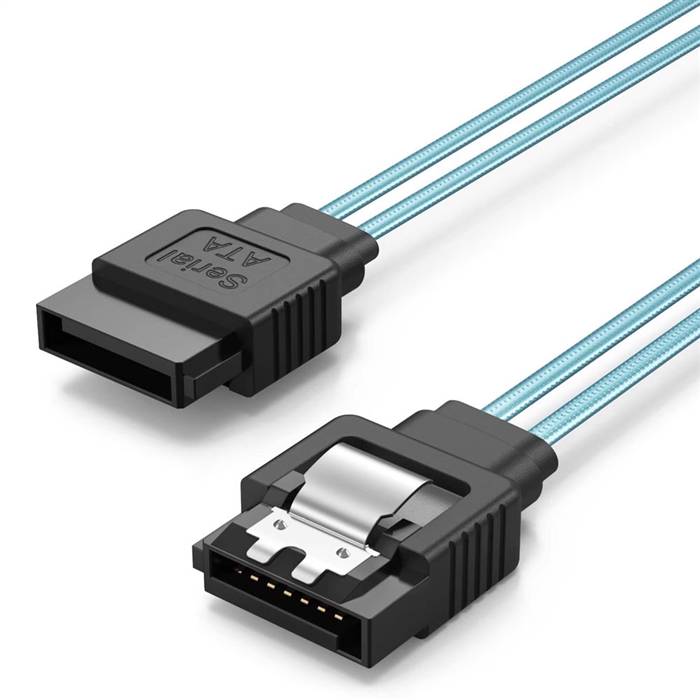

• Dual Straight Connectors: Features straight connectors on both ends for easy installation and cable management
• High-Speed Data Transfer: Supports data rates up to 6 Gbps (SATA 3.0)
• Enhanced Signal Integrity: Precision engineering with optimized impedance matching
• Secure Connection: Gold-plated contacts and secure latching mechanism ensure reliable mating
• Backward Compatibility: Fully compatible with SATA 2.0 and SATA 1.0 devices
• Quality Construction: Molded strain relief for durability and cable protection
• Flexible Design: Thin and flexible cable for easy routing in tight spaces
• Reliable Performance: Designed for continuous operation in various environments

Specifications

• Product Model: SATA 7Pin Straight to Straight Cable

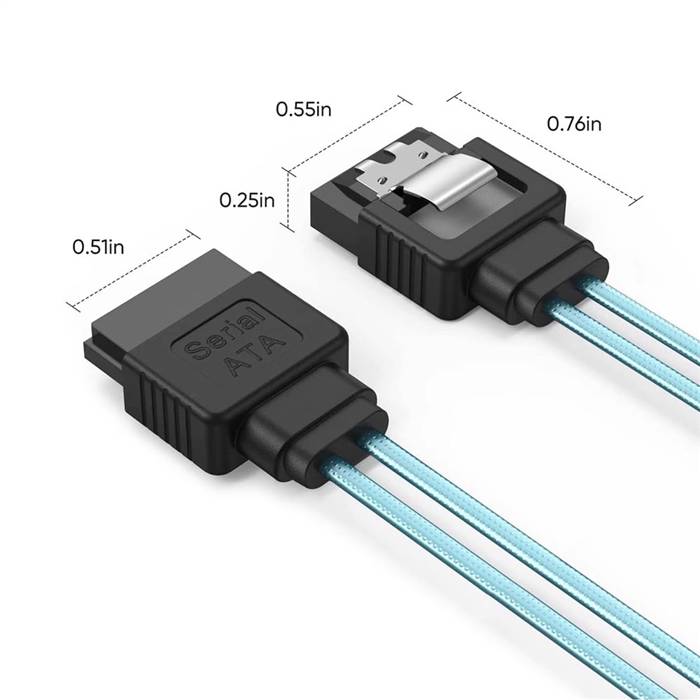

• Connectors: 2x SATA 7-pin, Male, Straight
• Data Rate Support: Up to 6 Gbps (SATA 3.0)
• Supported Protocols: SATA 3.0, 2.0, 1.0
• Cable Type: Internal Grade, Flat Cable
• Wire Gauge: 30 AWG
• Impedance: 100? ±10%
• Shielding: Aluminum foil shielding for EMI protection
• Cable Length: 0.3m, 0.5m, 1.0m
• Operating Temperature: 0°C to +70°C
• Durability Rating: 5,000 mating cycles
• Minimum Bend Radius: 25mm

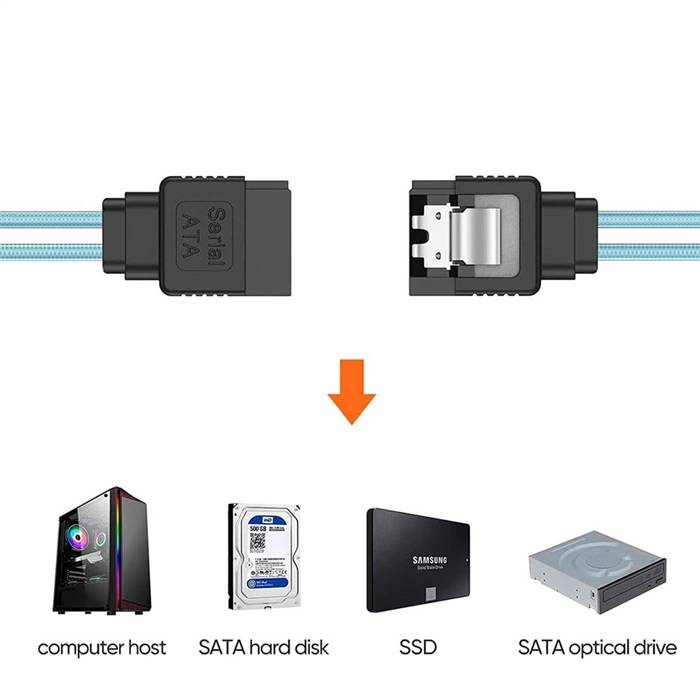

Applications

• Desktop Computers: Connecting motherboards to internal hard drives and SSDs
• Server Systems: Internal storage connections in rack servers and storage systems
• Storage Arrays: Drive connections in RAID arrays and storage enclosures
• Gaming Consoles: Internal storage expansion and upgrades
• Digital Signage: Storage connections in media playback systems
• NAS Devices: Internal drive connections in network-attached storage systems
• Workstations: High-performance storage connections in professional workstations
• OEM Applications: Designed for system integrators and manufacturers requiring reliable SATA connectivity
